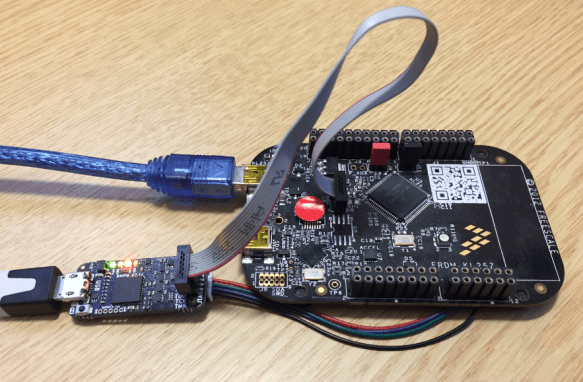

The ‘Black Magic Probe’ (or in short: BMP) is a very small and open source JTAG/SWD debug probe with a build-in GDB Server. I saw that probe referenced in different places, so I thought I try it out with a few of my NXP LPC and Kinetis boards:
The probe is designed by 1BitSquared in collaboration with Black Sphere Technologies and is open source. It runs on a ‘native’ probe hardware (which I bought) or the firmware can be programmed on different STLink hardware.
I ordered the BMP from Adafruit ($60). The probe comes as a very small board (35x15mm), and the kit included the 10pin SWD cable and a 4pin UART cable. The probe includes a UART-2-USB CDC functionality, so this is definitely a plus.
I wanted to try it out with Eclipse and see if it would be a good fit for my projects or for student projects. Here is what I have used:
- Black Magic Debug Probe, HW version 2.1, ordered from Adafruit.
- Probe firmware: (Firmware v1.6.1-1-g74af1f5) (Hardware Version 3)
- Eclipse: NXP MCUXpresso IDE v11.0.0
💡 Be aware that only a few target and devices are supported by the BMP! Make sure your device is listed! But if the device is listed might not mean that every package or derivative is supported, so better check.
The board enumerates under Windows with two serial ports (the first one is the debug port, the second one the UART-2-USB port).
💡 because my probe already has the latest firmware, I did not update it with the ‘Black Magic Firmware Upgrade’. For more details, see this link. The DFU utility is available on http://dfu-util.sourceforge.net/
💡 I did not had the time to try out the ‘Black Magic Trace Capture’ which looks interesting, but seems to be experimental. More information in this link.
Different than other GDB JTAG/SWD with the client/server concept, this probe already implements the GDB server *inside* the probe. So instead connecting to a (local or remote) GDB server, I connect to the (first) serial port (in my case: COM80) which probe implements. On one end this makes things simpler (no need to provide or run the server binary which needs to be implemented for each host), on the other side it makes it less flexible (so no remote debugging except through COM port sharing).
So instead connecting from the GDB to a USB or TCP port, I have to connect using the
gdb command. To make things a bit strange, it requires a ‘\\.\’ prefix on Windows if the port number is >10 (which is the case on my machine):
target extended-remote \\.\COM81
I recommend to run the probe first with the command line gdb, and after this works, move up to using it with Eclipse.
Command line GDB
💡 Make sure that the GDB version used is from the *same* toolchain/gcc which was used to build the binary! A mismatch of gcc and gdb can cause strange failures!
Using the GNU ARM toolchain in the MCUXpresso V11.0.0, the GDB is located in (adapt to your installation path):
C:\nxp\MCUXpressoIDE_11.0.0_2516\ide\tools\bin\arm-none-eabi-gdb.exe: warning: Couldn't determine a path for the index cache directory. GNU gdb (GNU Tools for Arm Embedded Processors 8-2018-q4-major) 220.127.116.1181213-git Copyright (C) 2018 Free Software Foundation, Inc. License GPLv3+: GNU GPL version 3 or later <http://gnu.org/licenses/gpl.html> This is free software: you are free to change and redistribute it. There is NO WARRANTY, to the extent permitted by law. Type "show copying" and "show warranty" for details. This GDB was configured as "--host=i686-w64-mingw32 --target=arm-none-eabi". Type "show configuration" for configuration details. For bug reporting instructions, please see: <http://www.gnu.org/software/gdb/bugs/>. Find the GDB manual and other documentation resources online at: <http://www.gnu.org/software/gdb/documentation/>. For help, type "help". Type "apropos word" to search for commands related to "word". (gdb)
Allow gdb to access memory outside of the memory map:
(gdb) set mem inaccessible-by-default off
Connect to the port of the BMD:
(gdb) target extended-remote \\.\COM81
Use ‘monitor help’ to get a list of supported monitor commands:
(gdb) monitor help General commands: version -- Display firmware version info help -- Display help for monitor commands jtag_scan -- Scan JTAG chain for devices swdp_scan -- Scan SW-DP for devices targets -- Display list of available targets morse -- Display morse error message connect_srst -- Configure connect under SRST: (enable|disable) hard_srst -- Force a pulse on the hard SRST line - disconnects target tpwr -- Supplies power to the target: (enable|disable) traceswo -- Start trace capture
Scan the SWD chain for targets:
which gives for the FRDM-KL25Z:
(gdb) monitor swdp_scan Target voltage: 3.0V Available Targets: No. Att Driver 1 KL25 2 Kinetis Recovery (MDM-AP) (gdb)
Attach to the first device in the list (the second one for the KL25Z is an artificial one for flash recovery):
Then load the binary with
💡 be patient, flashing is rather slow (~2 KB/sec) for KL25Z.
Then ‘kill’ the program which will reset and run the target:
Finally, I can now exit the GDB with:
With these steps, I have something I can automate. I can put this into a script file:
set mem inaccessible-by-default off target extended-remote \\.\COM81 monitor swdp_scan attach 1 load kl25z.axf #compare-sections kill quit
and then call gdb with that script:
"C:\nxp\MCUXpressoIDE_11.0.0_2516\ide\tools\bin\arm-none-eabi-gdb.exe" -x gdbscript.txt
Debug with Eclipse
With having a working setup using command line tools, it is now time to do the same with Eclipse: in my case with the MCUXpresso IDE.
First, create a new debug configuration for the project under ‘GDB Hardware Debugging’:

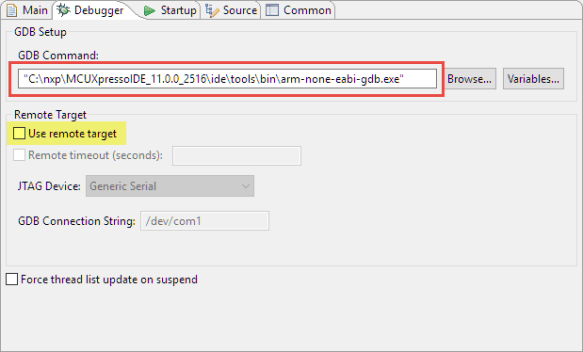

In the ‘Debugger’ Tab, point to the gdb executable with ‘use remote target’ unchecked:
In the ‘Startup tab’ use the following settings (adapt to your COM port):
set mem inaccessible-by-default off target extended-remote \\.\COM81 monitor swdp_scan attach 1

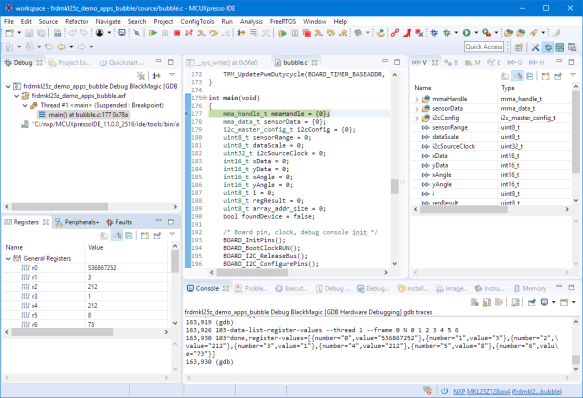

With this I can use Eclipse and source level debug the board 🙂 :
I was able to get the probe quickly working for the KL25Z microcontroller. But I failed to get it working for the other targets.
The KL27 is supposed to be supported, but the probe only reports a generic ARM Cortex-M:
(gdb) monitor swdp_scan Target voltage: 3.3V Available Targets: No. Att Driver 1 ARM Cortex-M 2 Kinetis Recovery (MDM-AP)
The LPC824 is detected (as LPC82x):
(gdb) monitor swdp_scan Target voltage: 3.3V Available Targets: No. Att Driver 1 LPC82x
But loading always fails:
(gdb) load lpc824.axf Loading section .text, size 0x6954 lma 0x0 Load failed
Most of the time it fails with
Error erasing flash with vFlashErase packet
GDB gave a hint about
warning: No executable has been specified and target does not support determining executable automatically. Try using the "file" command.
but using ‘file’ failed too:
Load new symbol table from "lpc824.axf"? (y or n) y Reading symbols from lpc824.axf... Could not read registers; remote failure reply 'EFF'
This sounds like a problem of BMP firmware, but I had no time to investigate further.
The Black Magic Probe implements a GDB server on the probe itself. I managed to get it working with the FRDM-KL25Z both in command line mode and Eclipse. The probe is rather expensive compared to the $20 of an NXP LPC-Link2 or Euro 20 for a Segger J-Link EDU Mini, but on the other side this supports an open source development so I’ ok with it. The included UART-2-Serial converter is a plus. Flash programming (compared to other probes) at least for Kinetis is slow.
I had it working quickly for the Kinetis KL25Z (FRDM-KL25Z) board but failed to get it working with the NXP LPC boards I tried. If I find a solution, I’ll update this article with it.
Happy Black Magic Spelling 🙂
