Yesterday was my ‘lucky day’: My Kinetis-L Freedom board arrived :-). This board is really nice and features the KL25Z from the recently announced Kinetis L Family. And guess what is the first thing I want to flash on that processor? Yep: some FreeRTOS tasks. But to get there, a few important things have to be sorted out:
- Get the board up and running
- Get a compiler and Eclipse panels for the ARM Cortex-M0+
- Extend the Processor Expert FreeRTOS component to work with GCC and Cortex-M4 and M0+
- Test, Debug and Celebrate 🙂
The Freedom Board
The board can be ordered from Farnell for only about 10 Euro.
Note: I received a board directly from Freescale. The FRDM-KL25Z will be available publicly from end Sept. My Farnell/Element14 order shows 25. Sept. 2012.
The board has a nice and small form factor of 81 mm x 54 mm which makes it ideal for a lot of applications.
I love the headers as they will allow me to plug in other boards. The board is aimed to use Arduino shields. What shields are compatible is not clear yet, but the connector is able to provide 5V, while using 3.3V signals.
There are two mini USB connectors on the board: one is the target USB connector (the KL25Z implements USB), the other is the on-board debug connector. Yes, like the Tower board the Freedom board has on-board debug solution on it. Connecting the board using the debug connector automatically installs the drivers.
The debug connection features a bootloader similar to the Processor Expert USB Bootloader component. So with it is possible to program new firmware/software with simple copy or drag&drop of a file. Really nice, and looking forward to explore this more in the future.
Freescale ARM Cortex-M0+
The microcontroller on the board is a Kinetis KL25Z128 which is an ARM Cortex-M0+.

ARM Cortex-M0+
The instruction set is a subset of the Cortex-M4, while compatible with the Cortex-M0. The Cortex-M0+ is a very energy efficient microcontroller as demonstrated by Freescale at FTF 2012.
GCC and Eclipse Panels
The question is: what tool chain to use for Cortex-M0+? The good news is that there is a GCC maintained by ARM available both for Cortex-M0+ and Cortex-M4. Additionally, there are ARM GCC Eclipse panels available too. With this, it is not too hard to have a working Eclipse environment.
FreeRTOS Processor Expert Component
Next task was to make the Processor Expert component to work with GCC. This mainly means to change the port so it works with the GCC assembly syntax. For this the port.c of the FreeRTOS distribution had to be changed and extended. As I had a FreeRTOS port for CodeWarrior and Kinetis K-Family working, I was testing it first with a Cortex-M4 (Kinetis K60 Tower board). Below is an extract of the code which deals both with M4 and M0+:
__attribute__ ((naked)) void vPortSVCHandler(void) { #if FREERTOS_CPU_CORTEX_M==4 /* Cortex M4 */ __asm volatile ( " ldr r3, pxCurrentTCBConst2 \n" /* Restore the context. */ " ldr r1, [r3] \n" /* Use pxCurrentTCBConst to get the pxCurrentTCB address. */ " ldr r0, [r1] \n" /* The first item in pxCurrentTCB is the task top of stack. */ /* pop the core registers */ " ldmia r0!, {r4-r11} \n" " msr psp, r0 \n" " mov r0, #0 \n" " msr basepri, r0 \n" " orr r14, r14, #13 \n" " bx r14 \n" " \n" " .align 2 \n" "pxCurrentTCBConst2: .word pxCurrentTCB \n" ); #else /* Cortex M0+ */ __asm volatile ( " ldr r3, pxCurrentTCBConst2 \n" /* Restore the context. */ " ldr r1, [r3] \n" /* Use pxCurrentTCBConst to get the pxCurrentTCB address. */ " ldr r0, [r1] \n" /* The first item in pxCurrentTCB is the task top of stack. */ " add r0, r0, #16 \n" /* Move to the high registers. */ " ldmia r0!, {r4-r7} \n" /* Pop the high registers. */ " mov r8, r4 \n" " mov r9, r5 \n" " mov r10, r6 \n" " mov r11, r7 \n" " \n" " msr psp, r0 \n" /* Remember the new top of stack for the task. */ " \n" " sub r0, r0, #32 \n" /* Go back for the low registers that are not automatically restored. */ " ldmia r0!, {r4-r7} \n" /* Pop low registers. */ " mov r1, r14 \n" /* OR R14 with 0x0d. */ " movs r0, #0x0d \n" " orr r1, r0 \n" " bx r1 \n" " \n" ".align 2 \n" "pxCurrentTCBConst2: .word pxCurrentTCB \n" ); #endif }
My First Freedom Application
After a few iterations, my FreeRTOS Processor Expert component worked with all the previous cores and compilers, plus with GCC for Cortex-M4 and Cortex-M0+.
The Freedom board has a RGB LED on that board, so my first application was to run 3 task, each toggling one color of the LED. For this I added 3 LED components to my project:
Source code of the demo application where APP_RUN() is called from main():
/* * Application.c * Author: Erich Styger */ #include "Application.h" #include "LED1.h" #include "LED2.h" #include "LED3.h" #include "FRTOS1.h" #include "WAIT1.h" static portTASK_FUNCTION(Task1, pvParameters) { (void)pvParameters; /* parameter not used */ for(;;) { LED1_Neg(); FRTOS1_vTaskDelay(1000/portTICK_RATE_MS); } } static portTASK_FUNCTION(Task2, pvParameters) { (void)pvParameters; /* parameter not used */ for(;;) { LED2_Neg(); FRTOS1_vTaskDelay(1050/portTICK_RATE_MS); } } static portTASK_FUNCTION(Task3, pvParameters) { (void)pvParameters; /* parameter not used */ for(;;) { LED3_Neg(); FRTOS1_vTaskDelay(2080/portTICK_RATE_MS); } } void APP_Run(void) { uint16_t i; for(i=0;i<4;i++) { LED1_Neg(); LED2_Neg(); LED3_Neg(); WAIT1_Waitms(250); } if (FRTOS1_xTaskCreate( Task1, /* pointer to the task */ (signed portCHAR *)"Task1", /* task name for kernel awareness debugging */ configMINIMAL_STACK_SIZE, /* task stack size */ (void*)NULL, /* optional task startup argument */ tskIDLE_PRIORITY, /* initial priority */ (xTaskHandle*)NULL /* optional task handle to create */ ) != pdPASS) { /*lint -e527 */ for(;;){}; /* error! probably out of memory */ /*lint +e527 */ } if (FRTOS1_xTaskCreate( Task2, /* pointer to the task */ (signed portCHAR *)"Task2", /* task name for kernel awareness debugging */ configMINIMAL_STACK_SIZE, /* task stack size */ (void*)NULL, /* optional task startup argument */ tskIDLE_PRIORITY, /* initial priority */ (xTaskHandle*)NULL /* optional task handle to create */ ) != pdPASS) { /*lint -e527 */ for(;;){}; /* error! probably out of memory */ /*lint +e527 */ } if (FRTOS1_xTaskCreate( Task3, /* pointer to the task */ (signed portCHAR *)"Task3", /* task name for kernel awareness debugging */ configMINIMAL_STACK_SIZE, /* task stack size */ (void*)NULL, /* optional task startup argument */ tskIDLE_PRIORITY, /* initial priority */ (xTaskHandle*)NULL /* optional task handle to create */ ) != pdPASS) { /*lint -e527 */ for(;;){}; /* error! probably out of memory */ /*lint +e527 */ } FRTOS1_vTaskStartScheduler(); }

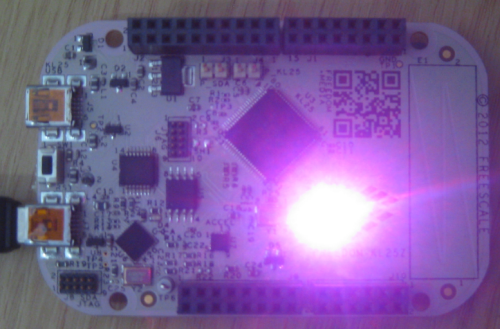

This creates a nice colorful changing ambient light: brightness with Freedom :-):
Happy Freedom 🙂
PS: the updated Processor Expert component for FreeRTOS with added GCC and Cortex-M0+ support is available here.
