Sometimes things take longer than anticipated. And this is definitely the case for my USB MSD Host project where I wanted to use a USB memory stick with the Freedom FRDM-KL25Z board.
But finally, I have things working. At least most of the time ….
USB MSD Host
The USB MSD (Mass Storage Device) class is designed to be used for things like diskette drives, hard drives or memory sticks. To attach a memory stick to the USB bus, the memory stick is usally a USB device, and the other side needs to be the host. The first barrier to overcome is the FRDM-KL25Z board does *not* give the needed 5V to the USB bus which is required for the host mode. To overcome this, I’m using a patched USB cable as outlined in this post.
File System
While it is possible to use the MSD device as a ‘raw’ device (doing raw block read/write operation), the usual way is to use the device with a file system on it. I’m using the open source FatFS with SD cards successfully already in many projects, so I decided to use FatFS in this project too.
Operating System
While it is possible to add USB MSD Host support in bare metal (without RTOS), using an RTOS makes it much more convenient and less complicated. I have ported the Freescale USB stack for this project. While the stack itself does not assume an RTOS, many aspects of the stack like memory management or periodic polling of the USB device block are handled in such a complicated way, that I think using it without the help of an RTOS makes things really difficult. Especially the dynamic memory management in the USB stack had many inconsistencies, and to track potential memory leaks the help of FreeRTOS was critical. So this is what I ended up using: FreeRTOS.
Processor Expert Components
The example project (link at the end of this article) has several Processor Expert components. Beside of the RTOS, it has components for LED’s, a command line shell implementation, the FatFS file system and the USB Host components:
FatFs Memory
The FatFsMem_USB_MSD component implements the ‘memory’ device for FatFs: it allows to read and write to the device. The FatFs low-level routines are not exposed for the user application, as used internally by FatFs. What are exposed is are initialization and utility routines:
Freescale USB Stack Component
My custom USB stack component is using the Init component to initialize the low-level USB peripheral of the Kinetis device. Additionally it includes the FSL_USB_MSD_Host component which is a wrapper to the Freescale USB stack:
Host Task
The USB stack needs to be polled periodically to do the USB transactions. I have implemented this like this as a FreeRTOS task:
/* * host.c * Author: Erich Styger */ #include "host.h" #include "msd_commands.h" #include "CLS1.h" #include "FRTOS1.h" #include "FsMSD1.h" static void print(unsigned char *str) { CLS1_SendStr(str, CLS1_GetStdio()->stdOut); } static void CheckStatus(void) { switch (FsMSD1_GetDeviceStatus()) { case USB_DEVICE_IDLE: break; case USB_DEVICE_ATTACHED: print((unsigned char*)"Mass Storage Device Attached\n" ); break; case USB_DEVICE_SET_INTERFACE_STARTED: break; case USB_DEVICE_INTERFACED: break; case USB_DEVICE_DETACHED: print((unsigned char*)"\nMass Storage Device Detached\n" ); break; case USB_DEVICE_OTHER: break; default: print((unsigned char*)"Unknown Mass Storage Device State\n"); break; } /* switch */ } static portTASK_FUNCTION(HostTask, pvParameters) { (void)pvParameters; /* not used */ FsMSD1_HostInit(); for(;;) { FsMSD1_AppTask(); CheckStatus(); FRTOS1_vTaskDelay(10/portTICK_RATE_MS); } } void HOST_Init(void) { if (FRTOS1_xTaskCreate(HostTask, (signed portCHAR *)"Host", configMINIMAL_STACK_SIZE, NULL, tskIDLE_PRIORITY+2, NULL) != pdPASS) { for(;;){} /* error */ } }
After initialization using FsMSD1_HostInit()
, it periodically calls the polling routine FsMSD1_AppTask()
. CheckStatus()
is used to print a message if a device is attached or removed. The “Host” task is running with a higher priority to make sure the USB bus is served often enough.
Shell Support
I have recently added command line support to the FatFs Processor Expert component. That way it is really easy to add a command line interface to the application where I can inspect the file system, copy files, dump files, etc. The user application part of the shell is implemented in a task, and the command line handlers are listed in a table:
/* * Shell.c * Author: Erich Styger */ #include "Application.h" #include "FRTOS1.h" #include "Shell.h" #include "CLS1.h" #include "LEDR.h" #include "LEDG.h" #include "FAT1.h" #include "Host.h" static const CLS1_ParseCommandCallback CmdParserTable[] = { CLS1_ParseCommand, #if LEDR_PARSE_COMMAND_ENABLED LEDR_ParseCommand, #endif #if LEDG_PARSE_COMMAND_ENABLED LEDG_ParseCommand, #endif #if LEDB_PARSE_COMMAND_ENABLED LEDB_ParseCommand, #endif #if FRTOS1_PARSE_COMMAND_ENABLED FRTOS1_ParseCommand, #endif #if RTC1_PARSE_COMMAND_ENABLED RTC1_ParseCommand, #endif #if FAT1_PARSE_COMMAND_ENABLED FAT1_ParseCommand, #endif NULL /* sentinel */ }; static portTASK_FUNCTION(ShellTask, pvParameters) { bool cardMounted = FALSE; static FAT1_FATFS fileSystemObject; unsigned char buf[48]; (void)pvParameters; /* not used */ buf[0] = '\0'; (void)CLS1_ParseWithCommandTable((unsigned char*)CLS1_CMD_HELP, CLS1_GetStdio(), CmdParserTable); for(;;) { (void)FAT1_CheckCardPresence(&cardMounted, 0 /* volume */, &fileSystemObject, CLS1_GetStdio()); (void)CLS1_ReadAndParseWithCommandTable(buf, sizeof(buf), CLS1_GetStdio(), CmdParserTable); FRTOS1_vTaskDelay(10/portTICK_RATE_MS); LEDG_Neg(); } } void SHELL_Init(void) { if (FRTOS1_xTaskCreate(ShellTask, (signed portCHAR *)"Shell", configMINIMAL_STACK_SIZE+300, NULL, tskIDLE_PRIORITY+1, NULL) != pdPASS) { for(;;){} /* error */ } }
Because some of the FatFS shell operations like to copy a file are using a local buffer on the stack, the task stack size is higher than for the other tasks in the system.
Command Line Interface
The following shows the command line interface:
With the commands it is possible copy/delete/rename/etc files, or to print the current directory:
Dynamic Memory Usage

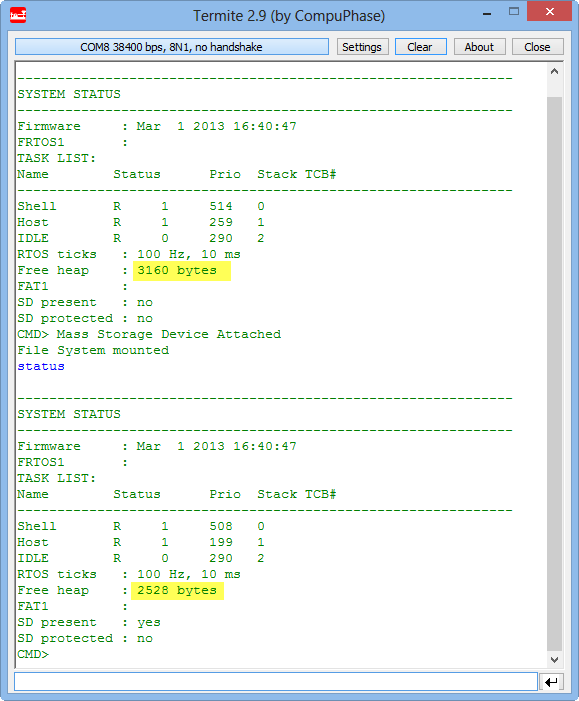

The Freescale USB stack is using malloc() and free() to allocate memory. I have replaced them with the FreeRTOS counterparts so I can track the memory usage. The screenshot below shows the free memory (heap) without a memory stick attached, and afterwards:
That means that the USB stack has allocated an extra amount of 3160-2528=632 bytes. Removing the memory stick will free up memory again up to 3072 bytes free bytes, and will go back to 2528 bytes with the memory stick attached. I’m still not sure why it does not free up all the memory, but at least there is no memory leak. I still will need some time to understand where and why the USB stack needs the dynamic memory allocation.
Summary
Finally I have my USB MSD application with FatFs and FreeRTOS running :-). It was much harder than I thought, mainly because of the Freescale USB stack implementation. The GNU gcc compiler warned me about many things, and I have cleaned up the code as much as I could, but I think I still will need time to find and fix bugs in it. I still see occasional problems where the code is stuck in a loop. I need to replace that code with some timeout functionality. The other thing I faced: with the USB stack, my application ROM size exceeded the 64 KByte limit of the free CodeWarrior version. Using the -O1 compiler optimization brought it back it 48 KByte of code. Still, using a USB Host stack sounds like a lot of overhead compared to a SD card interface. I’m still dreaming of having a USB MSD bootloader which only needs a few KBytes of my Flash memory…
Source Code and Example Project
The full source code and Processor Expert components are available on GitHub. The example project shown here is as well available in this GitHub repository here.
Happy Hosting 🙂

Excellent!!!
LikeLike
Excellent, I ussually came and check what are you doing, great stuffs!! thanks for sharing your projects!!
LikeLike
You are using the freescale usb stack with freertos. Is there no standard usb stack for freertos ?? From what I can tell most of the freertos demos use a ported usb stack for the micro architecture (e.g. LPC, Freescale, etc). It would be good if there was a more standardised usb stack for freertos which driver support for the various micros supported by freertos.
The freescale usb stack is for no OS. I think this is used in MQX and/or MQX Lite, so I imagine it should be ported in a similar fashion for FreeRTOS. i.e. similar use of tasks, rtos services, etc.
LikeLike
Hi Simon, I would *love* the fact if there would be a standard (open source) USB stack. That way this would be used as stanard with FreeRTOS. But I’m not aware of any which has been ported. There are bits and pieces, but not something working? As for the stack itself: there is not much you need to have it working with an RTOS, so no dedicated support needed. And if, I can easily add the FreeRTOS functionality (as I did).
LikeLike
Hi Erich. I am grateful very much for your work. it’s very useful for me.
I am new enough working with Freescale. I have tried to adapt your program to my MCU, K60, but it gives me some mistakes. It does not recognize me the FSL_USB_MSD_host in USB’s stack. The error is ” No inherited component assigned” in the MSDHost module.
Other examples and programs I could have adapted to the K60, but this one gives me always mistake. Thank you!!
LikeLike
Hello,
thanks for that feedback, appreciated 🙂
As for the MSD Host mode: I have tried it on KL25Z only so far. I’m sure that probably I have missed to include something to properly support the K60N512 (the one I have). Let me see what I can do for you over the next couple of days. But I think that I might have missed some files/settings to properly support the K60. Sorry about that, as I needed it for the KL25Z only so far. But I’ll look into it. ok?
LikeLike
Hi krlosb,
I worked on the USB MSD Host stack most of today. The good news is: that error your report should be gone.
I have put an example project on https://github.com/ErichStyger/mcuoneclipse/tree/master/Examples/CodeWarrior/TWR-K60F120M
The bad news is: it does not quite work yet. It raises an interrupt when I attach a memory stick, but it does not properly enumerate. Not sure what the problem is. I think I’m missing something in the driver.
LikeLike
Thanks a lot Erich, I prove it now.
LikeLike
Pingback: Serial Bootloader for the Freedom Board with Processor Expert | MCU on Eclipse
Hi Eric,
Is there a method (or work around) to change the device class selector in the latest FSL_USB_Stack from a device to a host, or a host to a device?
Regards,
George
LikeLike
Hi George,
no, I don’t think so, as the code behind device or host class is very different.
Erich
LikeLike
Great Post
Thanks
Where can I find FatFsMem_USB_MSD component. It seems it is not at the zip file
Eli
LikeLike
Oh sorry. Great I found it in git
mcuoneclipse\PEupd\ directory
LikeLike
Hi Eli,
did you use the one on GitHub
https://sourceforge.net/projects/mcuoneclipse/
?
It should be there.
LikeLike
Thanks a lot.
I found it there:)
Your blog is a great entry point to freescale and CodeWarrior.
LikeLike
Hi Eric,
I tried to adapt the program to a K20 using the K60 selection on the FSL_USB_MSD_Host. There were no issues getting the components installed, and the project compiles without errors. The issue is the drive does not properly enumerate. After reading all the comments, I found a similar issue when using a K60. Do you know if anyone has found a solution for this issue?
Regards,
George
LikeLike
Hi George,
no, I don’t know that the issue could be. I have used the MSD host only with my FRDM-KL25Z so far. I do have a FRDM-K20D50M, so I might try it on this one.
Would that help?
Erich
LikeLike
Hi Eric,
I think it would help. I would expect the USB architecture of the FRDM-K20D50M to be close to the MK20DX256Z.
Thanks,
George
LikeLike
Hi George,
I started working on porting things to the FRDM-K20 board. I have made good progress today, but I need to see if I can find time tomorrow night on it.
LikeLike
Hi George,
I have published a FRDM-K20D50m project with USB MSD Host support here: https://mcuoneclipse.com/2013/07/10/usb-msd-host-for-the-frdm-k20d50m-board/
I hope this helps.
LikeLike
Pingback: USB MSD Host for the FRDM-K20D50M Board | MCU on Eclipse
Hi Erich,
I’m interested in USB MSD device bootloader, to programm MCU just by drag and drop binary file from host PC. Is it possible to do so basing on your host implementation? Did you made some attempts to implement such functionality and can you give me some advice how to bit it?
LikeLike
Hi Adam,
yes, I have implemented such a MSD bootloader which enumerates as a memory stick, and then I can copy files to it to program the board. I have done this for the JM128 on the TWR-LCD board.
The project is as well on GitHub here:
https://github.com/ErichStyger/mcuoneclipse/tree/master/Examples
I have no done this yet for Kinetis.
LikeLike
Thanks, it might be good starting point.
LikeLike
Hi Erich, have you read application note AN4368 from Freescale? It’s the same as your MSD host bootloader, but for K60 family. The code of AN doesn’t use RTOS.
Have you made some comparisons between the two results? For example, is your solution more code efficient?
LikeLike
Hi Pozz,
yes, I know this AN4368. But there is one thing: I do not use an RTOS for the bootloader neither. The application presented in this post is not the bootloader, it is the application which is implementating USB MSD host. A bootloader typically does not need an RTOS. The difference between AN4368 and my approach is that I’m using Processor Expert, which allows me to easily port my bootloader to different devices. Each approach has its pros and cons.
LikeLike
Ah ok, now understand.
What about the code size of your bootloader?
LikeLike
Have a look here:
https://mcuoneclipse.com/2013/04/28/serial-bootloader-for-the-freedom-board-with-processor-expert/
It only takes 8 KByte in total.
LikeLike
Hello Erich,i ‘m glad that this strange winter looks over in your garden
Thanks for the above example
I spent days trying to implement something similar based on
USB_MSD_HOST_MQX_Lite_MKL25Z128_PEx example,in the USB stack 4.1.1.
In run it detects the attached key,it prints all the tests but it restarts from zero every couple of seconds,as showed by a printf just after PE_low_level_init();
In debug it stucks in HardFault.
Following your teachings i used the HardFault bean to analyze it,but strangely it mades everything working ok.I guess this fact deserves further attention.
At this point i addedd the FatFs bean,but the FsMSD required to manage the underlying memory
has references to freeRTOS.h for malloc functions etc.
At this point i dont know ho to move.
Can you help me about it?
Diego
LikeLike
Hi Diego,
In which file did you had that reference to the FreeRTOS memory manager? I have it running on my side without FreeRTOS too.
Erich
LikeLike
HI Erich
,the reference is in FSMSD1.c
#include “freeRTOS.h” /* FreeRTOS malloc() */
Please could you attach or link the project you ìre talkng about?
So to compare them and find where i wrong
Have a nice weekend and thanks
Diego
LikeLike
Hi,where is “FRTOS1.h”? I use your Freedom_USBHostMSD project in IAR,but 171 errors finded,Can you help me?
LikeLike
FRTOS1.h (and others) are generated by Processor Expert. Are you using the Driver Suite with IAR? See https://mcuoneclipse.com/2013/01/31/tutorial-iar-freertos-freedom-board/
LikeLike
Thank you!
I am a novice in freescacle arm and IAR IDE。
I use FRDM-KL26Z+IAR+(your PE project).
I add the components in PE from your PEupd folder,it’s ok.
But when i make the project,more errors generated.
such as:
Warning[Pa050]: non-native end of line sequence detected (this diagnostic is only issued once) D:\FreeScale\user\test\Freedom_USBHostMSD\Sources\Application.c 1
Error[Pe079]: expected a type specifier D:\FreeScale\user\test\Freedom_USBHostMSD\Generated_Code\Cpu.h 163
Error[Pe141]: unnamed prototyped parameters not allowed when body is present D:\FreeScale\user\test\Freedom_USBHostMSD\Generated_Code\Cpu.h 163
Error[Pe130]: expected a “{” D:\FreeScale\user\test\Freedom_USBHostMSD\Generated_Code\Cpu.h 163
Warning[Pe012]: parsing restarts here after previous syntax error D:\FreeScale\user\test\Freedom_USBHostMSD\Generated_Code\CLS1.h 111
Error[Pe020]: identifier “CLS1_StdIO_In_FctType” is undefined D:\FreeScale\user\test\Freedom_USBHostMSD\Generated_Code\CLS1.h 112
Error[Pe020]: identifier “CLS1_StdIO_OutErr_FctType” is undefined D:\FreeScale\user\test\Freedom_USBHostMSD\Generated_Code\CLS1.h 113
Error[Pe020]: identifier “CLS1_StdIO_OutErr_FctType” is undefined D:\FreeScale\user\test\Freedom_USBHostMSD\Generated_Code\CLS1.h 114
Error[Pe020]: identifier “CLS1_StdIO_KeyPressed_FctType” is undefined D:\FreeScale\user\test\Freedom_USBHostMSD\Generated_Code\CLS1.h 115
what can I do next step?
LikeLike
I do not have this on my side, but it looks like your IAR compiler does not find the header files/include files. It might be a bad idea to start with IAR tools if you are not familiar with it, as this IDE might not be something easy to start with as a novice, especially as IAR does not integrate in a seamless way with Processor Expert. Have you considered to use Eclipse/CodeWarrior/KDS instead? Then you would not run into these kind of issues.
LikeLike
sorry for replying on different post But I feel replying here is more relevant to others who come later to this post
So I asked that my code was overflowing .text by ***
so Now i remember what the problem was
I have set up every thing again from eclipse for that
I have followed your DIY Free Toolchain for Kinetis: Part 9 – Express Setup in 8 Steps
and successfully tested one demo PE_Blinky
but I noticed when I imported your project Freedom_USBHostMSD from git
that you used G++ lite (Orphaned configuration. No base extension cfg exists for org.eclipse.cdt.cross.arm.gnu.sourcery.windows.elf.debug.976069318)
this means I think sourcery g++ lite for arm eabi is not installed on my machine
So last time I made few changes those were changed toolchain to Cross ARM GCC
when I did that and hit OK it gave internal error
when I was able to compile it it gave compile time error
so I renamed a variable to some another all occurances
i think that was reason of thar error but how on earth change addition of a variable increases size by 1024 bytes
I am not getting anything please help me understand this
LikeLike
I’m using the GNU ARM Eclipse plugins (gnuarmeclipse.livius.net/), and not the orphaned CodeSourcery ones?
LikeLike
Now I have found a way out tried differant solution
New PE project
to which I have added All components
changed linker do not generate start up
and It compiled again this is wierd linker error I am facing
This time I have avoided any modyfiction to code but I could not edit FSL_USB_MSD_HOST componets name Which is of redshaded modification was not posible
So I have removed FSL_USB_STACK and added from library changed board type
Generated code and compiled so this was linking error
03:31:11 **** Incremental Build of configuration Debug for project New_MSD ****
make all
Building target: New_MSD.elf
Invoking: Cross ARM C++ Linker
arm-none-eabi-g++ -mcpu=cortex-m0plus -mthumb -O0 -fmessage-length=0 -fsigned-char -ffunction-sections -fdata-sections -g3 -T “C:/Freescale/workspace1/New_MSD/Project_Settings/Linker_Files/ProcessorExpert.ld” -nostartfiles -Xlinker –gc-sections -L”C:/Freescale/workspace1/New_MSD/Project_Settings/Linker_Files” -Wl,-Map,”New_MSD.map” -o “New_MSD.elf” ./Sources/Application.o ./Sources/Events.o ./Sources/Shell.o ./Sources/host.o ./Sources/main.o ./Sources/sa_mtb.o ./Generated_Code/AS1.o ./Generated_Code/ASerialLdd1.o ./Generated_Code/BitIoLdd1.o ./Generated_Code/BitIoLdd2.o ./Generated_Code/BitIoLdd3.o ./Generated_Code/CLS1.o ./Generated_Code/CS1.o ./Generated_Code/Cpu.o ./Generated_Code/FAT1.o ./Generated_Code/FRTOS1.o ./Generated_Code/FsMSD1.o ./Generated_Code/HF1.o ./Generated_Code/LEDB.o ./Generated_Code/LEDG.o ./Generated_Code/LEDR.o ./Generated_Code/LEDpin1.o ./Generated_Code/LEDpin2.o ./Generated_Code/LEDpin3.o ./Generated_Code/MSD1.o ./Generated_Code/PE_LDD.o ./Generated_Code/TI1.o ./Generated_Code/TU1.o ./Generated_Code/TimerIntLdd1.o ./Generated_Code/TmDt1.o ./Generated_Code/USB0.o ./Generated_Code/USB1.o ./Generated_Code/UTIL1.o ./Generated_Code/Vectors.o ./Generated_Code/WAIT1.o ./Generated_Code/croutine.o ./Generated_Code/event_groups.o ./Generated_Code/ff.o ./Generated_Code/heap_1.o ./Generated_Code/heap_2.o ./Generated_Code/heap_3.o ./Generated_Code/heap_4.o ./Generated_Code/host_ch9.o ./Generated_Code/host_close.o ./Generated_Code/host_cnl.o ./Generated_Code/host_common.o ./Generated_Code/host_dev_list.o ./Generated_Code/host_driver.o ./Generated_Code/host_main.o ./Generated_Code/host_rcv.o ./Generated_Code/host_shut.o ./Generated_Code/host_snd.o ./Generated_Code/khci_kinetis.o ./Generated_Code/list.o ./Generated_Code/mem_util.o ./Generated_Code/poll.o ./Generated_Code/port.o ./Generated_Code/queue.o ./Generated_Code/tasks.o ./Generated_Code/timers.o ./Generated_Code/usb_classes.o ./Generated_Code/usb_host_hub.o ./Generated_Code/usb_host_hub_sm.o ./Generated_Code/usb_host_msd_bo.o ./Generated_Code/usb_host_msd_queue.o ./Generated_Code/usb_host_msd_ufi.o ./Generated_Code/usbevent.o ./Generated_Code/usbmsgq.o ./Generated_Code/usbsem.o
cygwin warning:
MS-DOS style path detected: C:\Freescale\workspace1\New_MSD\Debug
Preferred POSIX equivalent is: /cygdrive/c/Freescale/workspace1/New_MSD/Debug
CYGWIN environment variable option “nodosfilewarning” turns off this warning.
Consult the user’s guide for more details about POSIX paths:
http://cygwin.com/cygwin-ug-net/using.html#using-pathnames
c:/kepler/gnu tools arm embedded/4.8 2013q4/bin/../lib/gcc/arm-none-eabi/4.8.3/../../../../arm-none-eabi/bin/ld.exe: warning: cannot find entry symbol __thumb_startup; defaulting to 00000410
./Generated_Code/Vectors.o:(.vectortable+0x4): undefined reference to `__thumb_startup’
collect2.exe: error: ld returned 1 exit status
make: *** [New_MSD.elf] Error 1
03:31:13 Build Finished (took 2s.688ms)
Is this due to cygwin warning
LikeLike
If it finds Cygwin tools, that would be bad. I have not installed Cygwin, as it is source of all kind of strange problems. The issue is if gcc finds something with cygwin, then it will try to use it with bad side effects. So if you have Cygwin installed (e.g in C:\cygwin), rename that folder so it is not found any more. Maybe this helps.
LikeLike
I tried doing as you suggested renaming the cygwin directory but still same linking error
I think it must not be getting something required for C++ linking error which I googled guess what the first hit is “https://mcuoneclipse.com/2012/10/04/processor-expert-gcc-c-and-kinetis-l-and-mqxlite/” which seems to have solution Thanx for reply and that post of yours I will let you know what happens
LikeLike
Hi Erich
I have solved “./Generated_Code/Vectors.o:(.vectortable+0×4): undefined reference to `__thumb_startup’”
problem by adding Start Up code (startup.c )file
I have noticed that this is different from your start up files I tried your start up files but could not compile them because of
But I am unable to compile them compiler says “fatal error: ansi_parms.h: No such file or directory”
which means no ansi_params.h is not included in include path so could you please give me your both include paths or your suggestion about solving this problem
I have noticed similar file exists in codewarrior directory exact path is CODEwarrior root/MCU/ARM_EABI_Support/ewl/EWL_C/include/ansi_parms.h but there is no way of finding this file else where. So my conclusions is they are created by codewarrior and Your project was successfully linked because you have compiled the source from codewarrior mine built in eclipse DIY tool-chain so is there any other way to sort this problem or do I have to compile this using codewarrior
OR my above stated conclusions are fully / partially wrong
waiting for your response
LikeLike
I forgot to mention that I am getting same error as I was getting previously that is
Building target: rtos.elf
Invoking: Cross ARM C++ Linker
arm-none-eabi-g++ -mcpu=cortex-m0plus -mthumb -Os -fmessage-length=0 -fsigned-char -ffunction-sections -fdata-sections -T “/home/dev/abc/rtos/Project_Settings/Linker_Files/ProcessorExpert.ld” -nostartfiles -Xlinker –gc-sections -L”/home/dev/abc/rtos/Project_Settings/Linker_Files” -Wl,-Map,”rtos.map” -o “rtos.elf” ./Sources/Application.o ./Sources/Events.o ./Sources/Shell.o ./Sources/host.o ./Sources/main.o ./Sources/sa_mtb.o ./Project_Settings/Startup_Code/startup.o ./Generated_Code/AS1.o ./Generated_Code/ASerialLdd1.o ./Generated_Code/BitIoLdd1.o ./Generated_Code/BitIoLdd2.o ./Generated_Code/BitIoLdd3.o ./Generated_Code/CLS1.o ./Generated_Code/CS1.o ./Generated_Code/Cpu.o ./Generated_Code/FAT1.o ./Generated_Code/FRTOS1.o ./Generated_Code/FsMSD1.o ./Generated_Code/HF1.o ./Generated_Code/LEDB.o ./Generated_Code/LEDG.o ./Generated_Code/LEDR.o ./Generated_Code/LEDpin1.o ./Generated_Code/LEDpin2.o ./Generated_Code/LEDpin3.o ./Generated_Code/MSD1.o ./Generated_Code/PE_LDD.o ./Generated_Code/TI1.o ./Generated_Code/TU1.o ./Generated_Code/TimerIntLdd1.o ./Generated_Code/TmDt1.o ./Generated_Code/USB0.o ./Generated_Code/USB1.o ./Generated_Code/UTIL1.o ./Generated_Code/Vectors.o ./Generated_Code/WAIT1.o ./Generated_Code/croutine.o ./Generated_Code/event_groups.o ./Generated_Code/ff.o ./Generated_Code/heap_1.o ./Generated_Code/heap_2.o ./Generated_Code/heap_3.o ./Generated_Code/heap_4.o ./Generated_Code/host_ch9.o ./Generated_Code/host_close.o ./Generated_Code/host_cnl.o ./Generated_Code/host_common.o ./Generated_Code/host_dev_list.o ./Generated_Code/host_driver.o ./Generated_Code/host_main.o ./Generated_Code/host_rcv.o ./Generated_Code/host_shut.o ./Generated_Code/host_snd.o ./Generated_Code/khci_kinetis.o ./Generated_Code/list.o ./Generated_Code/mem_util.o ./Generated_Code/poll.o ./Generated_Code/port.o ./Generated_Code/queue.o ./Generated_Code/tasks.o ./Generated_Code/timers.o ./Generated_Code/usb_classes.o ./Generated_Code/usb_host_hub.o ./Generated_Code/usb_host_hub_sm.o ./Generated_Code/usb_host_msd_bo.o ./Generated_Code/usb_host_msd_queue.o ./Generated_Code/usb_host_msd_ufi.o ./Generated_Code/usbevent.o ./Generated_Code/usbmsgq.o ./Generated_Code/usbsem.o
/opt/gcc-arm-none-eabi-4_8-2014q1/bin/../lib/gcc/arm-none-eabi/4.8.3/../../../../arm-none-eabi/bin/ld: rtos.elf section `.bss’ will not fit in region `m_data’
/opt/gcc-arm-none-eabi-4_8-2014q1/bin/../lib/gcc/arm-none-eabi/4.8.3/../../../../arm-none-eabi/bin/ld: region `m_data’ overflowed by 1076 bytes
/opt/gcc-arm-none-eabi-4_8-2014q1/bin/../lib/gcc/arm-none-eabi/4.8.3/../../../../arm-none-eabi/lib/armv6-m/libc.a(lib_a-sbrkr.o): In function `_sbrk_r’:
sbrkr.c:(.text._sbrk_r+0xc): undefined reference to `_sbrk’
collect2: error: ld returned 1 exit status
make: *** [rtos.elf] Error 1
21:54:28 Build Finished (took 9s.563ms)
so last time you have suggested this is caused by too many global variables but I think that is because I have to change “index” to “index1″ in Generated_Code/usbmsgq.c because if I dont change that I get this error
Building file: ../Generated_Code/usbmsgq.c
Invoking: Cross ARM C Compiler
arm-none-eabi-gcc -mcpu=cortex-m0plus -mthumb -Os -fmessage-length=0 -fsigned-char -ffunction-sections -fdata-sections -I”/home/dev/.eclipse/org.eclipse.platform_4.3.2_1473617060_linux_gtk_x86/ProcessorExpert/lib/Kinetis/pdd/inc” -I”/home/dev/.eclipse/org.eclipse.platform_4.3.2_1473617060_linux_gtk_x86/ProcessorExpert/lib/Kinetis/iofiles” -I”/home/dev/abc/rtos/Sources” -I”/home/dev/abc/rtos/Generated_Code” -MMD -MP -MF”Generated_Code/usbmsgq.d” -MT”Generated_Code/usbmsgq.o” -c -o “Generated_Code/usbmsgq.o” “../Generated_Code/usbmsgq.c”
../Generated_Code/usbmsgq.c:38:16: error: ‘index’ redeclared as different kind of symbol
static uint_32 index; /* << EST made it static */
^
make: *** [Generated_Code/usbmsgq.o] Error 1
so what is way out of this
LikeLike
Oh finally sorted out what was wrong I accidentally landed up reviewing FREERtos PE component and I found that heap memory allocated is 10000 in project which is does not match with your other article so I reduced that to 8192 and hurray I have rid-out of that linker problem now final linking issue is
Building target: rtos.elf
Invoking: Cross ARM C++ Linker
arm-none-eabi-g++ -mcpu=cortex-m0plus -mthumb -Os -fmessage-length=0 -fsigned-char -ffunction-sections -fdata-sections -T “/home/dev/abc/rtos/Project_Settings/Linker_Files/ProcessorExpert.ld” -nostartfiles -Xlinker –gc-sections -L”/home/dev/abc/rtos/Project_Settings/Linker_Files” -Wl,-Map,”rtos.map” -o “rtos.elf” ./Sources/Application.o ./Sources/Events.o ./Sources/Shell.o ./Sources/host.o ./Sources/main.o ./Sources/sa_mtb.o ./Project_Settings/Startup_Code/startup.o ./Generated_Code/AS1.o ./Generated_Code/ASerialLdd1.o ./Generated_Code/BitIoLdd1.o ./Generated_Code/BitIoLdd2.o ./Generated_Code/BitIoLdd3.o ./Generated_Code/CLS1.o ./Generated_Code/CS1.o ./Generated_Code/Cpu.o ./Generated_Code/FAT1.o ./Generated_Code/FRTOS1.o ./Generated_Code/FsMSD1.o ./Generated_Code/HF1.o ./Generated_Code/LEDB.o ./Generated_Code/LEDG.o ./Generated_Code/LEDR.o ./Generated_Code/LEDpin1.o ./Generated_Code/LEDpin2.o ./Generated_Code/LEDpin3.o ./Generated_Code/MSD1.o ./Generated_Code/PE_LDD.o ./Generated_Code/TI1.o ./Generated_Code/TU1.o ./Generated_Code/TimerIntLdd1.o ./Generated_Code/TmDt1.o ./Generated_Code/USB0.o ./Generated_Code/USB1.o ./Generated_Code/UTIL1.o ./Generated_Code/Vectors.o ./Generated_Code/WAIT1.o ./Generated_Code/croutine.o ./Generated_Code/event_groups.o ./Generated_Code/ff.o ./Generated_Code/heap_1.o ./Generated_Code/heap_2.o ./Generated_Code/heap_3.o ./Generated_Code/heap_4.o ./Generated_Code/host_ch9.o ./Generated_Code/host_close.o ./Generated_Code/host_cnl.o ./Generated_Code/host_common.o ./Generated_Code/host_dev_list.o ./Generated_Code/host_driver.o ./Generated_Code/host_main.o ./Generated_Code/host_rcv.o ./Generated_Code/host_shut.o ./Generated_Code/host_snd.o ./Generated_Code/khci_kinetis.o ./Generated_Code/list.o ./Generated_Code/mem_util.o ./Generated_Code/poll.o ./Generated_Code/port.o ./Generated_Code/queue.o ./Generated_Code/tasks.o ./Generated_Code/timers.o ./Generated_Code/usb_classes.o ./Generated_Code/usb_host_hub.o ./Generated_Code/usb_host_hub_sm.o ./Generated_Code/usb_host_msd_bo.o ./Generated_Code/usb_host_msd_queue.o ./Generated_Code/usb_host_msd_ufi.o ./Generated_Code/usbevent.o ./Generated_Code/usbmsgq.o ./Generated_Code/usbsem.o
/opt/gcc-arm-none-eabi-4_8-2014q1/bin/../lib/gcc/arm-none-eabi/4.8.3/../../../../arm-none-eabi/lib/armv6-m/libc.a(lib_a-sbrkr.o): In function `_sbrk_r’:
sbrkr.c:(.text._sbrk_r+0xc): undefined reference to `_sbrk’
collect2: error: ld returned 1 exit status
make: *** [rtos.elf] Error 1
so will you please help me out on this problem I guess that things are in library file libc.a and its not generated by me
so there is something I am missing out over here so please help me solving this final issue
LikeLike
These problems come from different runtime libraries :-(. That’s the pain switching project between toolchains like CodeWarrior and stock GNU ARM Embedded 😦
I had similar problems when I created a bare SDK project from scratch (see https://mcuoneclipse.com/2014/06/15/tutorial-diy-kinetis-sdk-project-with-eclipse-startup/).
I had no time yet to port this USB project to bare Eclipse, but looks I should.
Could you try adding -specs=nosys.specs to the linker options (as outlined in above post)?
LikeLike
hi eric
I have used codewarrior this time to build project
using generate code and then build projet
then I have copied srec file to kl25z
now I can see green LED blinking
even on terminal I can see help menu
but only two commands work
help and status
I tried diskinfo output was
” CMD> *** Failed or unknown command: diskinfo
*** Type help to get a list of available commands ”
and dir which you showed above still same
” *** Failed or unknown command: dir
*** Type help to get a list of available commands ”
note I am using windows7 machine so no hyperterminal available so I am using teraterm
Is that the problem
LikeLike
Hi Devidas,
you need to enter the module name as listed in the ‘help’ command, e.g.
FAT1 diskinfo
or
FAT1 help
LikeLike
Pingback: Multi-Drive Support with FatFS | MCU on Eclipse
I want to creat a msd devise with kl25z is it possible?
LikeLike
Yes, that’s possible.
LikeLike
Hello Erich,
About FAT_FS lib, there are any command to create a file, write data and close the file?
I try to substitute the VNC for KL25Z, but I need this functionalite.
Thanks.
Eduardo
LikeLike
Yes, of course these functions exist, see http://elm-chan.org/fsw/ff/00index_e.html
LikeLike
Hi Erich,
Here you connect a USB Stick to a FRDM-K64F but I would like to access my SD Card on my FRDM with a computer. So I want my FRDM as MSD Device using the K64 USB. I didn’t found tutorial here (or maybe I searched bad)
LikeLike
PS: I didn’t find MSD_Device component…
LikeLike
True, I have not done that (yet?).
LikeLike
Hi Loic,
no, I have not done that (but should not be too hard ;-)): use the FRDM-K64F as USB MSD device with running FatFS with the SD card. Would be a nice week-end project (but I’m booked out for the next weekends).
LikeLike
Ok, I’ll see that
Thanks you for all 🙂
LikeLike
Hi Erich
Just wondering if the project files (tutorial steps) are up to-date with the latest processor expert version.
I would like to try your example project on a newly acquired FRDM-KL25Z board..
Any recommendations and pitfalls to avoid ??
Thanks,
David
LikeLike
Hi David,
are you using CodeWarrior or Kinetis Design Studio? The CodeWarrior project is here: https://github.com/ErichStyger/mcuoneclipse/tree/master/Examples. I don’t have it ported to KDS yet, but I have the same thing for the FRDM-K20 and KDS here: https://github.com/ErichStyger/mcuoneclipse/tree/master/Examples/KDS
The project and tutorial steps are still the same, or at least I cannot remember anything special. The only thing I know is that some USB memory sticks cause problems. Sticks with less than 4 GB worked very well, while somehow sometimes sticks with larger capacity cause problems (not sure why).
The board revision should not matter (I hope), the latest FRDM-KL25Z I have is the Rev E. one. Just make sure you properly power the 5V to the USB port. And that you do not consume too much current of course. Otherwise let me know and I see if I can send you a project with all the files.
I hope this helps,
Erich
LikeLike
Hi Erich,
Thanks for your quick reply…I’m using IAR development tools and I’m fairly comfortable using them. I have implemented code for the ultra small KL02 processor without using Processor Expert.
For this project, If you do have files for the IAR tools then I will appreciate you make them available otherwise could you advise on porting your source code to IAR tools or any other tool in general. I will try to read up on Processor Expert and IAR to port your project files. Any help/recommendation will be much appreciated.
Kind regards,
David
LikeLike
Hi David,
we are not much using IAR, except the code size limited (free) version, because it is too expensive. Porting to IAR should not be a big problem, I try to have my sources compiler neutral as much as possible. But you need to watch out the inline assembly code (or guard it), as IAR is using a different syntax. The other thing ot watch out is to properly allocate the USB buffers to a 512 Byte boundary.
Good luck!
LikeLike
Looking for a similar USB bootloader solution for the K70. I see the new RomBootloader 1.2.0 is available for certain processors but maybe not yet for the K70? Will it be available anytime soon. So it seems the other solution is this MSD_USB solution embedded into your application, but all of this looks like legacy stuff compared with the new Kinetis RomBootloader. What path would you suggest here? I don’t want to waste a bunch of time implementing a non-supported legacy solution when it appears the forward path is now RomBootloader. 1.2.0
Thanks
LikeLike
Yes, the USB stack I’m using is a legacy one. Freescale (well, now NXP) moved to the USB stack inside the Kinetis SDK. I’m still using that legacy USB stack because it worked very well for me. But in your case you probably go better with the stack in the Kinetis SDK?
LikeLike
Hi Erich,
I tried to make a project for k22fn1. Everything compiles fine but when I run the code, when it calls USB0_Init() it call an Interrupt and stays there. (PE_ISR(Cpu_Interrupt))
Did you notice that ever? Do you know whats happening?
Thanks
LikeLike
Hi Francisco,
you need to find out which interrupt is causing this. See https://mcuoneclipse.com/2012/02/20/oh-my-an-interrupt/.
Erich
LikeLike
Hi again,
I did that. The interrupt is: (PE_ISR(Cpu_ivINT_Hard_Fault))
LikeLike
Hi Francisco,
no you need to find out what is causing the hard fault. See
https://mcuoneclipse.com/2012/11/24/debugging-hard-faults-on-arm-cortex-m/
and
https://mcuoneclipse.com/2012/12/28/a-processor-expert-component-to-help-with-hard-faults/
Erich
LikeLike
Hi Erich,
I found the error is when I do the following command:
USB0_CTL |= USB_CTL_ODDRST_MASK;
Desassembly:
266 USB0_CTL |= USB_CTL_ODDRST_MASK;
00001540: ldr r3, [pc, #320] ; (0x1684 )
00001542: ldr r2, [pc, #320] ; (0x1684 )
00001544: ldrb.w r2, [r2, #148] ; 0x94
00001548: uxtb r2, r2
0000154a: orr.w r2, r2, #2
0000154e: uxtb r2, r2
00001550: strb.w r2, [r3, #148] ; 0x94
Thanks what the hardfault tells me. I tried to change the micro controller to make sure it was no broken, but still the same. What should I do now?
LikeLike
Not sure out of my head what that assignment does. But it sounds this turns on some hardware which then causes the hard fault. Is your USB descriptor at the right place?
LikeLike
Hi! I got the problem solved. On fatFs I had mode as device. Now I have host and all works fine. I tried to port your code and it runs without problem. The only thing is that when I put an USB stick it stays on USB_DEVICE_IDLE after checkstatus. What would the problem be?
Francisco
LikeLike
Hi Francisco,
does it otherwise enumerate and work properly?
Erich
LikeLike
Hi,
I noticed that the FreeRTOS is not working properly. I copied all your code. I schedule tasks but when I start them, it never goes there (I’m using breakpoints). I can’t understand why ins’t FreeRTOS working.
Thanks,
Francisco
LikeLike
Hi Francisco,
could you halt your target with the debugger and check where it hangs? I think you probably have not allocated enough heap memory so you are in the ‘out of heap’ hook (if not turned off that hook)?
Erich
LikeLike
Hi Erich,
I have copied it to KDS and it worked well. but I have a runtime error as below when running Benchmark.
ERROR: unlink failed: (13) There is no valid FAT volume on the physical drive
What does this mean ?
Thank you,
Zohan
LikeLike
Hi Zohan,
this means something went wrong with deleting the file. Have you formatted earlier the device properly? Otherwise this is an indication that something else inside the file operation was going wrong, but hard to tell what.
LikeLike
Hello eric sir,
I am using mk64f freedom board. and I want to update my firmware using pen drive or say external flash drive. currently I am able to update bin file from PC to system using usb cable using “KinetisFlashTool.exe”, but now I want to update my firmware through Pendrive. I also downloaded the “USB_MSD_Bootloader.bin” file but no results found.
Please help.
LikeLike
I do have such a bootloader for the ColfFire V1 (see https://github.com/ErichStyger/mcuoneclipse/tree/master/Examples/CodeWarrior/TWR-LCD), but I have not ported that to Kinetis because lack of time and I have other research projects to complete first. But in general I would not recommend such a MSD thumb drive bootloader as it is very challenging with different Mac, Windows and Linux systems.
LikeLike
Hi Erich, thanks for providing such a useful example ; )
I want to implement this demo to mount, open, write and read data from a memory stick, but I really don´t know how to do it without using shell commands you like the ones you have created. As I´m just a newbie with FreeRTOS, I´d like some support from you on how to create my own task, to do this job.
P.S: While debbuging I tryed to use FAT1_open, FAT1_write, etc. at USB_DEVICE_INTERFACED case inside the static void CheckStatus(void) polling function, but without any success.
LikeLike
Hi Marcio,
are you using that example project? Because this one should work ‘as is’. As for FreeRTOS: there are plenty of example on my GitHub how to create a task already?
I hope this helps,
Erich
LikeLike
Thanks for your reply Erich,
Yes, I´m using it because I want a project with Processor Expert and USB MSD host to read/write files from/to a USB memory stick. This example is perfect for me, but I need to solve this Issue: I don´t understand is why it doesn´t work the code below at USB_DEVICE_INTERFACED case in CheckStatus function (host.c):
case USB_DEVICE_INTERFACED:
{
static FIL fp;
FAT1_FRESULT fres;
UINT bw;
byte buffer_USB[10]; // copy buffer
const CLS1_StdIOType *io_test = CLS1_GetStdio();
static FAT1_FATFS fileSystemObject;
fres = FAT1_MountFileSystem(&fileSystemObject, 0, io_test);
if(fres==ERR_OK)
{
if (io_test!=NULL)
CLS1_SendStr((unsigned char*)”File System mounted\r\n”, io_test->stdOut);
}
fres = FAT1_open(&fp, “WRITE.TXT”, FA_OPEN_EXISTING);
if (fres !=FR_OK) {
CLS1_SendStr((const unsigned char*)”\r\nOpen source file failed\r\n”, io_test->stdErr);
}
else
{
fres = FAT1_read(&fp, &buffer_USB[0], sizeof(buffer_USB), &bw);
if (fres!=FR_OK) {
CLS1_SendStr((const unsigned char*)”*** Failed reading file!\r\n”, io_test->stdErr);
(void)FAT1_close(&fp);
}
(void)FAT1_close(&fp);
if (FAT1_UnMountFileSystem(0, io_test)==ERR_OK) {
if (io_test!=NULL) {
CLS1_SendStr((unsigned char*)”File System unmounted\r\n”, io_test->stdOut);
}
}
}
break;
}
LikeLike
I also tryed using the standard functions of stdio.h, but soon I got stucked in a Hard Fault when I call a fopen:
static void CheckStatus(void) {
switch (FsMSD1_GetDeviceStatus()) {
case USB_DEVICE_IDLE:
break;
case USB_DEVICE_ATTACHED:
LEDR_Off();
LEDG_On();
print((unsigned char*)”Mass Storage Device Attached\r\n” );
break;
case USB_DEVICE_SET_INTERFACE_STARTED:
break;
case USB_DEVICE_INTERFACED:
{
FILE *fp;
char str[] = “This is string”;
fp = fopen( “file.txt” , “w” );
fwrite(str , 1 , sizeof(str) , fp );
fclose(fp);
break;
}
case USB_DEVICE_DETACHED:
LEDR_On();
LEDG_Off();
print((unsigned char*)”\nMass Storage Device Detached\n” );
break;
case USB_DEVICE_OTHER:
break;
default:
print((unsigned char*)”Unknown Mass Storage Device State\n”);
break;
} /* switch */
}
LikeLike
You would have to debug it with the debugger (use a hard fault handler to make it easier, see https://mcuoneclipse.com/2012/12/28/a-processor-expert-component-to-help-with-hard-faults/.
It could be caused by a stack overflow too, so make sure you have plenty of stack space available.
LikeLike
Ok, I´ll do that.
About the code I´ve inserted: Is it apparently correct?
And is this configMINIMAL_STACK_SIZE define the only place that I have to increase the stack size of this Task?
LikeLike
Hi Marcio,
The stack size is specified at the the time you create the task with xTaskCreate(). You can use configMINIMAL_STACK_SIZE, or use something like configMINIMAL_STACK_SIZE+500.
LikeLike
Hi Erich,
Do you know about any example using PE component FSL_USB_MSD_Device linked to an SD working with FreeRTOS.
Thank you.
LikeLike
Hi Martin,
I started working on such a project, but never was able to finish it. I used FatFS for the file system. I still have the project somewhere (for the FRDM-K64F I believe), but I faced problems with the NXP USB stack implementation.
LikeLike
Hi Erich,
I followed your suggestion and created a task, called USB_task, to mount, open, read and write a file to/from USB stick. The task worked fine, but I still facing some problems:
1) I only can open a .txt file if I call this function (I need to mount the file system first), but this is not a big deal for my purposes:
(void)FAT1_CheckCardPresence(&cardMounted, 0 /* volume */, &fileSystemObject, CLS1_GetStdio());
2) I wasn´t able to open a txt file called “PEx_FRDM__K22.TXT”, but I can do it if I rename it, like “TEST.TXT”. So, is there some file naming limitation, as number of characters or special characters?
3) I´d like to use this example to read a .srec file and make my own MSD Host Bootlader project, but I only can do this changing its extention from .srec to .txt. This is the lines I was testing:
if (FAT1_open(&fp, “./STEST.srec”, FA_READ)!=FR_OK) {
CLS1_SendStr((const unsigned char*)”*** Failed opening benchmark file!\r\n”,
io->stdErr);
return ERR_FAILED;
}
Is there some problem to open a .srec file?
Regards,
Marcio.
LikeLike
Hi Marcio,
you need to turn on LFN (Long File Name Support), otherwise FAT is limited to 8.3 names (8 characters file name, 3 characters extension).
I hope this helps,
Erich
LikeLike
Ok, I got it Erich.
I found this two constants that I could, apparently, turn on LFN in ffconf.h:
#define _USE_LFN 1
#define _MAX_LFN 255
But, when I set _USE_LFN to 1, I got this error in ff.c:
#error Static LFN work area cannot be used at thread-safe configuration.
So, I think something is missing to make this happen. Can you help me on that?
LikeLike
Are you using the McuOnEclipse Processor Expert component? If yes, it should set all the right settings for you. Otherwise see http://elm-chan.org/fsw/ff/00index_e.html
I hope this helps,
Erich
LikeLike
Yes, it´s your example I´m using (FRDM-K22F_USB_MSD_Host). Wich component and what should I do to set things right (enable LFN)? The link you post here ( http://elm-chan.org/fsw/ff/00index_e.html) says almost the same thing is commented in the code (ffconf.h file):
FF_USE_LFN
This option switches the support for long file name (LFN). When enable the LFN, Unicode support functions ffunicode.c need to be added to the project. The working buffer for LFN occupies (FF_MAX_LFN + 1) * 2 bytes and additional ((FF_MAX_LFN + 44) / 15 * 32 bytes when exFAT enabled. When use stack for the working buffer, take care on stack overflow. When use heap memory for the working buffer, memory management functions, ff_memalloc and ff_memfree, need to be added to the project.
Value Description
0 Disable LFN. Path name in only 8.3 format can be used.
1 Enable LFN with static working buffer on the BSS. Always NOT thread-safe.
2 Enable LFN with dynamic working buffer on the STACK.
3 Enable LFN with dynamic working buffer on the HEAP.
See that it asks to add unicode.c and ff_memalloc and ff_memfree functions.
Please, it´s the only thing missing for me to go further with this project at this moment.
LikeLike
In the component, under the LFN group, turn on ‘Use LFN’ with ‘Enable, dynamic heap buffer’.
Configure the LFN Length to your needs (255 might be to larger for you).
And turn on LFN Unicode if you really need it.
LikeLike
Taking a look at community, I found this topic:
https://community.nxp.com/thread/395345
But where I can find “ff_malloc”, “ff_memfree”,”ff_convert” and “ff_wtoupper” functions declarations to add to the project? and in wich file I should to add this functions?
LikeLike
I did not had to add such functions in my code.
LikeLike
Yes, It worked!
Thanks Erich : )
My next step is to flash a .srec file read from the USB stick based on your serial bootloader example (https://mcuoneclipse.com/2013/04/28/serial-bootloader-for-the-freedom-board-with-processor-expert/). I think I´m not far from this goal, because I already made this project work as well at my side.
Can I use your s19 PEx component to do that? My first idea was to read, line by line, the s19 lines and then flash them (again, line by line) to the app region.
Do you have any suggestions, or tips for me to do this job, or at least to start it?
Regards,
Marcio.
LikeLike
Hi Marcio,
yes, you could use that S19 component for that. But I would not read and flash line by line: that will be far too slow. Instead, fill up a buffer up to the flash block size and then flash the block as a whole. I do this in the latest version of my serial bootloader.
LikeLike
Ok,I will continue my efforts to complete this project : )
LikeLike
Hi Erich,
I was trying to merge this example with the Serial Boot with PEx (https://mcuoneclipse.com/2013/04/28/serial-bootloader-for-the-freedom-board-with-processor-expert/) and I´m facing a main problem here: the S19 component apparently was made to receive characters by Console (serially): How do I change this part to read the buffer from a USB Memory Stick (I’ve done the part of opening and reading the .srec file to a buffer and it’s ok)?
Maybe just changing the GetChar callback (static uint8_t GetChar(uint8_t *data, void *q) ) or something else?
Please, help. This is my final round to do this job ; )
LikeLike
Hi Marcio,
yes, supply your version of the GetChar() callback.
LikeLike
its really amazing tutorial,
it helps a lot,
we use
FRDM-KL25Z (Rev. F) with codeWarrior
short J21(to power up usb device)
short R82 (to enable usb host mode)
use 4GB pendrive(format it on XP machine and also try on windows 10, also try on UBUNTU)
format : FAT32 (as FAT format is not supported by pendrive)
allocation unit size : default (also try 1024)
what am i missing?
is it FAT32 ??
CMD>FAT1 diskinfo (enter)
CMD> disk not present!
*** Failed or unknown command: FAT1 diskinfo
*** Type help to get a list of available commands
LikeLike
now ,
1step ahead,
now it gives error,
failed identification of driver version.
LikeLike
I assume you used my project on GitHub ‘as is’?
LikeLike
Don’t change the allocation unit size, I don’t think I have that implementend. Have you used different memory sticks? I have found that it did not work with all versions, but it worked very well with older FAT pen drives.
LikeLike
