New NXP MCUXpresso Eclipse IDE v11.0

Posted on June 16, 2019 by Erich Styger

A few days ago NXP has released a new version of their Eclipse IDE flagship: the MCUXpresso IDE v11.0.

NXP MCUXpresso IDE V11.0.0

The previous v10.3.1 was released back in Feb 2019, and the 11.0 now in June this year matches up with the Fall university semester. I appreciate that the releases are about every 6 months, so this gives me time to use it in my university lecture material and lab work. I had the weekend for trying it out, and I’m very pleased.

On a top level

There are lots improvements in this release for which the release notes are a good starting point. A few things noteworthy on the top level:

The Eclipse framework has been moved to 4.10.0v201812 with CDT 9.6.0. As a consequence, this is now 64bit on Windows too. It runs on Windows (7,8,10), Ubuntu (16.04 & 18.04 LTS) plus on MacOS (10.11 or later).
The ARM toolchain has been updated to GCC8 with the 2018q4-major release$
The MCUXpresso Config tools have been integrated with version 6
The IDE supports the latest NXP SDK 2.6 release
Both SEGGER J-Link (v6.44i) and PEMicro debug probe (v4.13) software has been updated
Extended support for Cortex-M33 based MCUs which includes SWO Trace

As always, the release notes and the user manual are a good source of information.

Below are some times which I have found very useful:

Develop Perspective

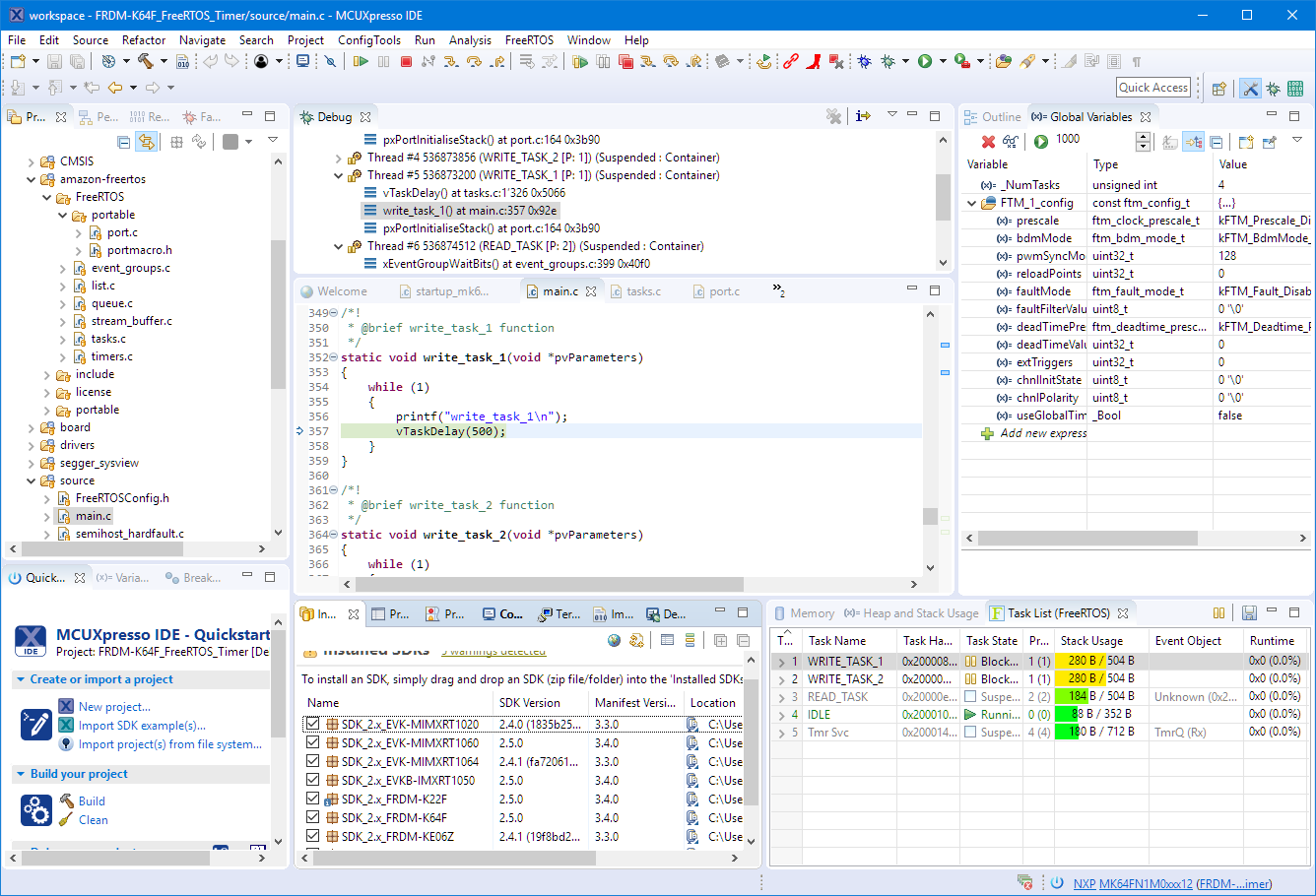

The default ‘Develop’ Eclipse perspective has an improved layout. There is is third column in the layout.

Develop Perspective

The ‘Outline’ and ‘Terminal’ views are now by default included in this perspective.

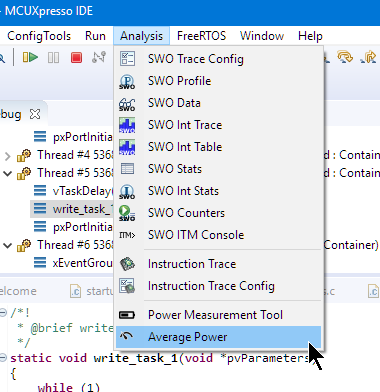

A new ‘Analysis’ menu gives an easy access to trace, SWO and Power views:

Analysis Menu

Image Info

This is a new feature/view in the MCUXpresso IDE. It is a kind of ‘super symbol browser’ and very useful to get an overview about the application. It works both for the image of a project or I can load an external image for analysis.

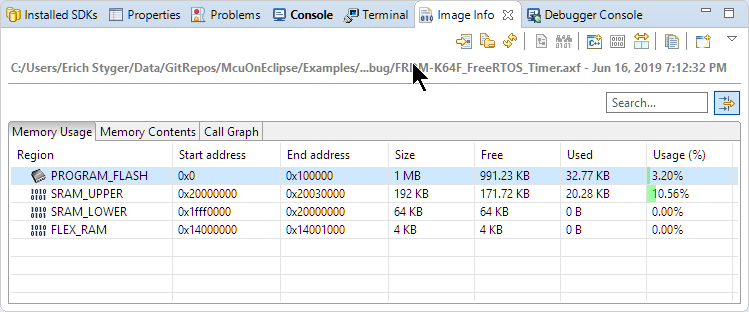

One tab shows the memory areas and how much they are used:

Image Info Memory Usage

The ‘Memory Content’ tab shows all the symbols, kind of super linker map file which can be sorted or I can search for items. Best of all: I can double-click on an item and it jumps to the source file for it (if applicable).

Image Info Memory Contents

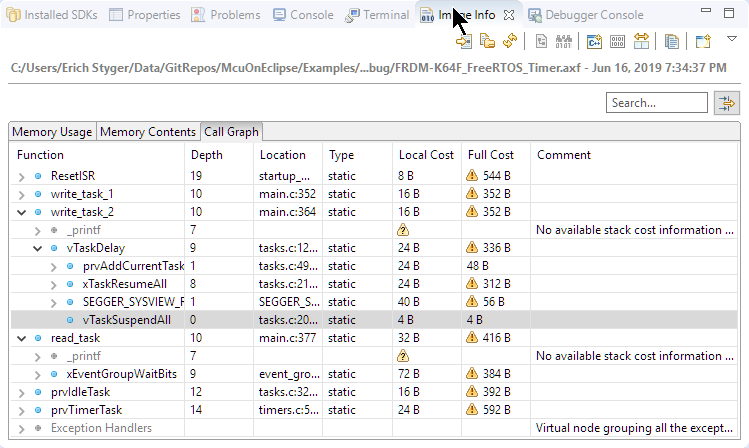

If the application is compiled -fstack-usage, then it shows the call graph with the needed stack size (nice!):

Image Info Call Graph

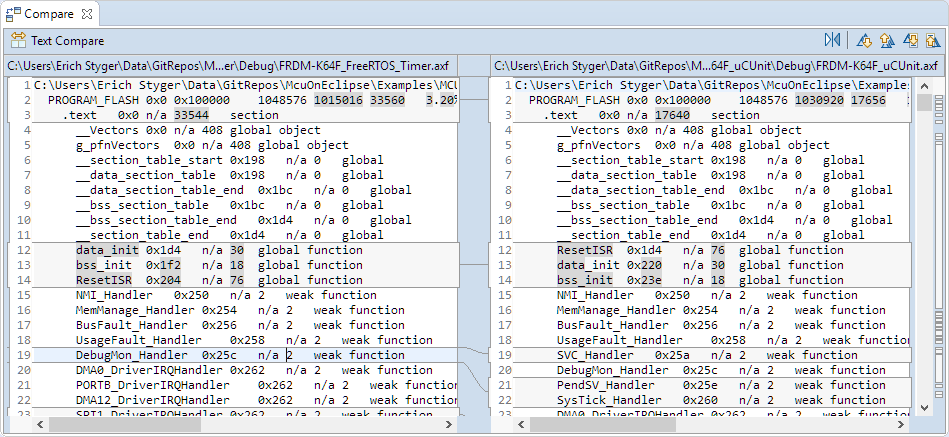

The view can even compare multiple binaries, very useful to find differences:

Comparing two images

Heap and Stack Usage

The MCUXpresso IDE already has excellent (even improved, see next) support for Heap and Stack usage for FreeRTOS projects, it features now as well a view for baremetal (no RTOS) heap and stack usage.

Heap and Stack Usage

Similar to the FreeRTOS views the allocation is shown with green/orange/red color bars. Using the green icon in the toolbar the data can be updated while the target is running. Technically this only works for the heap, as the stack pointer cannot be read by the debugger without halting the target. Which heap symbols are used for the heap monitoring can be configured in the project settings:

Heap Symbols

FreeRTOS

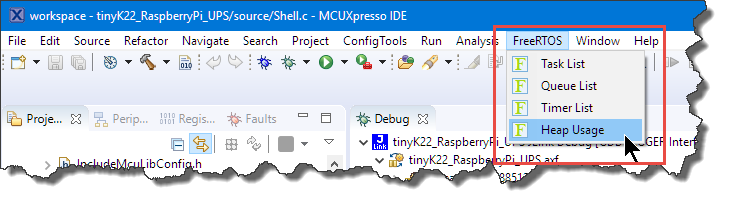

The FreeRTOS menu has been updated and shows up with new icons and all the supported views:

FreeRTOS Menu

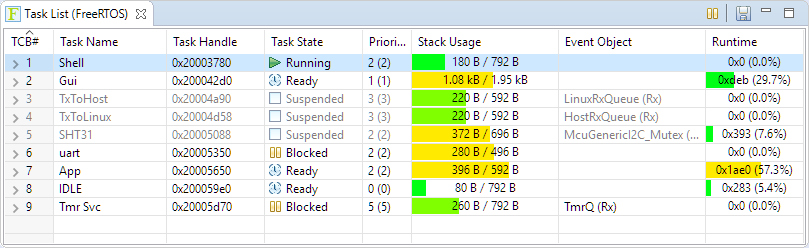

The views do support FreeRTOS V10. I’m using the latest and greatest FreeRTOS V10.2.1 and it works perfectly with all the different views.

FreeRTOS Task List View

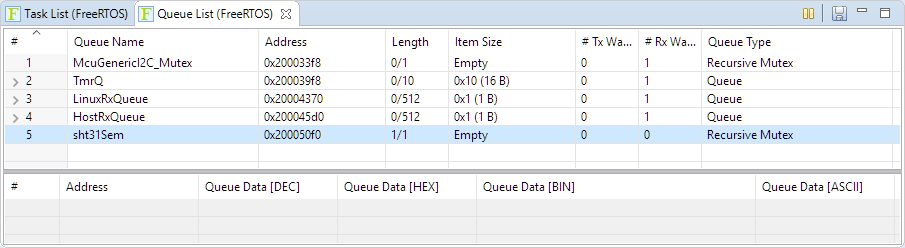

The FreeRTOS Queue List view supports shoing the queue data in the view, including semaphore and mutex:

Queue List

The FreeRTOS timer list shows the status of the timer queue with the callbacks configured:

FreeRTOS Timer List

The Heap view supports all the standard FreeRTOS heaps:

FreeRTOS Heap View

It supports FreeRTOS Heap 5 (splitted memory heaps) as well:

FreeRTOS Heap 5 Support

Overall, the views look clean and integrate very well with the IDE.

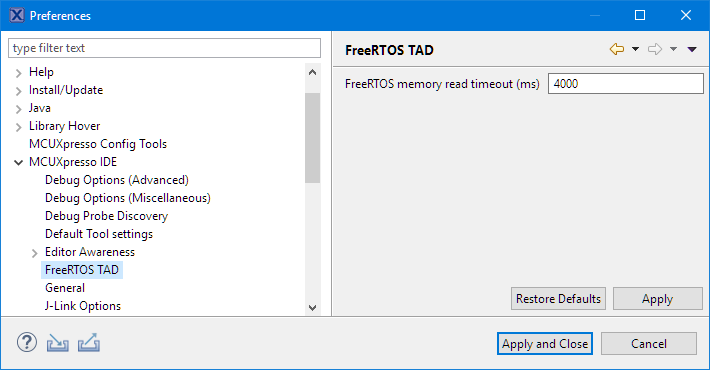

For slow targets and debug connections, there is now a ‘timeout’ value setting in the IDE preferences:

FreeRTOS Memory Read Timeout

Launch Configurations

The LinkServer (e.g. LPC-Link2) launch configuration is a new icon, and the configurations (as needed) get migrated to a new format:

Migrate Launch Configuration

More important, the settings have been overhauled and make it easier to select and find things, or is using standard Eclipse CDT settings to be uniform across different debug probes. This makes things like attaching to a target, configure the reset handling or custom startup behavior easier to configure.

LinkServer Launch Configuration

Editor Syntax Coloring

The new IDE includes editor color coding for the Linker map (.map) and command (*.ld) files:

Editor Coloring for Linker File

Both work together with the Outline view:

Map file with outline view

Live Variables

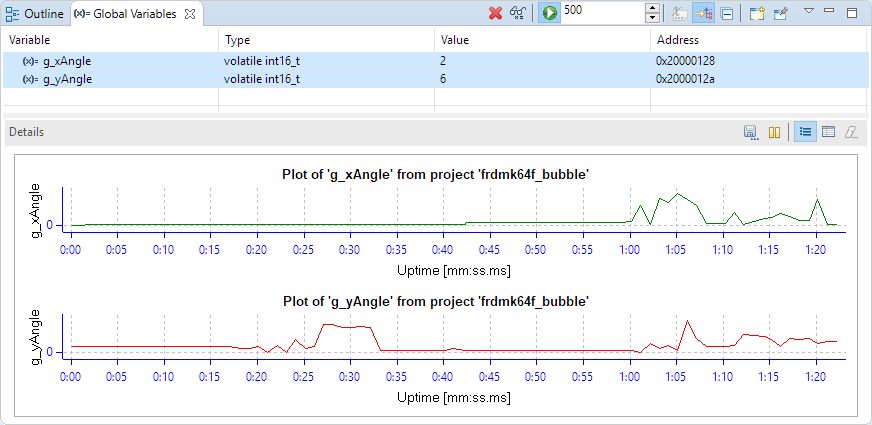

The support for live variables (including drawing graphs) is now supported for P&E and SEGGER debug probes in addition to the LinkServer connection:

Live Variables

MCUXpresso SDK

The IDE supports the new SDK 2.6.0 which gets rolled out the same time.

The SDK components are now grouped in tabs and on the right there is a new summary pane:

SDK Components

With a button, details of the SDK can now be put as hidden:

SDK Hide Details

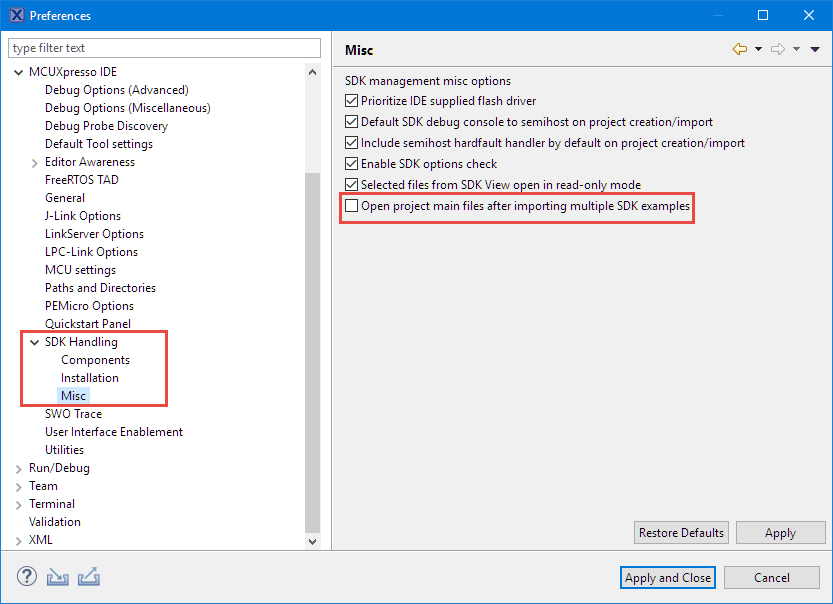

Creating or importing an SDK example now automatically opens the main file in the editor. This and other options can be configured in the IDE workspace settings:

SDK Options

Fixup Parsers

Another imporant thing with that IDE: it solves a long-standing (and most of the time hidden) issue with CDT and include path resolution, causing ‘unresolved include’ in the Eclipse Editor. There is now a ‘Fixup Parser’ project context menu which can be applied to such projects:

Fixup Parsers

Summary

I have been moved and used the new IDE for most of my projects (not all yet, because lack of time), and I have found no issues: the launch configurations get migrated, and that’s it. Installation of the IDE does not require uninstalling the previous version, and as a good practice I will keep the previous V10.3.1 for a while anyway.

The V11 of the MCUXpresso IDE is again a big step forward: new Eclipse version and 64bit, updated ARM toolchain, extended debugging support for P&E and Segger in addition to the LinkServer connection. The Global Variables view now supports live variables and graphing for P&E and SEGGER in addition to the LinkServer connection. The new views with the Build Analysis, Image Info, Stack usage and Call Analysis are very useful. And for bare metal applications it includes a heap and stack usage view too.

Happy Xpressing 🙂

31 thoughts on “New NXP MCUXpresso Eclipse IDE v11.0”

Ian C. on June 17, 2019 at 14:57 said:

The 64bit demand is a problem here; we have tools (Visual Basic for one) that won’t run on 64bit so it looks like we’ll now be forced to have different machines for MCUXpresso and other work.

LikeLike

Reply ↓
- Erich Styger on June 17, 2019 at 15:00 said:

  I was not aware that Visual Basic runs on 32bit only, interesting. The 64bit requirement comes from the latest Eclipse release trains which are 64bit only going forward.
  You could stick with the IDE 10.3.1 for a while for sure, as an option. For sure better than having dedicated machine?

  LikeLike

  Reply ↓
  - Ian C. on June 17, 2019 at 20:14 said:

    That’s what I’ll be doing for now (still 10.2 actually) but I worry eventually we’ll need support for a newer chip that requires updated MCUXpresso.
    VB6 is what we use – compiled programs still run in 64bit Win10, but the IDE itself is really unhappy in that environment. I don’t really want to be rewriting 10-20 year old programs in a newer IDE but it looks like I might have to, some time.

    LikeLike

    Reply ↓
Ian C. on June 17, 2019 at 14:59 said:

You mention “standard Eclipse CDT settings to be uniform across different debug probes”; we use the additional file load feature of P&E debugger – is that still available? I hope the standard settings hasn’t eliminated it!

LikeLike

Reply ↓
- Erich Styger on June 17, 2019 at 15:28 said:

  What this means (as far as I see) is that the ‘startup’ tab is now the same for all connections. And that features previouly only present for the LinkServer connection (e.g. flash tool) are for all other connections the same and supported. What is common to all connections is as well the ‘Other Symbols’ tab where I can specify multiple symbol files for the debug session.
  So this is really about getting similar things to all the other debug probes.
  As for the ability to load multiple binaries in the ‘main’ tab for P&E: this is still there and available 🙂

  LikeLiked by 1 person

  Reply ↓
Knusperkeks on June 18, 2019 at 09:42 said:

Hi Erich,
have you tried to use a Segger Jlink with this new version?
I wanted to debug my IMXRT1021, but the IDE always fails to launch the debug session:
“Failed to execute MI command: -exec-run”.
Did you notice any problems?

LikeLike

Reply ↓
- Erich Styger on June 18, 2019 at 13:03 said:

  I have used it with a few (smaller) projects on the i.MX RT1052 (EVK, not the B version) so far, and did not notice any issues with using a SEGGER J-Link (external EDU probe).
  But I have not tried it yet for the other i.MX RT I have.

  LikeLike

  Reply ↓
  - Knusperkeks on June 19, 2019 at 16:34 said:

    Thanks for your comment! I use a J-Link EDU (V10.1) as well.
    By accident I realized that projects without semihosting or with semihosting and NewlibNano work just fine.
    It seems quite strange to me, but I will take a closer look. Pointing the IDE to a newer/older version of the J-Link tools or a newer gdb did not change anything.

    LikeLike

    Reply ↓
- Paul G. on June 21, 2019 at 20:38 said:

  I have had issues with MCUXpresso 11.0 using a Jlink debugger. I am trying to debug a new PCB with a KV11. I received the same error. “Failed to execute MI command: -exec-run”. I found by accident a work around but try this first. I have not tried this yet.
  Remove all run debug settings in project settings in 11.0
  Using the quickstart panel click the dropdown arrow on Jlink icon and select Debug using Segger J-Link probes. This should work.
  If not, do the same procedure with MCUXpresso 10.3 and start a debug session.
  This should create an entry in project Run/Debug Setting, close 10.3 and open 11.0 on the same project . Import the debug settings when asked.

  LikeLike

  Reply ↓
  - Erich Styger on June 27, 2019 at 07:32 said:

    agreed. At least in the past it helped me to delete the .launch file and let the IDE create a new one. It happend to me that I made some changes which resulted in bad behaviour. Another suggestion is to keep the project and its files in a version control system: that way I always see what has changed and I can revert changes easily.

    LikeLike

    Reply ↓
Grzegorz on June 18, 2019 at 12:08 said:

Did u notice increase in memory usage of your project after upgrading to newest version? I got exactly the same optimalisation set, both on release and on 2 different mcuxpresso version i got 2 different memory usage, and it’s not slight difference, it’s more than 7k of memory.

LikeLike

Reply ↓
- Erich Styger on June 18, 2019 at 12:33 said:

  There is a new ARM toolchain in that release, so it is natural that there might be some slight changes. 7K byte altough sounds large (but depends on your overall application size).
  It might depend on the library you are using, and what functions (e.g. printf()) are used.
  I did not notice any major size changes, it is more in the noise range. Just as a data point (newlib, but not using printf()), with -Os (Optimize for size):
  V10.3.1:
  text data bss dec hex filename
  146880 2960 53080 202920 318a8 tinyK22_RaspberryPi_UPS.axf
  V11.0.0:
  text data bss dec hex filename
  146904 2960 53080 202944 318c0 tinyK22_RaspberryPi_UPS.axf
  So 24 bytes more code for a 140 KByte application.
  You might need to have a look at the map file what makes the difference for you?

  LikeLike

  Reply ↓
- Jerry Durand on June 19, 2019 at 01:24 said:

  I just installed it and tried it on a project I just shipped to a customer. Went from 35% flash usage to 40%. This was for an LPC802 processor (a real headache job due to documentation errors).

  LikeLike

  Reply ↓
