Restoring Default Firmware on Seeed Arch Mix NXP i.MX RT1052 Board

In my previous article “Debug and Execute Code from FLASH on the Seeed Arch Mix NXP i.MX RT1052 Board” I explained how to take complete control over the board and flash and debug a firmware. Of course this overwrites the one which comes by default shipped on the board. This article is about how to restore or update the original firmware.

Restored Seeed Firmware

Restored Seeed Firmware

This article shows how to restore the original Seeed firmware on the Arch Mix i.MX RT1052 board (or to flash any other firmware or binary file).

What you need is:

Debugging the Seeed Arch Mix i.MX RT1052 Board with LPC-Link2 and MCUXpresso IDE

Debugging the Seeed Arch Mix i.MX RT1052 Board with LPC-Link2 and MCUXpresso IDE

💡 Do *not* install the jumper JP2 (provide power to the target), as with this debugging most likely will fail.

Download the firmware zip file from the Seeed Wiki page (direct link: https://github.com/SeeedDocument/GM6020/raw/master/res/Firmware_and_Tools.zip).

There are two parts involved:

  1. The bootloader (originally developed with Keil tools, but we don’t want to use that here)
  2. The firmware which includes MicroPython

1. Bootloader

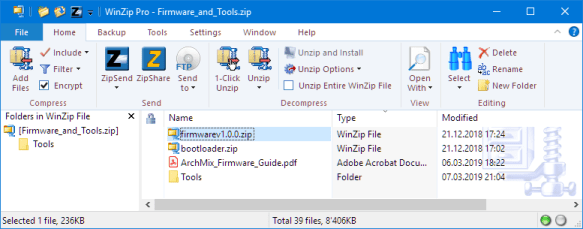

From that zip file, extract the ‘bootloader.zip‘ file:

Firmware_and_Tools.zip

Firmware_and_Tools.zip

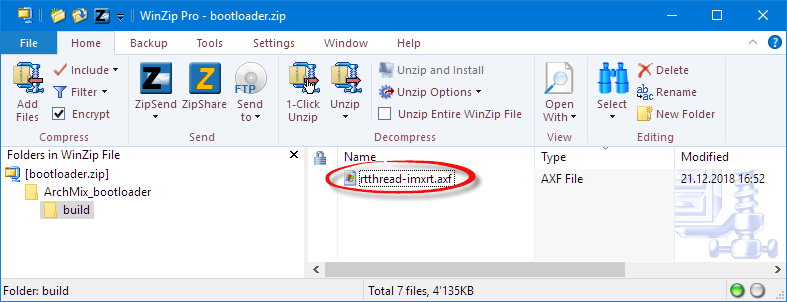

From that bootloader.zip file, extract the file rtthread-imxrt.axf:

rtthread-imxrt.axf

rtthread-imxrt.axf

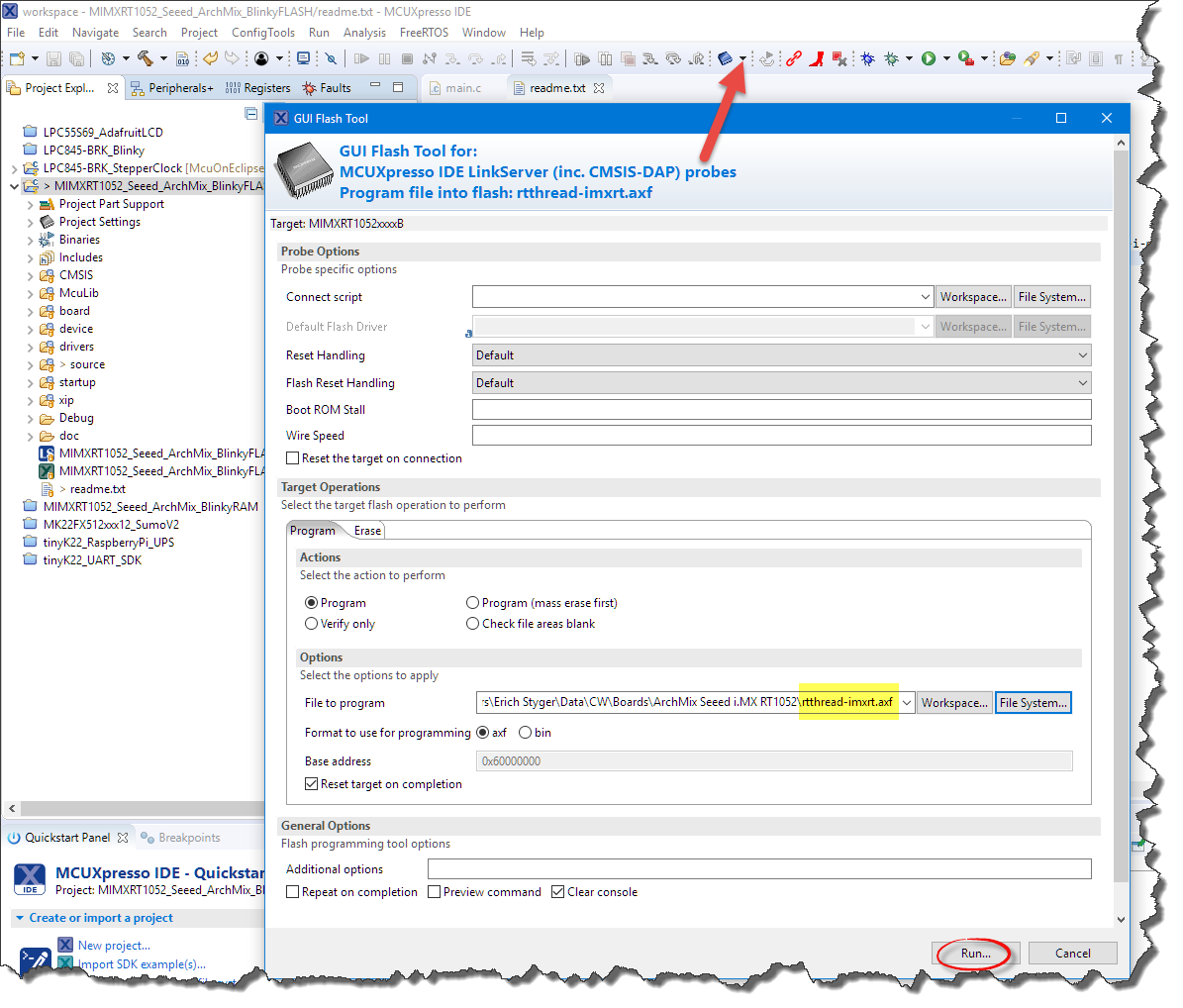

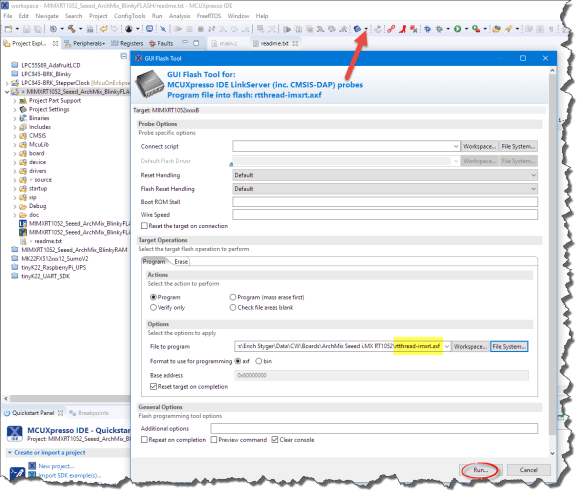

From the NXP MCUXpresso IDE, open the GUI Flash tool and use the .axf file for the programming:

Flashing Default Firmware

Flashing Default Firmware

💡 To erase any firmware parts too, select ‘program (mass erase first)’

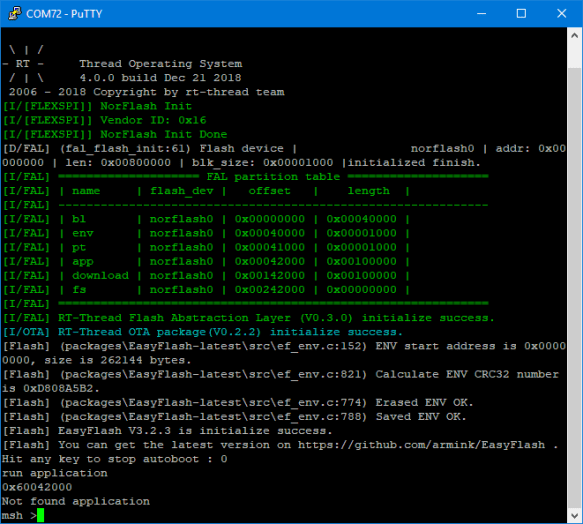

With this, the bootloader is programmed on the board and should show up on the console like this:

restored bootloader

restored bootloader

Next we load the firmware (application):

2. Firmware

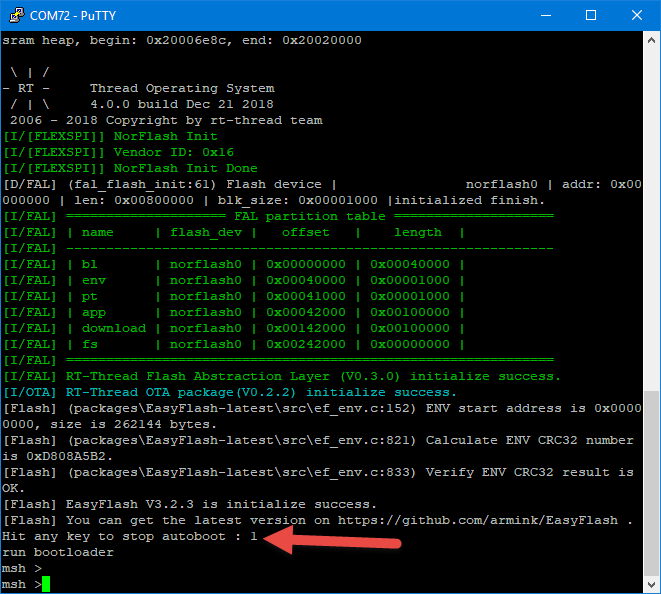

Reset the board and enter a key to stop autoboot and to enter the bootloader mode:

entered bootloader mode

entered bootloader mode

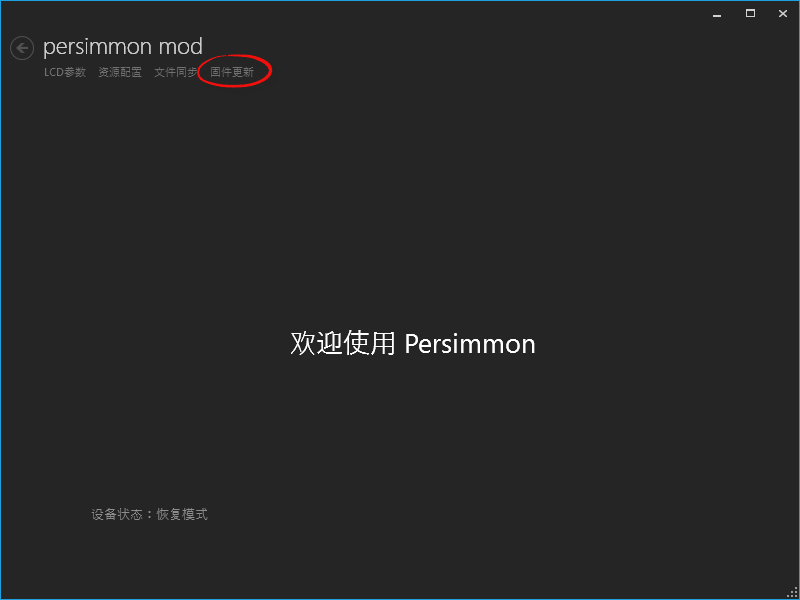

Now the more diffcult part because the firmware loader has not been translated from Chinese: run the PersimmonModConfigTool.exe (a C# application) which is included as ‘Config’ tool inside the zip file and click on that menu item to the right:

Persimmon

Persimmon

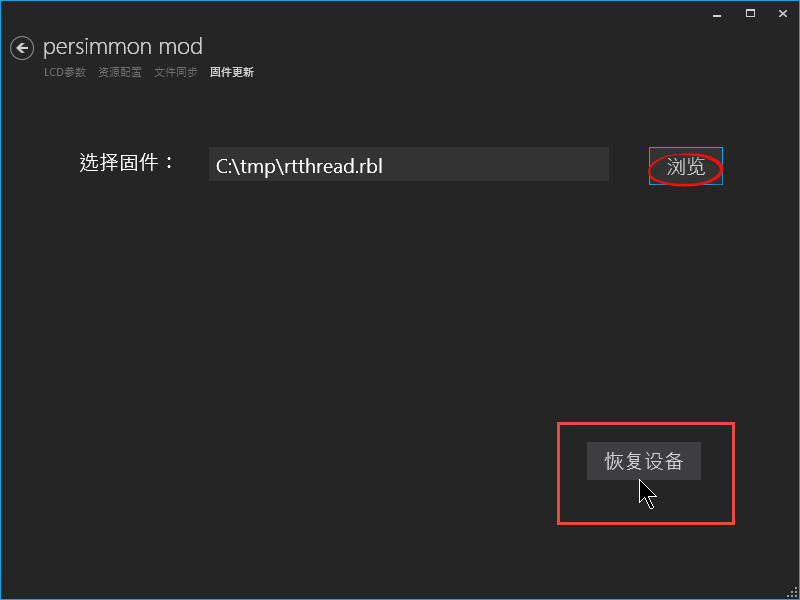

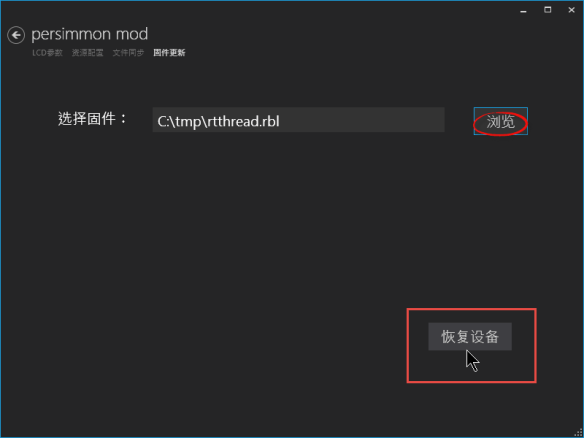

Use the ‘browse’ button to the right to select the *.rbl file which is part of the firmware zip file. Then use the button on the bottom to transmit the file:

file to load

file to load

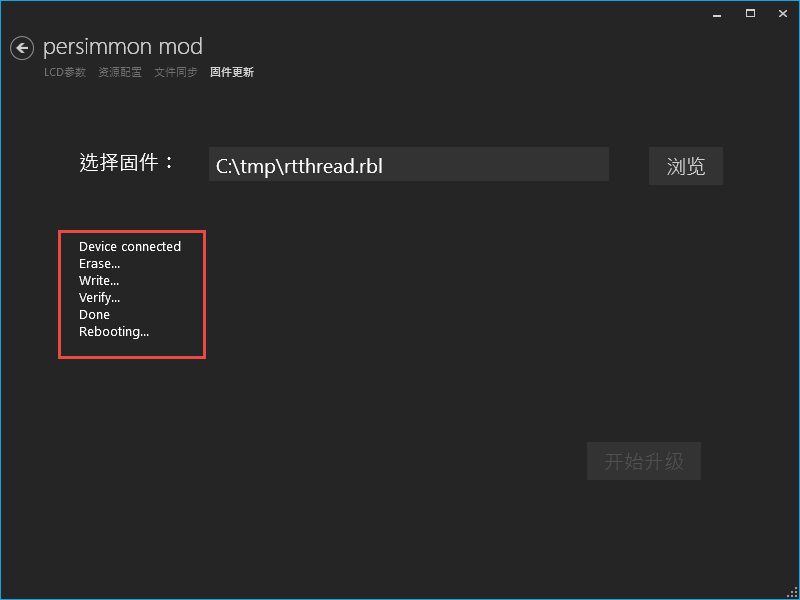

The tool will report the status:

Status

Status

More verbose output is produced in the console.

That’s it: I have the original firmware again running on the board 🙂

Restored Seeed Firmware

Restored Seeed Firmware

Happy restoring 🙂
