MCUXpresso IDE V10.1.0 with i.MX RT1052 Crossover Processor

In “Eclipse MCUXpresso IDE 10.1 with integrated MCUXpresso Configuration Tools” I mentioned that I wanted to try the i.MX RT1050 processor. Well, finally my ordered board from Mouser arrived, right on time for the week-end, so I had a chance to use that ARM Cortex-M7 running at 600 MHz :-).

i.MX RT1050 EVK

i.MX RT1050 EVK

💡 I highly recommend to use that board with the latest MCUXpresso IDE (currently 10.2.1) with the latest SDK.

Outline

💡 Note that in this post I have used the EVK (not the EVKB which was available later) which has the Rev A0 silicon on it. I highly recommend that you use the EVKB with the Rev A1 silicon (see errata at the end of this article).

The i.MX RT1050 is indeed an interesting device. It is an ARM Cortex-M7 running up to 600 MHz with up to 512 KByte of SRAM, but with no internal FLASH memory (‘flash-less’):

i.MX RT1050 Block Diagram

i.MX RT1050 Block Diagram (Source: NXP web site)

That device is interesting for me: image processing and number crunching demand more and more processing power and memory, and the Cortex-M4 I’m using mostly are hitting a 300 MHz ‘wall’, and the first M7 (see “First steps: ARM Cortex-M7 and FreeRTOS on NXP TWR-KV58F220M“) did not really bring the performance I hoped for. The solution I have explored so far was a combination of an Cortex-A core with a Cortex-M core (see “Tutorial: First Steps with NXP i.MX7 and Toradex Colibri Board“). But this usually requires an Embedded Linux running on the Cortex-A core: something I consider as an overkill or even a risk for running a realtime application. So that i.MX RT1050 really would close that gap and allow me continue to use the established Eclipse and JTAG debugging tools. NXP calls this device ‘crossover’ as it is bridging the gap between microcontroller and microprocessors.

What might be confusing is the ‘i.MX’ in that device name: it is not one of the traditional i.MX devices using an ARM Cortex-A: it has a single Cortex-M7 core, so it is much more a ‘normal’ Cortex-M like the ‘Kinetis’ or ‘LPC’ family from NXP, except that it seems to have inherited some of the complexity of the ‘real’ i.MX family? Anyway, as long I can use it with JTAG/SWD tools and get it run FreeRTOS, that should be fine :-).

Unboxing

I ordered my board from Mouser and it arrived after a week. The board costs around $80. It comes in a card box and with a micro USB cable which is used for power and debug.

i.MX RT1050 EVK

i.MX RT1050 EVK

My board is a SCH-29538 REV A3/700-29538 REV A one. On the left above the micro-SD card socket there are headers for an Arduino shield. The device offers two micro-USB, one Ethernet port. Below a picture with the default jumper settings (click to enlarge):

MIMXRT1050-EVK

MIMXRT1050-EVK

On the backside there are connectors for a display (left connector) and a touch interface (right connector). I guess I will try to order the matching display from Mouser too.

i.MX RT Board Bottom Side

i.MX RT Board Bottom Side

The device of interest on the board is the MIMXRT1052:

i.MX RT1052 Device

i.MX RT1052 Device

Power

The board can be powered through the Debug (DAPLink/OpenSDA) USB port:

Power with DAPLink Port

Power with DAPLink Port

In that case, jumper J1 near the power LED should set to the *middle* position:

DAPLink Power Option

DAPLink Power Option

I prefer to use an external power supply, as I have faced issues with other boards if they draw too much power (and some forum posts indicate some potential USB power supply issues too). Using an external power supply I can use the ON/OFF switch near the barrel connector. The board needs a 5V DC Power supply (Center +5V, outside GND). If using an external power source, the Jumper on J1 has to be set to the *top* position:

External Power Connector

External Power Connector

The green LED shown in above image indicates that the board has power. More than once it happened I failed to debug the board because it was not powered :-(.

Boot Options

The board can boot up from different memory using the boot option switch SW7:

SW7 Boot Options

SW7 Boot Options

I’m using the default option to boot from ‘Hyperflash’ with the following settings

SW7: 1-OFF 2-ON 3-ON 4-OFF

Memory

In ‘normal’ microcontroller, there is SRAM and FLASH available out of reset. As this device is ‘flash-less’ at boot time, the memory management and configuration is a bit more challenging.

The RT1052 has 512KB RAM on-chip, available at boot time. It is splitted up into SRAM_OC (On-Chip), SRAM_ITC (Instruction-Tightly-Coupled) and SRAM_DTC (Data-Tightly-Coupled). Below they are shown in the Memory configuration editor inside the MCUXpresso IDE:

RT1052 Memory Map with on-chip RAM

RT1052 Memory Map with on-chip RAM

The 128 KByte ‘ITC’ RAM is optimized for instruction execution, while the 128 KByte ‘DTC’ RAM is optimized for data access.

External to the RT1052 there are 4 extra memory options:

  1. 64 MByte ‘Hyper Flash’
  2. 32 MByte SDRAM
  3. 8 MByte QSPI Flash
  4. micro SD card socket

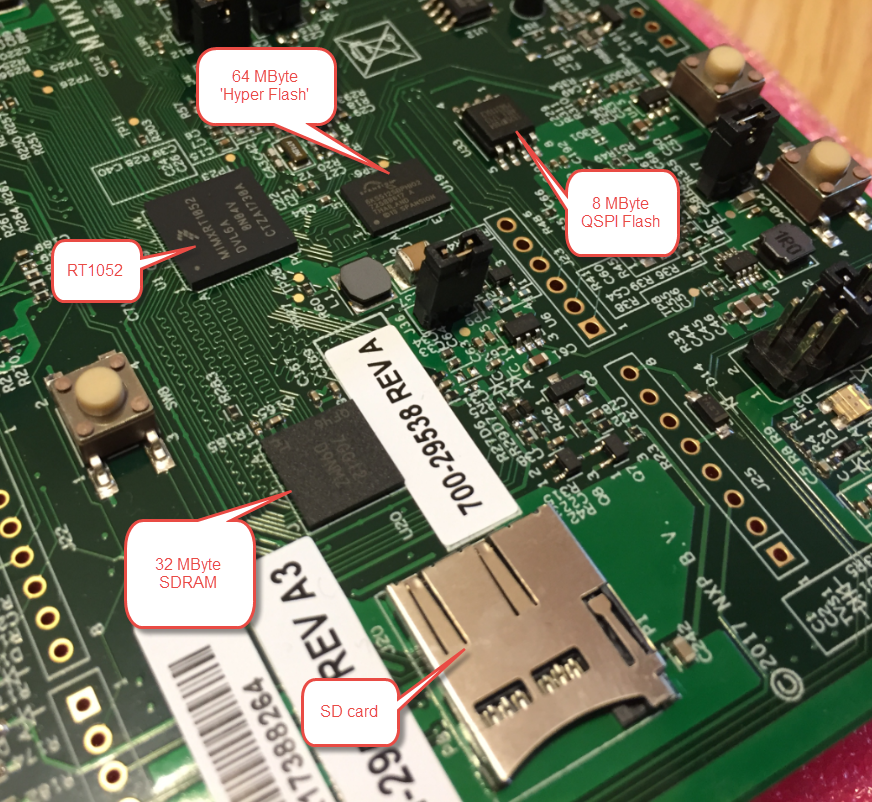

RT1052 with external Memory Devices

RT1052 with external Memory Devices

Both the external Flash (‘Hyperflash’) and  SDRAM are not available right away at boot time. The bootROM will check the external Flash for a specific header: if this header is found and valid, the Flash can be used and it will use that information to initialize the external SDRAM too. Presence of that header is critical, as it allows executing code from that external FLASH memory, also called XIP (eXecute In Place).

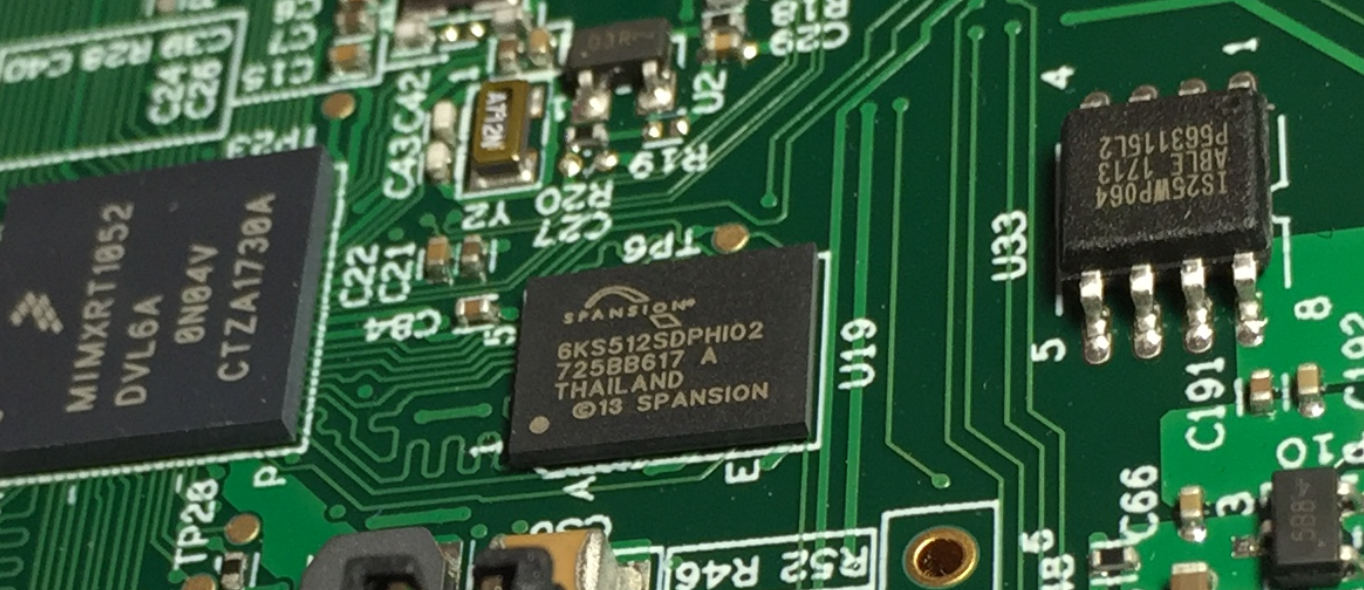

Below the 512MBit/64MByte ‘Hyper Flash’ from Spansion and the 8 MByte QSPI on the right:

Spansion Flash Device plus SPI Flash

Spansion Flash Device plus SPI Flash

The 32 MByte 166 MHz SDRAM device:

SDRAM

SDRAM

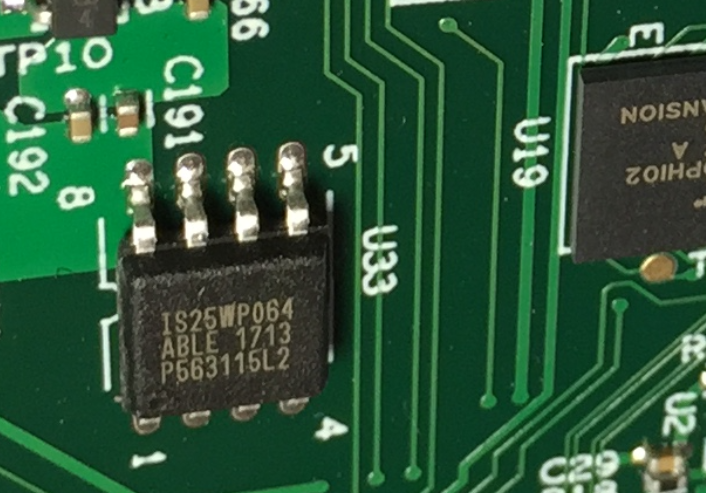

The 8 MByte QSPI Flash device:

QSPI 64MBit FLASH

QSPI 64MBit FLASH

It looks like the QSPI Flash is not really usable. From the user manual:

“By default, this QSPI Flash is disabled on the EVK. To enable it, Hyper Flash should be removed when the QSPI Flash is selected as the boot device. And R153, R154, R155, R156, R157, R158 should add 0 Ohm resistors.”

Does this really mean *removing* the Hyper Flash device from the board?

On-Board Debug Interface

The board features includes the DAPLink (or OpenSDA) on-board debug interface as present on many other Freescale/NXP boards.

The programmed DAPLink firmware information is

# DAPLink Firmware - see https://mbed.com/daplink
Unique ID: 0225000041114e4500463009c207001792d1000097969900
HIC ID: 97969900
Auto Reset: 0
Automation allowed: 0
Daplink Mode: Interface
Interface Version: 0241
Bootloader Version: 0242
Git SHA: 34182e2cce4ca99073443ef29fbcfaab9e18caec
Local Mods: 1
USB Interfaces: MSD, CDC, HID
Bootloader CRC: 0x73707d49
Interface CRC: 0x92919274
DAPLink Firmware

DAPLink Firmware

Because that firmware is not the latest one, I downloaded the latest one from http://www.nxp.com/opensda. The same link is available in the MCUXpresso IDE:

OpenSDA Firmware Update Site

OpenSDA Firmware Update Site

There are two different firmware binaries for debugging with CMSIS-DAP: one for SPI-Flash and one for Hyper-Flash.

💡 I have only used the Hyperflash one. I could be that the difference is where the USB MSD flashloader stores the binary. Anyway I’m not using that loader and using the debugger instead.

Because the board is initially configured to use Hyperflash, I have downloaded that firmware (I downloaded both, just in case, but make sure you use the correct one depending on your flash configuration):

Download OpenSDA Binary

Download OpenSDA Binary

This downloads k20dx_mimxrt1050_evk_hyper_if_crc.bin for me.

To program the new CMSIS-DAP firmware:

  1. Power off the board
  2. Make sure Jumper J27 is on 1-2 position:

    Jumper J27 in 1-2 position

    Jumper J27 in 1-2 position

  3. Press and hold SW4 while powering the board, then release SW4
  4. The device should show up as ‘MAINTENANCE

    DAPLink Maintenance Mode

    DAPLink Maintenance Mode

  5. Copy the .bin firmware file downloaded to that drive/device (e.g. drag&drop)

    Downloading DAPLink firmware

    Downloading DAPLink firmware

  6. Power off the board and power it again. Check the Interface Version (this is the new CMSIS-DAP Firmware version):

    Updated CMSIS-DAP Debug Firmware

    Updated CMSIS-DAP Debug Firmware

  7. Power off the board again. Set Jumper J27 to the position 2-3 for OpenSDA Debug
  8. Power on the board again. On Windows, under Devices/Printers it should show now three additional devices:

    DAPLink CMSIS-DAP Devices

    DAPLink CMSIS-DAP Devices

  9. Now we are ready to debug it :-).

MCUXpresso SDK

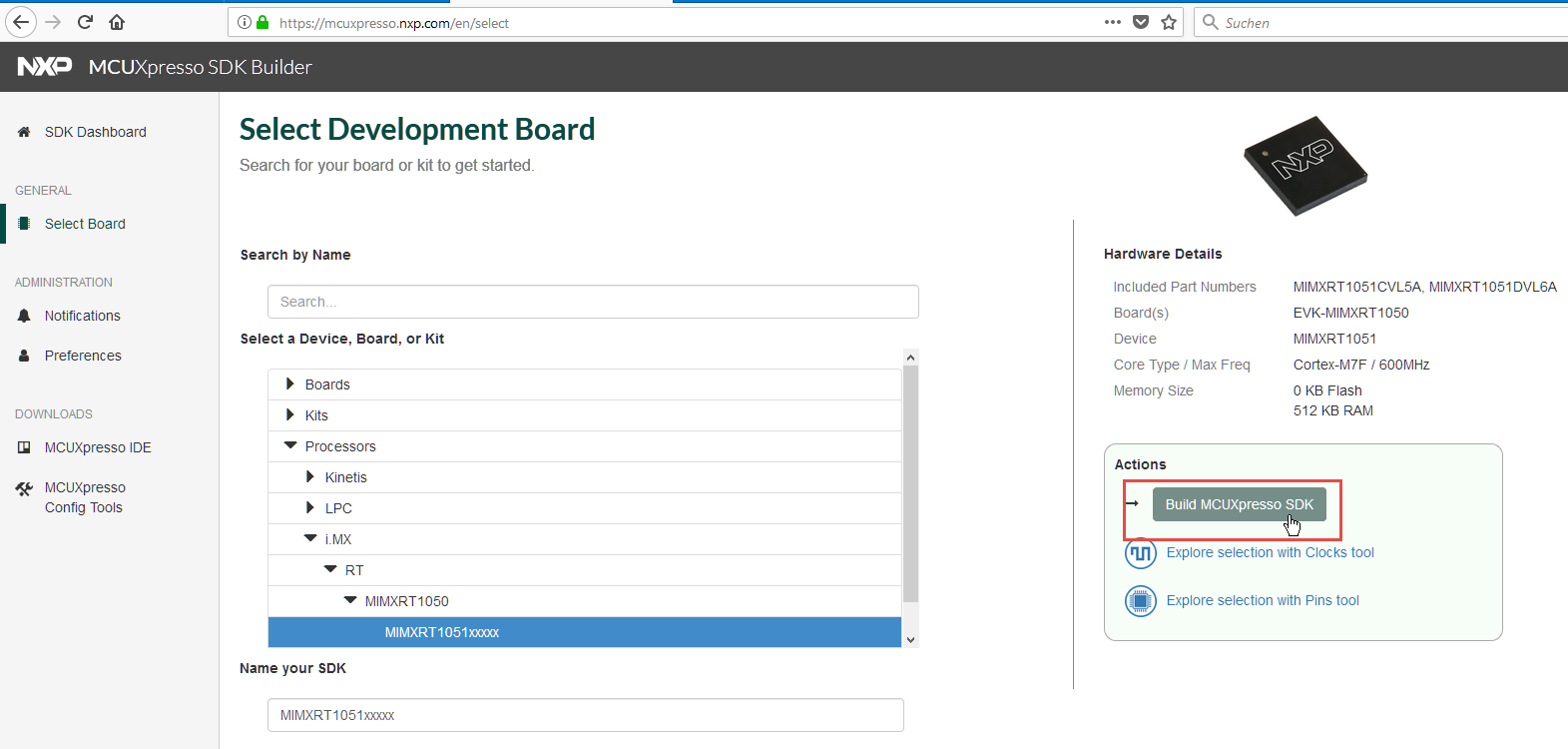

The SDK (software drivers) for the device are availble from http://mcuxpresso.nxp.com/. After selecting the device I can build the SDK:

MCUXpresso SDK Page

MCUXpresso SDK Page

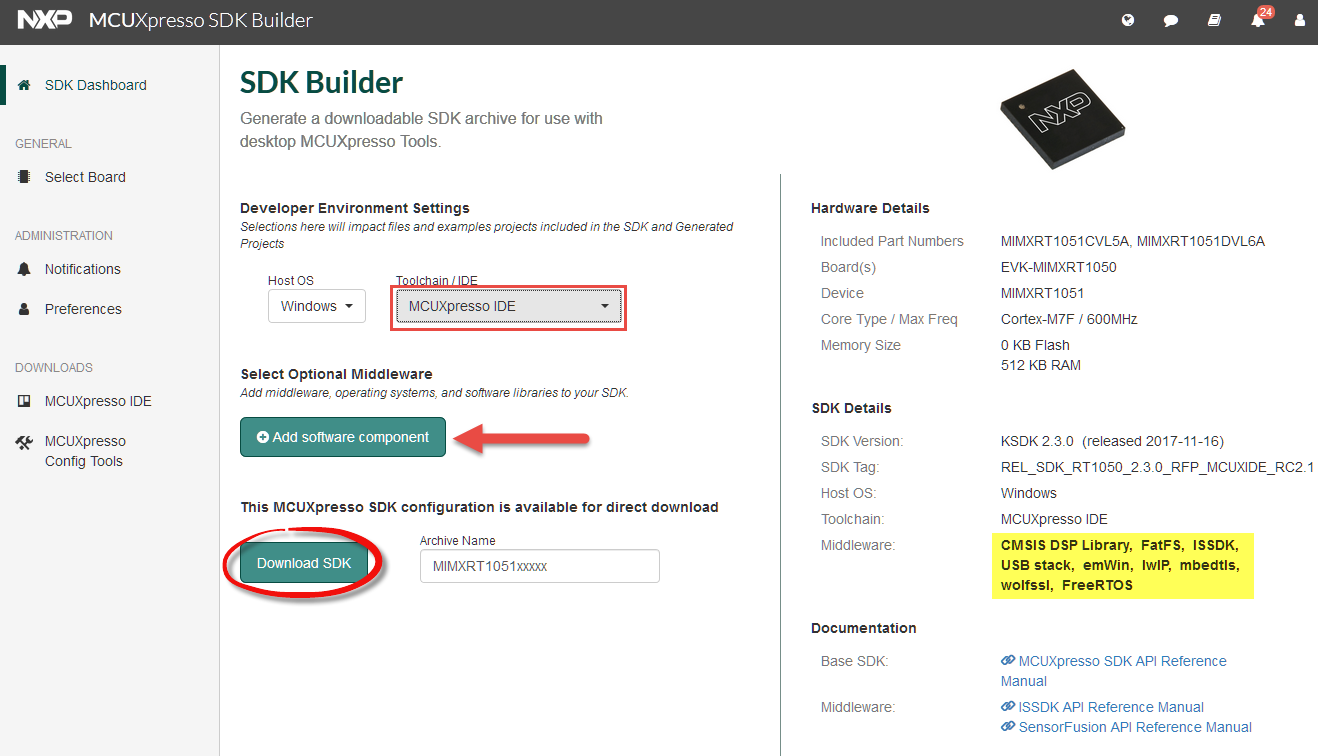

This gives me another page of options for the SDK. Make sure to select the MCUXpresso IDE. With the ‘Add software component’ I can add extra components as FreeRTOS. Then download the SDK.

Configured the SDK

Configured the SDK

MCUXpresso IDE

I’m using the MCUXpresso IDE V10.1.0 (see “Eclipse MCUXpresso IDE 10.1 with integrated MCUXpresso Configuration Tools“). The downloaded SDK from the previous step gets added with drag&drop into the ‘Installed SDK” view:

Installed SDK in MCUXpresso IDE

Installed SDK in MCUXpresso IDE

Create a new project with the shortcut in the Quickstart Panel:

Creating New Project

Creating New Project

Select the board, then press next:

Creating Project for 1050

Creating Project for 1050

In the next page I have selected FreeRTOS (or go with the defaults):

Configure the Project

Configure the Project

Pressing next gives the advanced options which I keep at the defaults:

Advanced Project Options

Advanced Project Options

With ‘Finish’ the project gets created, and I can build it:

Building project

Building project

Debug

💡 My board had problems with debug, because probably the content of the external FLASH block confused the bootROM, so debugging was not possible. Consult the ‘Troubleshooting’ section at the end of this article for erasing the external FLASH first.

To debug the project, use the ‘Debug’ button from the Quickstart Panel:

Debug from the Quickstart Panel

Debug from the Quickstart Panel

The first time, it will trigger a probe discovery, and the DAPLink probe should show up:

Probe Discovered

Probe Discovered

With this can debug that ‘hello world’ project in the MCUXpresso IDE:

Debugging Hello World

Debugging Hello World

Execute in Place (XIP) Header

As seen from the Disassembly view above, the program is executing from the external FLASH at 0x6000’0000 :-). The project has files in the ‘xip’ folder to create and link the needed header at address 0x6000’0000:

XIP File in Project

XIP File in Project

This creates a 8 KByte special header at the beginning of the the FLASH at address 0x6000’0000:

Hyperflash Config Block

Hyperflash Config Block

Most of the SDK examples are running in RAM. To change them to run from the external FLASH, consult the Overview Guide.

Debug Connector J21

If using an external SWD/JTAG debug probe, the board has a connector for the main CPU located on J21. In the picture below I have attached the NXP LPC-Link2 probe with a custom enclosure (see “Custom 3D Printed Enclosure for NXP LPC-Link2 Debug Probes“).

LPC-Link2 External Debug Probe

LPC-Link2 External Debug Probe

Debug connection with the P&E Multilink Universal:

Debugging with P&E Multilink

Debugging with P&E Multilink

Same with the Segger J-Link:

Debugging with J-Link

Debugging with J-Link

The onboard DAPLink debugger is not that fast. What helps for the LinkServer/OpenSDA debug connection is to remove the following (see Overview Guide):

--cachelib libm7_cache.so
removing cachelib libm7_cache.so

removing cachelib libm7_cache.so

That removes the extra cache handling, making debugging about twice as fast. Speed is ok that way, but not at par use an external debug probe. If you are really serious about debugging, get an external debug probe.

For using it with a small 2×5 0.05″ cable, I have to use an adapter board, e.g. the one from Adafruit.

Cortex SWD Adapter

Cortex SWD Adapter

I have been able to use onboard DAPLink, Segger J-Link, P&E Multilink and the NXP LPC-Link2 to debug the board.

Trouble Shooting

I was not able to debug my board, probably because the bootROM was confused by some wrong values in the external Hyperflash at address 0x6000’0000. To solve that problem, erase the FLASH memory. With the MCUXpresso IDE, either the onBoard DAPLink with CMSIS-DAP or the NXP LPC-Link2 Debug probe on connector J21 has to be used (the P&E or Segger probes won’t help here).

First, power off the board and change the SW7 DIP Switch to

SW7: 1-ON 2-ON 3-ON 4-OFF

to prevent booting from Hyperflash:

Preventing booting from Flash

Preventing booting from Flash

Power the board again. Select a project setup for XIP, and start the GUI Flash Programmer in the MCUXpresso IDE:

GUI Flash Programmer Icon

GUI Flash Programmer Icon

The project must have a DAPLink or LPC-Link2 debug connection:

DAPLink Connection

DAPLink Connection

Next, make sure that the ‘Mass erase’ option is enabled:

Mass Erasing Device

Mass Erasing Device

Press OK:

Mass Erase Progress

Mass Erase Progress

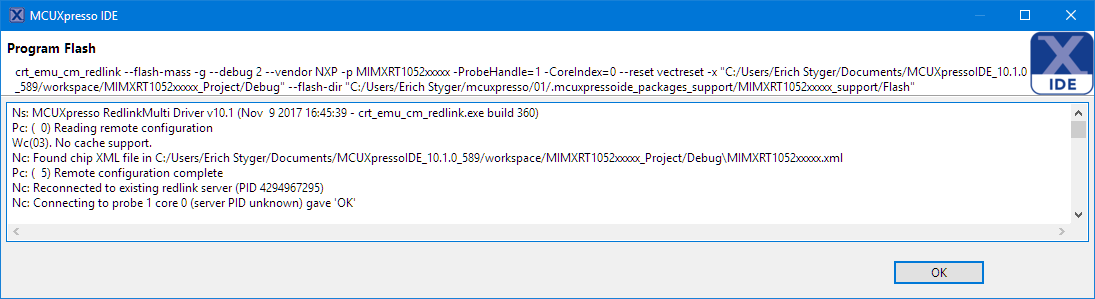

This will trigger the following dialog which can be closed:

Progam Flash

Program Flash

Power off the board, restore the SW7 to the allow boot from Hyperflash again:

Boot from Hyperflash

Boot from Hyperflash

Because the Hyperflash boot block is now erased, the board should be useable again.

Summary

The i.MX RT1052 is indeed an interesting device: lots of performance. According to NXP Factsheet the price should be reasonable too: “10k resale at sub $2.50”. Still there will be costs at least for an external FLASH memory. That BGA package makes it tricky for hobbyist. Usinig the MCUXpresso IDE makes it a very good experience to make the first steps with that board. While the onboard DAPLink is convenient, I recommend using an external debug probe. Finally, maybe board vendors will come up with small and bread board friendly breakout boards for the i.MX RT?. Something like the tinyk22? That would be awesome!

Happy RT’ing 🙂

Links

Advertisements

44 thoughts on “MCUXpresso IDE V10.1.0 with i.MX RT1052 Crossover Processor

  1. It always interesting to see a new line of MCU. In this case the devices have the potential to provide an upgrade path to the devices I have been using with the added bonus of not having to become familiar with yet another IDE and SDK. Having recently looked at options for an upgrade path in the context of new requirements, it has become clear that what would really speed up development of solutions and make these boards competitive with the population of Raspberry PIs out there would be a greater focus on application and operating system level software that is required for many applications such as reliable USB Mass storage file system, FTP, shell script capability and so on whilst still maintaining Micro controller real time capability. The Middle-ware from Arm seems to fill that gap and MDK5 supports this i.MX RT line already.

    Like

    • I think these days it is more about the software and tools than about the hardware itself. Yes, the hardware is needed, but my key decision factor for a design is the availability and quality of the software and tools, and this includes the middleware and drivers. The Raspy is a good example: that hardware is not really great or best in class, but the available tutorials, courses, middleware, etc are.

      Like

  2. Hi Erich,
    I’ve one of this 1052 EVK boards and a Jlink probe ..
    Just a small curiosity : why do u need two adapters to connect to the JTAG connector ( J21 ) ?
    I would not be more “straight” to go directly from the 20 pin 0.1 mm connector on the JLink to the 20 pin 0.1 mm on the EVK board ?
    From the EVK schematich and JLink connector footprint seems there should be no problems …

    Like

    • Yes, I can go straight with the ‘big’ cable from the J-Link to the board, that’s correct. I’m usinig the adapter with the small cable for convenience only (easier to move around the probe, as my desk gets messy 😉

      Like

      • Hi Erich,

        I m trying to use Jlink with Mcuxpresso but failed. the error message is “cannot get jtag device”. is there any special configuration settings for Jlink debugger?

        Thanks a lot.

        Best Regards,
        Kent

        Like

        • Hi Kent,
          no, no special setup or settings are needed. Have you created a project with the wizard (File > New) inside MCUXpresso using the SDK project? This should setup your connection when you do a debug the first time.

          Like

  3. Hi! In my view this board have a nice MCU and stuff on it! But it have a really bad layout! It only have arduino headers as “easy” expansion ports the other ones are only fpc conectors! In my opinon it’s better to wait for a board with more pins exposed! For 80$ it’s quite expensive!

    Like

    • Mat,
      Embedded Artists has a SODIMM module with this CPU on it – don’t know the price, but I would expect it to still be higher than you like. These are Eval boards, and are priced as such. Once you embed the CPU on your own hardware the costs will come way down.

      Brynn

      Like

      • I attended a webinar by Embedded Artists, and there I saw that module. But I have not seen it for sale somewhere. My understanding is that Embedded Artists makes designs for vendors like NXP, but they are not sold directly (I guess).
        It really would be coold if there would be an affordable module around the i.MX RT with FLASH and SRAM on the module.

        Like

  4. > That BGA package makes it tricky for hobbyist.

    Maybe you already know, but the I.MX RT1020 series are all LQFP packages….but they’re not released yet unfortunately.

    Like

  5. Hi Erich,
    I’m really interested in this CPU and am planning a couple new designs based on it.
    One thing that will really make life easier is if the Processor Expert stuff could work with this.
    I’m not sure how hard that would be, but pulling in the FRTOS and USB and Ethernet along with the relatively painless Peripheral driver support that PE provides. Any chance your going to get any of that working for us?
    Any updates on your progress with this board?

    Brynn

    Like

    • I do have FreeRTOS generated from Processor Expert working on it plus other drivers. But as NXP does not provide any more Processor Expert for new designs. And currently it is not possible to install Processor Expert into MCUXpresso IDE because it conflicts with the new configuration tool (you have to uninstall the configuration tools to get it working). Ethernet I have not touched yet because no time (yet).

      Like

  6. I recently noticed that there is a “rev B” eval kit for the 1050 (IMXRT1050-EVKB), and wondered what had changed. A bit of googling led me to the latest version of the eval kit user’s guide, where there are some notes about the use of QSPI flash, namely:
    For the rev A eval kits, “The onboard HyperFlash should be removed, otherwise it will impact the QSPI Flash read and write timing.”
    and
    “For EVKB board, the onboard HyperFlash doesn’t need to be removed.”

    So yes, it does appear that on the original eval boards, you do need to physically remove the Hyper Flash chips, but not so for the latest version.

    There is also a note that the “EVKB Boards are based on A1 silicon”. I haven’t yet found out what changes/bug fixes have been implemented in A1 silicon.

    Like

      • mine is an early EVK also, and with the A0 silicon. I found that there is apparently a bug in the silicon (fixed in A1) when trying to toggle a GPIO bit (GPIO->DR_TOGGLE=bit) it fails to work right (acts like the bit clear, GPIO->DR_CLEAR). also where the DR_SET, DR_CLEAR, and DR_TOGGLE are defined in the MiMXRT1052.h header there is a mistake (the 100 should be (0x84-0x1C))

        Like

        • Thanks for mentioning this, I have not been running into this. I still have A0 silicon too. I’m wondering why such a basic thing is done right the first time?

          Like

  7. Interesting to read a post about the i.MX RT as I was in an NDA session pre-release where they talked about it.

    My understanding was that this came out of the i.MX team trying to scale down further than the i.MX6ULL and uses the i.MX peripheral blocks and the i.MX manufacturing process instead of the Kinetis peripherals and process.

    I’d be very interested to see a power consumption comparison between the K64f and the i.MX RT line because even thought it’s using an M7 core it was supposedly using a newer manufacturing process which should give some power savings.

    Like

    • Yes, this was my feeling as well, that it comes from the ‘real’ i.MX world and that the i.MX team tapped into the micrcocontroller world with the ARM Cortex-M7.
      So far I have not had a chance to measure the power consumption, I would have to check what capabilities I have on that board.
      My guess is that the RAM on the i.MX RT system might add up on the power consumption compared to the K64. And all will depend on what will be active or what is the scenario to measure.

      Like

  8. Erich, you saved my ass. Somehow, running one of the edma demo programs made it impossible for the debugger to download any new code. Your trick about wiping the flash worked like a charm.

    Thanks very, very much!!

    Like

  9. Pingback: Adding a Rocktech Capacitive Touch LCD to the NXP i.MX RT1052 EVK | MCU on Eclipse

  10. Hello, Erich.

    I want to design and manufacture my own board with i.MX RT1020 microcontroller LQFP100, and I am looking for a solution to program and debug. The evaluation boards install a Kinetis MK20 with OpenSDA, but on my own board I prefer not to complicate it with hardware that is not essential.

    Looking at the schematics of the evaluation boards, both the RT1020 and the RT1050, I see that the OpenSDA with the MK20 communicates with the iMX using a serial port and SWD. I think that the firmware is programmed by the UART and that Debug is made by SWD.

    At the moment, I can only think of putting a USB connector on my board to program it with MFG Tool, and a connector with SWD to do Debug with Jlink or Multilink.

    My question is whether there is any commercial hardware that integrates everything into a single product, I mean an independent OpenSDA that can be connected with a cable to the board designed by me that will not have the MK20 with the OpenSDA. If it does not exist, I can manufacture my own DAPLINK, using the part of the scheme of the evaluation board, where the MK20 is, and the software I think is free and can be downloaded from the Internet, both the sources and the binary. But if this hardware already exists as a commercial product, I would prefer to buy it, because I also suppose it will be very cheap.

    Greetings.

    Like

    • >>I think that the firmware is programmed by the UART and that Debug is made by SWD.
      No, the K20 has no UART ROM bootloader. That OpenSDA bootloader has been programmed on the chip, so you would need to either program it in a manufacturing socket or (better) to have a SWD connector on it as it is on the FRDM boards (like FRDM-K64F). Yes, the OpenSDA circuit and bootloader is open source, so you can add it to your own board (we did that for the tinyK22, see https://mcuoneclipse.com/2018/02/10/tinyk22-boards-arrived/), but honestly the i.MX RT are a different kind of microcontroller and the i.MX RT is very, very new. I rather would go with a standard 10 pin SWD/JTAG connector, and then use a P&E, Segger or LPC-Link2 debug probe.
      If you are looking for a commercial product: For one project at the university we used the https://www.segger.com/products/debug-probes/j-link/models/j-link-ob/, but this comes close to a normal J-Link price point.

      I hope this helps,
      Erich

      Liked by 1 person

      • Thanks Erich.

        Then if I do my own board with only the i.MX RT1020, not the MK20/OpenSDA, can I use only the Jlink or Multilink to Program and Debug ?.

        My commercial board will not install the MK20/OpenSDA to simplify it, only the essential (RT1020, QSPI and some more components to control led panels based on HUB75). I suppose I can program the board with MFG Tool by USB or UART, and Debug by SWD, the question is if can I use only one hardware tool to do all.

        I have seen the Jlink-OB, it seems that this is a combined device like DAPLINK, I mean SWD + UART, for Program and Debug.

        Like

        • Ok, thanks, I’ll check everything.

          I also see that the Jlink V9 can enable a virtual COM, which is available in the JTAG connector, pin5 and pin17.

          MFG Tool, is the software of NXP to program i.MX RT1020 and RT1050 by USB or UART, with direct connection to the microcontroller, does not use OpenSDA / DAPLINK, nor any intermediate microcontroller (MK20 in evaluation boards).

          When programming / debugging with the RT1020 / RT1050 evaluation board, it seems that it always works with OpenSDA, by USB or JTAG, both work with a Kinetis MK20 microcontroller that works as an intermediary between the programmer (Jlink / Multilink) or the USB and the microcontroller. For my own design, there is no OpenSDA with Kinetis, but everything is connected directly to the microcontroller.

          I will try all the options, I think I will design a small board with OpenSDA and Kinetis MK20 only, to program and debug my own boards. With a 2×3 IDC connector, it will be enough for GND, 3.3v, SWDIO, SWCLK, TX and RX.

          Liked by 2 people

  11. Pingback: i.MX RT1050 EVK vs. EVKB | MCU on Eclipse

  12. Pingback: First Steps with the NXP i.MX RT1020 EVK Board | MCU on Eclipse

  13. Pingback: Tutorial: First Steps with Embedded Artists NXP i.MX RT1052 OEM Module | MCU on Eclipse

  14. Hey Erich,

    Thank you for this informative post. Whenever I have trouble I always seem to end up at your site finding the solution. However, I am currently having a problem that I cannot find an answer for and before I resolve that the hardware I received is no good I thought I would ask.

    We were working with the MIMXRT1050-EVK boards until we found out that they had known issues and the recommendation was to move to the IMXRT1050-EVKB board. Our new board came in yesterday and I was very excited to dive in only to find out that I am unable to program the board. I went through the troubleshooting you suggested at the end of this article and when I performed the mass erase it still failed. The console looks as follows:
    Executing flash operation ‘Erase’ (Erase flash) – Fri Aug 31 09:53:16 EDT 2018
    Checking MCU info…
    Scanning for targets…
    Executing flash action…
    MCUXpresso IDE RedlinkMulti Driver v10.2 (Jul 25 2018 11:25:37 – crt_emu_cm_redlink.exe build 555)
    ( 0) Reading remote configuration
    Wc(03). No cache support.
    Found chip XML file in E:/Shared/Git/embedded/sandbox/evkbimxrt1050_/dev_cdc_vcom_bm/Debug\MIMXRT1052xxxxB.xml
    ( 5) Remote configuration complete
    Reconnected to existing link server
    Connecting to probe 4 core 0:0 (using server started externally) gave ‘Ee(42). Could not connect to core.’
    Connecting to probe 4 core 0:0 (using server started externally) gave ‘Ee(42). Could not connect to core.’
    Connecting to probe 4 core 0:0 (using server started externally) gave ‘Ee(42). Could not connect to core.’
    Server OK but no connection to probe 4 core 0:0 (after 3 attempts) – Ee(42). Could not connect to core.
    Failed on connect: Ee(42). Could not connect to core.
    No connection to chip’s debug port
    (100) Target Connection Failed
    Unable to perform operation!
    Command failed with exit code 1

    What am I doing wrong? Do you have any suggestions?

    Like

    • Are you using an external debug probe or the on-board one? As for myself, the external ones have worked better, and in that case I can un-jumper J32 and J32 (although this seems not to make much of a difference).
      And the board worked better for me if I’m using an external power supply (5V). And in general the EVKB is much (much!) more reliable than the EVK too.
      The other advise I have is to use the latest SDK (I’m using the SDK_2.x_EVKB-IMXRT1050 v2.4.2), with a ‘known good example project’ (the one I have on GitHub: https://github.com/ErichStyger/mcuoneclipse/tree/master/Examples/MCUXpresso/i.MX%20RT1050_EVK/MIMXRT1052_HelloWorld_xip). The recovery mechanism with erasing the external flash is necessary if the flash header does not have the right signature.
      As an important detail: after the external Flash has been erased, change the boot switches (but do not repower the board) and then load the ‘known good example’.

      For the erase, make sure you have first that ‘golden’ project with XiP selected. The log I have for reference:

      Executing flash operation 'Erase' (Erase flash) - Sun Sep 02 18:18:15 CEST 2018
      Checking MCU info...
      Scanning for targets...
      Executing flash action...
      MCUXpresso IDE RedlinkMulti Driver v10.2 (Jul 25 2018 11:25:37 - crt_emu_cm_redlink.exe build 555)
      ( 0) Reading remote configuration
      Wc(03). No cache support.
      Found chip XML file in C:/Users/Erich Styger/Data/GitRepos/McuOnEclipse/Examples/MCUXpresso/i.MX RT1050_EVK/MIMXRT1052_HelloWorld_xip/Debug\MIMXRT1052xxxxB.xml
      ( 5) Remote configuration complete
      Reconnected to existing link server
      Connecting to probe 1 core 0:0 (using server started externally) gave 'OK'
      Probe Firmware: DAPLink CMSIS-DAP (ARM)
      Serial Number: 0227000040214e4500131018c89200469e11000097969900
      VID:PID: 0D28:0204
      USB Path: \\?\hid#vid_0d28&pid_0204&mi_03#7&194835b1&0&0000#{4d1e55b2-f16f-11cf-88cb-001111000030}
      Using memory from core 0:0 after searching for a good core
      ( 30) Emulator Connected
      ( 40) Debug Halt
      ( 50) CPU ID
      debug interface type = Cortex-M7 (DAP DP ID 0BD11477) over SWD TAP 0
      processor type = Cortex-M7 (CPU ID 00000C27) on DAP AP 0
      number of h/w breakpoints = 8
      number of flash patches = 0
      number of h/w watchpoints = 4
      Probe(0): Connected&Reset. DpID: 0BD11477. CpuID: 00000C27. Info:
      Debug protocol: SWD. RTCK: Disabled. Vector catch: Disabled.
      Content of CoreSight Debug ROM(s):
      RBASE E00FD000: CID B105100D PID 000008E88C ROM dev (type 0x1)
      ROM 1 E00FE000: CID B105100D PID 04000BB4C8 ROM dev (type 0x1)
      ROM 2 E00FF000: CID B105100D PID 04000BB4C7 ROM dev (type 0x1)
      ROM 3 E000E000: CID B105E00D PID 04000BB00C ChipIP dev SCS (type 0x0)
      ROM 3 E0001000: CID B105E00D PID 04000BB002 ChipIP dev DWT (type 0x0)
      ROM 3 E0002000: CID B105E00D PID 04000BB00E ChipIP dev (type 0x0)
      ROM 3 E0000000: CID B105E00D PID 04000BB001 ChipIP dev ITM (type 0x0)
      ROM 2 E0041000: CID B105900D PID 04001BB975 ARCH 23B:4A13r0 CoreSight dev type 0x13 Trace Source - core
      ROM 2 E0042000: CID B105900D PID 04004BB906 CoreSight dev type 0x14 Debug Control - Trigger, e.g. ECT
      ROM 1 E0040000: CID B105900D PID 04000BB9A9 CoreSight dev type 0x11 Trace Sink - TPIU
      ROM 1 E0043000: CID B105F00D PID 04001BB101 System dev (type 0x0)
      Inspected v.2 External Flash Device on SPI MIMXRT1050-EVK_S26KS512S.cfx
      Image 'MIMXRT1050-EVK_S26KS512SFeb 21 2018 17:40:48'
      Opening flash driver MIMXRT1050-EVK_S26KS512S.cfx
      Sending VECTRESET to run flash driver
      Flash variant '' detected (64MB = 256*256K at 0x60000000)
      Closing flash driver MIMXRT1050-EVK_S26KS512S.cfx
      Non-standard DAP stride detected - 1024 bytes
      NXP: MIMXRT1052xxxxB
      ( 65) Chip Setup Complete
      Connected: was_reset=true. was_stopped=false
      ( 70) License Check Complete
      Opening flash driver MIMXRT1050-EVK_S26KS512S.cfx (already resident)
      Sending VECTRESET to run flash driver
      Flash variant '' detected (64MB = 256*256K at 0x60000000)
      Mass Erase flash at 0x60000000
      Closing flash driver MIMXRT1050-EVK_S26KS512S.cfx
      MassErase completed (in 6861ms)

      With this, the connection log looks like this for me:

      MCUXpresso IDE RedlinkMulti Driver v10.2 (Jul 25 2018 11:25:37 - crt_emu_cm_redlink build 555)
      Found chip XML file in C:/Users/Erich Styger/Data/GitRepos/McuOnEclipse/Examples/MCUXpresso/i.MX RT1050_EVK/MIMXRT1052_HelloWorld_xip/Debug\MIMXRT1052xxxxB.xml
      Reconnected to existing link server
      Connecting to probe 1 core 0:0 (using server started externally) gave 'OK'
      Probe Firmware: DAPLink CMSIS-DAP (ARM)
      Serial Number: 0227000040214e4500131018c89200469e11000097969900
      VID:PID: 0D28:0204
      USB Path: \\?\hid#vid_0d28&pid_0204&mi_03#7&194835b1&0&0000#{4d1e55b2-f16f-11cf-88cb-001111000030}
      Using memory from core 0:0 after searching for a good core
      debug interface type = Cortex-M7 (DAP DP ID 0BD11477) over SWD TAP 0
      processor type = Cortex-M7 (CPU ID 00000C27) on DAP AP 0
      number of h/w breakpoints = 8
      number of flash patches = 0
      number of h/w watchpoints = 4
      Probe(0): Connected&Reset. DpID: 0BD11477. CpuID: 00000C27. Info:
      Debug protocol: SWD. RTCK: Disabled. Vector catch: Disabled.
      Content of CoreSight Debug ROM(s):
      RBASE E00FD000: CID B105100D PID 000008E88C ROM dev (type 0x1)
      ROM 1 E00FE000: CID B105100D PID 04000BB4C8 ROM dev (type 0x1)
      ROM 2 E00FF000: CID B105100D PID 04000BB4C7 ROM dev (type 0x1)
      ROM 3 E000E000: CID B105E00D PID 04000BB00C ChipIP dev SCS (type 0x0)
      ROM 3 E0001000: CID B105E00D PID 04000BB002 ChipIP dev DWT (type 0x0)
      ROM 3 E0002000: CID B105E00D PID 04000BB00E ChipIP dev (type 0x0)
      ROM 3 E0000000: CID B105E00D PID 04000BB001 ChipIP dev ITM (type 0x0)
      ROM 2 E0041000: CID B105900D PID 04001BB975 ARCH 23B:4A13r0 CoreSight dev type 0x13 Trace Source - core
      ROM 2 E0042000: CID B105900D PID 04004BB906 CoreSight dev type 0x14 Debug Control - Trigger, e.g. ECT
      ROM 1 E0040000: CID B105900D PID 04000BB9A9 CoreSight dev type 0x11 Trace Sink - TPIU
      ROM 1 E0043000: CID B105F00D PID 04001BB101 System dev (type 0x0)
      CM7 Rev. 7.0 DTCM: 512KB ITCM: 512KB
      LoUU: Level 2: LoC: Level 2
      Level 1 Cache Type: Instruction+Data
      ICache 32K: WT: Y WB: Y RA: Y WA: Y NumSets: 512 Assoc: 2 LineSize: 8
      DCache 32K: WT: Y WB: Y RA: Y WA: Y NumSets: 256 Assoc: 4 LineSize: 8
      Inspected v.2 External Flash Device on SPI MIMXRT1050-EVK_S26KS512S.cfx
      Image 'MIMXRT1050-EVK_S26KS512SFeb 21 2018 17:40:48'
      Opening flash driver MIMXRT1050-EVK_S26KS512S.cfx
      Sending VECTRESET to run flash driver
      Flash variant 'S26KS512S' detected (64MB = 256*256K at 0x60000000)
      Closing flash driver MIMXRT1050-EVK_S26KS512S.cfx
      Non-standard DAP stride detected - 1024 bytes
      NXP: MIMXRT1052xxxxB
      Connected: was_reset=true. was_stopped=false
      Awaiting telnet connection to port 3330 ...
      GDB nonstop mode enabled
      Opening flash driver MIMXRT1050-EVK_S26KS512S.cfx (already resident)
      Sending VECTRESET to run flash driver
      Flash variant 'S26KS512S' detected (64MB = 256*256K at 0x60000000)
      Writing 25020 bytes to address 0x60000000 in Flash
      Erased/Wrote page 0-0 with 25020 bytes in 1402msec
      Closing flash driver MIMXRT1050-EVK_S26KS512S.cfx
      Flash Write Done
      Flash Program Summary: 25020 bytes in 1.40 seconds (17.43 KB/sec)
      Starting execution using system reset and halt target
      Note - system reset leaves VTOR at 0x200000 (not 0x60000000 which a booted image might assume)
      Stopped: Breakpoint #1

      I hope this helps,
      Erihc

      Like

      • I tried with both. I started with the on-board and I tried with both NXP’s openSDA drivers and PE Micro’s openSDA drivers. I also tried using the LPC-Link 2. Obviously, when I was using the on-board debugger I was powering from it. When I used the LPC-Link 2 I tried powering from J28 (the openSDA port) and from J9 (the USB OTG). Through all of this it was failed attempt after failed attempt to program the board or perform the mass erase on the new EVKB board. However, I was able to get the EVK board to program with the on-board and the LPC-Link 2. All of this was being done with the latest SDK (SDK_2.x_EVKB-IMXRT1050 v2.4.2) on both the EVK and EVKB.

        After switching between the two boards multiple times I stopped being able to program the EVK board.

        I abandoned the project for the weekend and got back to it this week. It started as I had left where I could not program or mass erase either board with the LPC-Link 2 or the on-board. After switching between the EVK and EVKB board my Windows machine performed a driver install and now the EVKB board works every time. Sometimes I have to disconnect and reconnect the LPC-Link 2 probe but it otherwise is working flawlessly.

        I really do not know what happened or made the difference but I am going to close the case on this. Thank you for your response and help.

        Like

  15. We are trying to use LPC-Link2 as a debug probe with the EVK. This works fine in SWD mode, but we like to use JTAG mode for the same. But we are unable to connect to the core when using it in JTAG mode. We set the JTAG_MOD pin (GPIO_AD_B0_08) to pull-up, to enable it in JTAG mode rather than the default SWD mode.
    We also used Segger’s JLink firmware for LPC-Link2 and tried the same. JLink reports the JTAG ID as 188C_301Dh which is same as in the documentation, but it still does not recognize the core.
    Could you suggest any possible solutions?
    Thanks!

    Like

    • Hi Krishnan,
      I’m wondering why you want to use JTAG as SWD is the preferred method, and I don’t see any reaons for using JTAG (it would actually mean using more pins too). So I have not used it in JTAG mode at all.
      To my understanding from other cores you need to turn on the JTAG pins on the device too (or prevent a different muxing), so this might be something you have missed.

      Like

      • Thanks Erich.
        This could be an old question, but I thought JTAG would be faster than SWD. I’ve been using SWD so far on this board with MCUxpresso and I feel it’s quite slow compared to JLink on Cortex M3 boards. That’s why I was looking around JTAG.
        BTW, the pin-mux is okay because otherwise I won’t be able to read the JTAG ID.

        Like
