GNU ARM Eclipse Installation

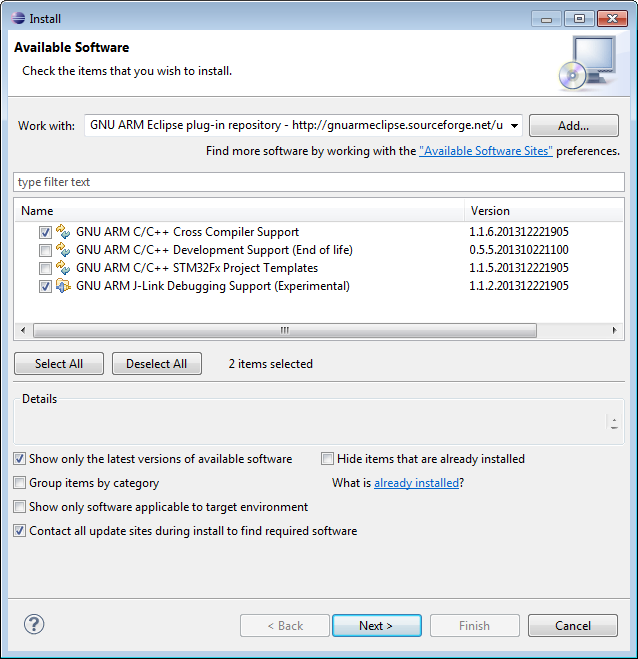

I have installed the plugins into my Eclipse Kepler. Follow the usual Eclipse process:
- Menu Help > Install New Software
- Use following update site: gnuarmeclipse.sourceforge.net/updates
- Select the plugin(s) andclick through the installation process
Installing GNU ARM Eclipse Plugins
💡 The latest plugin collection comes STM32 project templates which gives a good starting point for anyone using the STM32 devices.
Segger Installation

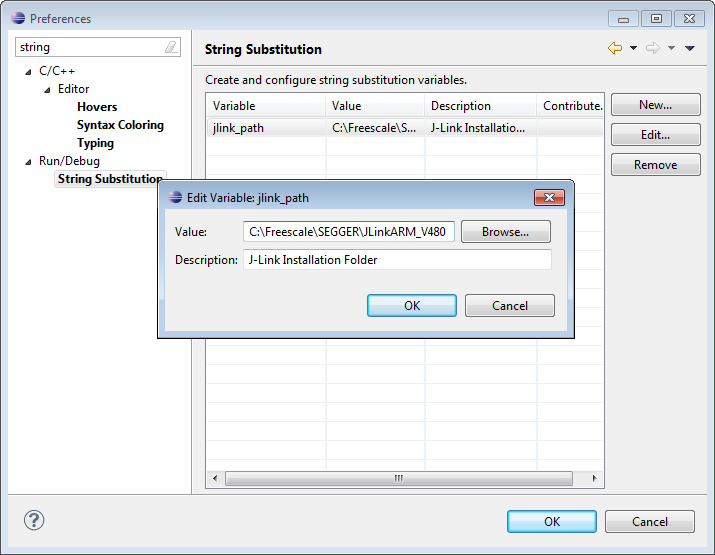

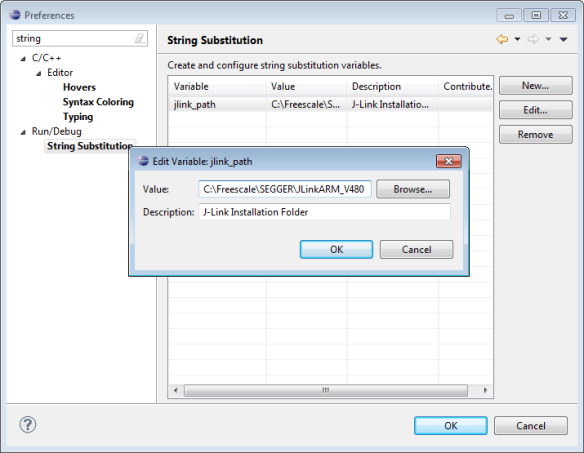

Next define a String Substitution to the Segger Installation path.
💡 By default, Segger installs on Windows on my machine into a path with spaces. I faced problems with paths having spaces, so make sure you install into a path *without* spaces. I have filed a ticket, but until this is fixed, better always use paths without spaces. UPDATE: this issue has been fixed, and will be available with the next release of the plugins.
J-Link Installation Variable
Either a Segger J-Link or the FRDM OpenSDA Segger Firmware can be used.
Creating Project for FRDM-KL25Z
Next, I showing how to use the plugin to use a project for the Freescale FRDM-KL25Z (Freescale Kinetis ARM Cortex-M0+) board. The steps are pretty generic, and can be used for other boards too.
The completed project is found on GitHub.
Creating a Project
❗ Do *not* use a workspace or project path with spaces! As stated below, that might cause problems (which hopefully will be fixed soon).

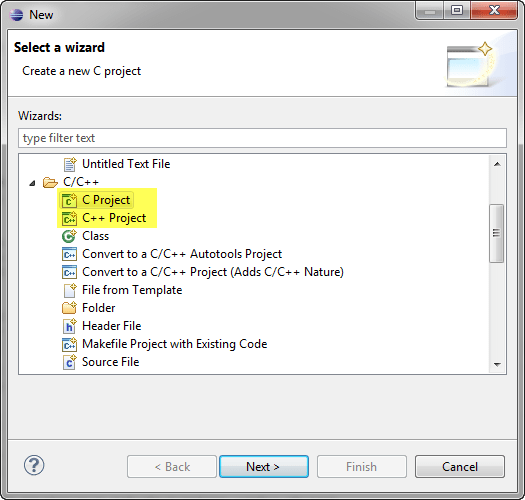

Use the menu File > New C (or C++) Project:
New C or C++ Project

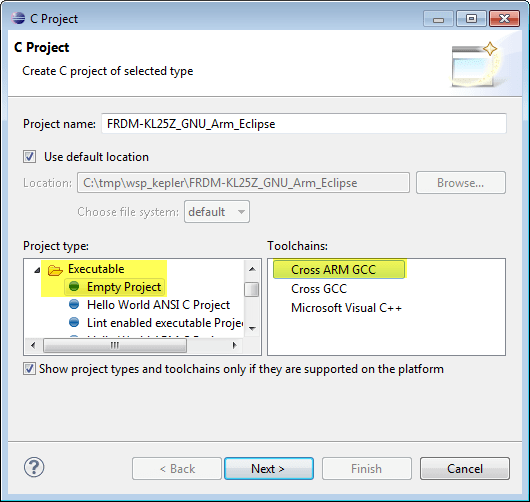

I give the project a name and select ‘Empty Project’ with ‘Cross ARM GCC’:
Cross ARM GCC Empty Project

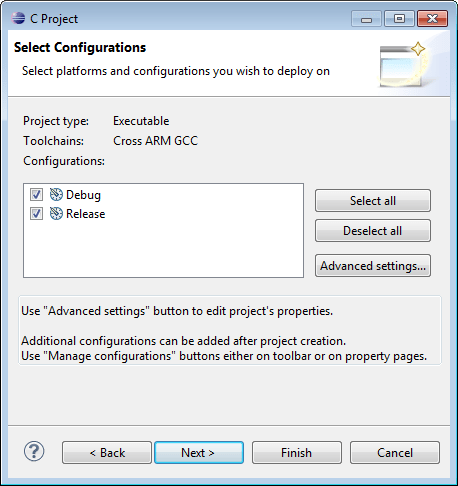

Press Next: here we can go with the default configuration:
Select Configurations
Press next, and I have the opportunity to select the toolchain:

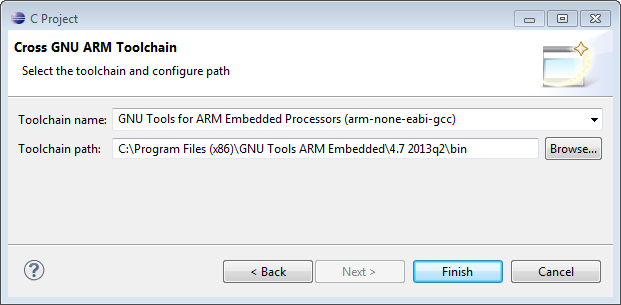

Cross GNU ARM Toolchain
I’m using GNU ARM 4.7. The feature of this plugin is that it allows a very flexible toolchain configuration.

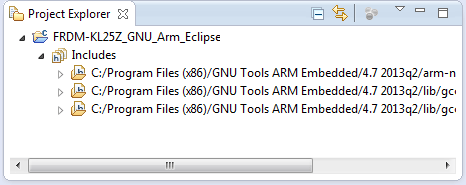

Press ‘Finish’, and the empty project gets created.
Empty Project Created
Adding Folder and Files
With the menu File > New > Source Folder I add my source folders, then I add my source files:
Source Folder and Files
💡 You can use my sources as starting point from GitHub here.
Beside of the startup code and source files, you need to add as well the linker (*.ld) file, for example in a linker folder.
Build Options
The build options need changed for my source file structure and processor used. For this I select the project properties (select the project, then menu Project > Properties).

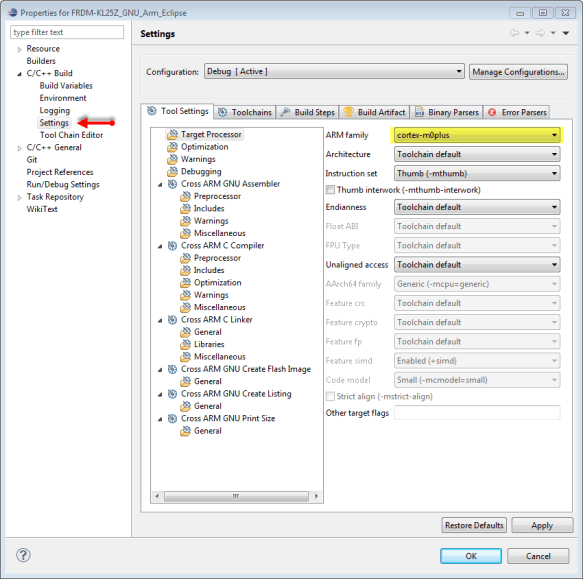

First, I configure the processor used. For the KL25Z this is an ARM Cortex-M0+ (cortex-m0plus):
Selected ARM family

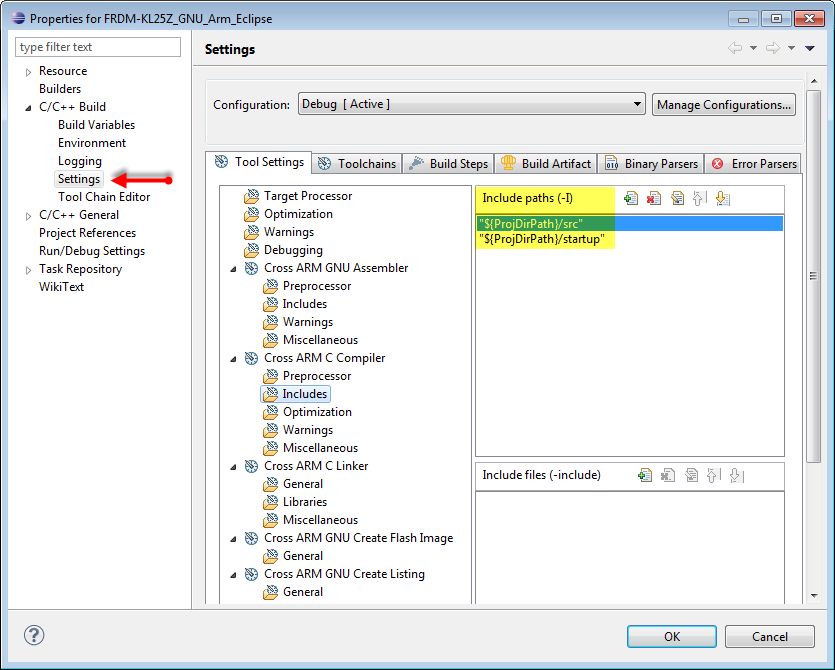

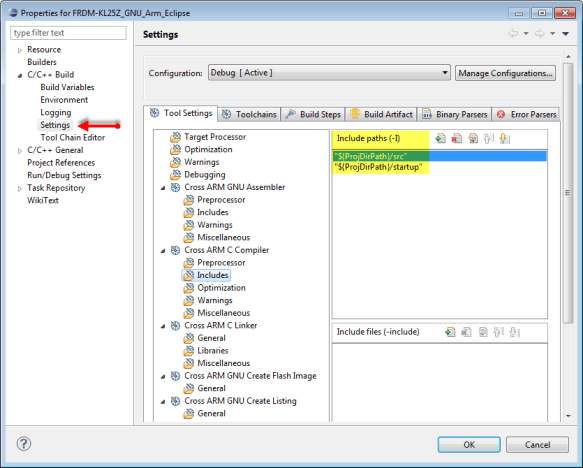

Next I specify the include paths for the compiler. I’m using the ${ProjDirPath} variable to have things project relative:
Include Path Settings

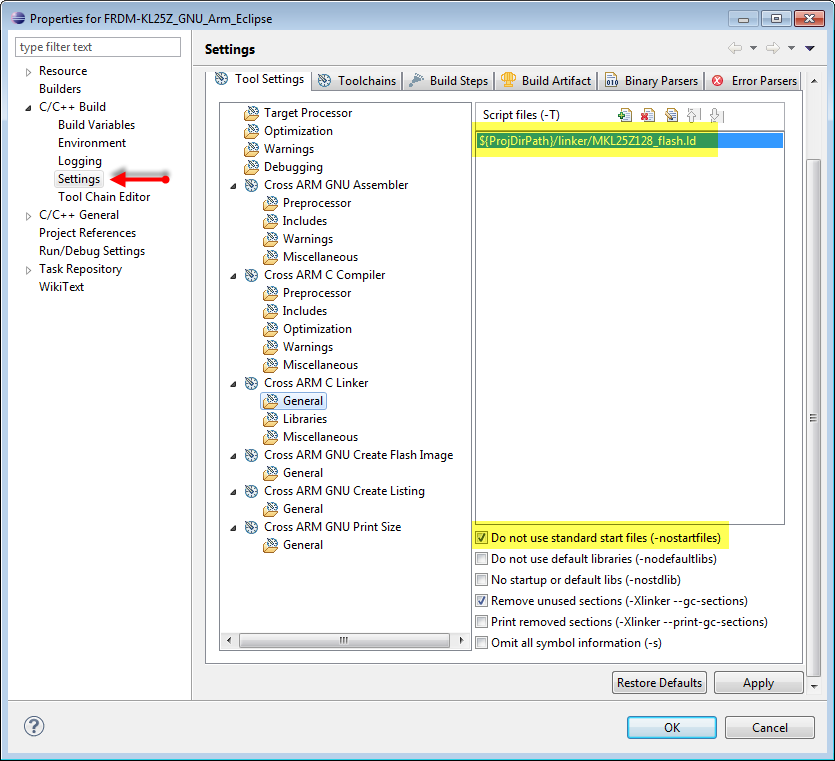

For the linker I need to specify the linker file. Additionally I’m using my startup file:
Linker Settings
❗ If the path to the linker file has a space in it (includes the workspace path!), then double quote the file name e.g. with double quotes. Note that in 1.1.7-201312221905 this did not help, but should be fixed in a newer version of the plugins. I filed a ticket on this. UPDATE: this issue has been fixed, and will be available with the next release of the plugins.
Optionally I can configure it to produce a Flash Image or to Print the Size. With everything set up, I can build the project, and this should go without errors.

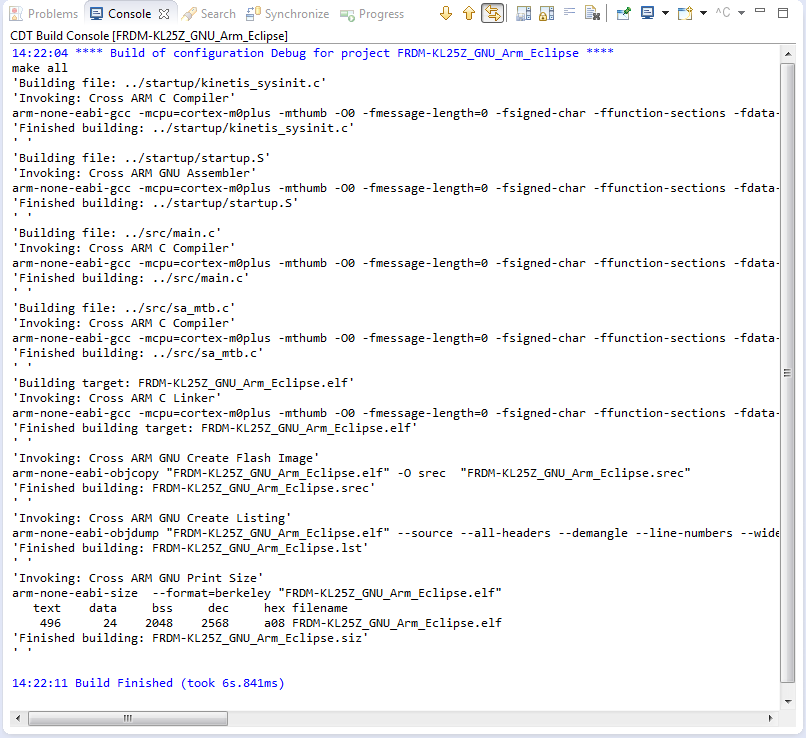

Building the Project (Console Output)
Debugging with Segger J-Link
For debugging I can use either my Segger J-Link or using the Segger OpenSDA firmware. Make sure you have at least V4.80 downloaded: this is the version at the time of this writing. Check out as well the steps on the GNU ARM Eclipse site.
Creating Debugger Configuration
Use the menu Run > Debug Configurations…

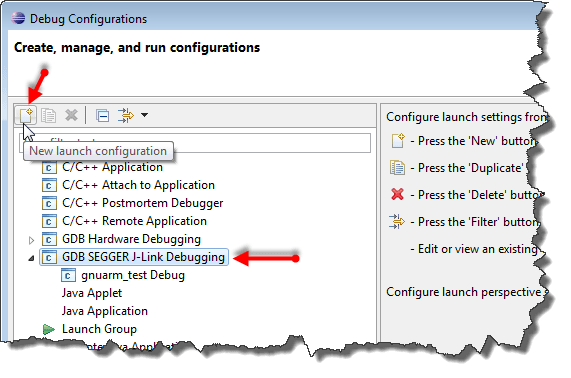

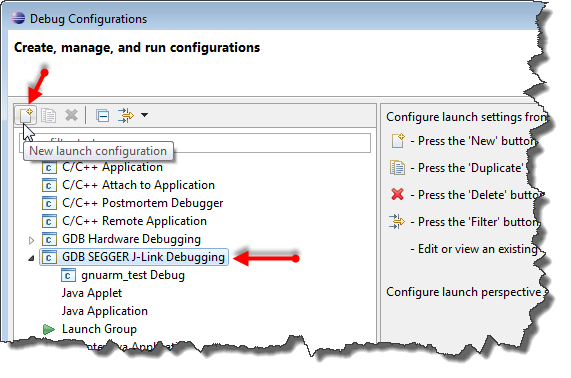

There select ‘GDB SEGGER J-Link Debugging’ and press the ‘new’ button:
GDB SEGGER J-Link Debugging

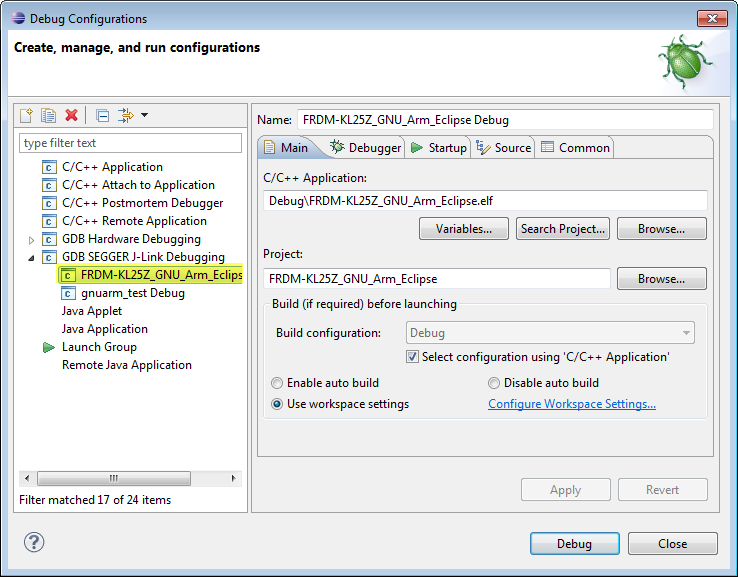

This creates a new debug configuration:
New Created Debug Configuration
Debugger Settings

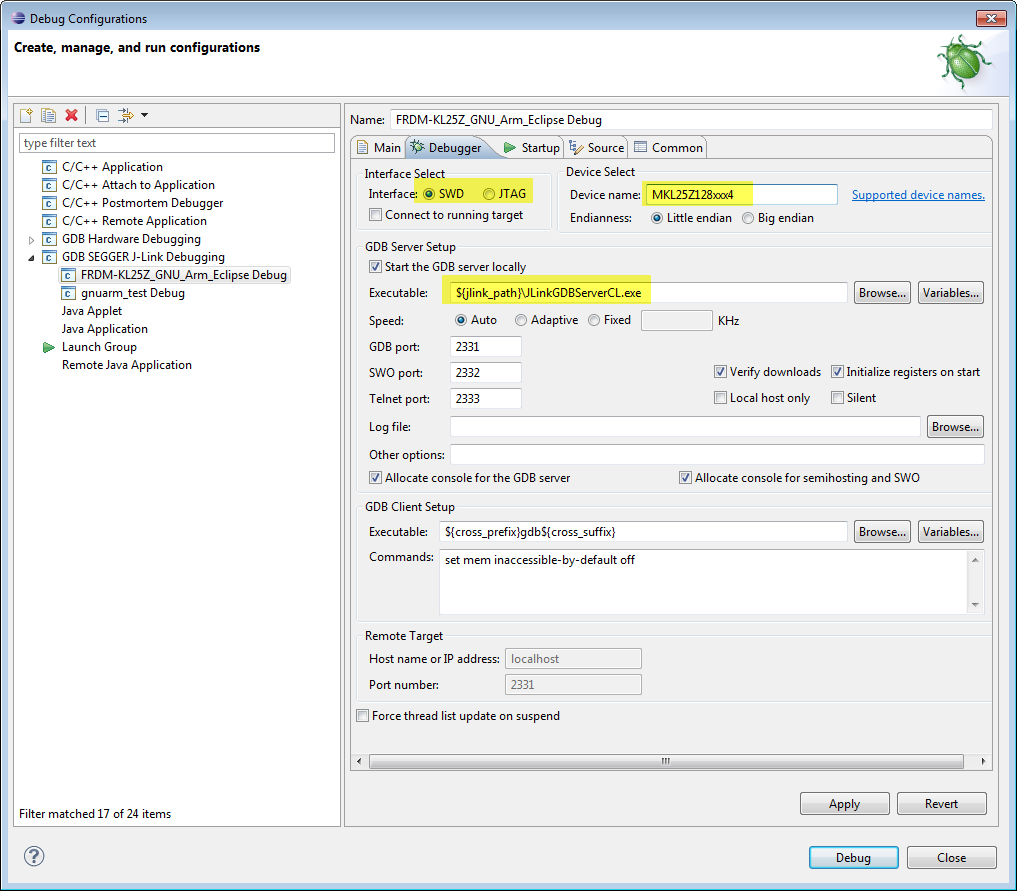

In the debugger tab, because I’m using an ARM Cortex-M0+ with SWD, I make sure ‘SWD’ is selected. The Device name I get from the Segger with the web link near that setting. Finally I verify the path to the Segger Command Line (CL) debug server. Here I’m using the variable $(jlink_path) I have set up earlier:
Debugger Settings
Startup Settings

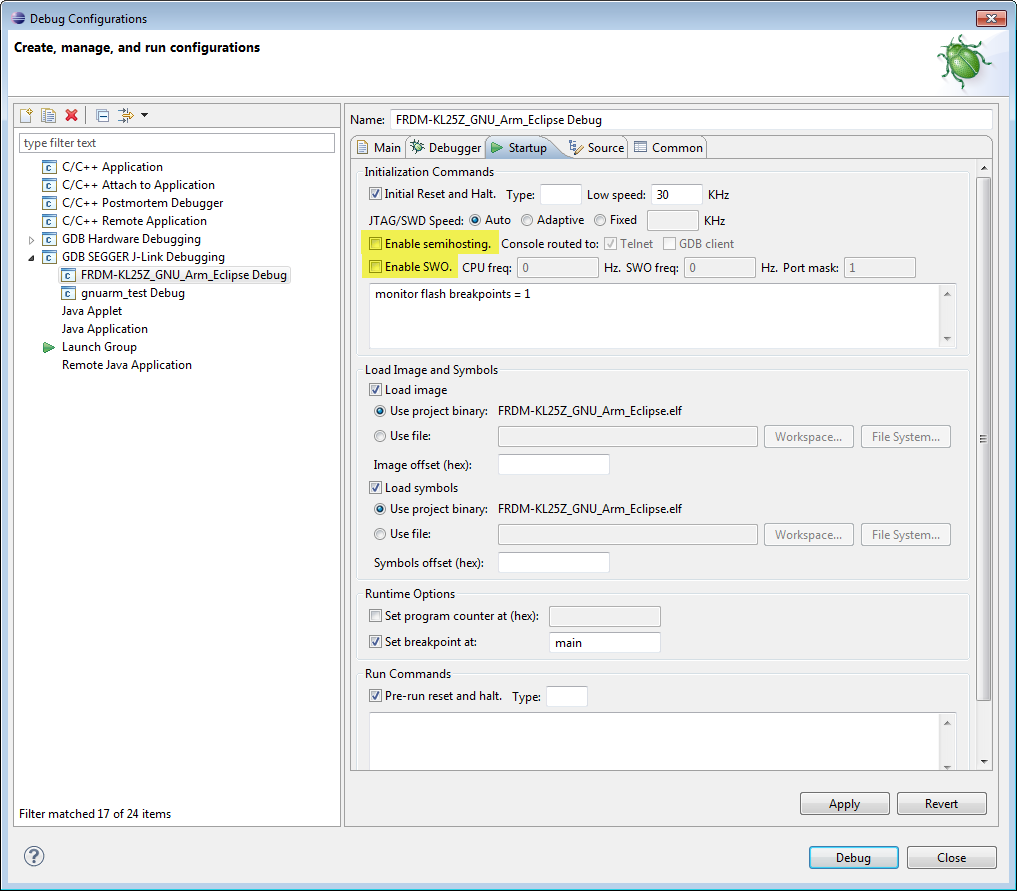

In the debugger Startup options I disable semihosting and SWO (as not supported with my FRDM-KL25Z):
Debugger Startup Options
❗ Having SWO enabled for a target which does not support SWO will crash the Segger server (at least for Segger V4.80). UPDATE: Issue has been reported to Segger, and they are working on fixing it.
With this, I’m ready to debug my target :-).
Debugging: Reset and Restart
Debugging with Segger means that it is very fast, offers unlimited hardware breakpoints in flash, and what is now possible is a working reset and restart:

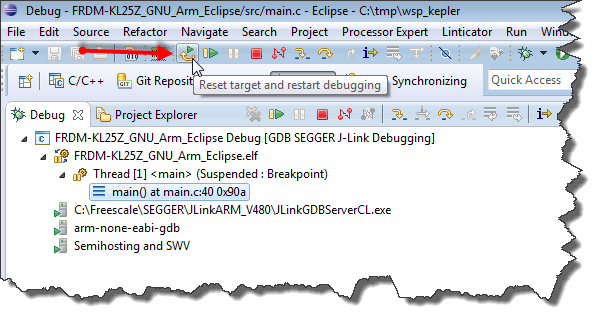

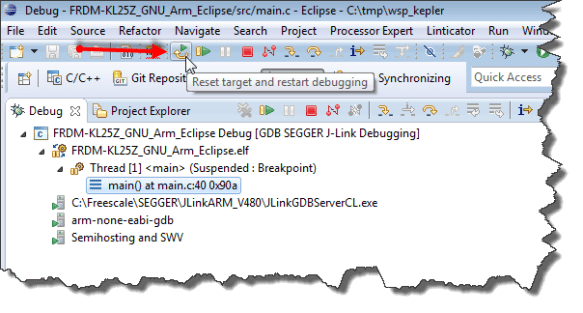

Reset and Restart
CodeWarrior has a similar feature (with dedicated reset), and moving to GDB this was one of the many features I missed in GDB. Now at least with Segger it is possible to reset and restart the target :-).
❓ I still cannot believe why such a fundamental thing like resetting a target is not present in normal GDB debugging solutions? It sounds not like a big deal, but ‘reset’ is such a fundamental thing in Embedded Systems debugging.
The debug view has added ‘target’ entires to show the Segger console output or for the semihosting.
💡 Semihosting is a technique with application serial communication routed through the debugger instead through a real serial connection. It sounds like a great feature, but has very limited usage (and can be even problematic for realtime applications), so I’m not really interested in it.
Summary
For me, the GNU ARM Eclipse plugins are the state-of-the-art Eclipse plugins for any ARM development on Eclipse. They work great out of the box, and any issues get addressed very fast. The GNU ARM Eclipse blog and web site comes with a lot of very useful information and tutorials, and the project is hosted on Sourceforge (https://sourceforge.net/projects/gnuarmeclipse/). With the added ease-of-use for Segger the GNU ARM Eclipse plugins set the bar very high for any other Eclipse based solution ;-).
I was able to run a project for the FRDM-KL25Z board within less than half an hour. And with the example on GitHub it will take even less time :-).
There is a way in the plugins to add template projects (they come with templates for the STMicroelectronics STM32). If I find time, I should check out if this could be extended to other devices too. That would make things working out of the box even better.
Happy GNU ARM Eclipsing 🙂
