DIY Free Toolchain for Kinetis: Part 9 – Express Setup in 8 Steps

On Monday the new semester starts, and yet again: we will do a Sumo thing :-). They can choose which tool chain they would like to use to develop their application for the ARM Cortex-M0+ used from Freescale. One option is to create a ‘Do-It-Yourself’ toolchain. Since the start of the series, things have evolved: there is a new GNU ARM tool chain available, Segger has updated their drivers, and most important the GNU ARM Eclipse plugin has been greatly extended to support Freescale parts and Processor Expert. So instead to read through all the previous tutorials, this one is about putting together a free tool chain less than 10 minutes (not counting the time to download around 500 MByte).

DIY Eclipse Toolchain

DIY Eclipse Toolchain

Outline

The steps outlined below get you a free and unlimited Eclipse toolchain installed on Windows. The setup outlined is for Segger J-Link/OpenSDA, but can be easily adapted for other run control solutions.

What we need are the following parts for a full-sized tool chain with all the bells and whistles:

  1. Eclipse for C/C++: the IDE and framework to edit, build and debug my projects.
  2. Cross Build Tools: some tools like ‘echo’ or ‘rm’ are not present by default on Windows, this package closes that gap.
  3. GCC ARM Embedded: compiler, linker, build tools and gdb, they are needed to compile my sources.
  4. PATH: making sure that external tools are in the PATH.
  5. GNU ARM Eclipse plugins: integration of the GNU gcc for ARM into Eclipse, provides panels and build tool integration including a wizard to create new projects.
  6. Processor Expert: With Processor Expert I can build my applications with software drivers and have it deal with the low-level microcontroller initialization.
  7. McuOnEclipse Processor Expert Components: an extensive set of added Processor Expert components featured in this blog.
  8. Debug Interface: using the GDB debugger to deal with a probe like Segger.

💡 For deeper technical details, please go through the previous tutorials, listed at the end of this article.

Installation

The following are the quick steps for installation of the toolchain. There are several downloads needed with a total size of 600 MByte. It is possible to have multiple toolchains installed. For this tutorial, I’m installing everything into C:\Freescale\Kepler

Step 1: Eclipse

Eclipse IDE Download

Eclipse IDE Download

From http://www.eclipse.org/downloads/ and download Eclipse IDE for C/C++ Developers:

Then unzip the archive into your installation folder (I use C:\Freescale\Kepler).

Step 2: Cross Build Tools

GNU ARM Eclipse Cross Build Tools

GNU ARM Eclipse Cross Build Tools

There are a bunch of tools like ‘echo’ or ‘rm’ which are used by Eclipse. Go to

and download the Cross Build Tools.zip file. I have the files placed in

C:\Freescale\Kepler\CrossBuildTools.

The package has cs-make.exe and cs-rm.exe included. Rename them to rm.exe and make.exe (or make copies and rename):

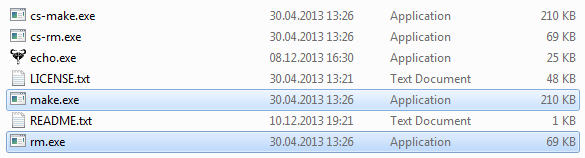

Renamed make and rm

Renamed make and rm

Step 3: GCC ARM Embedded

GNU Tools for ARM Embedded Processors

GNU Tools for ARM Embedded Processors

Download the latest GCC ARM Embedded from the Launchpad:

💡 You can use the .zip from above site too. But then you need to change the PATH setting manually.

Run the setup. It is up to you where to install the tools, default (depends on release) is

C:\Program Files (x86)\GNU Tools ARM Embedded\4.8 2013q4

On my side I have it installed within my Eclipse installation folder:

C:\Freescale\Kepler\GNU Tools ARM Embedded\4.8 2013q4

💡 Having the GNU Tools installed inside the Eclipse folder has advantages (everything in one place, easy to pass tool chains to somebody else, etc), but might not fit your needs. You still can change things later on.

❗ Make sure you select ‘Add path to environment variable’ at the end of the setup.

Step 4: Checking PATH

PATH Settings

PATH Settings

Now verify that the PATH is correct. The PATH variable needs to reach

  1. The GNU ARM Embedded (gcc) tools.
  2. The Cross Build Tools: echo, make and rm.

So I need to have

C:\Freescale\Kepler\Cross Build Tools;C:\Freescale\Kepler\GNU Tools ARM Embedded\4.8 2013q4\bin;C:\Freescale\Kepler\GNU Tools ARM Embedded\4.8 2013q4\arm-none-eabi\bin

in my PATH settings. Verify with the DOS/cmd prompt and the ‘set path’ command if everything setup correctly. If not, go the to Windows Control Panel and change/modify the PATH environment variable (see here if you don’t know how to do this).

Step 5: GNU ARM Eclipse Plugins

Gnu ARM Eclipse Plugins

Gnu ARM Eclipse Plugins

Launch Eclipse (C:\Freescale\Kepler\eclipse\eclipse.exe), use the menu Help > Install New Software, use

as update site and install the packages.

Step 6: Processor Expert

This step requires that you register with Freescale (free registration). Go to

then switch to the Downloads tab. Download the ‘Microcontrollers Driver Suite plug-in for existing Eclipse’.

Processor Expert Driver Suite

Processor Expert Driver Suite

This is a zip file with two updater packages for Eclipse. Unpack the zip file and install first the

  • com.freescale.eclipse3.7-4.2.updater.custom.updatesite.zip

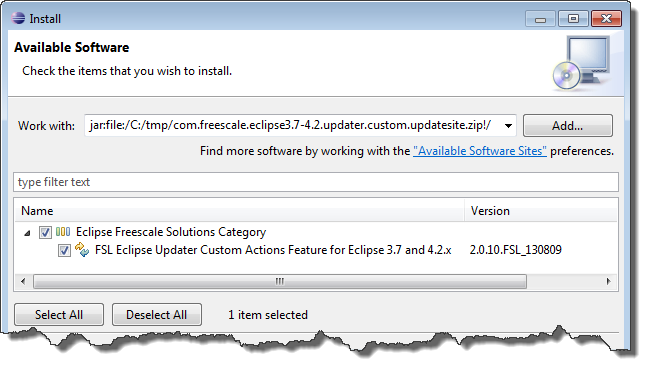

Installing PEx updater

Installing FSL Eclipse Updater

💡 Use ‘Add’ and then ‘Archive’ to browse for the zip file. Or drag&drop the file into the ‘Work with:’ field.

Afterwards, install the second zip archive file:

  • PExDriverSuite_v10.3_eclipse.zip

Installation takes several minutes, followed by a restart of Eclipse.

Step 7: McuOnEclipse Processor Expert Components

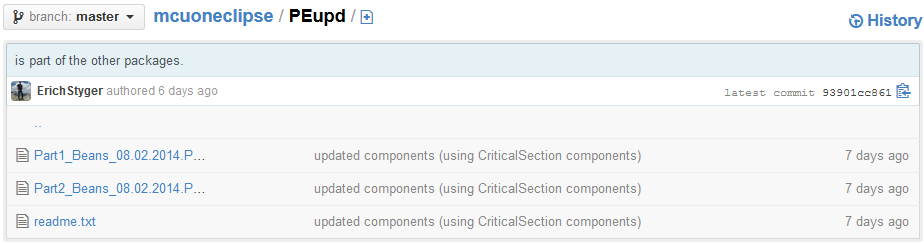

McuOnEclipse PEUpd Files

McuOnEclipse PEUpd Files

Go to

and download the PEUpd files (Part1 and Part2).

In Eclipse, use the menu Processor Expert > Import Component(s) to import the two packages. Restart Eclipse.

Step 8: Debugger Interface (Segger)

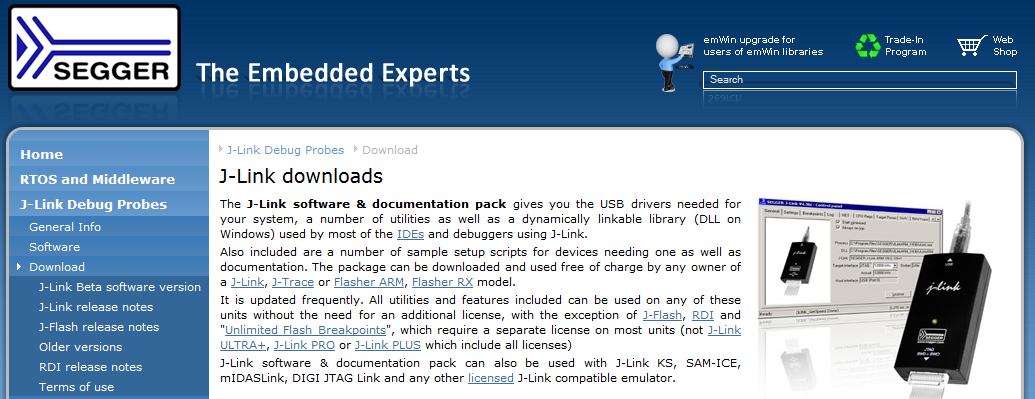

Segger J-Link Downloads

Segger J-Link Downloads

If you own a Segger J-Link or are using the Segger OpenSDA firmware, then this will be your choice of debug interface. There are other alternatives like P&E or CMSIS-DAP with OpenOCD (see List of Tutorials at the end of this article). Go to

and download the software (you will need a serial number of a Segger probe). Then install the software (I have it installed under C:\Freescale\Kepler\SEGGER).

Summary

With a few steps, I have put together my Do-It-Yourself toolchain, ready to develop cool applications for ARM microcontroller:

Eclipse Kepler Installation Structure

Eclipse Kepler Installation Structure

In the next post I explain how to create a project with the newly released GNU ARM Eclipse plugins. Stay tuned :-).

List of Tutorials

In case you want to get all the details, here is the list of tutorials for each part:

Happy Toolchaining 🙂
