Visual Studio Code for C/C++ with ARM Cortex-M: Part 4 – Debug

Posted on by

The previous parts were about installation, project setup and building. This one is about debugging an ARM Cortex-M Microcontroller with Visual Studio Code:

Cortex-M4 (NXP K22FN512) Debugging with Visual Studio Code

Outline

In this article I show how to debug an ARM Cortex (M4F, NXP K22FN512) microcontroller with the Microsoft Visual Studio Code. For this I need the tools and extensions installed in Part 1 of this tutorial series. Debugging is through a debug probe (J-Link), either external (standalone debug probe) or on-board (available with many development boards e.g. from NXP or STM). I’m using SWD here because the FRDM-K22F only has SWD available on the debug header, but JTAG could be used too.

Debug Probe

In this article I’m using a SEGGER J-Link EDU Mini debug probe. Technically it should be possible to use other probes too. The J-Link is widely available and the EDU only costs $20 or €20, is very small and universally works for many, many devices out of the box.

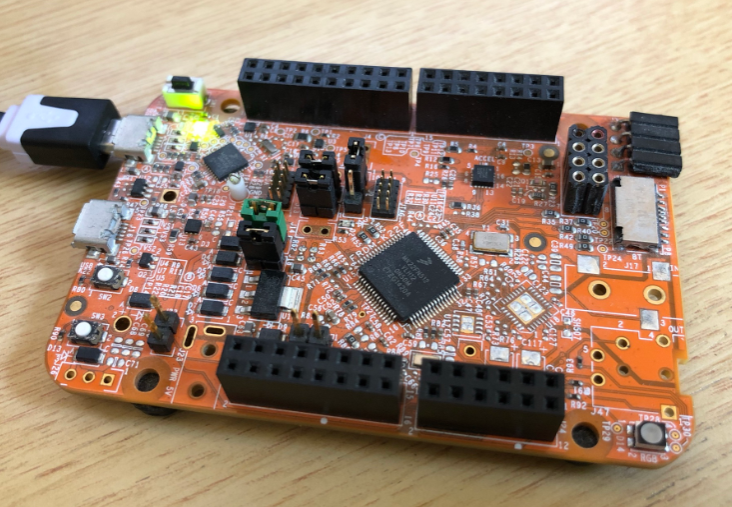

NXP FRDM-K22F Board

Additionally many silicon vendor boards (LPC4322 or FRDM OpenSDA) and debug probes can load the J-Link firmware, including the NXP LPC-Link2 or STLink. The J-Link can be used with GDB, LLDB, OpenOCD or CMSI-DAP.

SEGGER J-Link EDU Mini

Launch JSON File

Inside the .vscode folder, create a new file named launch.json, with the following content:

{
    // Use IntelliSense to learn about possible attributes.
    // Hover to view descriptions of existing attributes.
    // For more information, visit: https://go.microsoft.com/fwlink/?linkid=830387
    "version": "0.2.0",
    "configurations": [
        {
            "cwd": "${workspaceRoot}",
            "executable": "./build/FRDM-K22F_Simple.elf",
            "name": "Debug Microcontroller",
            "request": "launch",
            "type": "cortex-debug",
            "servertype": "jlink",
            "serverpath": "C:/Program Files (x86)/SEGGER/JLink/JLinkGDBServerCL.exe",
            "armToolchainPath": "C:/Program Files (x86)/GNU Arm Embedded Toolchain/10 2020-q4-major/bin",
            "device": "MK22FN512xxx12",
            "interface": "swd",
            "serialNumber": "", // add J-Link serial number if having multiple attached the same time.
            "runToMain": true,
            "svdFile": "${workspaceRoot}/device/MK22F51212.svd",

        }
    ]
}

You can find all files on GitHub too.

The most important settings are:

  • “executable“: the binary to load and debug.
  • “serverpath“: Path and file name of J-Link GDB Server executable. See Part 1.
  • “armToolchainPath“: path to the arm-none-eabi-gdb executable. See Part 1.
  • “device“: Device ID used for J-Link, see SEGGER J-Link website.
  • “runToMain“: if debugger shall set a temporary breakpoint on main() und run until there.
  • “svdFile“: Optional, this is a CMSIS-SVD file for register detail debugging.

SVD Files

The “svdFile” entry in the launch.json file is optional, but crucial to embedded system debugging because it describes the device peripheral registers. They are used for example in the Eclipse EmbSysRegView view and this is a good source to get the files. If using the NXP devices, then the SVD files are present in the NXP MCUXpresso SDK, but are harder to find as NXP is not using the standard *.svd extension.

CMSIS-SVD File in NXP MCUXpresso SDK

For the launch file the extension does not matter, but I recommend to rename it to .svd for clarity.

Debugging

Use F5 or the menu Run > Start Debugging to start a debug session:

This starts debug session. I case of troubles, check the Debug Console:

Please check OUTPUT tab (Adapter Output) for output from C:/Program Files (x86)/SEGGER/JLink/JLinkGDBServerCL.exe
Launching server: "C:/Program Files (x86)/SEGGER/JLink/JLinkGDBServerCL.exe" "-if" "swd" "-port" "50000" "-swoport" "50001" "-telnetport" "50002" "-device" "MK22FN512xxx12"
Launching GDB: "C:\Program Files (x86)\GNU Arm Embedded Toolchain\10 2020-q4-major\bin\arm-none-eabi-gdb.exe" "-q" "--interpreter=mi2"
undefinedC:\Program Files (x86)\GNU Arm Embedded Toolchain\10 2020-q4-major\bin\arm-none-eabi-gdb.exe: warning: Couldn't determine a path for the index cache directory.
Reading symbols from C:\Users\erich\Data\GitRepos\McuOnEclipse\Examples\VisualStudioCode\FRDM-K22F\FRDM-K22F_Simple\build\FRDM-K22F_Simple.elf...
0x000006b0 in _exit ()
Not implemented stop reason (assuming exception): undefined
Resetting target
Resetting target

Temporary breakpoint 1, main () at ../src/main.c:7
7	    int local = 0;

I have a warning plus a ‘non-imlemented stop reason’ (not sure why), but it works and I’m debugging 🙂

Debugging ARM Cortex-M4F with Visual Studio Code

By default there are several debug views available. With the .svd file (see above) I have access to the peripheral register too:

Stepping

There are the usual debug actions (continue, stepping, restart) plus a ‘run and debug’ toolbar on the left:

Assembly Stepping

For the Disassembly view or assembly code stepping use the Command Palette (CTRL+SHIFT+P) with ‘Cortex’:

Use ‘View Disassembly (Function’ with the name of a function to debug that function in assembly code. Use ‘Set Force Disassembly’ to switch to disassembly stepping for all functions.

It is possible to set breakpoints in the assembly code, but one cannot see high level (C/C++) side-by-side with the assembly code. And the disassembly view does not show any more information or symbolic a the Eclipse CDT disassembly view does.

Switch back to ‘auto’ only to show disassembly for code without debug/source information:

Memory

To view memory, use the Command Palette (CTRL+SHIFT+P) with Cortex:

Then specify the expression for the memory location and a length:

This then shows the memory:

Memory View

The memory view is very basic compared to the Eclipse (many) memory views, but for inspecting memory it is better than nothing.

Summary

With this, I hope this gets you up and running (well: debugging) with the Microsoft Visual Studio Code on ARM Cortex-M. The embedded debugging capabilities (memory, registers, assembly) are much more basic compared to the views in Eclipse or MCUXpresso IDE, so for sure not up to that level (yet?). But at least I can do basic hardware debugging on an ARM Cortex with this.

There are for sure many more things to add and improve, but these could be topics for future articles.

Happy Coding 🙂
