The Microsoft Visual Studio Code is a great IDE, but does not (yet?) implement features for true embedded usage. Or things are there to some level, but hard to use. One of these things is how to step in the assembly code. This article shows how to do this.
If doing high level development, assembly code is probably not of interest. However, doing embedded system development, being able to see and step through the assembly instructions is an essential feature.
Currently assembly stepping in VSC is not easy accessible. I’m using the version 1.6.1 of Visual Studio Code, and I hope this will be improved in a later release.
To do assembly stepping, use the Command Palette (CTRL+SHIFT+P) with ‘Cortex-Debug: Set Force Disassembly‘:
Then use ‘Forced: Always show disassembly for functions‘:
Now I can step through the assembly code:
As a downside: this does not sync with the C/C++ code shown on the left as one would expect: this is not supported in VSC.
To switch back to C/C++ stepping, do the same again, but this time setting to ‘Auto’:
Stepping through Startup Code
For embedded code it is not uncommon to step through the assembly code in the startup.
One can set breakpoints in the (Assembly) startup code: set a break-point in the left column and hit ‘restart’ and one can debug/step through the assembly code:

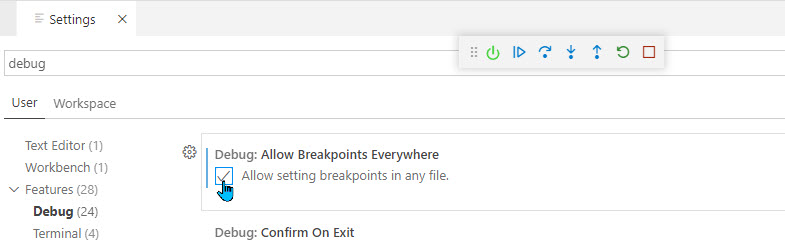

I’m using in above example the ‘correct’ *.S extension for assembly files (see an article on this for Eclipse here: Assembly Files in Eclipse CDT Projects). In case you have an assembly file with *.s extension, you need to configure VSC to accept breakpoints in other files, using the menu File > Preferences > Features > Debug > Allow Breakpoints Everywhere (thanks to Hubert for the hint!):
Debugging assembly instructions or source files is not as convenient as in Eclipse with Visual Studio Code, but possible. The hope is that Visual Studio Code will improve for embedded usage and especially debugging over time.
Happy assembling 🙂
