The previous parts were about installation, project setup, building and debugging. This one is about defining the ‘tool kit’ so I can make use more of the CMake infrastructure in Visual Studio Code:
Outline
There are still a few things to be configured for our project. We can build and debug, but building is done through ‘Tasks‘ but not through CMake directly. This is because I have not configured a ‘kit’ yet. I can see this from a status message on the bottom:

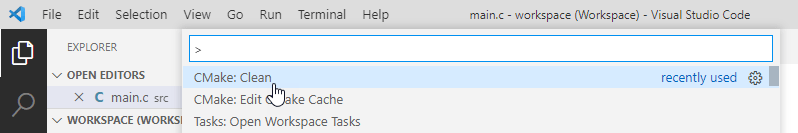

If I try to make a ‘CMake: clean’ (use command palette or CTRL+SHIFT+P) with CMake: Clean
There is a list of ‘kits’ (somehow detected automatically?), but the GNU ARM Embedded toolchain I have installed and using is not listed:
Scan for Kits or using ‘unspecified‘ just resulted in wrong kits/compiler used, breaking the build for the ARM Cortex-M I’m using :-(.
Obviously the CMake with Visual Studio integration is missing something. Thanks to Martin investigating and commenting in the previous part 3 solved the problem: I need to add an extra cmake-kits.json file.
Adding a Kit with cmake-kits.json

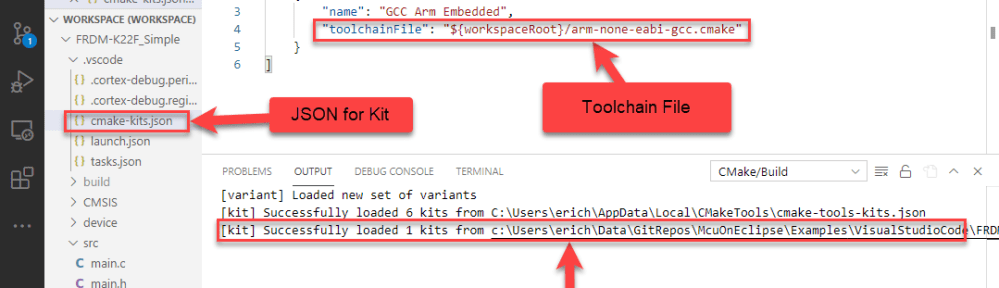

Create a new file inside the .vscode folder and name it cmake-kits.json, with the following content (or copy it from GitHub):
[
{
"name": "GCC Arm Embedded",
"toolchainFile": "${workspaceRoot}/arm-none-eabi-gcc.cmake"
}
]
You can give it any name but it has to point to the correct toolchain file for Cmake. With this I have a ‘kit’ recognized and can assign it to a project using the icon in the bottom toolbar:
CMake Actions
With the proper toolchain or kit configured, I can use commands like CMake: Build or CMake: Clean:
Summary
To use the CMake commands, Visual Studio Code needs to know about the toolchain using the cmake-kits.json file present in the .vscode folder. Be sure to have that one added to the project to unlock more of the Visual Studio Code features.
Happy Coding 🙂
