Tutorial: μCUnit, a Unit Test Framework for Microcontrollers

Unit testing is a common practice for host development. But for embedded development this still seems mostly a ‘blank’ area. Mostly because embedded engineers are not used to unit testing, or because the usual framework for unit testing requires too many resources on an embedded target?

What I have used is the μCUnit framework which is a small and easy to use framework, targeting small microcontroller applications.

uCUnit

uCUnit

The framework is very simple: two header files and a .c file:

uCUnit Framework Files

uCUnit Framework Files

Use the original ones from the uCUnit GitHub site or use the ones I have slightly tuned and modified from GitHub to be used with the MCUXpresso SDK and IDE.

The concept is that a unit test includes the uCunit.h header file which provides test macros.

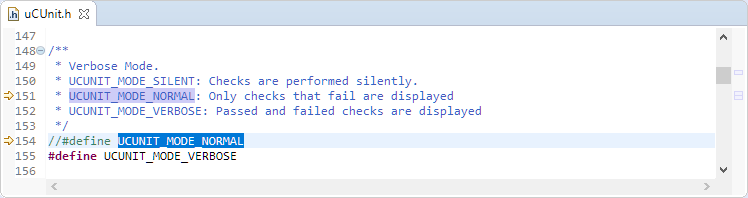

A #define in the header file configures the output as verbose or normal:

UCUNIT_MODE_NORMAL or UCUNIT_MODE_VERBOSE

UCUNIT_MODE_NORMAL or UCUNIT_MODE_VERBOSE

System.c and System.h is the connection to the system, basically used for startup, shutdown and printing the test results to a console. Below an implementation using a printf() method to write the output, but this could be replaced by any writing routine or extended to log text on an SD card.

/* Stub: Transmit a string to the host/debugger/simulator */
void System_WriteString(char * msg) {
	PRINTF(msg);
}

void System_WriteInt(int n) {
	PRINTF("%d", n);
}

Framework Overview

First I have to include the unit test framework header file:

#include "uCUnit.h"

First I have to initialize the framework with

UCUNIT_Init(); /* initialize framework */

One more test cases are wrapped with a UCUNIT_TestcaseBegin() and UCUNIT_TestcaseEnd():

UCUNIT_TestcaseBegin("Crazy Scientist");
/* test cases ... */
UCUNIT_TestcaseEnd();

To write a summary at the end use

UCUNIT_WriteSummary();

and if the system shall be shut down use a

UCUNIT_Shutdown();

Tests

The framework provides multiple testing methods, such as:

UCUNIT_CheckIsEqual(x, 0); /* check if x == 0 */
UCUNIT_CheckIsInRange(x, 0, 10); /* check 0 <= x <= 10 */
UCUNIT_CheckIsBitSet(x, 7); /* check if bit 7 set */
UCUNIT_CheckIsBitClear(x, 7); /* check if bit 7 cleared */
UCUNIT_CheckIs8Bit(x); /* check if not larger then 8 bit */
UCUNIT_CheckIs16Bit(x); /* check if not larger then 16 bit */
UCUNIT_CheckIs32Bit(x); /* check if not larger then 32 bit */
UCUNIT_CheckIsNull(p); /* check if p == NULL */
UCUNIT_CheckIsNotNull(s); /* check if p != NULL */
UCUNIT_Check((*s)==’\0’, "Missing termination", "s"); /* generic check: condition, msg, args */

This is explained best with a few examples.

Example: Crazy Scientist

Below is a ‘crazyScientist’ function which combines different materials:

typedef enum {
	Unknown,  /* first, generic item */
	Hydrogen, /* H */
	Helium,   /* He */
	Oxygen,   /* O */
	Oxygen2,  /* O2 */
	Water,    /* H2O */
	ChemLast  /* last, sentinel */
} Chem_t;

Chem_t crazyScientist(Chem_t a, Chem_t b) {
	if (a==Oxygen && b==Oxygen) {
		return Oxygen2;
	}
	if (a==Hydrogen && b==Oxygen2) {
		return Water;
	}
	return Unknown;
}

A test for this could look like this:

void Test(void) {
  Chem_t res;
  UCUNIT_Init(); /* initialize framework */

  UCUNIT_TestcaseBegin("Crazy Scientist");
  res = crazyScientist(Oxygen, Oxygen);
  UCUNIT_CheckIsEqual(res, Oxygen2);
  UCUNIT_CheckIsEqual(Unknown, crazyScientist(Water, Helium));
  UCUNIT_CheckIsEqual(Water, crazyScientist(Hydrogen, Oxygen2));
  UCUNIT_CheckIsEqual(Water, crazyScientist(Oxygen2, Hydrogen));
  UCUNIT_CheckIsInRange(crazyScientist(Unknown, Unknown), Unknown, ChemLast);
  UCUNIT_TestcaseEnd();

  /* finish all the tests */
  UCUNIT_WriteSummary();
  UCUNIT_Shutdown();
}

With the different checks we can verify if the function is doing what we expect. It produces the following as output:

======================================
Crazy Scientist
======================================
../source/Application.c:60: passed:IsEqual(res,Oxygen2)
../source/Application.c:61: passed:IsEqual(Unknown,crazyScientist(Water, Helium))
../source/Application.c:62: passed:IsEqual(Water,crazyScientist(Hydrogen, Oxygen2))
../source/Application.c:63: failed:IsEqual(Water,crazyScientist(Oxygen2, Hydrogen))
../source/Application.c:64: passed:IsInRange(crazyScientist(Unknown, Unknown),Unknown,ChemLast)
======================================
../source/Application.c:65: failed:EndTestcase()
======================================

**************************************
Testcases: failed: 1
           passed: 0
Checks:    failed: 1
           passed: 4
**************************************
System shutdown.

💡 I recommend to write the unit tests *before* doing the implementation, because this way it let me consider all the different corner cases and refines the requirements.

The above output is with UCUNIT_MODE_VERBOSE set. Using UCUNIT_MODE_NORMAL it uses a more compact format and prints the failed tests only:

======================================
Crazy Scientist
======================================
../source/Application.c:63: failed:IsEqual(Water,crazyScientist(Oxygen2, Hydrogen))
======================================
../source/Application.c:65: failed:EndTestcase()
======================================

**************************************
Testcases: failed: 1
           passed: 0
Checks:    failed: 1
           passed: 4
**************************************
System shutdown.

Trace Points

In the above example we were only testing from the outside what the function does.
How to check that in the following function to be tested it indeed checks for the division by zero case?

int checkedDivide(int a, int b) {
	if (b==0) {
		PRINTF("division by zero is not defined!\n");
		return 0;
	}
	return a/b;
}

To check if that if() condition has been really entered I can add a trace point. The number of tracepoints are configured in μCUnit.h with:

/**
 * Max. number of checkpoints. This may depend on your application
 * or limited by your RAM.
 */
#define UCUNIT_MAX_TRACEPOINTS 16

With

UCUNIT_ResetTracepointCoverage();

I can reset the trace points.

I mark the execution of a trace point with an id (which is in the range 0..UCUNIT_MAX_TRACEPOINTS-1)

UCUNIT_Tracepoint(id);

With

UCUNIT_CheckTracepointCoverage(0);

I can check if a given trace point has been touched.
Below the function to be tested instrumented with a trace point:

int checkedDivide(int a, int b) {
	if (b==0) {
		UCUNIT_Tracepoint(0); /* mark trace point */
		PRINTF("division by zero is not defined!\n");
		return 0;
	}
	return a/b;
}

The corresponding unit test code:

UCUNIT_TestcaseBegin("Checked Divide");
UCUNIT_CheckIsEqual(100/5, checkedDivide(100,5));
UCUNIT_ResetTracepointCoverage(); /* start tracking */
UCUNIT_CheckIsEqual(0, checkedDivide(1024,0));
UCUNIT_CheckTracepointCoverage(0); /* check coverage of point 0 */
UCUNIT_TestcaseEnd();

Which then produces:

======================================
Checked Divide
======================================
../source/Application.c:69: passed:IsEqual(100/5,checkedDivide(100,5))
division by zero is not defined!
../source/Application.c:71: passed:IsEqual(0,checkedDivide(1024,0))
../source/Application.c:72: passed:TracepointCoverage(1)

String Test

There are many other ways to use checks, up to have user configured checks and messages. Below is an example of a function to test:

char *endOfString(char *str) {
  if (str==NULL) {
	return NULL;
  }
  while(*str!='\0') {
	str++;
  }
  return str;
}

with the following test code:

UCUNIT_TestcaseBegin("Strings");
UCUNIT_CheckIsNull(endOfString(NULL));
str = endOfString("abc");
UCUNIT_Check(
	(str!=NULL), /* condition to check */
	"string shall be not NULL", /* message */
	"str" /* argument as string */
	);
UCUNIT_CheckIsEqual('\0', *endOfString(""));
UCUNIT_CheckIsEqual('\0', *endOfString("hello"));
str = endOfString("world");
UCUNIT_CheckIsNotNull(str);
UCUNIT_CheckIsEqual('\0', *str);
UCUNIT_TestcaseEnd();

which produces:

======================================
Strings
======================================
../source/Application.c:76: passed:IsNull(endOfString(NULL))
../source/Application.c:82: passed:string shall be not NULL(str)
../source/Application.c:83: passed:IsEqual('\0',*endOfString(""))
../source/Application.c:84: passed:IsEqual('\0',*endOfString("hello"))
../source/Application.c:86: passed:IsNotNull(str)
../source/Application.c:87: passed:IsEqual('\0',*str)

Summary

μCUnit is a very simple but yet powerful unit testing framework for embedded devices and microcontroller. It is easy to use and requires only minimal resources and helps increasing the quality of embedded software with automated unit tests. I hope you find it useful too.

Happy Testing 🙂
