Semihosting with Kinetis Design Studio

Semihosting is a technique to do printf() debugging through an active debug connection. So instead using a physical connection like RS-232 or USB CDC, the connection to the host machine is through the debugger. This post is about enabling and using semihosting with gcc and newlib/newlib-nano in Freescale Eclipse based Kinetis Design Studio (KDS) using the GNU ARM Eclipse plugins.

Semihosting Console View with output

Semihosting Console View with output

Stack and Heap Size

Printf() and the like use a lot of stack (typically a KByte, or even more). So in your project, make sure you have enough stack and heap allocated. With a Processor Expert project, you can increase the stack and heap size in the CPU component, ‘Build options’ tab. I recommend at least 0x400 for stack and 0xc00 for the heap:

Build Options Heap Size

Build Options Heap Size in Processor Expert CPU component

If not using Processor Expert, then you need to check and update your linker file: There needs to be a __HeapBase and __HeapLimit symbol in it.

._user_heap_stack :
    . = ALIGN(4);
    PROVIDE ( end = . );
    PROVIDE ( _end = . );
    __heap_addr = .;
    __HeapBase = .;
    . = . + __heap_size;
    __HeapLimit = .;
    . = . + __stack_size;
    . = ALIGN(4);
  } > m_data

The __heap_size and __stack_size are defined like this for me:

__heap_size = 0x0C00;                  /* required amount of heap  */
__stack_size = 0x0400;                 /* required amount of stack */

Debugger Settings

In the debugger settings, you need to have support for semihosting enabled. I’m showing here the settings for Segger J-Link in the GNU ARM Eclipse plugins.

Enable ‘Allocate console for semihosting and SWO’ in the debugger tab:

Allocate Console for Semihosting

Allocate Console for Semihosting

In the ‘Startup’ tab, check the ‘Enable semihosting’ box:

Enable Semihosting

Enable Semihosting

💡 At the time of this post, semihosting is not yet supported by the P&E GDB Eclipse plugin, but I’m told that should be supported soon. The GNU ARM Eclipse OpenOCD debug panel have similar settings.

ARM Semihosting Option in OpenOCD

ARM Semihosting Option in OpenOCD

Usage in Application

To use printf(), make sure you include

#include <stdio.h>

Below is a simple test routine which writes 2000 characters in a loop:

int i;

for(i=0;i<100;i++) {
  printf("Hello world!013456\r\n"); /* 20 characters */
printf("***FINISHED***\n"); /* 2000 characters finished */

Code and Data Size

Using printf() is not for free (see “Why I don’t like printf()“). Without using printf(), I have this code size (see “text, data and bss: Code and Data Size Explained” for reading the numbers):

arm-none-eabi-size --format=berkeley "semi.elf"
   text          data          bss          dec          hex       filename
   4196            44          4164          8404          20d4       semi.elf

With the above calls to printf() added, I get:

arm-none-eabi-size --format=berkeley "semi.elf"
   text          data          bss          dec          hex       filename
  10076          2152          4396       16624          40f0       semi.elf

So this adds a lot of code and data overhead.

The above code size is with newlib and Kinetis Design Studio. Newlib is not ideal for embedded applications, so there is a newlib-nano which has a smaller footprint. For this I need to add the


option to the linker settings:

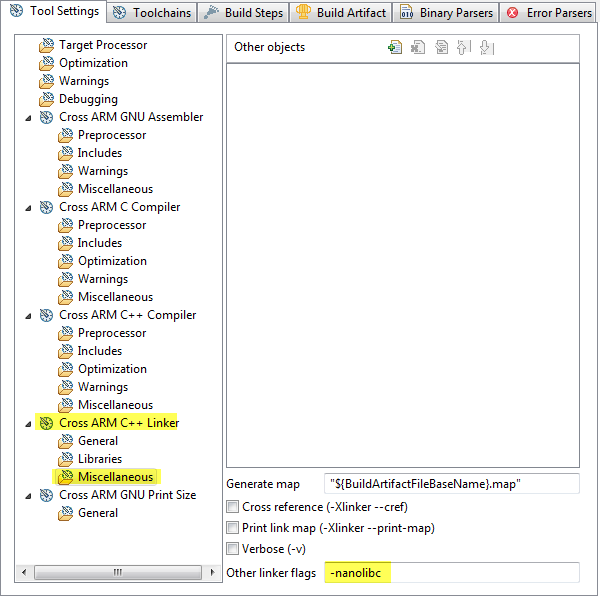

nanolibc option in the GNU ARM Eclipse linker settings

nanolibc option in the GNU ARM Eclipse linker settings

With this, the footprint is still high, but reduced compared to standard newlib:

arm-none-eabi-size --format=berkeley "semi.elf"
   text          data          bss          dec          hex       filename
   7056          712          4348       12116          2f54       semi.elf

Printing Floating Point

By default, printing floating point is *not* enabled in newlib by default. To enable floating point printing, I need to add

-u _printf_float

to the linker options:

-u printf_float linker option

-u _printf_float linker option

❗ In KDS, adding -u _printf_float adds about 7 KByte of code! So do not add it if you do not really need printing of float numbers.

With this, I can print float and doubles like

double d = 3.51;
printf("double: %f\r\n", d);

❗ To my knowledge, 64bit integer (long long) printing is *not* supported in newlib-nano.


When debugging, there is now a ‘Semihosting and SWV’ entry in the debug view:

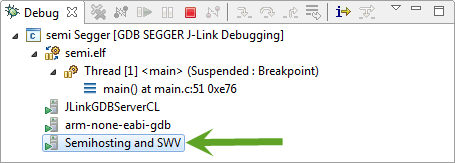

Debug view with semihosting

Debug view with semihosting

Clicking on that entry will show the semihosting Console view:

Semihosting Console View with output

Semihosting Console View with output

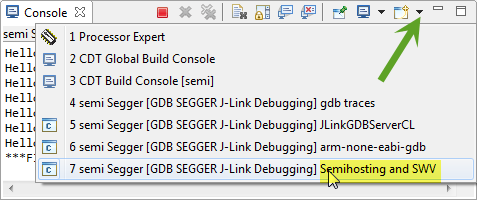

That ‘subview’ of the Console view is accessible with a small sub-menu too:

Console view with menu to open semihosting subview

Console view with menu to open semihosting subview


I usually avoid to use printf() at any price. But sometimes libraries come with it, and sometimes I need to jump over my shadow. Then printf() can be useful sometimes, even if it comes with a high price in code size, RAM usage and stack usage.

Happy Semihosting 🙂
