A while back I wrote two articles about Semihosting: “Semihosting with GNU ARM Embedded (LaunchPad) and GNU ARM Eclipse Debug Plugins” and Semihosting with Kinetis Design Studio. With using the GNU ARM Embedded (lauchpad) in my Kinetis Design Studio, time for a ‘summary’ post :-).
Semihosting Output in Console
What is Semihosting?
Semihosting is using the debugger connection to ‘tunnel’ printf() style output (and input) between the host and the board. Compared to a ‘traditional’ UART connection, using semihosting only needs an active debugger connection, and not a physical UART. This is very useful e.g. to write debug output. Basically any printf() style calls get routed to the debugger, and vice versa.
In this post I’m using the following:
- Kinetis Design Studio (http://www.freescale.com/kds)
- GNU Tools for ARM Embedded Processors (launchpad) (https://launchpad.net/gcc-arm-embedded, Q3 2014 release)
- The GNU ARM Eclipse plugins
- GDB server from Segger (http://segger.com/)
- GDB server from P&E (http://pemicro.com/)
Enabling Semihosting in the Libraries
To use semihosting, the linker needs to overwrite the low-level character read/write functions and replace them with functions interfacing with the debugger. For this, the following linker option needs to be used:
-specs=rdimon.specs

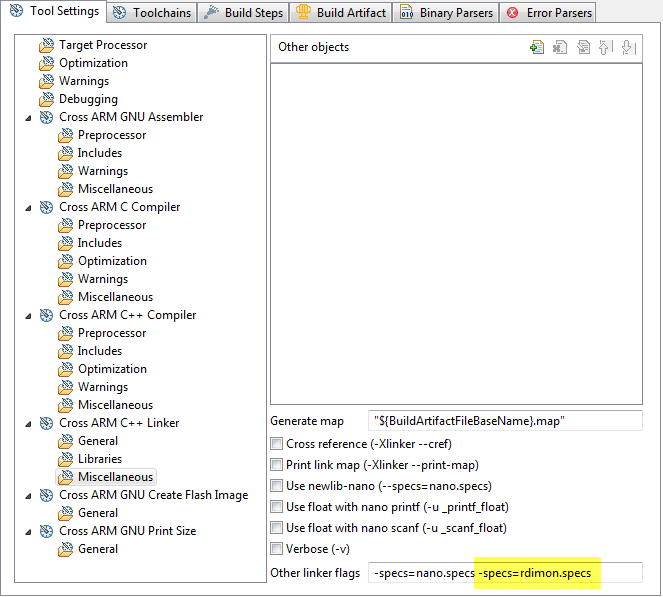

-specs=rdimon.specs Linker Option
Printf() and Scanf() with Floating Point
If I want to print floating point numbers, the following options needs to be added to the linker flags:
-u _printf_float
To support scanf() with floating point, add the following linker flag:
-u _scanf_float
_start() and Startup Code
In order to have printf() and other standard library functions working, it is important that your startup code is calling _start(). _start() will initialize the library or anything else necessary, and then call main(). So do *not* call main() directly from the startup code if you need library functions.
calling _start() from startup code
š” _start() is as well responsible to call C++ constructors, see “C++ with Kinetis Design Studio“. You might need to verify if _start() is indeed called in the startup code, as earlier versions of Kinetis Design Studio might not have it correctly called.
Source Example
Below is an example which uses printf():
#include <stdio.h> static void print(float f) { printf("float value: %f\r\n", f); /* for floating point, make sure -u _printf_float is present in the linker flags! */ printf("hello\r\n"); }Debugger Setting
In the debug/launch configuration, enable semihosting so things get routed to the console in Eclipse. Screenshot shows the setting for P&E, the dialog for Segger is very similar:
P&E Semihosting Settings
While debugging, there is a ‘Semihosting Console’ in the Debug View:
P&E Semihosting in Debug View
The output is printed to the Eclipse Console:
Semihosting Output in Console
Summary
To enable semihosting with the GNU launchpad tools, it requires an option for the linker, plus options if using floating point. In the debugger I need to enable semihosting, and then I have a nice way to print debug messages or read in console data from my application.
