The MCU-Link is a $10 CMSIS-DAP capable debug probe which works out-of-the box with the MCUXpresso Eclipse based IDE. This is great for development, but how can I programming with the push of a button or a script? The answer is no: there is an easy way to use the debug probe outside Eclipse from a shell script, and you can use that MCU-Link probe to do the job. This is especially useful as with the example below where I have to program 60 boards this week-end :-).
Batch Programming Boards with MCU-Link
Outline
The idea is to use the existing infrastructure: no need to install extra plugins, no need to mess up with installing other frameworks or programming languages. Simply use what I already have installed.
Preconditions
I’m using the NXP MCUXpresso IDE V11.2.1 with the MCU-Link debug probe. You should have a project with a working debug launch (.launch) configuration.
Command Line

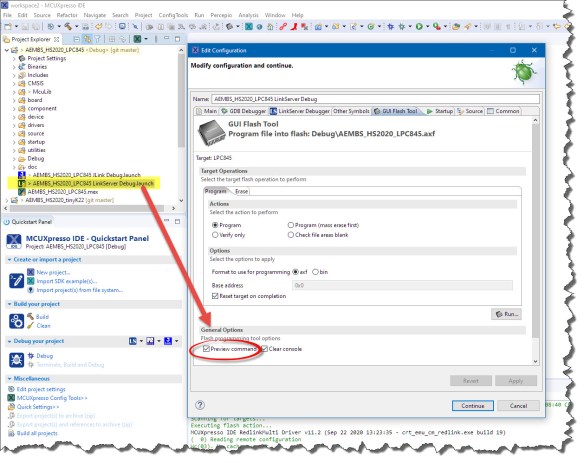

Double-click on .launch file to edit it. This opens the settings. Go the ‘GUI Flash Tool’ and turn on ‘Preview command’:
Preview Command
This will trigger a dialog with the command line used for the flash tool. Apply the settings and close the dialog.
With the project selected, use the desired operation, for example programming the flash:
Program Flash Action
Another way is to get the command/script from the GUI Flash Tool:
GUI Flash Tool
This is useful for example to program a binary file (see Using Eclipse to Program Binary Files to an Embedded Target ):
Preview Command for programming a bin file
This now opens a preview dialog:
Preview of Command
The beauty of this is that I don’t have to find the correct parameters, the settings of the device or other complicated steps to get the job done: It is basically using what I have used to program the board during development, but as command line script :-).

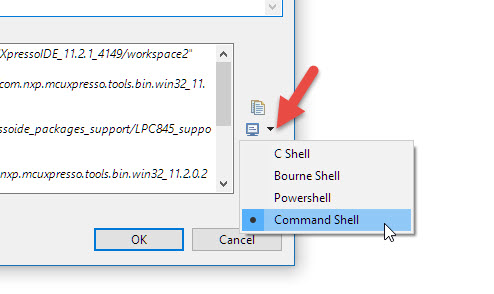

Select the shell script to be used:
shell script selection
Then copy the script to the clipboard:
Copy script to the clipboard

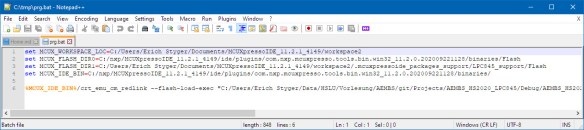

Store the content to a script/batch file:
batch file
I noticed a problem if the workspace folder has spaces. Because the path variable is double-quoted and the string combination is double-quoted too, it leads to a wrong path:
double quoted paths
What I did was removing the double-quotes from the variables in my script.

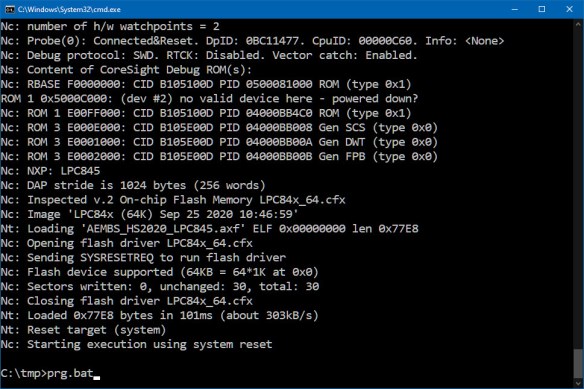

Finally run the script from the command line shell:
running script
That way I can easily program a larger batch of my boards without the need to run Eclipse or a GUI.
Summary
The MCUXpresso IDE already has everything built-in to provide standalone programming from the command line shell. I get the script files from the IDE and then can use and tweak them in my scripting environment. This does not only work for the MCU-Link, but any supported debug probe such as the P&E Multilink and the SEGGER J-Link. So that way I can easily do a batch programming of many boards. If tapping more into a production environment, I recommend that you have a look at the Cyclone solutions from PEMicro or the SEGGER Flasher, as that way you even don’t need a host PC.
Happy flashing đŸ™‚
