Tutorial: FreeRTOS 10.0.1 with NXP S32 Design Studio 2018.R1

NXP not only sells general purpose microcontroller, but as well a portfolio of automotive devices which includes the S32K which is ARM Cortex based. For this device family, they offer the S32 Design Studio (or S32DS) with its own Eclipse distribution and SDK. The interesting part is that the S32DS includes Processor Expert (which is a bit different from the ‘mainstream’ Processor Expert). It comes with its own components for the S32K SDK which includes a component for FreeRTOS. But that component in S32DS 2018.R1 comes with an old V8.2.1 FreeRTOS component:

FreeRTOS 8.2.1 in S32DS 2018.R1

FreeRTOS 8.2.1 in S32DS 2018.R1

So what to do if I want to use the latest FreeRTOS (currently 10.0.1) with all the bells and whistles?

This article describes how to upgrade it to the latest and greatest FreeRTOS V10.0.1:

FreeRTOS 10.0.1 in S32DS 2018.R1

FreeRTOS 10.0.1 in S32DS 2018.R1

Outline

The latest FreeRTOS V10.0.1 has many benefits: it is under a more permissible license, plus it comes with all the latest features like static memory allocation or direct task notification. Because it is not possible to directly update the FreeRTOS component in S32DS, I’m using the McuOnEclipse FreeRTOS component for S32DS. That component version is always up to the latest FreeRTOS version, supports multiple IDE’s (CodeWarrior classic, CodeWarrior for MCU 10.x, Kinetis Design Studio, MCUXpresso IDE and now as well S32DS) and a broad range of microcontroller (S08, S12, DSC, ColdFire, Kinetis and now as well S32DS). Additionally it seamlessly integrates SEGGER SystemView/RTT and Percepio FreeRTOS Tracealyzer.

💡 At the time of this article not all McuOnEclipse components have been ported to S32DS. More components will be released in the future.

This article describes how to add and use the FreeRTOS 10.0.1 McuOnEclipse components in S32DS, followed by a tutorial how to create a FreeRTOS project for the S32K144EVB board.

Example projects like the one discussed here are available on GithHub: https://github.com/ErichStyger/mcuoneclipse/tree/master/Examples/S32DS

Creating Project

In a first step we create a simply basic project we can debug on the board.

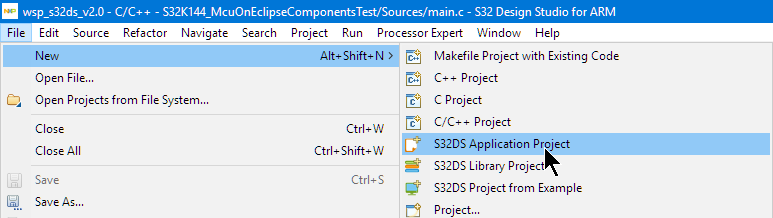

In S32DS, use the menu File > New > S32DS Application Project:

New Application Project

New Application Project

Provide a name for the project and select the device to be used:

Create a S32 DS Project

Create a S32 DS Project

Press Next. Click on the browse button to select the SDK:

Choose SDK

Choose SDK

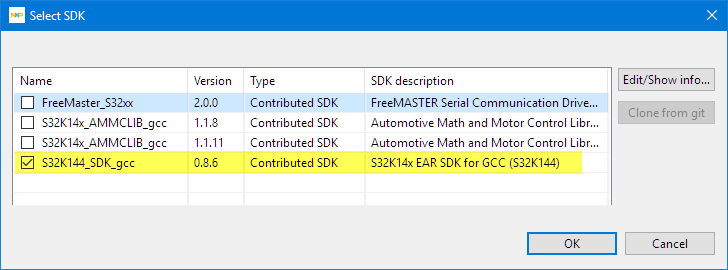

Select the S32K144_SDK_gcc SDK:

S32K144 SDK

S32K144 SDK

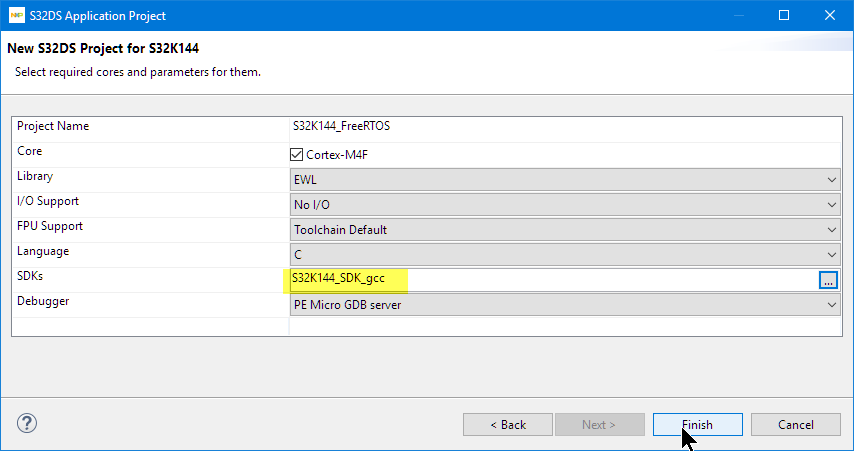

Press OK. Now the SDK is selected:

Selected SDK

Selected SDK

Press Finish to create the project. In Eclipse I have now the project created:

Basic Project

Basic Project

Now it would be good time to build (menu Project > Build Project) and debug (Menu Run > Debug) the project to verify everything is working so far. Doing the Debug, it will ask me for which configuration I want to use: I select the Debug one:

Debug Configuration

Debug Configuration

Depending on the debug connection, I can set it to OpenSDA:

OpenSDA

OpenSDA

With this, I should be able to debug the project:

Debugging the initial project

Debugging the initial project

Congratulations! You can now terminate the debug session with the red ‘stop’ button and switch back to the C/C++ perspective.

Blinky LED

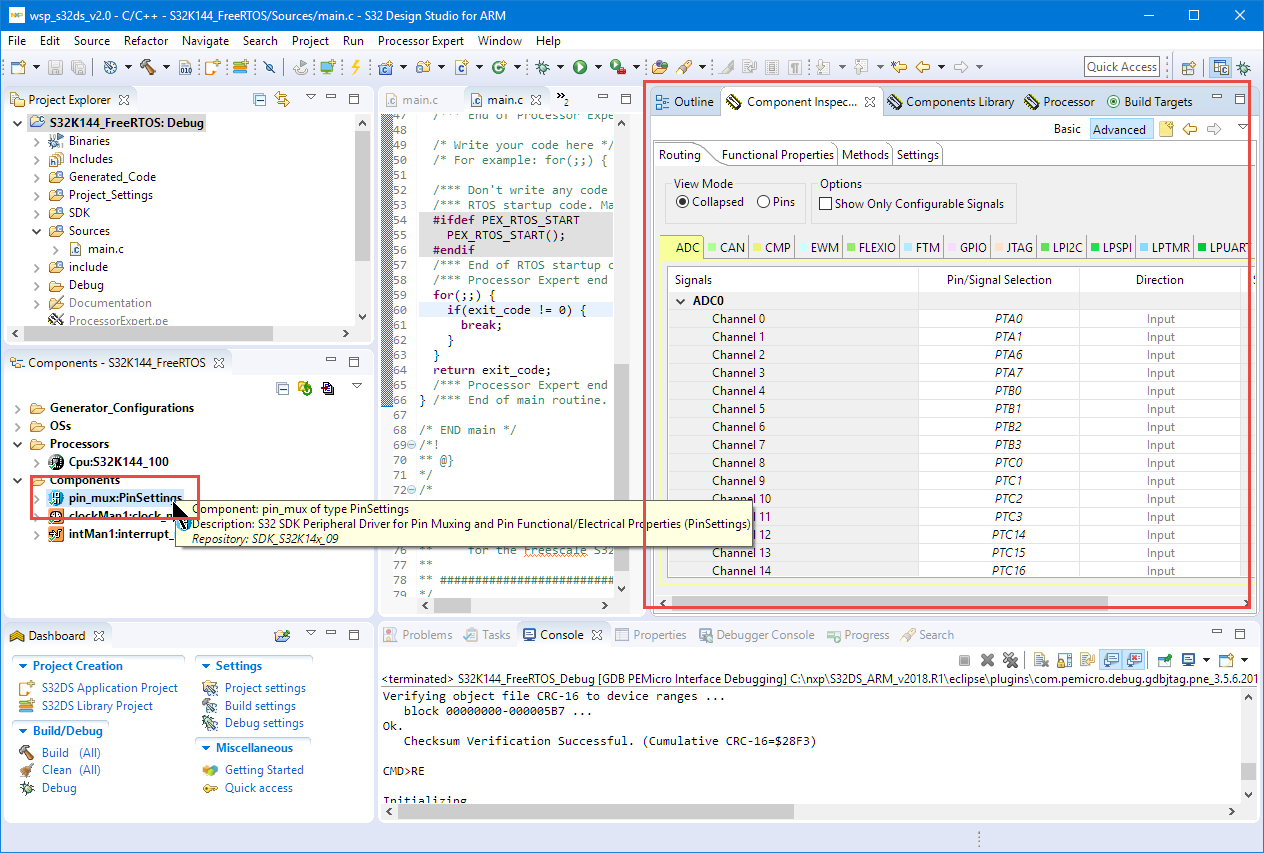

In a next step we mux the RGB LED pins on the S32K144EVB board. For this, double-click on the PinSettings component to open the Component Inspector for it:

Pin Muxing Settings

Pin Muxing Settings

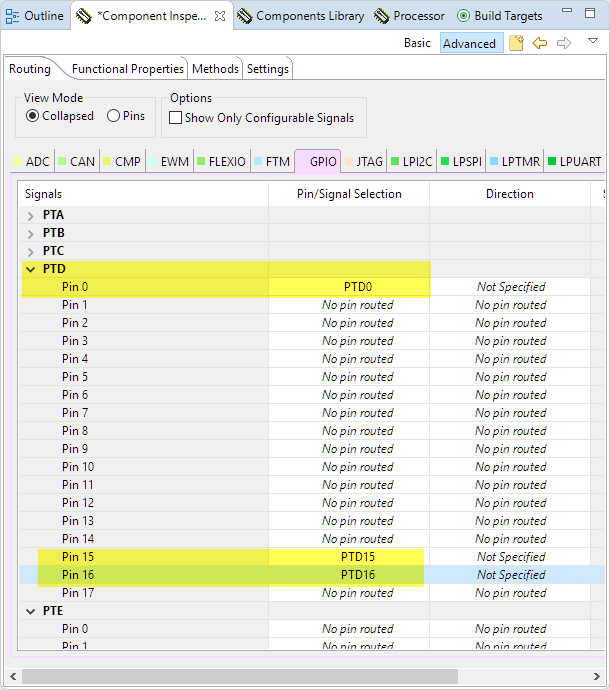

The RGB LEDs are on PTD0, PTD15 and PTD16. Route them in the Inspector as shown below:

Routed Pins

Routed Pins

Then generate code with the button in the components view:

Generating Code

Generating Code

Next, add the following code into main():

CLOCK_SYS_Init(g_clockManConfigsArr, CLOCK_MANAGER_CONFIG_CNT, g_clockManCallbacksArr, CLOCK_MANAGER_CALLBACK_CNT);
CLOCK_SYS_UpdateConfiguration(0U, CLOCK_MANAGER_POLICY_FORCIBLE);
PINS_DRV_Init(NUM_OF_CONFIGURED_PINS, g_pin_mux_InitConfigArr);
PINS_DRV_SetPinsDirection(PTD, (1<<0U) | (1<<15U) | (1<<16U)); /* set as output */

PINS_DRV_SetPins(PTD, (1<<0U) | (1<<15U) | (1<<16U)); /* all LEDs off */
PINS_DRV_ClearPins(PTD, (1<<15U)); /* RED pin low ==> ON */
PINS_DRV_TogglePins(PTD, (1<<15U)); /* RED pin high => off */
Added Code to main

Added Code to main

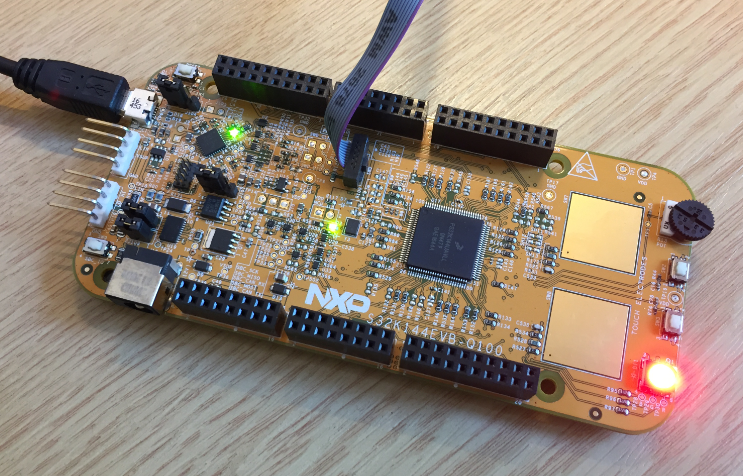

This is to initialize the clock and GPIO pin drivers, followed by turning all LEDs off and then the Red one on and off.

Blinky on S32K144EVB

Blinky on S32K144EVB

Build and debug it on the board to verify everything is working as expected.

McuOnEclipse Component Installation

You need at the 1-July-2018 release or later.

Download from SourceForge the latest zip file and unzip it.

Use the menu Processor Expert > Import Component(s):

Processor Expert Import Components

Processor Expert Import Components

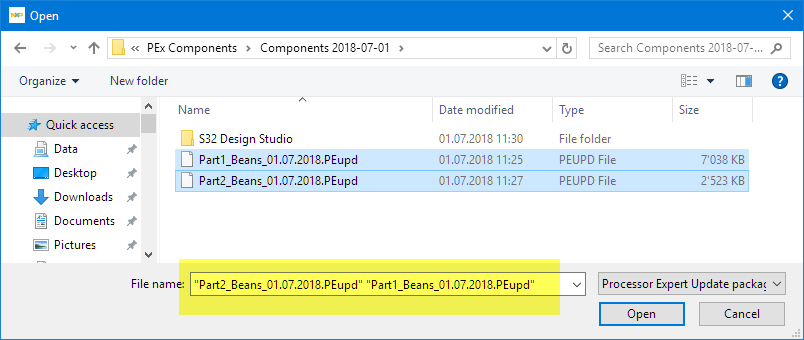

Select *both* *.PEupd files and press Open:

Open .PEupd Files.PEupd Files

Open .PEupd Files.PEupd Files

Specify/Select the component repository where to import the components:

Component Repository

Component Repository

If that repository does not exist yet, add a new one:

💡 I’m using below the McuOnEclipse folder inside the S32DS installation folder. Create that folder first if it does not exist yet.

Add Repository

Add Repository

Because Processor Expert in S32DS does not include all needed Processor Expert include files, another manual step is required. These extra files are present inside the package you have downloaded from SourceForge:

ProcessorExpert Include Files

Processor Expert Include Files

Adding FreeRTOS

Next, add the FreeRTOS component from the McuOnEclipse repository to the project:

Adding FreeRTOS Component to Project

Adding FreeRTOS Component to Project

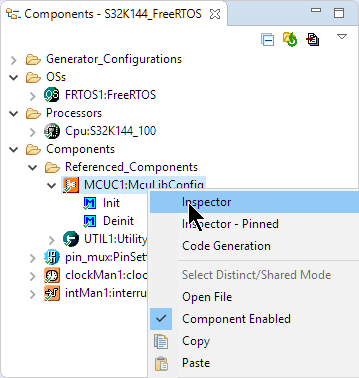

This will bring in a few other components into the project. Open the Inspector view for the McuLibConfig component:

Inspector for the McuLibConfig component

Inspector for the McuLibConfig component

Configure it to use the S32K SDK:

McuLibConfig

McuLibConfig

In the FreeRTOS settings, verify that the ARM core is matching your board:

Cortex CPU settings

Cortex CPU settings

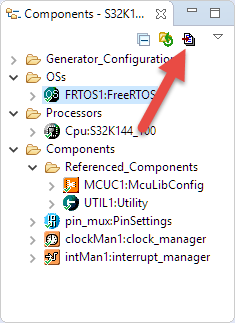

This completes the settings. Generate code:

Generate Code

Generate Code

Initializing component drivers

In other IDE’s (Kinetis Design Studio, CodeWarrior, …), Processor Expert will initialize the component drivers. Because this is not implemented in the S32DS version, I have to call the Init functions separately. For this, add the following template to main.c:


static void Components_Init(void) {
  #define CPU_INIT_MCUONECLIPSE_DRIVERS
  /* IMPORTANT: copy the content from Cpu.c! */
/*------------------------------------------------------------------*/
/* copy-paste code from Cpu.c below: */

/*------------------------------------------------------------------*/
}

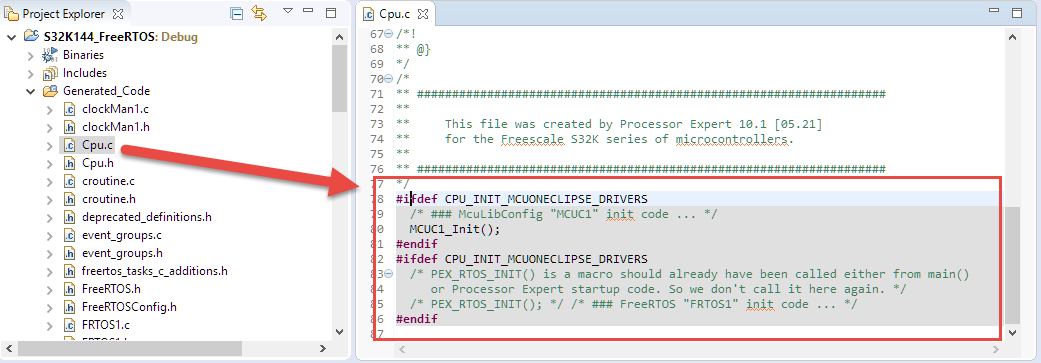

You find the code to copy at the end of Generated_Code\Cpu.c:

Initialization Code in Cpu.c

Initialization Code in Cpu.c

Copy that code and place it inside Components_Init() in main.c:

💡 Unfortunately, this is a manual process :-(. Whenever you add/remove a component, make sure you update the Components_Init() function.

Calling Components_Init()

Calling Components_Init()

Events

The next manual thing is about Processor Expert events. In other IDE’s Processor Expert is creating proper event modules. In S32DS it only adds the events to the Events.c which is not complete.

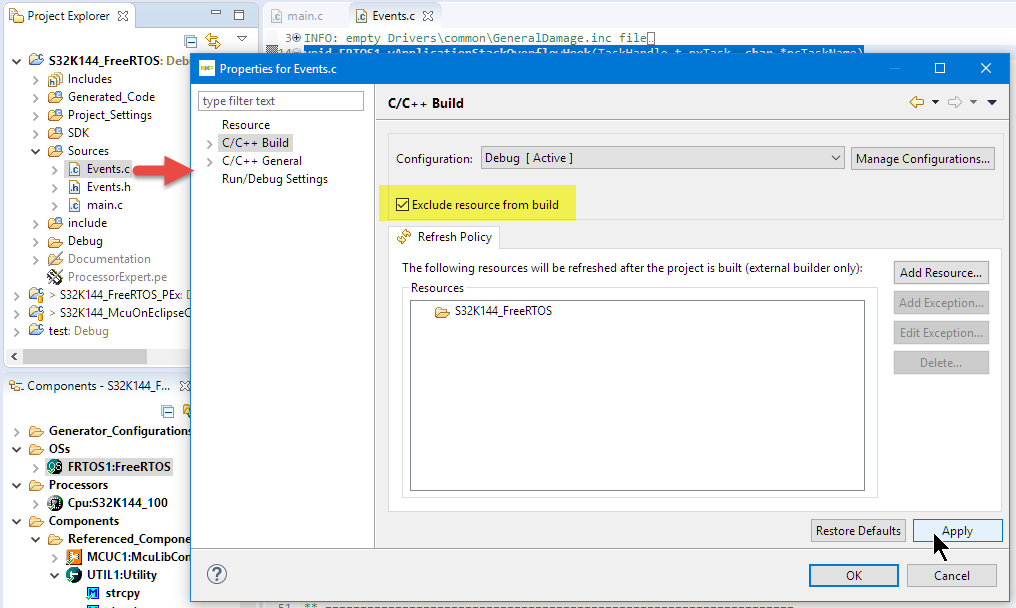

To solve this, first exclude the file Events.c from the build: Use the properties and turn on ‘Exclude resource from build’ (see “Exclude Source Files from Build in Eclipse“).

Events.c excluded from build

Events.c excluded from build

Then include the header file and source file into main.c:

#include "Events.h"
#include "Events.c"

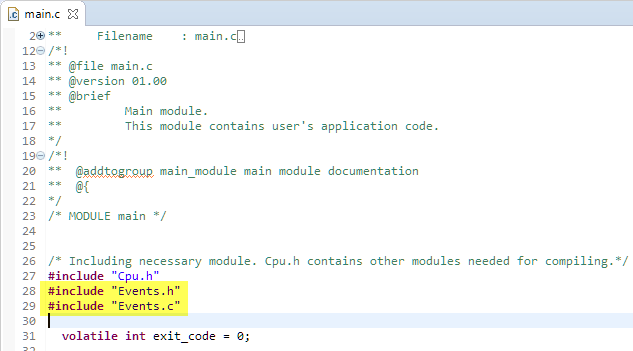

This uses the preprocessor to place the event code into main.c:

Included Events Code

Included Events Code

FreeRTOS Task

Add the following code for a FreeRTOS task to main.c which blinks the green LED:


static void AppTask(void *param) {
  (void)param; /* not used */
  for(;;) {
    PINS_DRV_TogglePins(PTD, (1<<16U)); /* blink green LED */
    vTaskDelay(pdMS_TO_TICKS(1000)); /* wait 1 second */
  } /* for */
}

Next, create the task in main() and start the scheduler:


  if (xTaskCreate(AppTask, "App", 500/sizeof(StackType_t), NULL, tskIDLE_PRIORITY+1, NULL) != pdPASS) {
    for(;;){} /* error! probably out of memory */
  }
  vTaskStartScheduler();

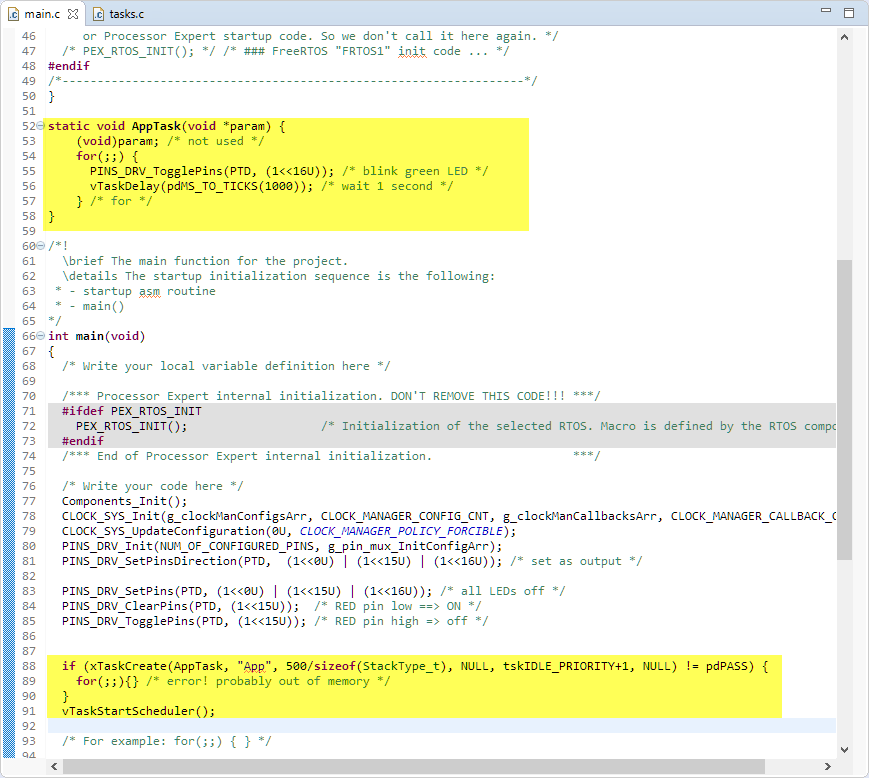

Blinky Task

Blinky Task

Build and debug.

Debugging FreeRTOS Application in S32DS

Debugging FreeRTOS Application in S32DS

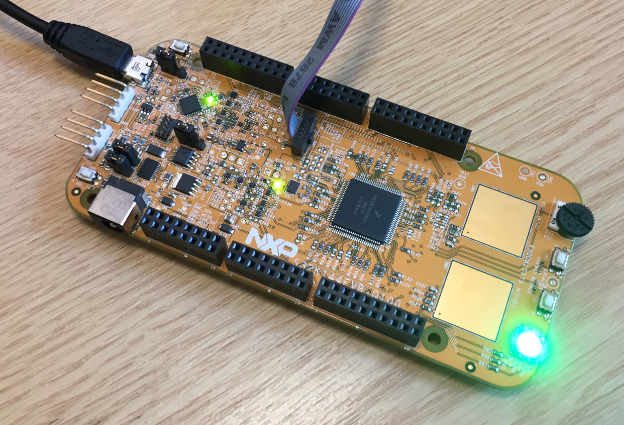

And enjoy the blinking green LED:

Blinky Green RGB LED

Blinky Green RGB LED

Summary

It is great to see that Processor Expert at least continues to exist in the automotive part of NPX with the S32 Design Studio. However, that Processor Expert has been reduced to the S32K SDK and automatic component initialization and event handling needs a manual setup. Other than that, the first components work great in S32DS. And for everyone using S32DS, the McuOnEclipse components offer the latest FreeRTOS and extra features like tickless idle mode, Segger RTT, Segger SystemViewer and Percepio Tracealyzer :-).

Happy updating 🙂

Links

Advertisements

23 thoughts on “Tutorial: FreeRTOS 10.0.1 with NXP S32 Design Studio 2018.R1

  1. Sorry, I follow the entire guide but I have some issues:
    1. the FRTOS1_vOnSleepProcessing does not have any code targeting the S32K mcu. It raises an error: “you must enter low power mode (wait for interrupt) here!”.
    2. it seems that freertos and the osif components define multiple time the SysTick_Handler function

    Like

    • About 2) I see that SysTick_Handler() is defined only once in port.c? There are different variants depending on toolchain used, but for S32DS and gcc I only see it defined once, or what is what I’m missing?

      Like

      • Actually, the processor expert includes the osif_baremetal.c file where there is another definition of SysTick_Handler.

        Like

        • I believe you have added the wrong FreeRTOS component to your project? It seems to me you are using the FreeRTOS component from the S32 SDK, and *not* the FreeRTOS from the McuOnEclipse repository.
          Can you check this? If you move the mouse cursor over your FreeRTOS in the project, then it should show ‘Repository: McuOnEclipse’ and not the SDK repository.

          Like

        • There are other processor expert components that use OSIF component, so it must be introduced.

          Like

        • EDMA, FlexCAN and sbc_uja11691 (the on-board CAN transceiver) components have as shared component the osif, which is not an operating system but an interface between device drivers and an eventual operating system. You can choose to use FreeRTOS (the one provided by the SDK) or a bare metal implementation, then the OSIF will interface the drivers with the desired implementation. For example, when you call the driver function FLEXCAN_DRV_SendBlocking, in the function body there is a call to: “OSIF_SemaWait” that will use the FreeRTOS semaphore if you had chosen a FreeRTOS implementation, otherwise the bare metal implementation (which is written in osif_baremetal.c). In practice, if you choose a bare metal implementation, the .c file used by the OSIF component is osif_baremetal.c, while if you choose the FreeRTOS implementation, the .c file used is osif_freertos.c.
          The solution could be to adapt/add another .c file for the new os (freertos 10).

          Like

        • I see, I can now reproduce this. It seems to me that the osif component checkes some variables about what operating system is used and it does not recognize the McuOnEclipse FreeRTOS. I see if I can find out more…

          Like

        • I managed to get it working now with the OSIF component :-).
          I have updated the files on GitHub (https://github.com/ErichStyger/mcuoneclipse/tree/master/Examples/S32DS).
          Here are the steps:

          How to use the McuOnEclipse FreeRTOS with the S32 SDK OSIF (OS-Interface):
          a) name the FreeRTOS component as ‘FreeRTOS’
          b) in the FreeRTOS component setting, use ‘Custom Port’ with ‘Source Folders’ enabled.
          ‘Manual Clock Values’ disabled
          c) This generates FreeRTOS into folders inside the Generated_Code.
          So you have to add the following to the compiler include path settings:
          ../Generated_Code/FreeRTOS/Source/include
          ../Generated_Code/FreeRTOS/config/gcc
          ../Generated_Code/FreeRTOS/Source/portable/GCC/ARM_CM4F
          d) before including events.c, include FreeRTOS.h and task.h
          #include “FreeRTOS.h”
          #include “task.h”
          #include “Events.h”
          #include “Events.c”
          e) add the following define to the compiler preprocessor settings:
          USING_OS_FREERTOS

          BUT: it requires an updated FreeRTOS component from my side. Interested to try it out?

          Like

  2. Sorry, I follow the entire guide but I have some issues too:

    I can’t understand that the following:

    “Because Processor Expert in S32DS does not include all needed Processor Expert include files, another manual step is required. These extra files are present inside the package you have downloaded from SourceForge:”

    where this files should be coied? or I need to include this files in IDE?

    Like

  3. Hi, I have a question. I would use the tickless mode with a low power timer. How can I set the low power timer as tick interrupt directly from Processor Component?

    Like

What do you think?
