Silicon Shortage and Semihosting with NXP MCUXpresso SDK on FRDM-KE02Z

The silicon shortage is still going on. While the NXP Kinetis KE devices might not be my first choice, they still seem to be available, in at least in lower quantities. This has been recognized by others, as I’m getting more and more questions and requests for the KE and KV family. This is why I un-dusted my old FRDM-KE02Z to be used with the latest MCUXpresso SDK and IDE.

FRDM-KE02Z Board

And in case you want to use that board or device with semihosting, I have you covered.

Well, that continued silicon shortage seems to be especially bad for Kinetis (K family) and LPC devices, for example the popular LPC845. Mouser shows 100+ weeks factory lead time (yikes!). At least the price is showing up still the same, as one of our research partner had to pay 10x than usual for a different device, although for a small quantity., 24.Jan.2022

Several readers of this blog want to build a MetaClockClock, but because lack of parts, they are mostly stuck. The option of course is to use a different part, and one of the few devices which are available are the ones from the Kinetis KE family. Probably because they don’t have much memory, and their pinout/package is not the most attractive one. But at least you can get some devices. In the worst case I can salvage parts from the evaluation boards which still are available in some quantities, that can help a project going.

I’m not saying that dusting off the KE (or KV) is always the right solution: They are very different from the K devices, and beside of the tools used they pretty much require rewriting most of the firmware because of the clocking and peripherals. Looking out further, there are interesting insights on a forum plus on Bloomberg why some devices seems to be more affected by the shortage than others. Ultimately, it means to move on to different devices?

FRDM-KE02Z Board
FRDM-KE02Z Board

So anyway, if you want to use the KE device with semihosting, here is how….


First, create a usual project with the NXP MCUXpresso SDK. I’m using here the NXP MCUXpresso IDE 11.5.0 and the SDK 2.10.0 for the FRDM-KE02Z40M board.


The first thing to make sure for semihosting is that the correct library is selected for the project:

Libraries with semihost support

To be able to use semihosting, the library needs to implement some ‘stubs’ translating the standard library I/O functions (putc, puts, printf, fopen, …) into the correct low level calls. The MCUXpresso SDK offers several variants of the library:

  • none: no stubs are implemented
  • nohost: stubs are ’empty’ and doing nothiing
  • semihost: semihost stubs implemented
    • nf (no file): semihosting without file support, so only for stdin, stdout and stderr
    • mb (memory buffer): using more memory for faster speed

My general recommendation is to use the newlib-nano, because open source, small footprint and good performance.

From here on, you can use printf() or better puts() in your code, or anything else you want:


Oh wait! The reality is that with the default SDK template you might end up in a hard fault like this:

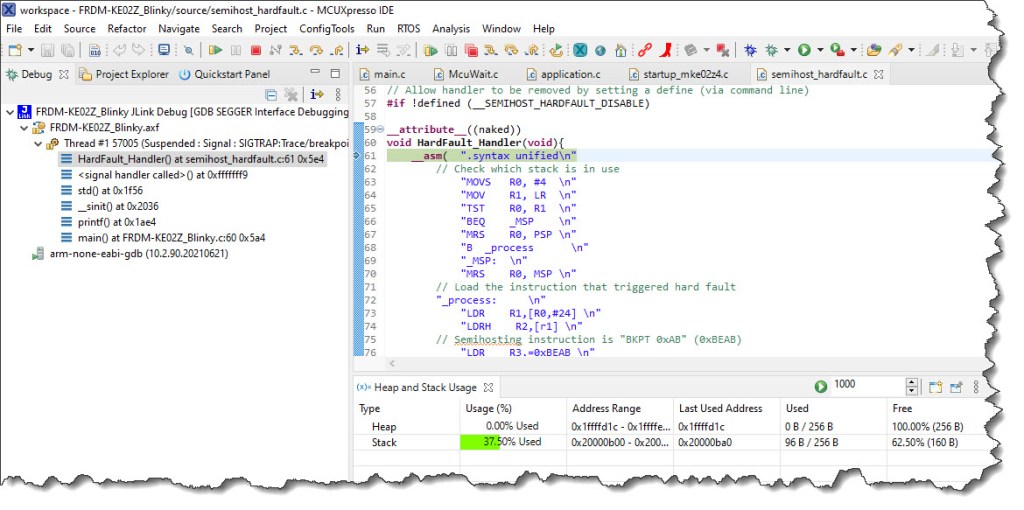

Hardfault during Semihost operation

The Heap and Stack Usage view in above screenshot gives a hint about the reason:

No heap memory used

One should know that semihosting and especially printf() or standard I/O operation could use lots of (dynamic) memory, see “Why I don’t like printf()“. Obviously 0 bytes is proably not good enough, so it seems that allocation of the standard descriptor failed.

The solution is simple (if you have enough memory): increase it. I increased it to 512 bytes in the linker settings:

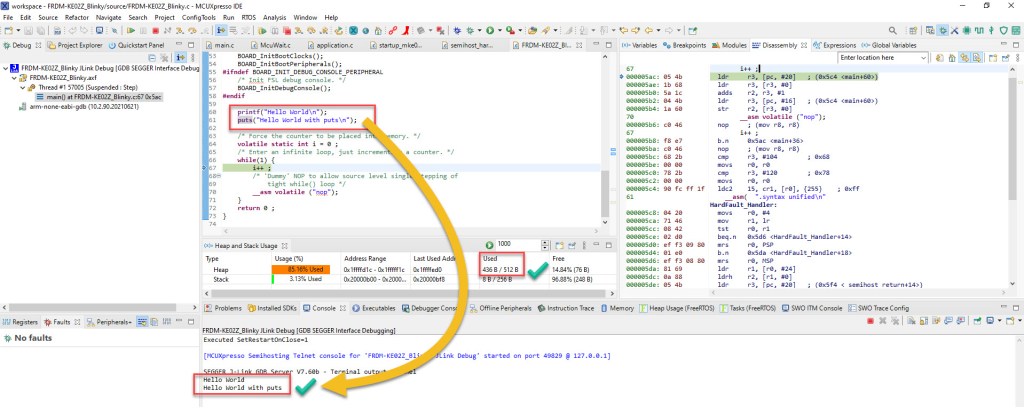

With this, it runs fine for that test:

But just consider: this device has only 4 KByte of RAM, so semihosting with standard I/O support might not be the best thing. But for this, I might have you covered with a custom semihosting library not using such an amount of RAM? But that might be yet another article….

You can find the project used in this article on GitHub.

Happy hosting 🙂
