Tutorial: BLE Pairing the Raspberry Pi 3 Model B with Hexiwear

The Hexiwear (see “Hexiwear: Teardown of the Hackable ‘Do-Anything’ Device“) is a small and portable sensor node with built-in BLE (Bluetooth Low Energy) transceiver. In a research project we try to use multiple Hexiwear in a classroom environment and to collect sensor data on a Raspberry Pi. The Raspberry Pi 3 Model B running Linux has an on-board BLE transceiver too, so why not binding them (wirelessly) together?

Raspberry Pi 3 connected with Hexiwear over BLE

Raspberry Pi 3 connected with Hexiwear over BLE

Well, things seemed easy at the beginning, and as always, there are many things to learn on a journey like this…

Outline

As always, things seem to be rather simple at the start, and the feeling is that ‘someone else must already have done this’. And as many other times, such an assumption turns out to be wrong. Well, that part was not really considered as part of the research project: now how to pair a Hexiwear with a Raspberry Pi has become a research project in a research project ;-).

In this article I describe my journey and the steps I have explored how to pair the Hexiwear and a Raspberry Pi 3 Model B together. This requires downloading BlueZ (a Bluetooth stack) for Linx, building and installing the BlueZ software on the Raspberry. I describe the needed settings on the Hexiwear and how to use the command line tools on the Raspberry to pair and explore the Hexiwear, including the necessary steps for authentication. The tutorial shows using the ‘bluetoothctl’ tool and finally using the ‘gatttool’. With this I was able to read sensor values or to trigger notifications sent from the Hexiwear to the Raspberry Pi.

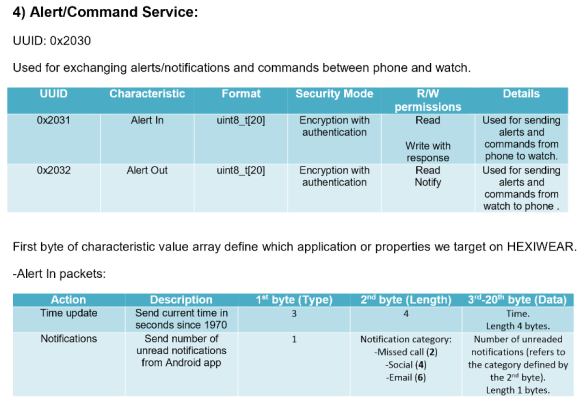

💡 What does not work at this time is to use the Alert/Notification service (e.g. to write the current date/time to the Hexiwear).

Versions Used

I’m using the following versions on the Hexiwear:

  • KW40 Firmware version 1.0.0
  • MK64 FW version 1.0.2
  • Hardware version 1.0.0

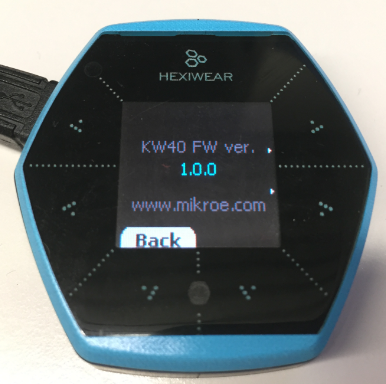

Hexiwear KW40 Firmware Version

Hexiwear KW40 Firmware Version

The Raspberry Pi 3 Model B V1.2 with on-board BLE transceiver and running Raspbian GNU/Linux 8 (jessie) version 8.

Raspberry Pi 3 Model B v1.2

Raspberry Pi 3 Model B v1.2

As Bluetooth stack (BlueZ) I have used V5.43

Download source code

See https://learn.adafruit.com/install-bluez-on-the-raspberry-pi/installation for more details about the steps needed. I have listed the short steps:

Get a link to latests version of BlueZ from http://www.bluez.org/download/ and download it:

wget http://www.kernel.org/pub/linux/bluetooth/bluez-5.43.tar.xz

Then unpack it with

tar xvf bluez-5.43.tar.xz

change the directory:

cd bluez-5.43/

Then copy the needed packages:

sudo apt-get update
sudo apt-get install -y libusb-dev libdbus-1-dev libglib2.0-dev libudev-dev libical-dev libreadline-dev

then build BlueZ with the standard configuration:

./configure

This should create a configuration, with no errors. If there are errors, probably something went wrong with the above dependencies and library installation.

Start the compilation with the standard make:

make

This takes about 20 minutes to build. Then install it with

sudo make install

Starting/Stop/Enable/Disable service

As the system service on disk has changed with our build, reload the service with

sudo systemctl daemon-reload

Use the following to start or stop the service:

sudo systemctl start bluetooth
sudo systemctl stop bluetooth

The following is used to get the status of the service:

systemctl status bluetooth

To automatically turn on the service at the system startup use

sudo systemctl enable bluetooth

This can be disabled again with

sudo systemctl disable bluetooth

Enable BLE Features

To enable the BLE features, the ‘experimental’ mode needs to be turned on in the service configuration. For this edit the file with

sudo nano /lib/systemd/system/bluetooth.service

with adding ‘–experimental’ to the following line:

ExecStart=/usr/local/libexec/bluetooth/bluetoothd --experimental

As we changed the service settings, use the following to restart it

sudo systemctl daemon-reload
sudo systemctl restart bluetooth

Preparing the Hexiwear for Pairing

Turn on Bluetooth on the Hexiwear. This is under Menu > Settings Bluetooth. The Bluetooth icons shall be blue to show that Bluetooth is turned ON:

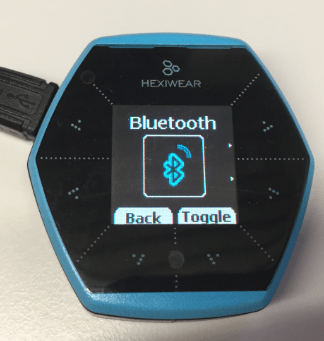

Hexiwear Bluetooth Turned On

Hexiwear Bluetooth Turned On

Before trying to connect to the Hexiwear, make sure you are not *already* connected. I lost hours because the Hexiwear was still connected to my mobile phone :-(. On the Hexiwear, make sure that on the main menu the Bluetooth icon is white (NOT blue!):

Hexiwear no Bluetooth Connection

Hexiwear no Bluetooth Connection

Using bluetoothctl

‘bluetoothctl’ is a command line utility to manage, scan and connect to Bluetooth devices. Start the tool with

bluetoothctl

First, power off the Bluetooth host controller on the Raspberry with the ‘power off’ command:

[bluetooth]# power off
Changing power off succeeded
[CHG] Controller B8:27:EB:20:B7:23 Powered: no
[CHG] Controller B8:27:EB:20:B7:23 Discovering: no

Then power it on again with ‘power on’:

[bluetooth]# power on
Changing power on succeeded
[CHG] Controller B8:27:EB:20:B7:23 Powered: yes

Then turn on the agent (which is used to ask for the pairing pin code) the the ‘agent on’ command, followed by ‘default-agent’ to enable the default pin agent:

[bluetooth]# agent on
Agent registered
[bluetooth]# default-agent
Default agent request successful

Then start scanning for devices using the ‘scan on’ command:

[bluetooth]# scan on
Discovery started
[CHG] Controller B8:27:EB:20:B7:23 Discovering: yes
[CHG] Device 00:32:40:08:00:12 RSSI: -62
[CHG] Device 7A:E1:8C:61:25:E4 RSSI: -44

After a while, it should show the Hexiwear, e.g.

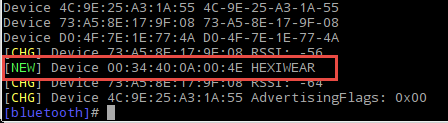

New Hexiwear detected

New Hexiwear detected

[NEW] Device 00:34:40:0A:00:4E HEXIWEAR

If the Hexiwear does not show up, try a reset of the Hexiwear with Bluetooth on the Hexiwear enabled.

Stope the scanning with:

scan off

With

info 00:34:40:0A:00:4E

I get information about the device:

[bluetooth]# info 00:34:40:0A:00:4E
Device 00:34:40:0A:00:4E
    Name: HEXIWEAR
    Alias: HEXIWEAR
    Paired: no
    Trusted: no
    Blocked: no
    Connected: no
    LegacyPairing: no

With the ‘pair’ command I make a pairing with the device:

pair 00:34:40:0A:00:4E

The Hexiwear should now show a pairing pin code like this:

Note: According to a community article I should be asked to enter a pin (displayed on the Hexiwear). However, with the BlueZ 5.43 I have not been asked for a pin initially. I can pair/bind without a pin, but then I only can read values which do not need authentication, so pairing is pretty much useless :-(. If you don’t get asked for a pairing/bonding pin, repeat carefully the steps above, including a) disconnecting from a connected Hexiwear (disconnect command), removing a Hexiwear (remove command) and make sure you quit and restart the bluetootctl program.

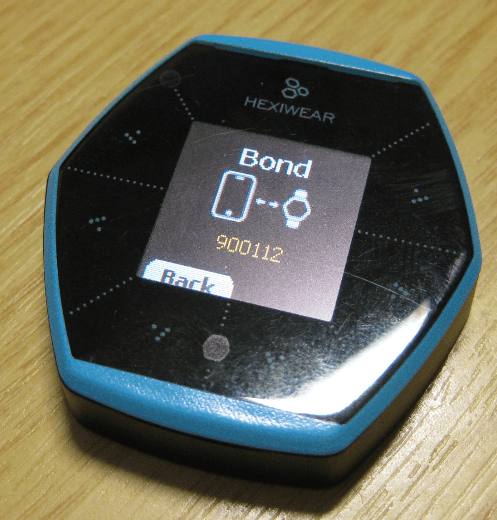

Bonding/Pairing Code on Hexiwear

Bonding/Pairing Code on Hexiwear

The agent will ask for that key:

[agent] Enter passkey (number in 0-999999): 900112
[CHG] Device 00:32:40:08:00:12 Paired: yes
Pairing successful

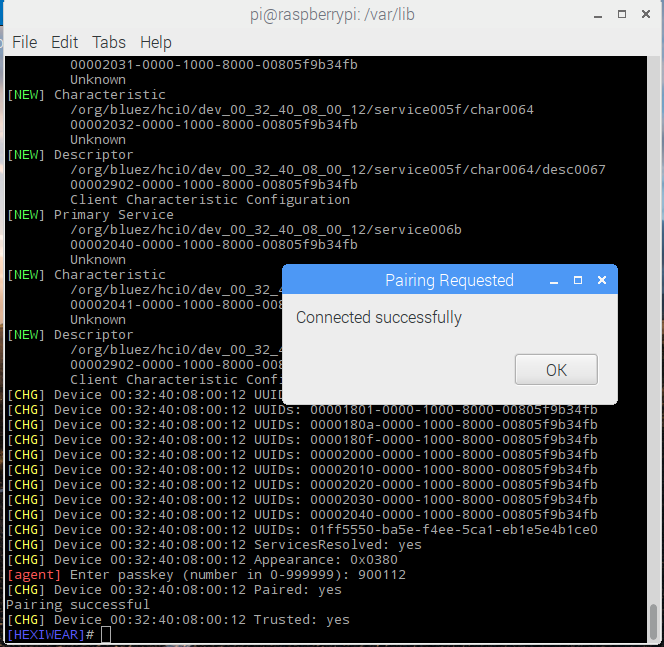

Pairing with Hexiwear

Pairing with Hexiwear

Success! I have paired the Raspberry Pi and the Hexiwear over BLE! 🙂 Below the full sequence again:

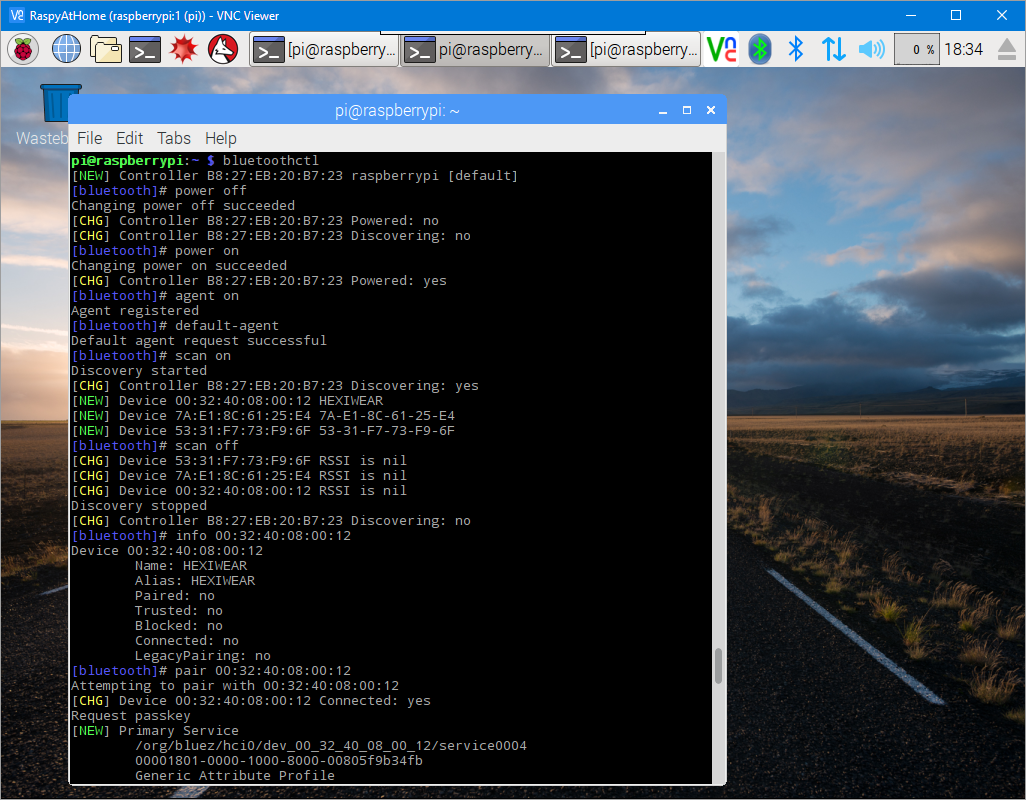

Sucessful Hexiwear Pairing

Successful Hexiwear Pairing

With the ‘info’ command it shows now paired, trusted and connected:

[HEXIWEAR]# info 00:32:40:08:00:12
Device 00:32:40:08:00:12
    Name: HEXIWEAR
    Alias: HEXIWEAR
    Appearance: 0x0380
    Paired: yes
    Trusted: yes
    Blocked: no
    Connected: yes
    LegacyPairing: no
    UUID: Generic Access Profile    (00001800-0000-1000-8000-00805f9b34fb)
    UUID: Generic Attribute Profile (00001801-0000-1000-8000-00805f9b34fb)
    UUID: Device Information        (0000180a-0000-1000-8000-00805f9b34fb)
    UUID: Battery Service           (0000180f-0000-1000-8000-00805f9b34fb)
    UUID: Unknown                   (00002000-0000-1000-8000-00805f9b34fb)
    UUID: Unknown                   (00002010-0000-1000-8000-00805f9b34fb)
    UUID: Unknown                   (00002020-0000-1000-8000-00805f9b34fb)
    UUID: Unknown                   (00002030-0000-1000-8000-00805f9b34fb)
    UUID: Unknown                   (00002040-0000-1000-8000-00805f9b34fb)
    UUID: Vendor specific           (01ff5550-ba5e-f4ee-5ca1-eb1e5e4b1ce0)

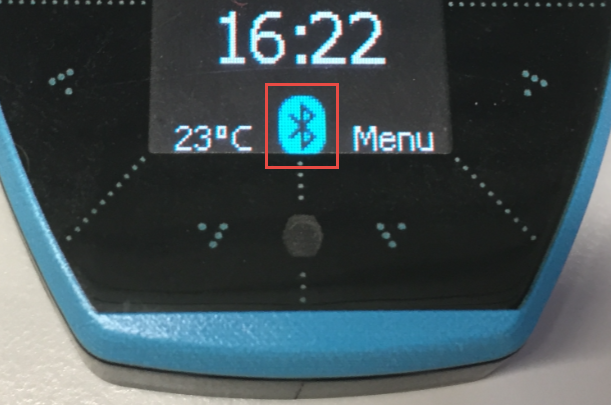

Go back in the menu on the Hexiwear, and you should see now the Bluetooth icon in blue:

Paired Bluetooth Devices

Paired Bluetooth Devices

The devices command should now list the Hexiwear:

[bluetooth]# devices
Device 00:34:40:0A:00:4E HEXIWEAR

Services, Descriptors and Characteristics

With the first pairing, it will report a lot of information about the device services, characteristics and descriptors. I need the service, descriptor and characteristics information to read/write values on the BLE device:

[NEW] Primary Service
    /org/bluez/hci0/dev_00_34_40_0A_00_4E/service0004
    00001801-0000-1000-8000-00805f9b34fb
    Generic Attribute Profile
[NEW] Characteristic
    /org/bluez/hci0/dev_00_34_40_0A_00_4E/service0004/char0005
    00002a05-0000-1000-8000-00805f9b34fb
    Service Changed
[NEW] Descriptor
    /org/bluez/hci0/dev_00_34_40_0A_00_4E/service0004/char0005/desc0007
    00002902-0000-1000-8000-00805f9b34fb
    Client Characteristic Configuration
[NEW] Primary Service
    /org/bluez/hci0/dev_00_34_40_0A_00_4E/service0013
    01ff5550-ba5e-f4ee-5ca1-eb1e5e4b1ce0
    Vendor specific
[NEW] Characteristic
    /org/bluez/hci0/dev_00_34_40_0A_00_4E/service0013/char0014
    01ff5551-ba5e-f4ee-5ca1-eb1e5e4b1ce0
    Vendor specific
[NEW] Descriptor
    /org/bluez/hci0/dev_00_34_40_0A_00_4E/service0013/char0014/desc0016
    00002902-0000-1000-8000-00805f9b34fb
    Client Characteristic Configuration
[NEW] Characteristic
    /org/bluez/hci0/dev_00_34_40_0A_00_4E/service0013/char0017
    01ff5552-ba5e-f4ee-5ca1-eb1e5e4b1ce0
    Vendor specific
[NEW] Characteristic
    /org/bluez/hci0/dev_00_34_40_0A_00_4E/service0013/char0019
    01ff5553-ba5e-f4ee-5ca1-eb1e5e4b1ce0
    Vendor specific
[NEW] Primary Service
    /org/bluez/hci0/dev_00_34_40_0A_00_4E/service001c

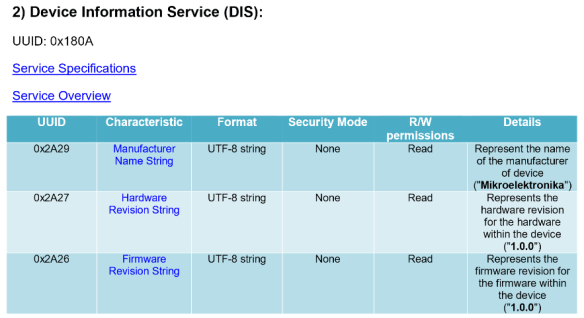

    0000180a-0000-1000-8000-00805f9b34fb
    Device Information
[NEW] Characteristic
    /org/bluez/hci0/dev_00_34_40_0A_00_4E/service001c/char001d
    00002a29-0000-1000-8000-00805f9b34fb
    Manufacturer Name String
[NEW] Characteristic
    /org/bluez/hci0/dev_00_34_40_0A_00_4E/service001c/char001f
    00002a26-0000-1000-8000-00805f9b34fb
    Firmware Revision String
[NEW] Characteristic
    /org/bluez/hci0/dev_00_34_40_0A_00_4E/service001c/char0021
    00002a25-0000-1000-8000-00805f9b34fb
    Serial Number String
[NEW] Primary Service
    /org/bluez/hci0/dev_00_34_40_0A_00_4E/service0026
    0000180f-0000-1000-8000-00805f9b34fb
    Battery Service
[NEW] Characteristic
    /org/bluez/hci0/dev_00_34_40_0A_00_4E/service0026/char0027
    00002a19-0000-1000-8000-00805f9b34fb
    Battery Level
[NEW] Descriptor
    /org/bluez/hci0/dev_00_34_40_0A_00_4E/service0026/char0027/desc0029
    00002904-0000-1000-8000-00805f9b34fb
    Characteristic Format
[NEW] Descriptor
    /org/bluez/hci0/dev_00_34_40_0A_00_4E/service0026/char0027/desc002a
    00002902-0000-1000-8000-00805f9b34fb
    Client Characteristic Configuration
[NEW] Primary Service
    /org/bluez/hci0/dev_00_34_40_0A_00_4E/service002e

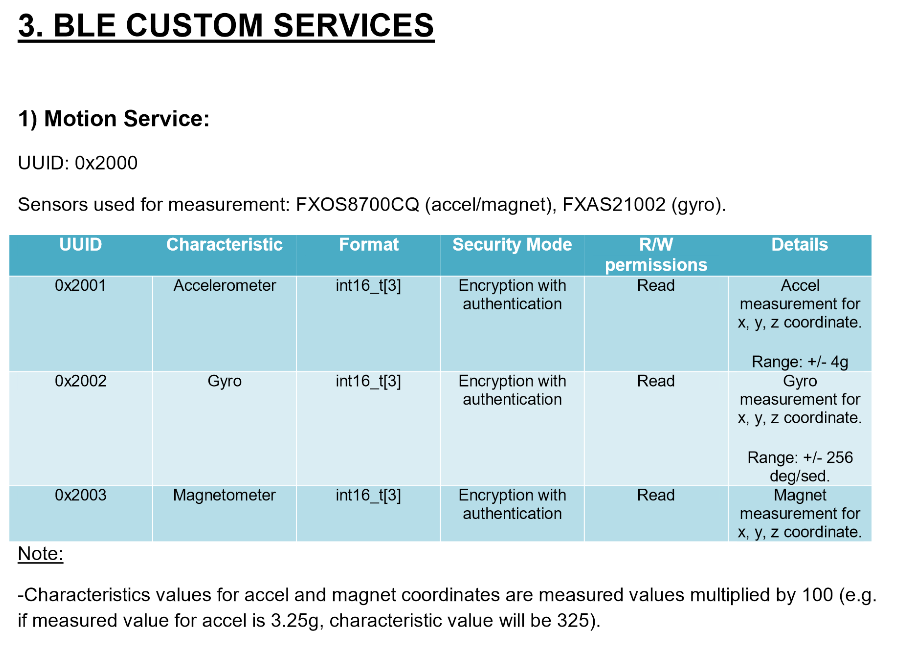

    00002000-0000-1000-8000-00805f9b34fb
    Unknown
[NEW] Characteristic
    /org/bluez/hci0/dev_00_34_40_0A_00_4E/service002e/char002f
    00002001-0000-1000-8000-00805f9b34fb
    Unknown
[NEW] Characteristic
    /org/bluez/hci0/dev_00_34_40_0A_00_4E/service002e/char0033
    00002002-0000-1000-8000-00805f9b34fb
    Unknown
[NEW] Characteristic
    /org/bluez/hci0/dev_00_34_40_0A_00_4E/service002e/char0037
    00002003-0000-1000-8000-00805f9b34fb
    Unknown
[NEW] Primary Service
    /org/bluez/hci0/dev_00_34_40_0A_00_4E/service003d
    00002010-0000-1000-8000-00805f9b34fb
    Unknown
[NEW] Characteristic
    /org/bluez/hci0/dev_00_34_40_0A_00_4E/service003d/char003e
    00002011-0000-1000-8000-00805f9b34fb
    Unknown
[NEW] Characteristic
    /org/bluez/hci0/dev_00_34_40_0A_00_4E/service003d/char0042
    00002012-0000-1000-8000-00805f9b34fb
    Unknown
[NEW] Characteristic
    /org/bluez/hci0/dev_00_34_40_0A_00_4E/service003d/char0046
    00002013-0000-1000-8000-00805f9b34fb
    Unknown
[NEW] Characteristic
    /org/bluez/hci0/dev_00_34_40_0A_00_4E/service003d/char004a
    00002014-0000-1000-8000-00805f9b34fb
    Unknown
[NEW] Primary Service
    /org/bluez/hci0/dev_00_34_40_0A_00_4E/service0050
    00002020-0000-1000-8000-00805f9b34fb
    Unknown
[NEW] Characteristic
    /org/bluez/hci0/dev_00_34_40_0A_00_4E/service0050/char0051
    00002021-0000-1000-8000-00805f9b34fb
    Unknown
[NEW] Characteristic
    /org/bluez/hci0/dev_00_34_40_0A_00_4E/service0050/char0055
    00002022-0000-1000-8000-00805f9b34fb
    Unknown
[NEW] Characteristic
    /org/bluez/hci0/dev_00_34_40_0A_00_4E/service0050/char0059
    00002023-0000-1000-8000-00805f9b34fb
    Unknown
[NEW] Primary Service
    /org/bluez/hci0/dev_00_34_40_0A_00_4E/service005f
    00002030-0000-1000-8000-00805f9b34fb
    Unknown
[NEW] Characteristic
    /org/bluez/hci0/dev_00_34_40_0A_00_4E/service005f/char0060
    00002031-0000-1000-8000-00805f9b34fb
    Unknown
[NEW] Characteristic
    /org/bluez/hci0/dev_00_34_40_0A_00_4E/service005f/char0064
    00002032-0000-1000-8000-00805f9b34fb
    Unknown
[NEW] Descriptor
    /org/bluez/hci0/dev_00_34_40_0A_00_4E/service005f/char0064/desc0067
    00002902-0000-1000-8000-00805f9b34fb
    Client Characteristic Configuration
[NEW] Primary Service
    /org/bluez/hci0/dev_00_34_40_0A_00_4E/service006b

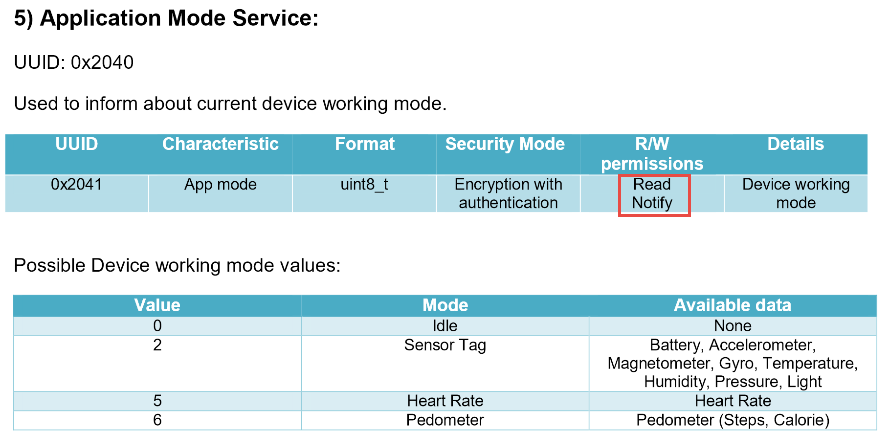

    00002040-0000-1000-8000-00805f9b34fb
    Unknown
[NEW] Characteristic
    /org/bluez/hci0/dev_00_34_40_0A_00_4E/service006b/char006c
    00002041-0000-1000-8000-00805f9b34fb
    Unknown
[NEW] Descriptor
    /org/bluez/hci0/dev_00_34_40_0A_00_4E/service006b/char006c/desc006f
    00002902-0000-1000-8000-00805f9b34fb
    Client Characteristic Configuration
[CHG] Device 00:34:40:0A:00:4E UUIDs: 00001800-0000-1000-8000-00805f9b34fb
[CHG] Device 00:34:40:0A:00:4E UUIDs: 00001801-0000-1000-8000-00805f9b34fb
[CHG] Device 00:34:40:0A:00:4E UUIDs: 0000180a-0000-1000-8000-00805f9b34fb
[CHG] Device 00:34:40:0A:00:4E UUIDs: 0000180f-0000-1000-8000-00805f9b34fb
[CHG] Device 00:34:40:0A:00:4E UUIDs: 00002000-0000-1000-8000-00805f9b34fb
[CHG] Device 00:34:40:0A:00:4E UUIDs: 00002010-0000-1000-8000-00805f9b34fb
[CHG] Device 00:34:40:0A:00:4E UUIDs: 00002020-0000-1000-8000-00805f9b34fb
[CHG] Device 00:34:40:0A:00:4E UUIDs: 00002030-0000-1000-8000-00805f9b34fb
[CHG] Device 00:34:40:0A:00:4E UUIDs: 00002040-0000-1000-8000-00805f9b34fb
[CHG] Device 00:34:40:0A:00:4E UUIDs: 01ff5550-ba5e-f4ee-5ca1-eb1e5e4b1ce0
[CHG] Device 00:34:40:0A:00:4E ServicesResolved: yes
[CHG] Device 00:34:40:0A:00:4E Appearance: 0x0380
[HEXIWEAR]#

With the device paired, I can inspect the device with

info 00:34:40:0A:00:4E

which gives me a list of UUID’s:

Device 00:34:40:0A:00:4E
    Name: HEXIWEAR
    Alias: HEXIWEAR
    Appearance: 0x0380
    Paired: no
    Trusted: yes
    Blocked: no
    Connected: yes
    LegacyPairing: no
    UUID: Generic Access Profile    (00001800-0000-1000-8000-00805f9b34fb)
    UUID: Generic Attribute Profile (00001801-0000-1000-8000-00805f9b34fb)
    UUID: Device Information        (0000180a-0000-1000-8000-00805f9b34fb)
    UUID: Battery Service           (0000180f-0000-1000-8000-00805f9b34fb)
    UUID: Unknown                   (00002000-0000-1000-8000-00805f9b34fb)
    UUID: Unknown                   (00002010-0000-1000-8000-00805f9b34fb)
    UUID: Unknown                   (00002020-0000-1000-8000-00805f9b34fb)
    UUID: Unknown                   (00002030-0000-1000-8000-00805f9b34fb)
    UUID: Unknown                   (00002040-0000-1000-8000-00805f9b34fb)
    UUID: Vendor specific           (01ff5550-ba5e-f4ee-5ca1-eb1e5e4b1ce0)

With

list-attributes 00:34:40:0A:00:4E

I can get again the list of services, characteristics and descriptors from above:

Primary Service
    /org/bluez/hci0/dev_00_34_40_0A_00_4E/service0004
    00001801-0000-1000-8000-00805f9b34fb
    Generic Attribute Profile
Characteristic
    /org/bluez/hci0/dev_00_34_40_0A_00_4E/service0004/char0005
    00002a05-0000-1000-8000-00805f9b34fb
    Service Changed
Descriptor
    /org/bluez/hci0/dev_00_34_40_0A_00_4E/service0004/char0005/desc0007
    00002902-0000-1000-8000-00805f9b34fb
    Client Characteristic Configuration
Primary Service
    /org/bluez/hci0/dev_00_34_40_0A_00_4E/service0013
    01ff5550-ba5e-f4ee-5ca1-eb1e5e4b1ce0
    Vendor specific
Characteristic
    /org/bluez/hci0/dev_00_34_40_0A_00_4E/service0013/char0014
    01ff5551-ba5e-f4ee-5ca1-eb1e5e4b1ce0
    Vendor specific
Descriptor
    /org/bluez/hci0/dev_00_34_40_0A_00_4E/service0013/char0014/desc0016
    00002902-0000-1000-8000-00805f9b34fb
    Client Characteristic Configuration
Characteristic
    /org/bluez/hci0/dev_00_34_40_0A_00_4E/service0013/char0017
    01ff5552-ba5e-f4ee-5ca1-eb1e5e4b1ce0
    Vendor specific
Characteristic
    /org/bluez/hci0/dev_00_34_40_0A_00_4E/service0013/char0019
    01ff5553-ba5e-f4ee-5ca1-eb1e5e4b1ce0
    Vendor specific
Primary Service
    /org/bluez/hci0/dev_00_34_40_0A_00_4E/service001c
    0000180a-0000-1000-8000-00805f9b34fb
    Device Information
Characteristic
    /org/bluez/hci0/dev_00_34_40_0A_00_4E/service001c/char001d
    00002a29-0000-1000-8000-00805f9b34fb
    Manufacturer Name String
Characteristic
    /org/bluez/hci0/dev_00_34_40_0A_00_4E/service001c/char001f
    00002a26-0000-1000-8000-00805f9b34fb
    Firmware Revision String
Characteristic
    /org/bluez/hci0/dev_00_34_40_0A_00_4E/service001c/char0021
    00002a25-0000-1000-8000-00805f9b34fb
    Serial Number String
Primary Service
    /org/bluez/hci0/dev_00_34_40_0A_00_4E/service0026
    0000180f-0000-1000-8000-00805f9b34fb
    Battery Service
Characteristic
    /org/bluez/hci0/dev_00_34_40_0A_00_4E/service0026/char0027
    00002a19-0000-1000-8000-00805f9b34fb
    Battery Level
Descriptor
    /org/bluez/hci0/dev_00_34_40_0A_00_4E/service0026/char0027/desc0029
    00002904-0000-1000-8000-00805f9b34fb
    Characteristic Format
Descriptor
    /org/bluez/hci0/dev_00_34_40_0A_00_4E/service0026/char0027/desc002a
    00002902-0000-1000-8000-00805f9b34fb
    Client Characteristic Configuration
Primary Service
    /org/bluez/hci0/dev_00_34_40_0A_00_4E/service002e
    00002000-0000-1000-8000-00805f9b34fb
    Unknown
Characteristic
    /org/bluez/hci0/dev_00_34_40_0A_00_4E/service002e/char002f
    00002001-0000-1000-8000-00805f9b34fb
    Unknown
Characteristic
    /org/bluez/hci0/dev_00_34_40_0A_00_4E/service002e/char0033
    00002002-0000-1000-8000-00805f9b34fb
    Unknown
Characteristic
    /org/bluez/hci0/dev_00_34_40_0A_00_4E/service002e/char0037
    00002003-0000-1000-8000-00805f9b34fb
    Unknown
Primary Service
    /org/bluez/hci0/dev_00_34_40_0A_00_4E/service003d
    00002010-0000-1000-8000-00805f9b34fb
    Unknown
Characteristic
    /org/bluez/hci0/dev_00_34_40_0A_00_4E/service003d/char003e
    00002011-0000-1000-8000-00805f9b34fb
    Unknown
Characteristic
    /org/bluez/hci0/dev_00_34_40_0A_00_4E/service003d/char0042
    00002012-0000-1000-8000-00805f9b34fb
    Unknown
Characteristic
    /org/bluez/hci0/dev_00_34_40_0A_00_4E/service003d/char0046
    00002013-0000-1000-8000-00805f9b34fb
    Unknown
Characteristic
    /org/bluez/hci0/dev_00_34_40_0A_00_4E/service003d/char004a
    00002014-0000-1000-8000-00805f9b34fb
    Unknown
Primary Service
    /org/bluez/hci0/dev_00_34_40_0A_00_4E/service0050
    00002020-0000-1000-8000-00805f9b34fb
    Unknown
Characteristic
    /org/bluez/hci0/dev_00_34_40_0A_00_4E/service0050/char0051
    00002021-0000-1000-8000-00805f9b34fb
    Unknown
Characteristic
    /org/bluez/hci0/dev_00_34_40_0A_00_4E/service0050/char0055
    00002022-0000-1000-8000-00805f9b34fb
    Unknown
Characteristic
    /org/bluez/hci0/dev_00_34_40_0A_00_4E/service0050/char0059
    00002023-0000-1000-8000-00805f9b34fb
    Unknown
Primary Service
    /org/bluez/hci0/dev_00_34_40_0A_00_4E/service005f
    00002030-0000-1000-8000-00805f9b34fb
    Unknown
Characteristic
    /org/bluez/hci0/dev_00_34_40_0A_00_4E/service005f/char0060
    00002031-0000-1000-8000-00805f9b34fb
    Unknown
Characteristic
    /org/bluez/hci0/dev_00_34_40_0A_00_4E/service005f/char0064
    00002032-0000-1000-8000-00805f9b34fb
    Unknown
Descriptor
    /org/bluez/hci0/dev_00_34_40_0A_00_4E/service005f/char0064/desc0067
    00002902-0000-1000-8000-00805f9b34fb
    Client Characteristic Configuration
Primary Service
    /org/bluez/hci0/dev_00_34_40_0A_00_4E/service006b
    00002040-0000-1000-8000-00805f9b34fb
    Unknown
Characteristic
    /org/bluez/hci0/dev_00_34_40_0A_00_4E/service006b/char006c
    00002041-0000-1000-8000-00805f9b34fb
    Unknown
Descriptor
    /org/bluez/hci0/dev_00_34_40_0A_00_4E/service006b/char006c/desc006f
    00002902-0000-1000-8000-00805f9b34fb
    Client Characteristic Configuration

Now I’m going to use that information to read and write values on the device.

Reading from Battery Service

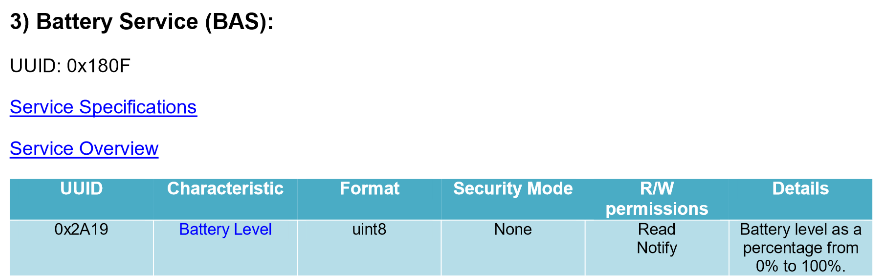

The battery service is documented as:

Hexiwear Battery Service

Hexiwear Battery Service

It has been listed as:

Primary Service
    /org/bluez/hci0/dev_00_34_40_0A_00_4E/service0026
    0000180f-0000-1000-8000-00805f9b34fb
    Battery Service

The characteristic is reported as:

Characteristic
    /org/bluez/hci0/dev_00_34_40_0A_00_4E/service0026/char0027
    00002a19-0000-1000-8000-00805f9b34fb
    Battery Level

I can select the attribute with

select-attribute /org/bluez/hci0/dev_00_32_40_08_00_12/service0026/char0027

💡 Use <tab> key to autocomplete the values.

and then use the following command:

read
Reading Attribute Value

Reading Attribute Value

It reports 0x64 (decimal 100), so my battery level is at 100% 🙂

Reading Device Information Service

Another example is to read the DIS (Device Information Service). It is documented as:

Device Information Service

Device Information Service

The characteristic for the Manufacturer Name String is listed as:

Characteristic
    /org/bluez/hci0/dev_00_34_40_0A_00_4E/service001c/char001d
    00002a29-0000-1000-8000-00805f9b34fb
    Manufacturer Name String

I select the attribute

select-attribute /org/bluez/hci0/dev_00_34_40_0A_00_4E/service001c/char001d

With

atribute-info

I get the information with the values:

[HEXIWEAR:/service001c/char001d]# attribute-info
Characteristic - Manufacturer Name String
    UUID: 00002a29-0000-1000-8000-00805f9b34fb
    Service: /org/bluez/hci0/dev_00_32_40_08_00_12/service001c
    Value: 0x4d
    Value: 0x69
    Value: 0x6b
    Value: 0x72
    Value: 0x6f
    Value: 0x65
    Value: 0x6c
    Value: 0x65
    Value: 0x6b
    Value: 0x74
    Value: 0x72
    Value: 0x6f
    Value: 0x6e
    Value: 0x69
    Value: 0x6b
    Value: 0x61
    Flags: read

Or I can read it with the ‘read’ command:

[HEXIWEAR:/service001c/char001d]# read
Attempting to read /org/bluez/hci0/dev_00_32_40_08_00_12/service001c/char001d
[CHG] Attribute /org/bluez/hci0/dev_00_32_40_08_00_12/service001c/char001d Value: 0x4d
[CHG] Attribute /org/bluez/hci0/dev_00_32_40_08_00_12/service001c/char001d Value: 0x69
[CHG] Attribute /org/bluez/hci0/dev_00_32_40_08_00_12/service001c/char001d Value: 0x6b
[CHG] Attribute /org/bluez/hci0/dev_00_32_40_08_00_12/service001c/char001d Value: 0x72
[CHG] Attribute /org/bluez/hci0/dev_00_32_40_08_00_12/service001c/char001d Value: 0x6f
[CHG] Attribute /org/bluez/hci0/dev_00_32_40_08_00_12/service001c/char001d Value: 0x65
[CHG] Attribute /org/bluez/hci0/dev_00_32_40_08_00_12/service001c/char001d Value: 0x6c
[CHG] Attribute /org/bluez/hci0/dev_00_32_40_08_00_12/service001c/char001d Value: 0x65
[CHG] Attribute /org/bluez/hci0/dev_00_32_40_08_00_12/service001c/char001d Value: 0x6b
[CHG] Attribute /org/bluez/hci0/dev_00_32_40_08_00_12/service001c/char001d Value: 0x74
[CHG] Attribute /org/bluez/hci0/dev_00_32_40_08_00_12/service001c/char001d Value: 0x72
[CHG] Attribute /org/bluez/hci0/dev_00_32_40_08_00_12/service001c/char001d Value: 0x6f
[CHG] Attribute /org/bluez/hci0/dev_00_32_40_08_00_12/service001c/char001d Value: 0x6e
[CHG] Attribute /org/bluez/hci0/dev_00_32_40_08_00_12/service001c/char001d Value: 0x69
[CHG] Attribute /org/bluez/hci0/dev_00_32_40_08_00_12/service001c/char001d Value: 0x6b
[CHG] Attribute /org/bluez/hci0/dev_00_32_40_08_00_12/service001c/char001d Value: 0x61
  4d 69 6b 72 6f 65 6c 65 6b 74 72 6f 6e 69 6b 61  Mikroelektronika

Reading Values with Encryption and Authentication

The above thing work even without authentication/encryption (what we enabled with the bonding pin). Now let’s look at the motion service which has now a different security mode:

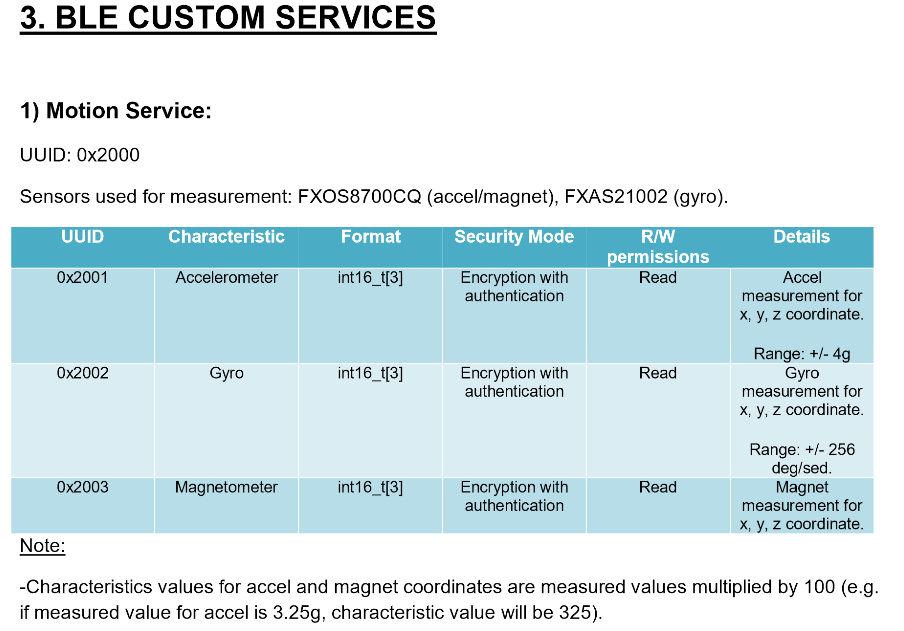

Motion Service in Hexiwear

Motion Service in Hexiwear

They are listed as

[NEW] Primary Service
    /org/bluez/hci0/dev_00_32_40_08_00_12/service002e
    00002000-0000-1000-8000-00805f9b34fb
    Unknown
[NEW] Characteristic
    /org/bluez/hci0/dev_00_32_40_08_00_12/service002e/char002f
    00002001-0000-1000-8000-00805f9b34fb
    Unknown
[NEW] Characteristic
    /org/bluez/hci0/dev_00_32_40_08_00_12/service002e/char0033
    00002002-0000-1000-8000-00805f9b34fb
    Unknown
[NEW] Characteristic
    /org/bluez/hci0/dev_00_32_40_08_00_12/service002e/char0037
    00002003-0000-1000-8000-00805f9b34fb
    Unknown

Select the attribute for the accelerometer:

select-attribute /org/bluez/hci0/dev_00_32_40_08_00_12/service002e/char002f

And when I read it:

[HEXIWEAR:/service002e/char002f]# read
Attempting to read /org/bluez/hci0/dev_00_32_40_08_00_12/service002e/char002f
[CHG] Attribute /org/bluez/hci0/dev_00_32_40_08_00_12/service002e/char002f Value: 0x03
[CHG] Attribute /org/bluez/hci0/dev_00_32_40_08_00_12/service002e/char002f Value: 0x00
[CHG] Attribute /org/bluez/hci0/dev_00_32_40_08_00_12/service002e/char002f Value: 0xff
[CHG] Attribute /org/bluez/hci0/dev_00_32_40_08_00_12/service002e/char002f Value: 0xff
[CHG] Attribute /org/bluez/hci0/dev_00_32_40_08_00_12/service002e/char002f Value: 0xa1
[CHG] Attribute /org/bluez/hci0/dev_00_32_40_08_00_12/service002e/char002f Value: 0xff
  03 00 ff ff a1 ff                                ......

💡 if you read all zeros, make sure you have the ‘Sensor Tag’ application running on the Hexiwear.

Alert/Command Service

At the time of this article, there is only the Alert/Command service which allows writing to the Hexiwear:

Hexiwear Alert Command Service

Hexiwear Alert Command Service

It is listed as

[NEW] Primary Service
    /org/bluez/hci0/dev_00_32_40_08_00_12/service005f
    00002030-0000-1000-8000-00805f9b34fb
    Unknown
[NEW] Characteristic
    /org/bluez/hci0/dev_00_32_40_08_00_12/service005f/char0060
    00002031-0000-1000-8000-00805f9b34fb
    Unknown
[NEW] Characteristic
    /org/bluez/hci0/dev_00_32_40_08_00_12/service005f/char0064
    00002032-0000-1000-8000-00805f9b34fb
    Unknown

Read gives

[HEXIWEAR:# read
Attempting to read /org/bluez/hci0/dev_00_32_40_08_00_12/service005f/char0060
[CHG] Attribute /org/bluez/hci0/dev_00_32_40_08_00_12/service005f/char0060 Value: 0x00
[CHG] Attribute /org/bluez/hci0/dev_00_32_40_08_00_12/service005f/char0060 Value: 0x00
[CHG] Attribute /org/bluez/hci0/dev_00_32_40_08_00_12/service005f/char0060 Value: 0x00
[CHG] Attribute /org/bluez/hci0/dev_00_32_40_08_00_12/service005f/char0060 Value: 0x00
[CHG] Attribute /org/bluez/hci0/dev_00_32_40_08_00_12/service005f/char0060 Value: 0x00
[CHG] Attribute /org/bluez/hci0/dev_00_32_40_08_00_12/service005f/char0060 Value: 0x00
[CHG] Attribute /org/bluez/hci0/dev_00_32_40_08_00_12/service005f/char0060 Value: 0x00
[CHG] Attribute /org/bluez/hci0/dev_00_32_40_08_00_12/service005f/char0060 Value: 0x00
[CHG] Attribute /org/bluez/hci0/dev_00_32_40_08_00_12/service005f/char0060 Value: 0x00
[CHG] Attribute /org/bluez/hci0/dev_00_32_40_08_00_12/service005f/char0060 Value: 0x00
[CHG] Attribute /org/bluez/hci0/dev_00_32_40_08_00_12/service005f/char0060 Value: 0x00
[CHG] Attribute /org/bluez/hci0/dev_00_32_40_08_00_12/service005f/char0060 Value: 0x00
[CHG] Attribute /org/bluez/hci0/dev_00_32_40_08_00_12/service005f/char0060 Value: 0x00
[CHG] Attribute /org/bluez/hci0/dev_00_32_40_08_00_12/service005f/char0060 Value: 0x00
[CHG] Attribute /org/bluez/hci0/dev_00_32_40_08_00_12/service005f/char0060 Value: 0x00
[CHG] Attribute /org/bluez/hci0/dev_00_32_40_08_00_12/service005f/char0060 Value: 0x00
[CHG] Attribute /org/bluez/hci0/dev_00_32_40_08_00_12/service005f/char0060 Value: 0x00
[CHG] Attribute /org/bluez/hci0/dev_00_32_40_08_00_12/service005f/char0060 Value: 0x00
[CHG] Attribute /org/bluez/hci0/dev_00_32_40_08_00_12/service005f/char0060 Value: 0x00
[CHG] Attribute /org/bluez/hci0/dev_00_32_40_08_00_12/service005f/char0060 Value: 0x00
  00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00  ................
  00 00 00 00                                      ....
[HEXIWEAR:/service005f/char0060]#

Next I tried to write the date/time:

write 0x3 0x4 0x10 0x20 0x30 0x40

I tried to write the notifications with

write 0x1 0x2 0x1

Or even writing all 20 bytes:

write 0x1 0x2 0x1 0x0 0x0 0x0 0x0 0x0 0x0 0x0 0x0 0x0 0x0 0x0 0x0 0x0 0x0 0x0 0x0 0x0

But all attempts failed :-(:

Attempting to write /org/bluez/hci0/dev_00_32_40_08_00_12/service005f/char0060
Failed to write: org.bluez.Error.InProgress

So I’m not sure what I’m doing wrong? At this point, I’m not able to write to that service :-(.

UPDATE: Finally managed to write data with the gatttool, see below.

Disconnecting

Disconnect the device with

disconnect 00:32:40:08:00:12

and then leave bluetoothctl with

quit

Using the gatttool

The gatttool is another powerful tool like the bluetoothctl one. With the gatttool I can inspect the attributes.

💡 Before using the gatttool, make sure you have used the ‘disconnect’ command in the bluetoothctl, followed by ‘quit’ to exit the program, otherwise the gatttool will not work!

Run the gatttool in interactive mode:

sudo gatttool -I

and then connect to the Hexiwear with the address from above:

connect 00:32:40:08:00:12
Connecting with gatttool

Connecting with gatttool

Alternatively I can launch it directly with

sudo gatttool -b 00:32:40:08:00:12 -t random -I

In case of problems connecting to the device, stop and restart the bluetooth service:

sudo systemctl stop bluetooth
sudo systemctl start bluetooth

With the ‘primary’ command I list the primary services:

[00:32:40:08:00:12][LE]> primary
attr handle: 0x0004, end grp handle: 0x0007 uuid: 00001801-0000-1000-8000-00805f9b34fb
attr handle: 0x0009, end grp handle: 0x0011 uuid: 00001800-0000-1000-8000-00805f9b34fb
attr handle: 0x0013, end grp handle: 0x001a uuid: 01ff5550-ba5e-f4ee-5ca1-eb1e5e4b1ce0
attr handle: 0x001c, end grp handle: 0x0022 uuid: 0000180a-0000-1000-8000-00805f9b34fb
attr handle: 0x0026, end grp handle: 0x002a uuid: 0000180f-0000-1000-8000-00805f9b34fb
attr handle: 0x002e, end grp handle: 0x0038 uuid: 00002000-0000-1000-8000-00805f9b34fb
attr handle: 0x003d, end grp handle: 0x004b uuid: 00002010-0000-1000-8000-00805f9b34fb
attr handle: 0x0050, end grp handle: 0x005a uuid: 00002020-0000-1000-8000-00805f9b34fb
attr handle: 0x005f, end grp handle: 0x0067 uuid: 00002030-0000-1000-8000-00805f9b34fb
attr handle: 0x006b, end grp handle: 0x006f uuid: 00002040-0000-1000-8000-00805f9b34fb

According to the Hexiwear BLE documentation, there is a custom motion service with UUID 0x2000:

Hexiwear Custom Motion Service

Hexiwear Custom Motion Service

According to the information from the ‘primary’ command above, attribute handle is 0x002e with a group handle of 0x0038:

attr handle: 0x002e, end grp handle: 0x0038 uuid: 00002000-0000-1000-8000-00805f9b34fb

Both the attribute handle and the group handle can now be used with a characteristic discovery command:

char-desc 0x002e 0x0038

which gives

handle: 0x002e, uuid: 00002800-0000-1000-8000-00805f9b34fb
handle: 0x002f, uuid: 00002803-0000-1000-8000-00805f9b34fb
handle: 0x0030, uuid: 00002001-0000-1000-8000-00805f9b34fb
handle: 0x0033, uuid: 00002803-0000-1000-8000-00805f9b34fb
handle: 0x0034, uuid: 00002002-0000-1000-8000-00805f9b34fb
handle: 0x0037, uuid: 00002803-0000-1000-8000-00805f9b34fb
handle: 0x0038, uuid: 00002003-0000-1000-8000-00805f9b34fb

From the documentation above, there is

  • 0x2001: Accelerometer
  • 0x2002: Gyro
  • 0x2003: Magnetometer

With this, I can read the accelerometer three 16bit values with:

char-read-uuid 0x2001

gives:

[00:32:40:08:00:12][LE]> char-read-uuid 0x2001
handle: 0x0030      value: 04 00 ff ff a2 ff

💡 if all zeros are returned, check that the Hexiwear has the sensors enabled. Turn on the ‘Sensor Tag’ application.

The values are in ‘centi-g’, therefore:

  • X (0x0004): 0.04 g
  • Y (0xffff): -0.01 g
  • Z (0xffa2): -0.94 g

Alert Service

The information about the alert service is the following:

Hexiwear Alert Command Service

Hexiwear Alert Command Service

according to the ‘primary’ command, I have

attr handle: 0x005f, end grp handle: 0x0067 uuid: 00002030-0000-1000-8000-00805f9b34fb

So I check the attributes with

char-desc 0x005f 0x0067

which gives

[00:32:40:08:00:12][LE]> char-desc 0x005f 0x0067
handle: 0x005f, uuid: 00002800-0000-1000-8000-00805f9b34fb
handle: 0x0060, uuid: 00002803-0000-1000-8000-00805f9b34fb
handle: 0x0061, uuid: 00002031-0000-1000-8000-00805f9b34fb
handle: 0x0064, uuid: 00002803-0000-1000-8000-00805f9b34fb
handle: 0x0065, uuid: 00002032-0000-1000-8000-00805f9b34fb
handle: 0x0067, uuid: 00002902-0000-1000-8000-00805f9b34fb

The handle is 0x0061, I read it with

char-read-hnd 0x0061

which gives

[00:32:40:08:00:12][LE]> char-read-hnd 0x0061
Characteristic value/descriptor: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

Next I tried to write a dummy date/time (0x01020304) to the handle with

[00:32:40:08:00:12][LE]> char-write-cmd 0x0061 030401020304
[00:32:40:08:00:12][LE]> char-write-req 0x0061 030401020304

💡 I have not found clear documentation about the difference between char-write-cmd and char-write-req. To me the char-write-req is expecting a response, while char-write-cmd gives no output indicating success or failure.

but both trial did nothing? Not sure what is wrong or what I should do?

All what I get is after a while:

Error: Characteristic Write Request failed: A timeout occured

I tried writing the exact 20 bytes too:

char-write-cmd 0x61 0304010203040000000000000000000000000000

But that failed as well? I even tried to send the bytes in reverse order.

So here I’m really stuck: I can read, but I cannot write the time information :-(.

💡 So far was not able to use the WireShark sniffer with encrypted traffic. Thanks to a tip from a colleague I should be able to get this worked out.

Getting Notifications

On the Hexiwear there is an application mode service:

Hexiwear Application Mode Service

Hexiwear Application Mode Service

This allows me to read in which mode the application is running, plus getting notifications if something has changed.

With the primary command I get a list of services handles of their ID’s. The one with 0x2040 is listed last:

[00:32:40:08:00:12][LE]> primary
attr handle: 0x0004, end grp handle: 0x0007 uuid: 00001801-0000-1000-8000-00805f9b34fb
attr handle: 0x0009, end grp handle: 0x0011 uuid: 00001800-0000-1000-8000-00805f9b34fb
attr handle: 0x0013, end grp handle: 0x001a uuid: 01ff5550-ba5e-f4ee-5ca1-eb1e5e4b1ce0
attr handle: 0x001c, end grp handle: 0x0022 uuid: 0000180a-0000-1000-8000-00805f9b34fb
attr handle: 0x0026, end grp handle: 0x002a uuid: 0000180f-0000-1000-8000-00805f9b34fb
attr handle: 0x002e, end grp handle: 0x0038 uuid: 00002000-0000-1000-8000-00805f9b34fb
attr handle: 0x003d, end grp handle: 0x004b uuid: 00002010-0000-1000-8000-00805f9b34fb
attr handle: 0x0050, end grp handle: 0x005a uuid: 00002020-0000-1000-8000-00805f9b34fb
attr handle: 0x005f, end grp handle: 0x0067 uuid: 00002030-0000-1000-8000-00805f9b34fb
attr handle: 0x006b, end grp handle: 0x006f uuid: 00002040-0000-1000-8000-00805f9b34fb

With char-desc I list and limit the handles for that service. The UUID for the ‘App Mode’ characteristics is 0x2041:

[00:32:40:08:00:12][LE]> char-desc 0x6b 0x6f
handle: 0x006b, uuid: 00002800-0000-1000-8000-00805f9b34fb
handle: 0x006c, uuid: 00002803-0000-1000-8000-00805f9b34fb
handle: 0x006d, uuid: 00002041-0000-1000-8000-00805f9b34fb
handle: 0x006f, uuid: 00002902-0000-1000-8000-00805f9b34fb

I can read that value with the char-read-uuid or char-read-hnd command:

[00:32:40:08:00:12][LE]> char-read-uuid 0x2041
handle: 0x006d      value: 00
[00:32:40:08:00:12][LE]> char-read-hnd 0x6d
Characteristic value/descriptor: 00

This means the Hexiwear is in ‘Idle’ mode. When I start the ‘Pedometer’ application on the Hexiwear I get:

[00:32:40:08:00:12][LE]> char-read-hnd 0x6d
Characteristic value/descriptor: 06

How to get notifications about the mode changed? Beside of 0x2041, there are other UUIDs:

  • 0x2800: handle: 0x006b, uuid: 00002800-0000-1000-8000-00805f9b34fb
  • 0x2803: handle: 0x006c, uuid: 00002803-0000-1000-8000-00805f9b34fb
  • 0x2902:handle: 0x006f, uuid: 00002902-0000-1000-8000-00805f9b34fb

These are standard BLE UUIDs (with links to the GATT XML description):

Checking the 0x2800 (handle 0x6b) reveals the GATT Primary Service:

[00:32:40:08:00:12][LE]> char-read-hnd 0x6b
Characteristic value/descriptor: 40 20

So the primary service is the UUID 0x2040 (note the conversion from big endian to little endian). The 0x2040 is the Hexiwear ‘Application Mode’ service.

Next reading the UUID 0x2803 (handle 0x6c) which provides the GATT Characteristics Declaration:

[00:32:40:08:00:12][LE]> char-read-hnd 0x6c
Characteristic value/descriptor: 12 6d 00 41 20

The first byte (0x12, 0b00010010) contains information about the characteristics. Bit 1 set tells me that I can read the value and Bit 4 set tells me that I can get notifications:

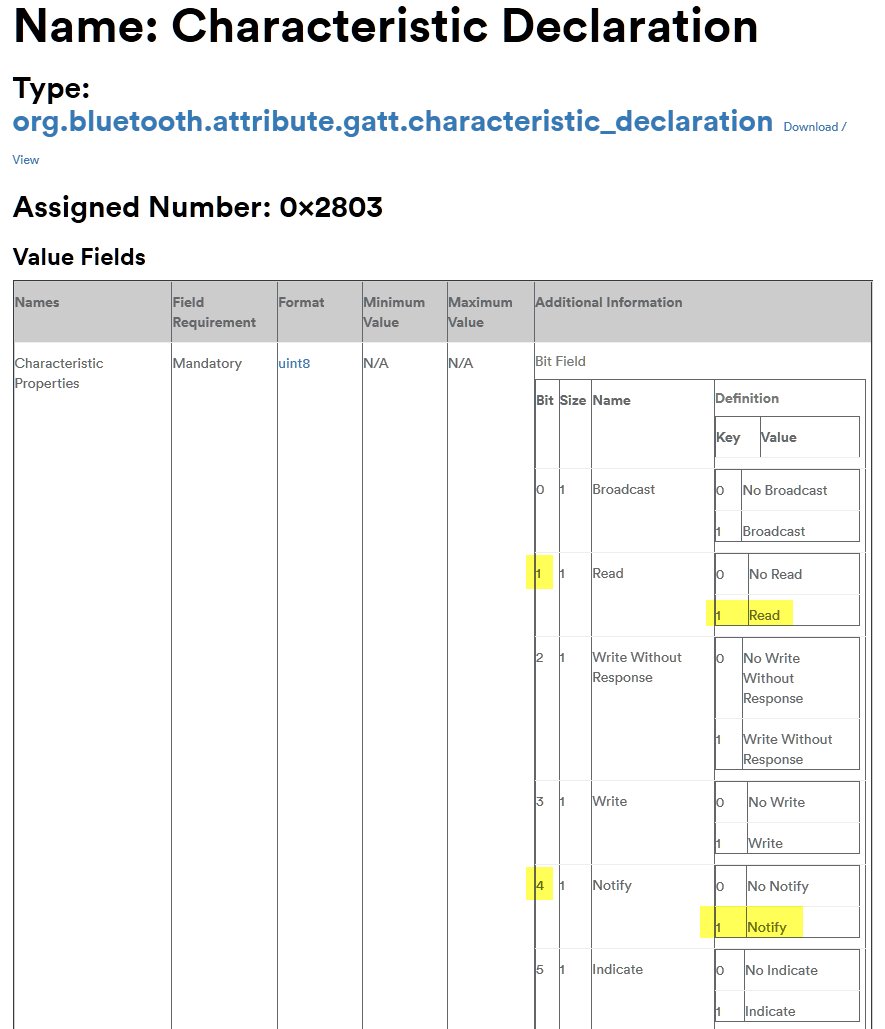

GATT Characteristics Declaration

GATT Characteristics Declaration

The next is a 16bit value (0x006D) which points to the characteristics value. So the handle 0x6D contains the value. This is what we used above to read the value:

handle: 0x006d, uuid: 00002041-0000-1000-8000-00805f9b34fb

The UUID 0x2902 (handle 0x6f) is the GATT Client Characteristics Configuration which allows me to configure the characteristics. Reading it gives:

[00:32:40:08:00:12][LE]> char-read-hnd 0x6f
Characteristic value/descriptor: 00 00

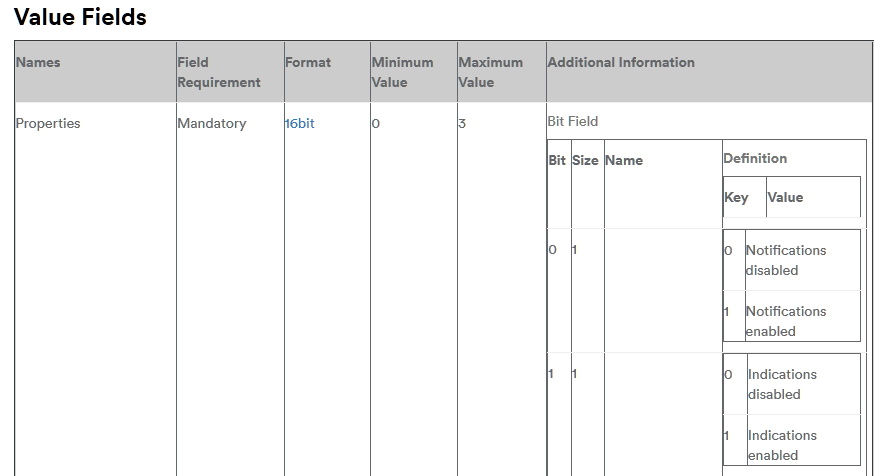

GATT 0x2902 Value Fields

GATT 0x2902 Value Fields

To turn on notifications, I have to write a 0x0001 to the handle:

[00:32:40:08:00:12][LE]> char-write-req 0x6f 0001
Characteristic value was written successfully

OK, seems ok, but now read back the value again:

[00:32:40:08:00:12][LE]> char-read-hnd 0x6f
Characteristic value/descriptor: 00 00

So the value was not written? Ah, right, Little-Endian vs. Big Endian! Swapping the bytes does it correctly:

[00:32:40:08:00:12][LE]> char-write-req 0x6f 0100
Characteristic value was written successfully
[00:32:40:08:00:12][LE]> char-read-hnd 0x6f
Characteristic value/descriptor: 01 00

Now I get notifications when the application mode changes:

[00:32:40:08:00:12][LE]> char-read-hnd 0x6f
Characteristic value/descriptor: 01 00
Notification handle = 0x006d value: 00
Notification handle = 0x006d value: 06
Notification handle = 0x006d value: 00
Notification handle = 0x006d value: 02
Notification handle = 0x006d value: 02
Notification handle = 0x006d value: 00
Notification handle = 0x006d value: 02
Notification handle = 0x006d value: 02

💡 Interestingly, I get two notification with value 02 when I enter the Sensor Tag Hexiwear mode.

To disable notifications I write back 0x0000 to the characteristics:

[00:32:40:08:00:12][LE]> char-write-req 0x6f 0000
Characteristic value was written successfully
[00:32:40:08:00:12][LE]> char-read-hnd 0x6f
Characteristic value/descriptor: 00 00

With this, I’m able to read values and turn on notifications. Still, writing the date/time is something which is missing 😦

UPDATE: with the help of a BLE sniffer (see “Tutorial: Hexiwear Bluetooth Low Energy Packet Sniffing with Wireshark“) I have found the correct sequence. To write a new date/time for example the following can be used:

char-write-req 61 030422e65a580000000000000000000000000000

Exit the gatttool with

quit

Summary

The Hexiwear is a cool BLE enabled device. Unfortunately the BLE documentation for it is very thin, and while searching the community and forums I have found many good hints, but found as well others asking the same questions I did, unanswered :-(. While I can successfully authenticate, read attributes and turn on and get notifications, I’m not yet able to write to the Hexiwear, e.g. writing the current date/time to update the Hexiwear RTC. As I’m struggling with this for more than two weeks, I make a point and have published what I know and can do. So I think I have to dig more over the coming days and weeks on that topic. On the plus side, I have learned a lot about BLE and GATT :-).

Happy Hexiwearing 🙂

Links

Advertisements

9 thoughts on “Tutorial: BLE Pairing the Raspberry Pi 3 Model B with Hexiwear

    • Hi Joe,
      failure can be a success too :-). I have learned a lot, and I think I’m on a good track with reverse engineering. And if you want to try out a Hexiwear, you know where you can find me :-).

      Like

  1. Pingback: Tutorial: Hexiwear Bluetooth Low Energy Packet Sniffing with Wireshark | MCU on Eclipse

  2. Pingback: Using Python, Gatttool and Bluetooth Low Energy with Hexiwear | MCU on Eclipse

  3. Pingback: Hexiwear | A tutorial on pairing Hexiwear with Raspberry Pi 3 - Hexiwear

  4. Hello, I find your article very interesting !! I have some question. Do you think it is possible to the same thing with another device ? Like a BLE watch for exemple.
    Because I can connect with the raspberry, i can see the info with the UUID but i can not paring or see the list attributes (I have wrote “list attributes” because when I try “list-attributes”, it’s wrote “invalid command”). I have only one line which is : “controller B8:…………..:8F raspberrypi [default]”
    So, I just want to know if I can do the same thing with my device =)

    Thank you very much !

    Like

What do you think?

Fill in your details below or click an icon to log in:

WordPress.com Logo

You are commenting using your WordPress.com account. Log Out / Change )

Twitter picture

You are commenting using your Twitter account. Log Out / Change )

Facebook photo

You are commenting using your Facebook account. Log Out / Change )

Google+ photo

You are commenting using your Google+ account. Log Out / Change )

Connecting to %s
