Who needs a debug probe, if you have printf()? If doing serious development, you most likely want a hardware debug probe. We at the HSLU IET use different hardware, boards and kits, and for many of the classroom equipment it is very useful to have the debug probe embedded on the target board: less cables, easier to use. For this we have developed a new Open Source Hardware (OSHW) debug probe in KiCad which can used in different ways: as external debug probe, integrated and soldered on top of the target board, or fully integrated and embedded into a custom design.

Outline

We already use the NXP MCU-Link debug probe in our projects. Dario Scheuber in his project (PAIND) assignment used it as starting point to create a new and improved debug interface:

The goal was to make it open, smaller and versatile:

• Open Source Hardware design with KiCad
• Binary firmware compatibility with MCU-Link (NXP LinkServer, CMSIS-DAP, ARM DAPLink)
• Dual-Layer design for lower costs
• USB-C connector instead of Micro-USB
• USB-C connector usable to debug the LPC55S69
• 3D printable enclosure
• 30% smaller than the original MCU-Link
• Firmware/boot push button instead of jumper
• Micro connector for UART connection instead of pin header
• Supports only 3.3V targets (no level shifters)
• Standalone version as external debug probe
• On-Board version: Solder external debug probe on your custom board (castellated pins)
• Embedded version: copy-paste into your custom board KiCad design
• BOM with assembly costs: ~$12/piece for 100 units (e.g. PCBWay)

All the design files are available on GitHub.

USB-C with SWD Debug Signals

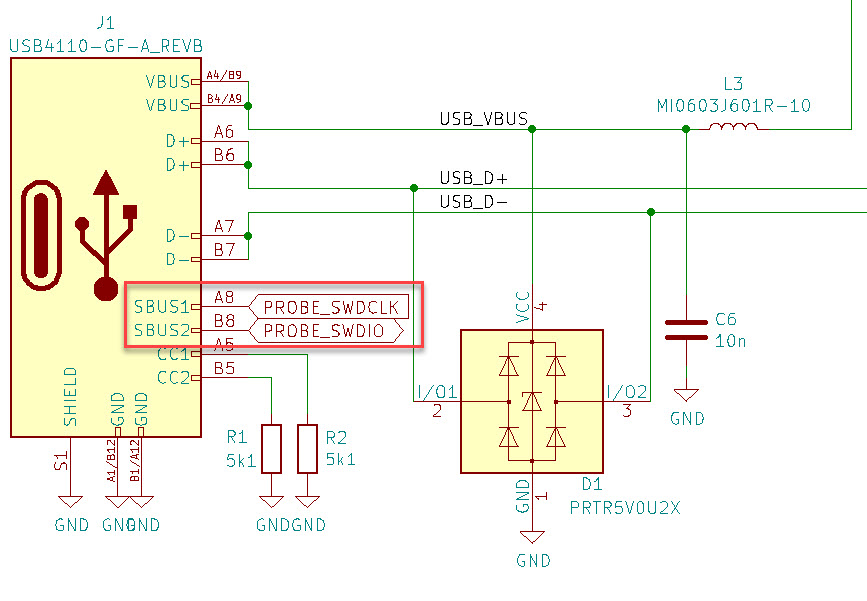

The USB-C connector is used as host connection for debugging the target, as well for the VCOM provided by the debug probe firmware. The probe firmware update can be triggered by pressing the bootloader button, but if you want to debug the LPC55S69, this can be done through the USB-C connector: that way, no debug header is required on the board:

Standalone or On-Board

The board can be used as standalone (external) debug probe:

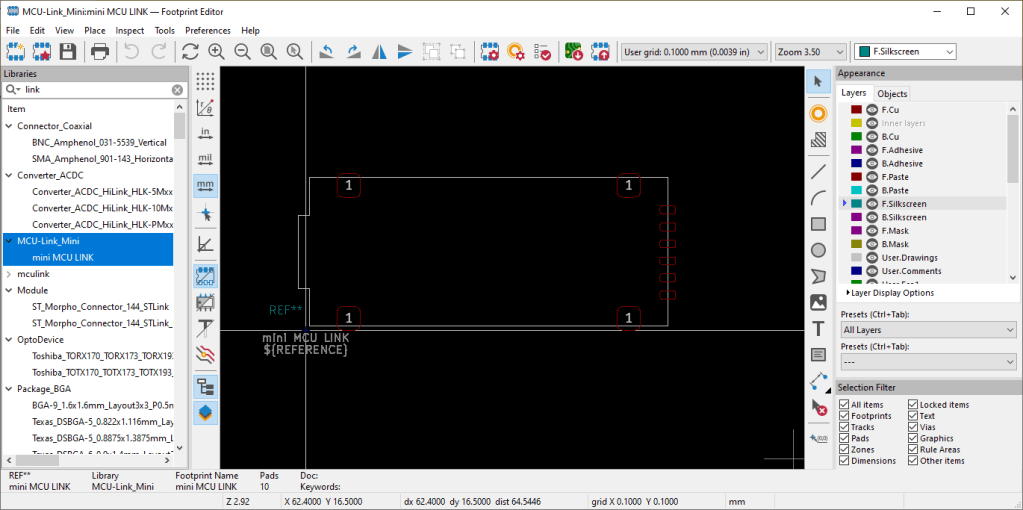

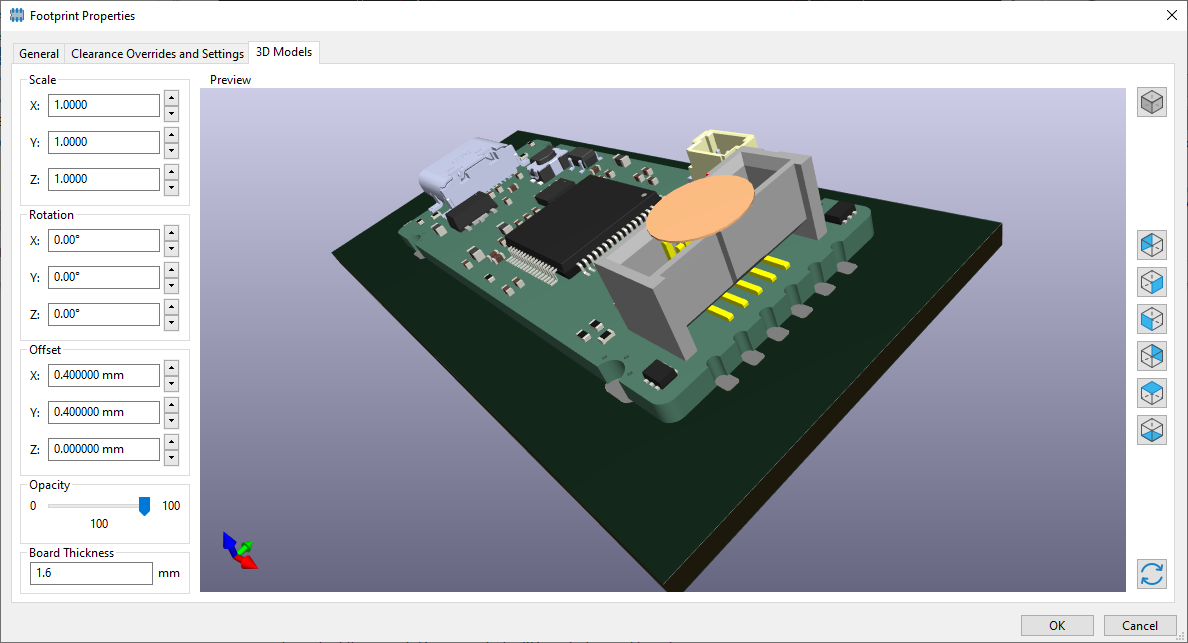

Because it has castellated pins, the PCB can be mounted optionally on the target board, with provided KiCad schematic symbol, footprint and 3D model:

Embedded and Integrated Version

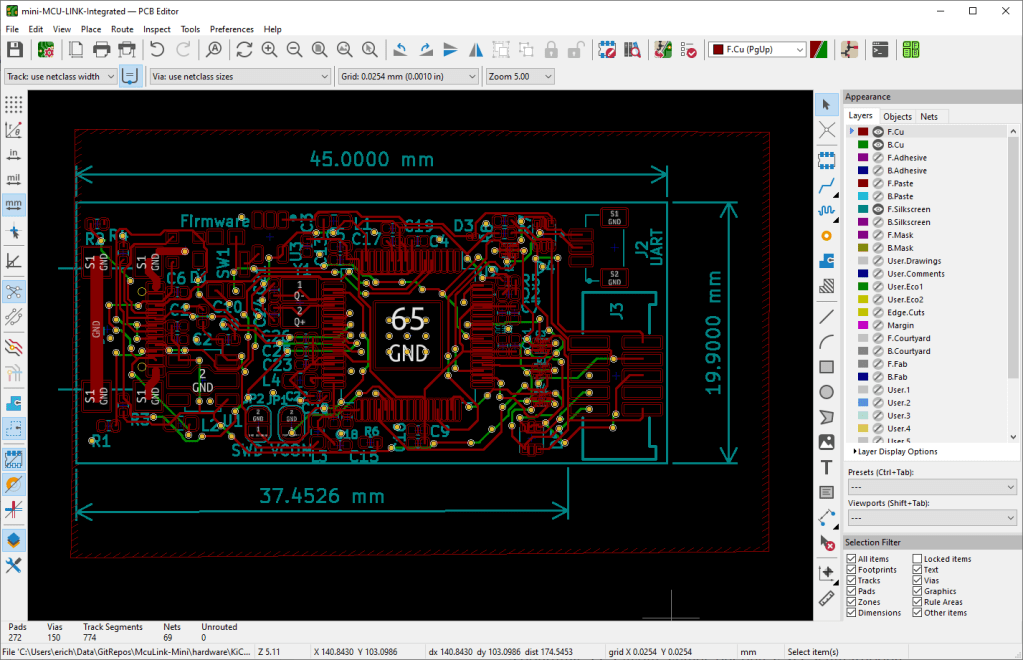

In addition, there is a KiCad schematic and layout your can copy-paste and integrate into your own board design. It includes the SWD debug header (if needed). Without it, it only requires a PCB space of 20×38 mm:

Using it is very simple with KiCad: Import the schematic with File > Insert Schematic Sheet Content:

For the layout, use File > Append Board in the PCB editor:

3D Printed Enclosure

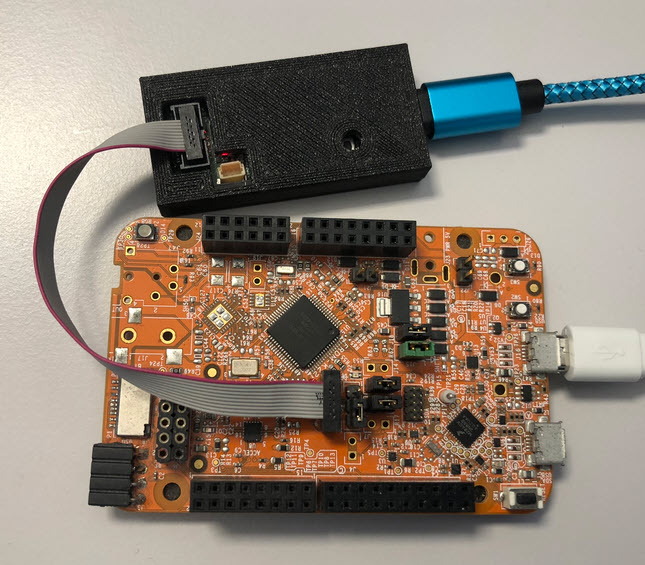

To protect the circuit, Dario created a 3D printed snap-fit enclosure:

Firmware

As the hardware is compatible with the NXP MCU-Link debug probe, you can load the same firmware: press the bootloader/firmware button, power the board and run the NXP LinkServer firmware update script.

Summary

We have now a very versatile debug probe which we can use either standalone, soldered on a board with the castellated pins, or fully embedded into a design with KiCad. Compared to the original NXP MCU-Link, the size is 30% smaller. With the current MCU package, there is no need to use a different firmware. To reduce the size further, a different LPC MCU package would be possible, but this would require a firmware change.

Many thanks to Dario Scheuber for his work in this project!

Happy debugging 🙂
