Printing Code Size Information in Eclipse

For the GNU ARM tools it is easy to print out the code and date size information, see

But this is all for ARM cores. What if I use other architectures like S08 or ColdFire in Eclipse?

Code Size Information in Build Console

Code Size Information in Build Console

GNU Size Tool

The solution is to use the ‘size’ tool which is part of the GNU tool chain. If you are using CodeWarrior for MCU, then it gets installed as part of the ARM toolchain. If you are using a different GNU toolchain, then very likely you have this tool already installed. The ‘size’ tool reports the size of the objects and section sizes in a (ELF/Dwarf) file.

Post-Build Step

To have the size printed at the end of each build, I’m adding it as ‘post-build-step’ to the build settings. For this I go into the project properties (select the project, menu Project > Properties). Then go into C/C++ Build > Settings and select the ‘Build Steps’ tab. There I call the ‘size’ command for the output file of the linker:

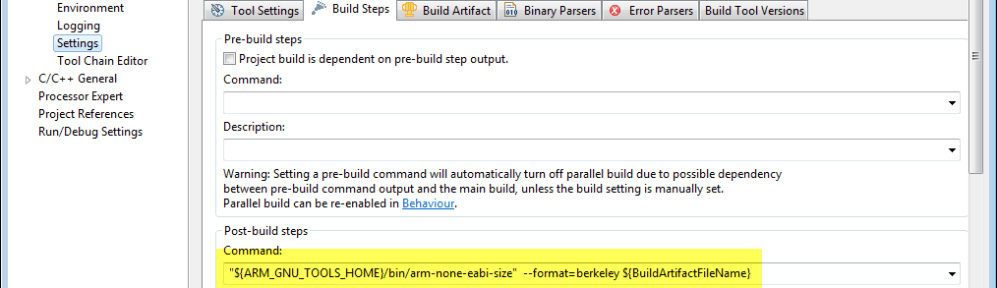

Post Build Step to print the size

Post Build Step to print the size

I’m using this command:

"${ARM_GNU_TOOLS_HOME}/bin/arm-none-eabi-size"  --format=berkeley ${BuildArtifactFileName}

In my Eclipse, the variable ‘ARM_GNU_TOOLS_HOME’ points to where I have the GNU tools installed. Inside the bin folder, I call the ‘size’ program (or size.exe): the name depends on GNU tool chain installed, or you can point to the generic ‘size’ command.

The –format option specifies the output format for the size information. The last option is the output file of my linker, and here I’m using again a variable.

Console Output

With this, it reports at the end of the build process the code/data size, such as:

C:/Freescale/CW MCU v10.6/gnu/bin/mingw32-make --no-print-directory post-build
"C:\Freescale\CW MCU v10.6\eclipse\../Cross_Tools/arm-none-eabi-gcc-4_7_3/bin/arm-none-eabi-size"  --format=berkeley SRB_Master.abs
   text       data        bss        dec        hex    filename
  17153          0       2664      19817       4d69    SRB_Master.abs

Happy Sizing 🙂
