The company Feller sells a wall mountable ‘Smart Light Control’: this provides 4 push buttons compatible with the Philips Hue system (on, off, dimming, etc). Unlike many other remote controls and buttons it is a great design and available in different colors. Feller does have a ‘classic’ wall switch series too, so this one is perfect to replace or augment an existing installation and make it ‘smart’.
Another cool feature is that it is a ‘battery-less’ switch using EnOcean Energy Harvesting: the energy to transmit a wireless message is generated by the push itself: so no need to replace batteries after a few months or years.
Why doing this? It is part of my ongoing project to update and upgrade a bathroom (see Building a DIY High Density Philips Hue LED Stripe), so more to come probably over the next weeks.
I intended to use the Feller switch as a replacement for a ‘classic’ switch. However it came as a version to mount *on* the wall using adhesive stripes or mount it on top of the wall, but not as replacement for an existing switch :-(.
What is missing is a mounting bracket or ‘bridge’ which I have found out later: they sell this as an extra for around $10: just a piece of plastic with 4 screws 😦

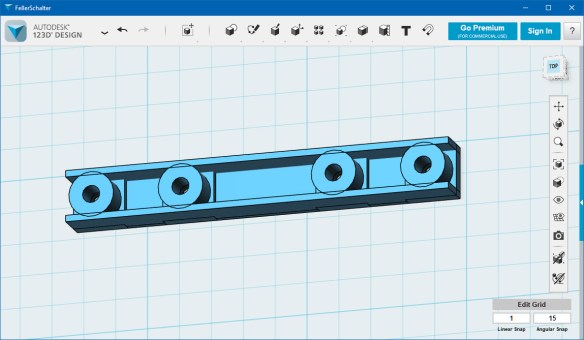

The solution: make a 3D printed version 🙂

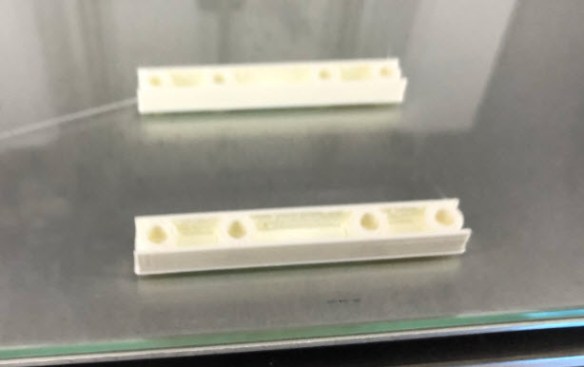

You can find the files on Thingiverse. Printing a single bridge only takes around 10 minutes.

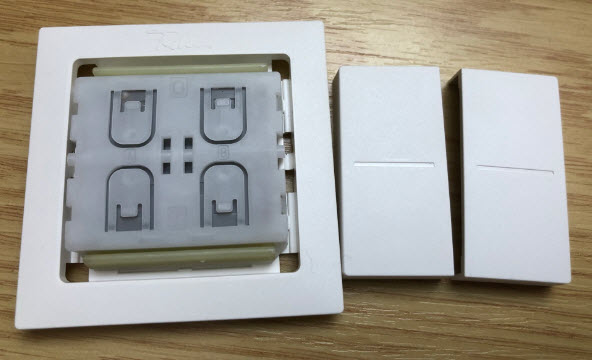

Carefully remove the covers of the switches:

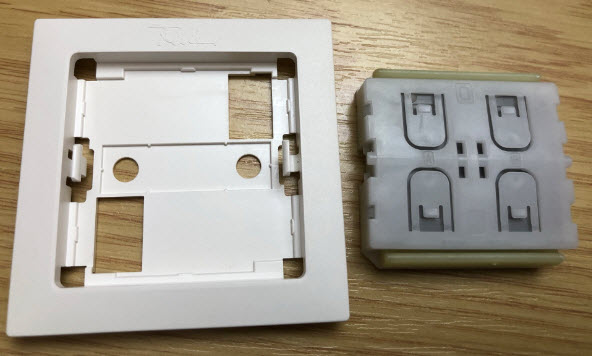

Then take out the inner part with the electronics:
WARNING: 230 Volts are dangerous!!!!!! Leave this to someone authorized dealing with electrical installations!
Have the old switch removed. Keep the Feller aluminum bracket or use a new one.

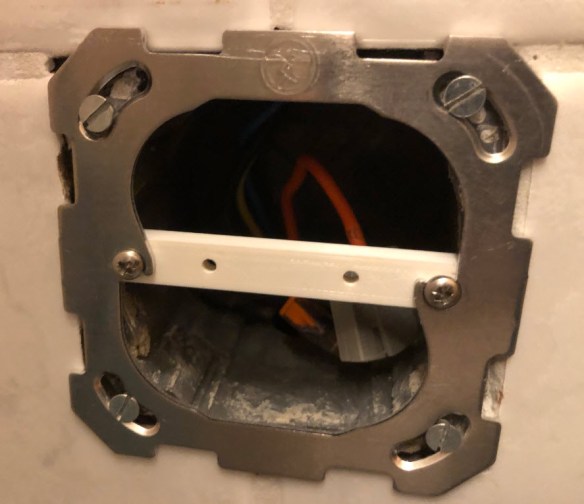

Using two normal wood screws, mount the 3D printed bridge behind the aluminum bracket.

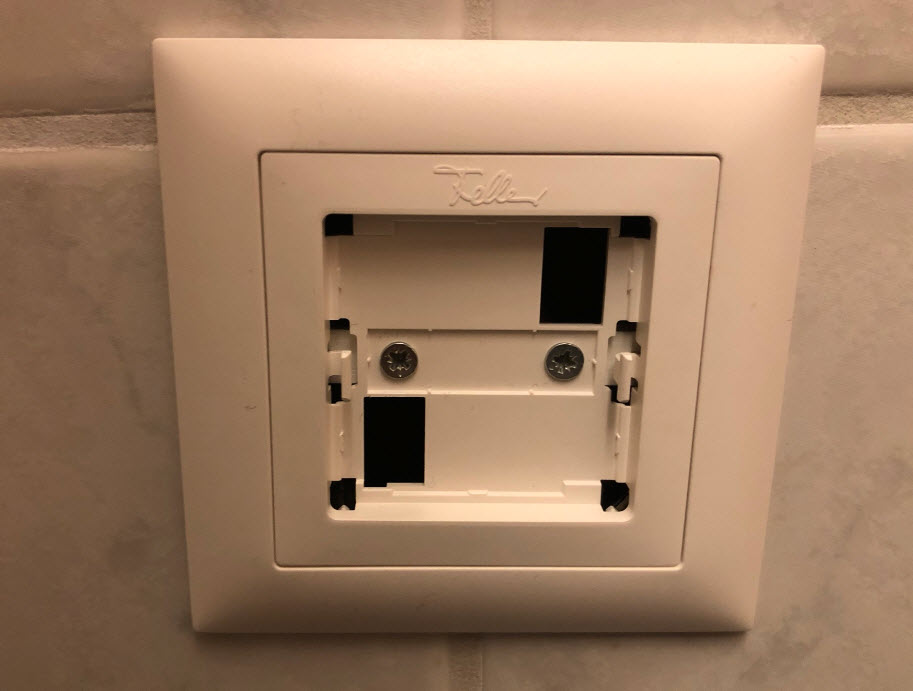

Using the two screws provided in the package, mount the cover on top of it:

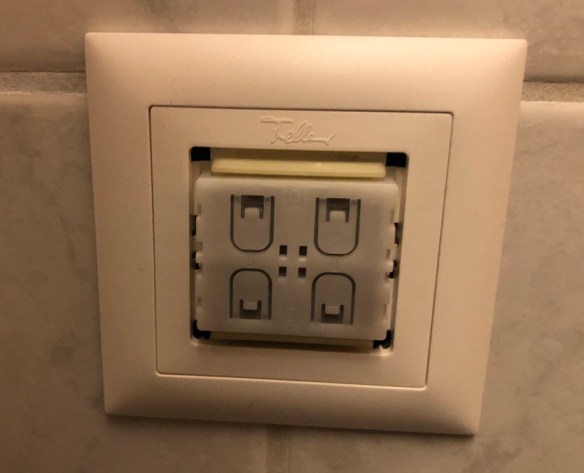

Then click-in the electronics board (check the marker with ‘up’ on the back):
Finally, click-in the covers:

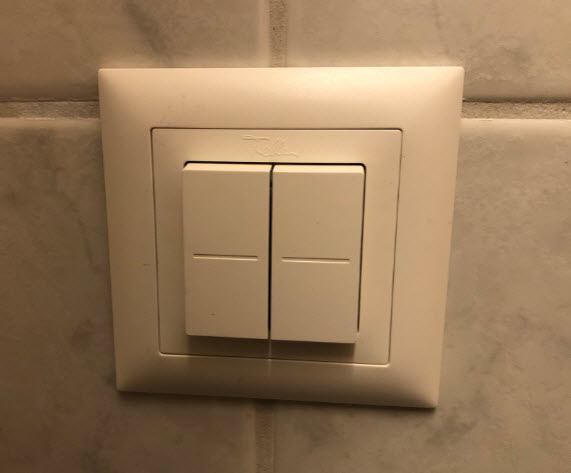

That’s it! With this I have replaced my classic switch with an intelligent battery-less switch.
Happy lighting 🙂
- Feller Smart Light Control: https://www.feller.ch/de/Produktangebot/Funktaster
- EnOcean Energy Harvesting: https://www.enocean.com
- Philips Hue: https://www.philips-hue.com
- Files on Thingiverse: https://www.thingiverse.com/thing:4713996
