Prototype of tiny Hexiwear Docking Station

For a research project we are using Hexiwear to measure the effectiveness of teaching and learning. The Hexiwear is used as a networking sensor device in that project. For that project we needed a docking station with wireless capabilities:

Mini Docking Station for Hexiwear

Mini Docking Station for Hexiwear

MicroelEctronica provides a docking station (see “Hexiwear: Teardown of the Hackable ‘Do-Anything’ Device“), but that docking station is too large for our needs.

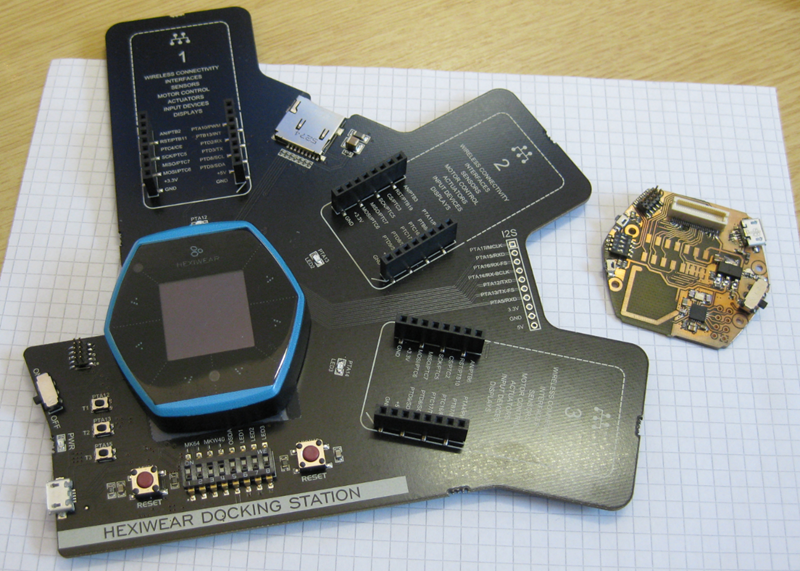

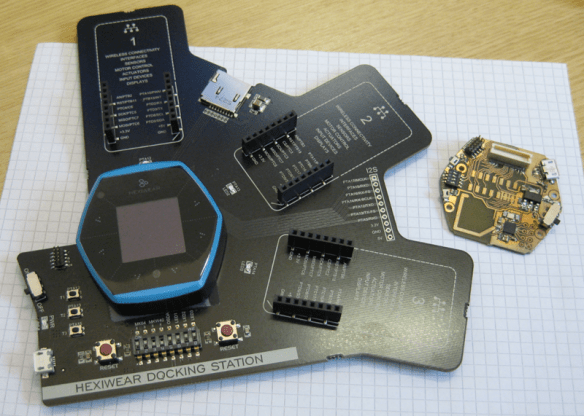

The picture below shows the original docking station on the left, and the new and smaller one on the right:

Hexiwear Docking Stations

Hexiwear Docking Stations

The small docking station on the right has been designed and produced by Patrick Rossacher in a student project.

We do not need all these extra Click module slots, and the onboard OpenSDA circuit is not required. Instead a much smaller docking station has been created for charging and with added nRF24L01+ wireless connectivity: the nRF24L01+ is not closed source as the KW40 BLE stack: the Nordic stack open source and freely available, compiles with open source tools and do not requiere proprietary and expensive IAR tools.

Features:

  • Charging through USB with the option to add a LiPo battery
  • Charging LED
  • K64F UART connection through the SWD header
  • SWD connector to debug both the K64F and KW40 microcontroller of the Hexiwear
  • Reset push buttons for KW40 and K64F
  • Added Nordic Semiconductor nRF24L01+ 2.4 GHz transceiver
  • Mounting holes
  • Pass-through Hexiwear connector for custom extensions
  • Breakout of signals for extensions

For the first prototype a PCB has been manufactured internally:

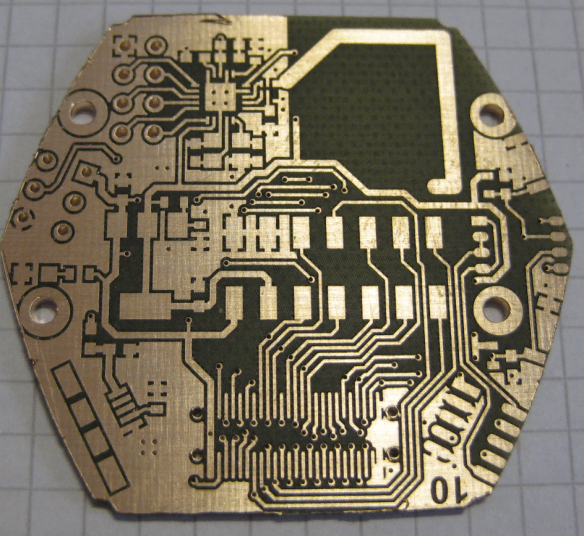

Hexiwear Docking Station Top Side

Hexiwear Docking Station Top Side

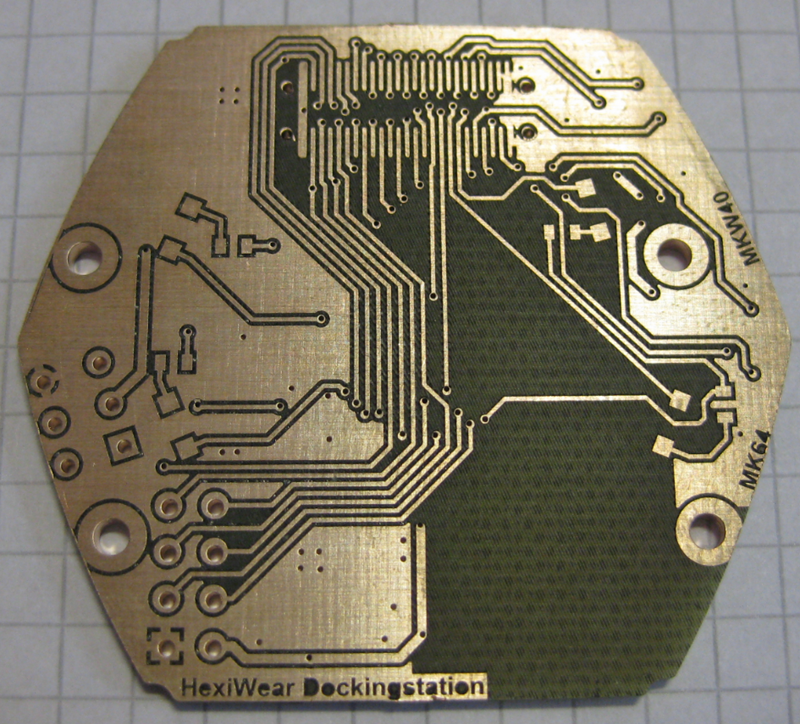

Hexiwear Docking Station Bottom Side

Hexiwear Docking Station Bottom Side

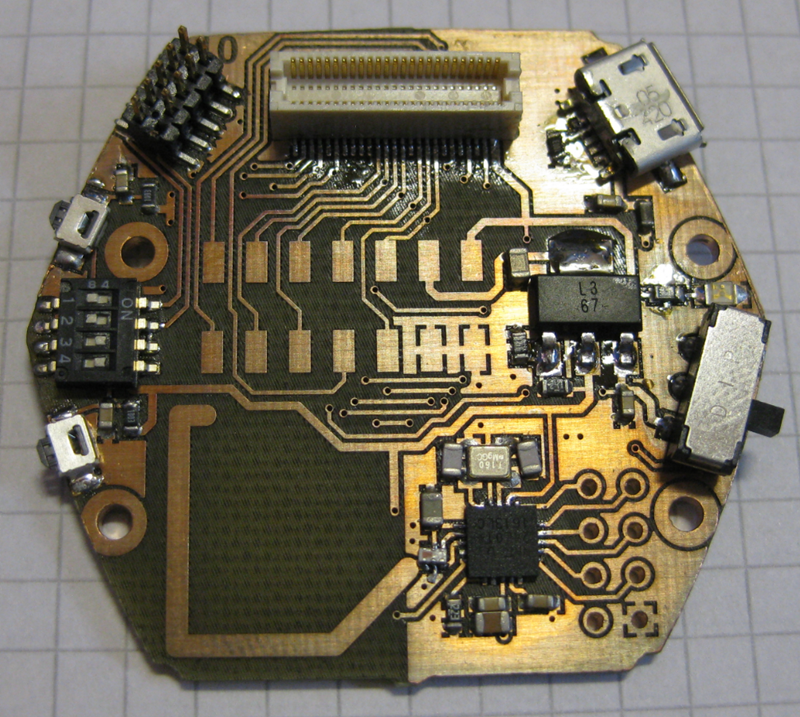

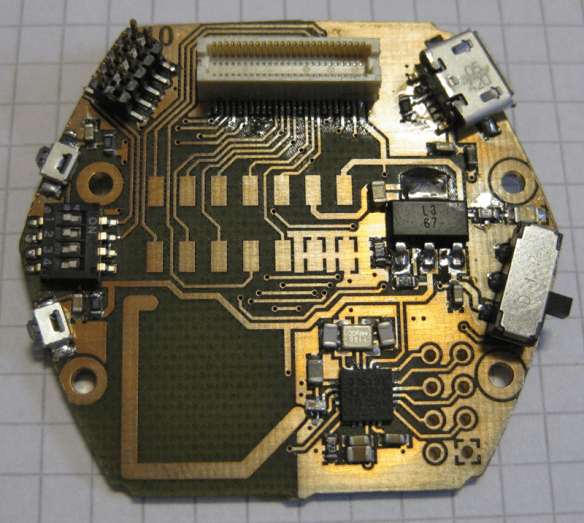

Hexiwear Docking Station Top Side Populted

Hexiwear Docking Station Top Side populated

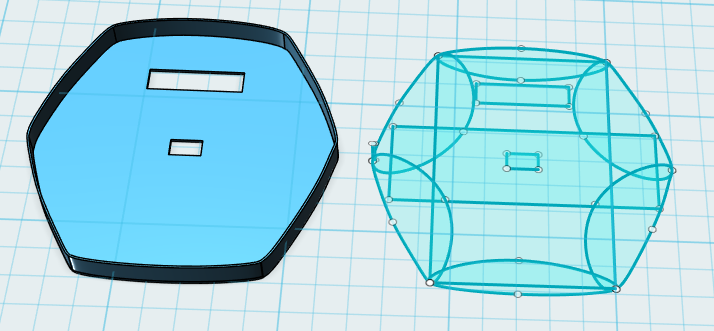

For the enclosure a 3D model has been created:

Hexiwear Docking Station 3D Model

Hexiwear Docking Station Enclosure 3D Model

The docking station is a first prototype only and works fine. For the next design iteration we can remove the footprint of the 2×5 pins for the nRF external module which was a fallback solution. Additionally we want to change the placement of the the PCB antenna as in the current layout it is not placed in an ideal way.

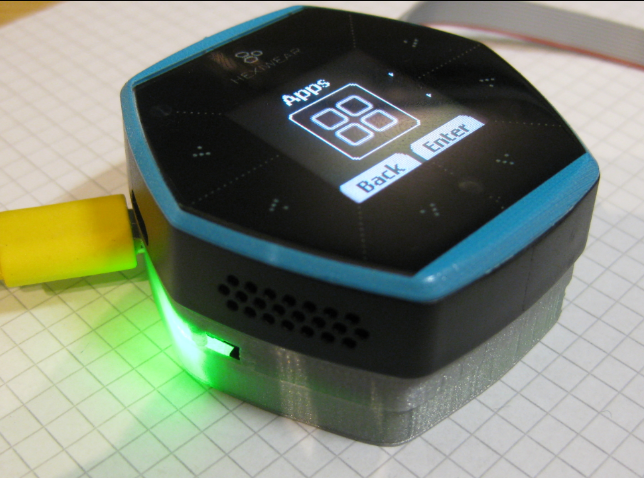

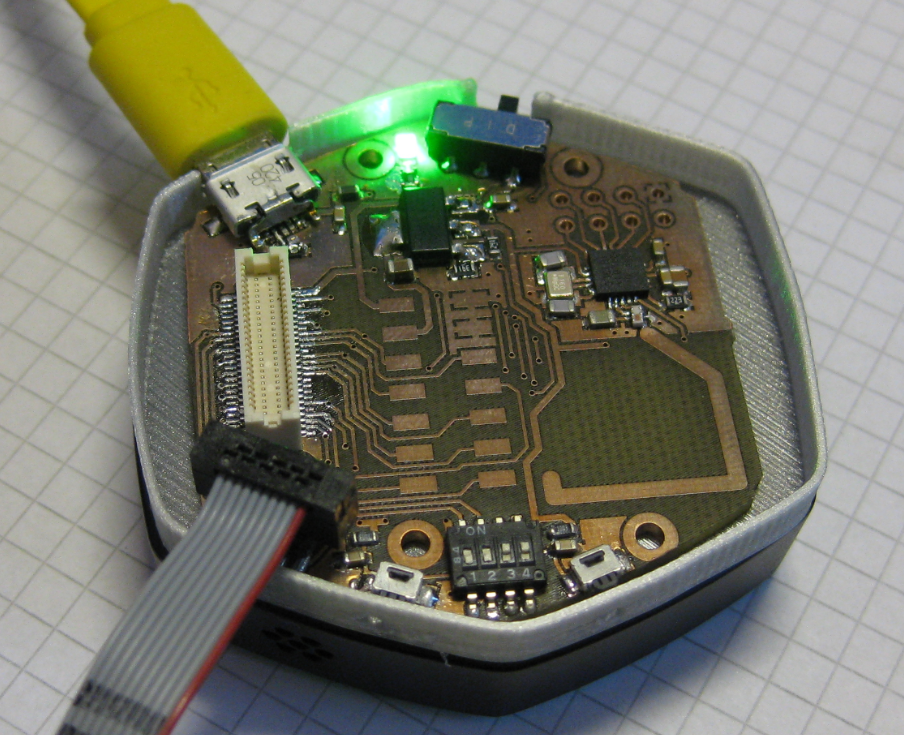

Docking Station on Top of Hexiwear

Docking Station on Top of Hexiwear

The docking station has about the same height as the Hexiwear:

Hexiwear Docking Station under the Hexiwear

Hexiwear Docking Station under the Hexiwear

The original Hexiwear firmware is using the already outdated Kinetis SDK V1.3. So I have started a new firmware development based on the SDK V2.0 and Processor Expert. You can find it evolving on GitHub: https://github.com/ErichStyger/Hexiwear_v2

I’m considering to 3D print the Hexiwear enclosure for an even better integration. But for now the current solution looks good. Ready for the next round of design :-).

Happy Docking 🙂
