Avoid Warping ABS on Ultimaker 2

3D printing is like cooking or like BBQ: It is more about barometric pressure, humidity and temperature than you might  think of. To me, printing (and cooking) is a combination of art and science. And as with cooking, sometimes the result is not usable.

I’m very happy with the Ultimaker 2 printing PLA material. For a LED matrix project I have to use ABS as this material is suitable for higher temperature: PLA simply will not stand the heat produced by the LEDs I’m going to use. And here the joy ended: printing using ABS was definitely no fun. While the first small test print came out OK, I produced afterwards a pile of unusable parts because of warping :-(.

Pile of bad ABS Parts

Pile of bad ABS Parts


PLA (Polylactic Acid) melts around 180-220°C, while ABS (Acrylonitrile Butadiene Styrene) melts . The thing is that PLA gets soft around 50°C, while ABS can stand up to about 85°C. As my LEDs can produce some heat, PLA gets soft and unstable. I already noticed that problem with my LED Cube where I used a PLA structure on the back side of the LED PCBs (see “Kinetis Lava LED Light Cube“).

This time I need a LED matrix diffuser right around the LEDs, so that will not work with PLA: I need it printed in ABS:

3D Printed LED Matrix Diffuser Grid

3D Printed LED Matrix Diffuser Grid

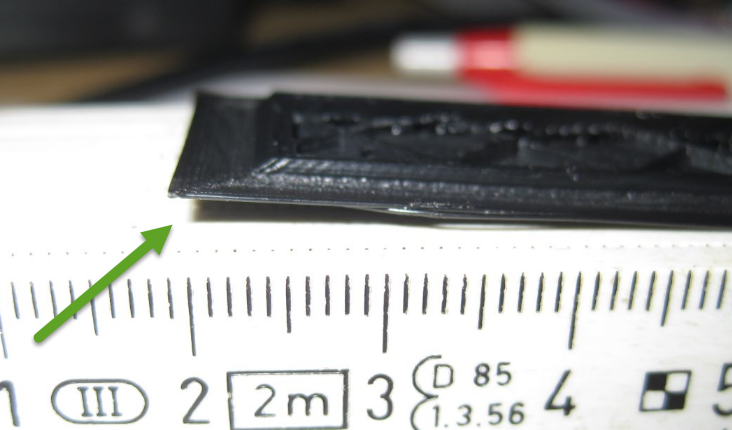

However, a big problem in 3D ABS printing is ‘warping’: It exits for PLA too, but it is much less likely. Because ABS is shrinking when it cools down, the corners can lift up:

ABS Corner Liftup because of Warping

ABS Corner Liftup because of Warping

That shrinking is a good thing for an injection molt process: the part will pop out the form when it cools down. But it is definitely not a good thing to ‘pop out’ while 3D printing a part 😦

The second problem with ABS is that it does not stick very well to glass.


Doing some research, I have found the following solutions to deal with the ABS shrinkage and stickiness to glass:

  1. Have a heated bed, and heat it up. Luckily my Ultimaker has a heated glass bed, but I have found that the default 90°C for ABS seems not be enough.
  2. To keep the temperature stable, cover the printer to reduce the airflow, or build a heated printer enclosure.
  3. To reduce cooling near the glass plate, do not use the print head fan for cooling.
  4. To stick the part better to the heated bed, use rim or rafts.

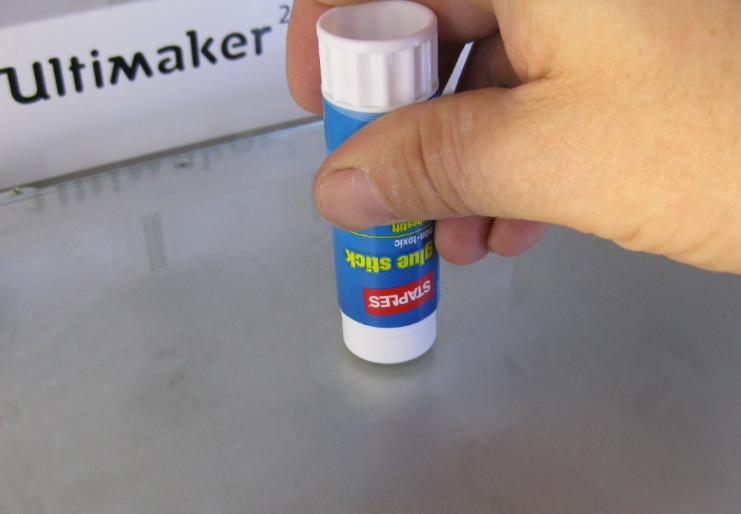

  5. Apply some sticking material to the glass plate. One solution is to use a paper glue pen or to dissolve some ABS scrap pieces in Acetone and apply this ‘Acetone Paint’ to the plate.
Paper Glue Stick on Glass

Paper Glue Stick on Glass

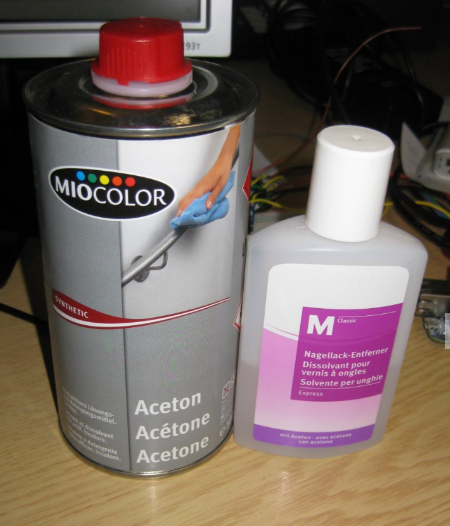

Below Acetone from the hardware store. I put a few drops on the cold (!!!) glass bed and then use a scrap ABS piece to dissolve a bit of ABS which then coats the glass. While Nail Polish Remover usually contain Acetone too, it does not work (I assume because of additives).

💡 I like the glue stick method more as with Acetone it needs a very well vented area because of possible skin/eye irritations.

Acetone and Nail Polish Remover

Acetone and Nail Polish Remover

What works for me

So here is what finally produced good results so far:

  1. Cleaned the glass plate while it is cold with alcohol to remove any fat
  2. Applied paper glue stick to the glass surface (alternatively use ‘Acetone-ABS paint’)
  3. Using a brim with 10 lines to stick it to the plate (rafts did not help much for my parts)
  4. Instead of using the default heat bed temperature of 90°C as default for ABS, I increased the heating bed temperature to 105°C.
  5. Instead of the default fan speed of 40%, I turned the fan OFF or running it only at 10% depending on the part height
  6. Nozle/material temperature at 260°C (default)
  7. Material flow 107% (default)
  8. Closed the Ultimaker front to keep the heat inside the printing area (I think this is one of the most important thing!) and placed a card box on top of the printer to keep the inside of the printer warm.

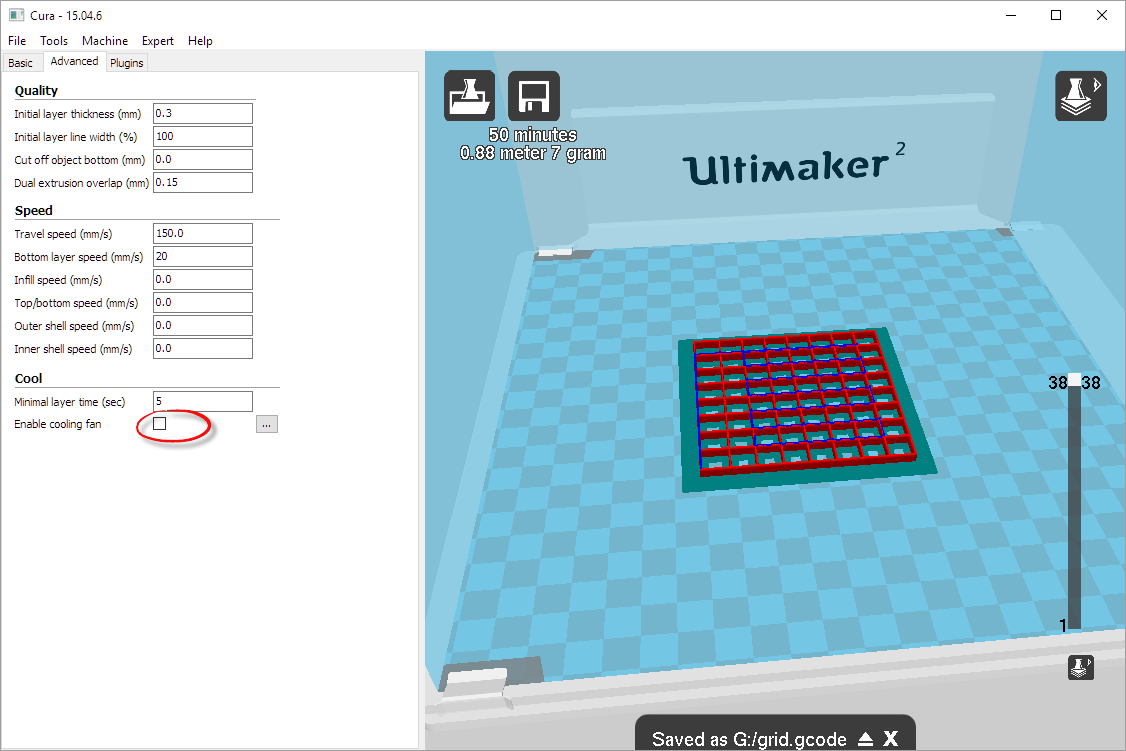

For the fan speed, there is a setting in Cura to disable the cooling fan:

Cooling Fan Disabled in Cura

Cooling Fan Disabled in Cura

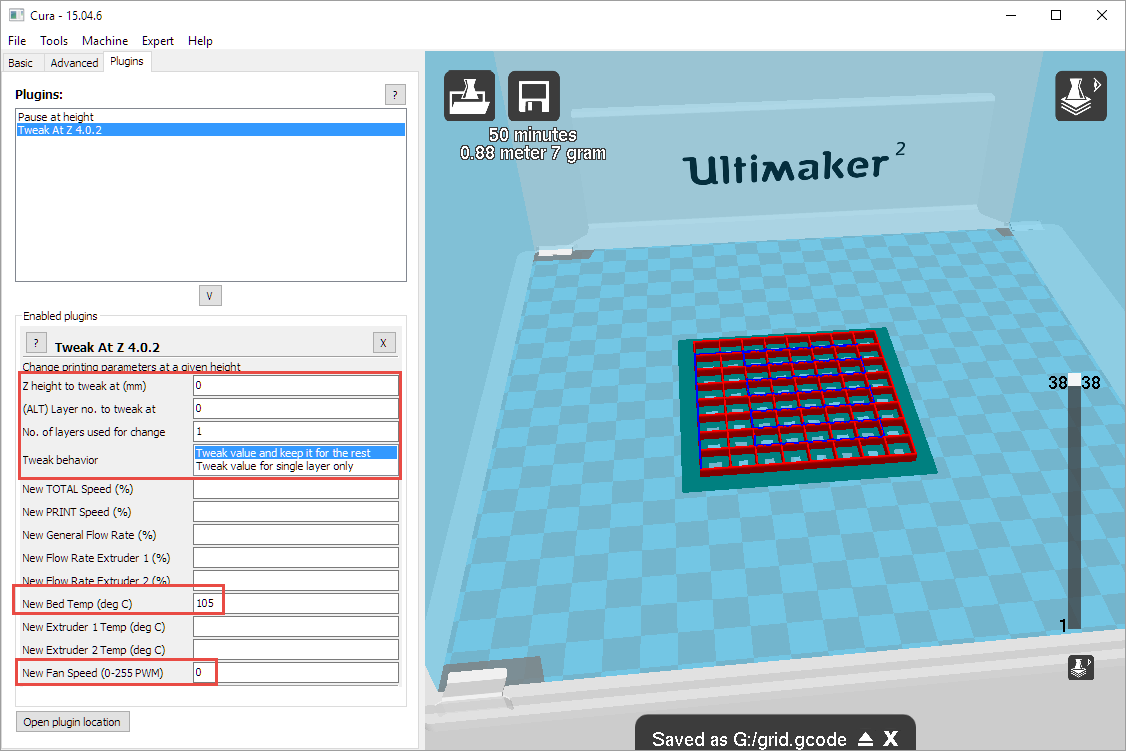

Much more settings can be triggered at a certain layer: that way I configure the cooling fan and the bed temperature:

Tweak at Z in Cura

Tweak at Z in Cura

Below my first version of printer coverage which produced usable parts:

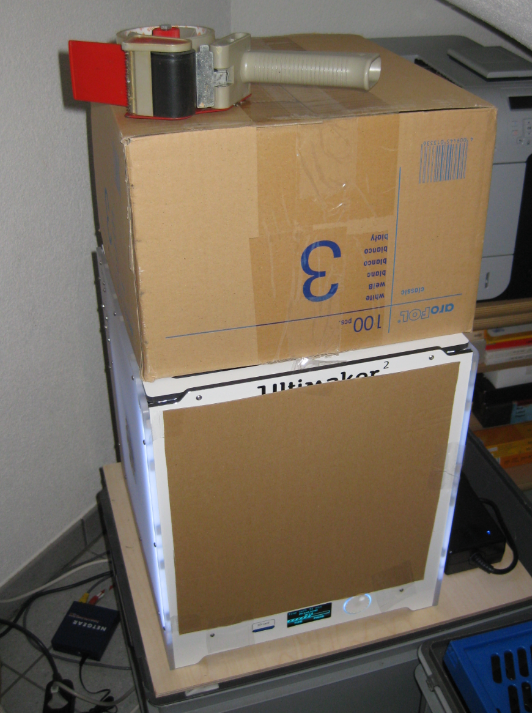

Covered Ultimaker printer

First Trials with Covered Ultimaker printer

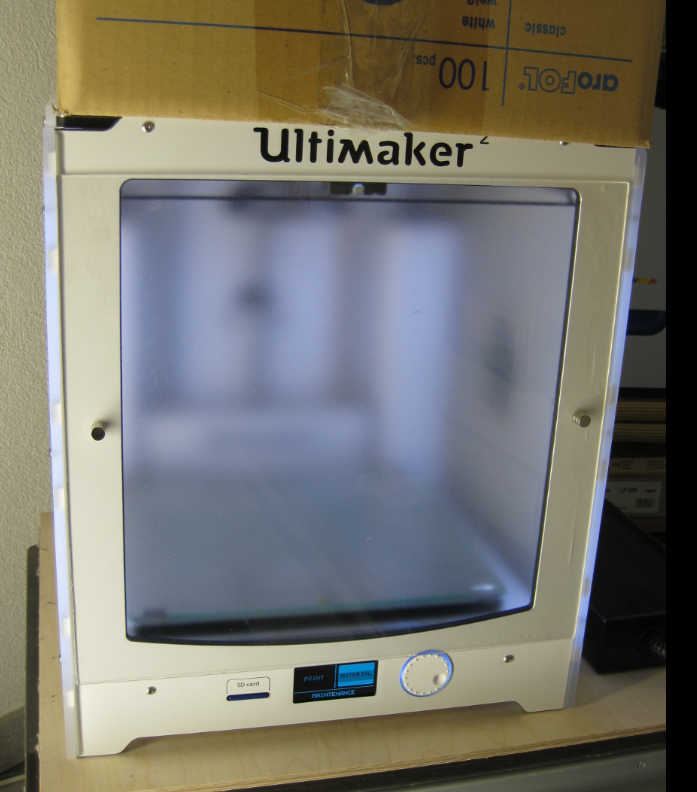

Because that way it is not easy to see how it is printing, my next version uses a (half-transparent, because this is what I had at hand) cover:

version with half-transparant front

Version with half-transparant front and magnets

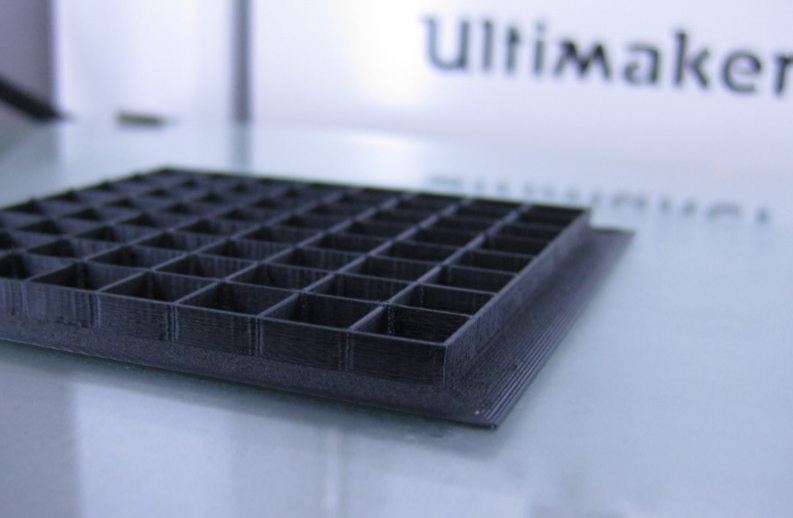

With the cover and the glue on the glass, the parts now do come out without warping 🙂

Good ABS Part

Good ABS Part

LED diffuser matrix with brim:

LED Diffuser with Brim

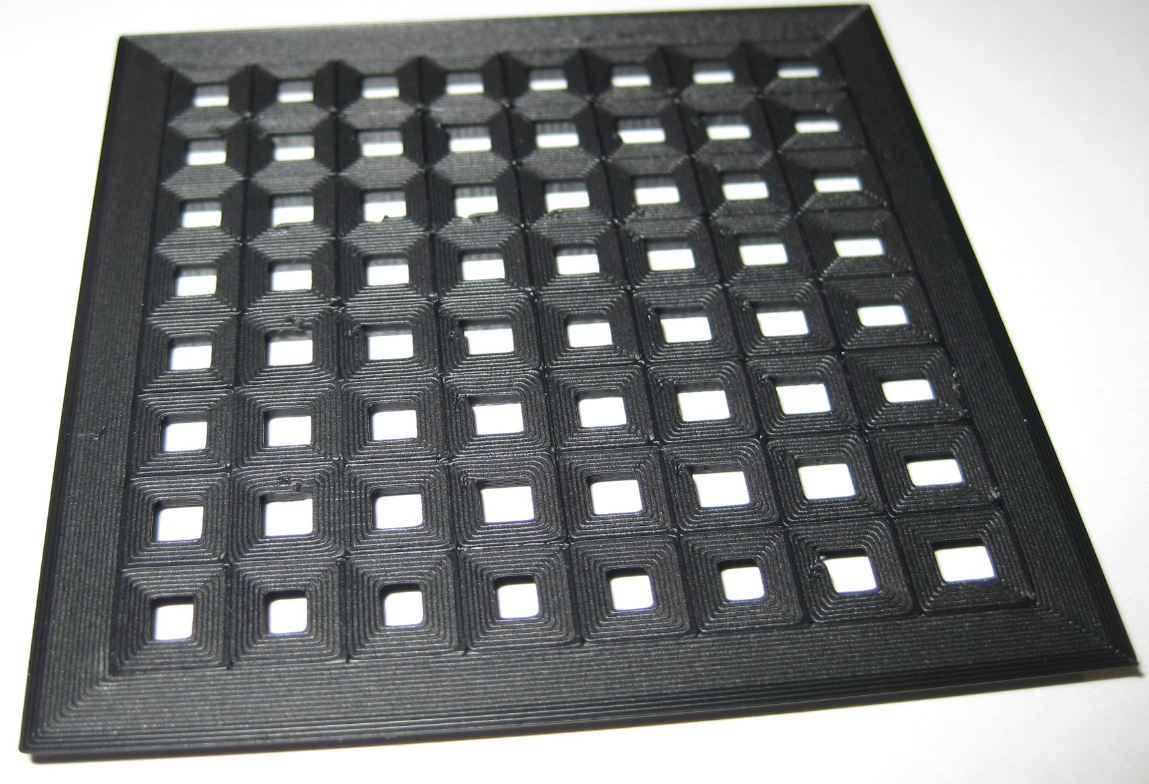

LED Diffuser with Brim

LED Frame with brim, printed in ABS:

LED Frame printed in ABS

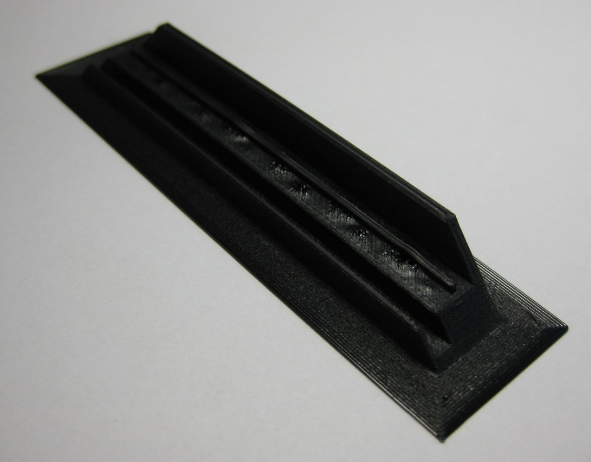

LED Frame printed in ABS

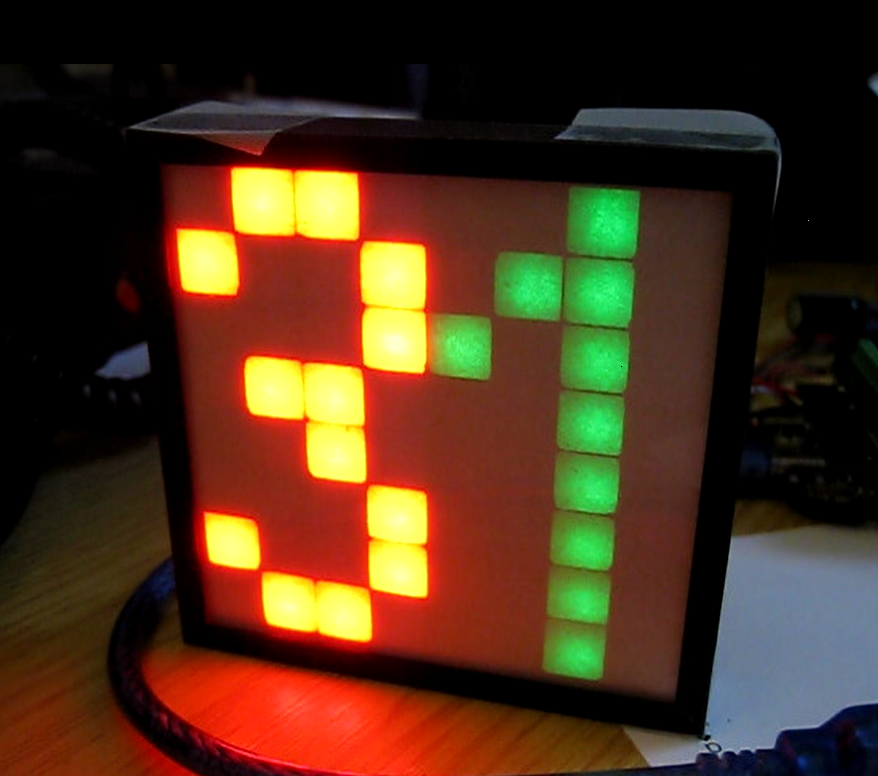

And with this I have the first prototype of my LED enclosure printed in ABS working:

LED Matrix Display

LED Matrix Display

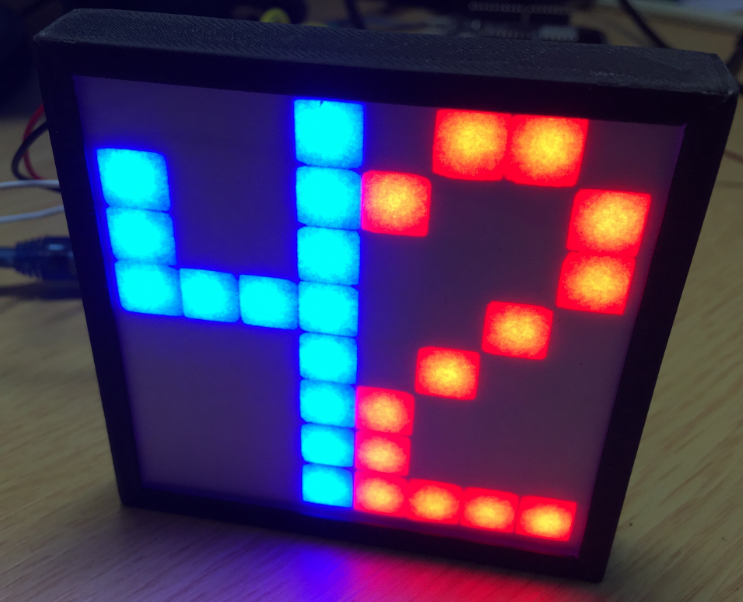

LED Matrix Display 42

LED Matrix Display 42


Because of the shrinkage of ABS, it is important that it sticks well to the heated bed. For this either a simple paper glue stick can be used or a thin layer of ABS with ‘Acetone-ABS paint’. Either way works well. But even more important is to avoid too cool down the printed part too early. For this it worked best for me to increase the temperature of the heat bed plus to reduce the airflow in the printing area.

Happy Unwarping 🙂
