FRDM-K64F at Maximum Speed of 120 MHz

The ARM Cortex-M4F on the Freescale FRDM-K64F board can run up to 120 MHz. Here is how to get it running with maximum speed:

FRDM-K64F Board

FRDM-K64F Board

The K64F processor on the board has many clock options:

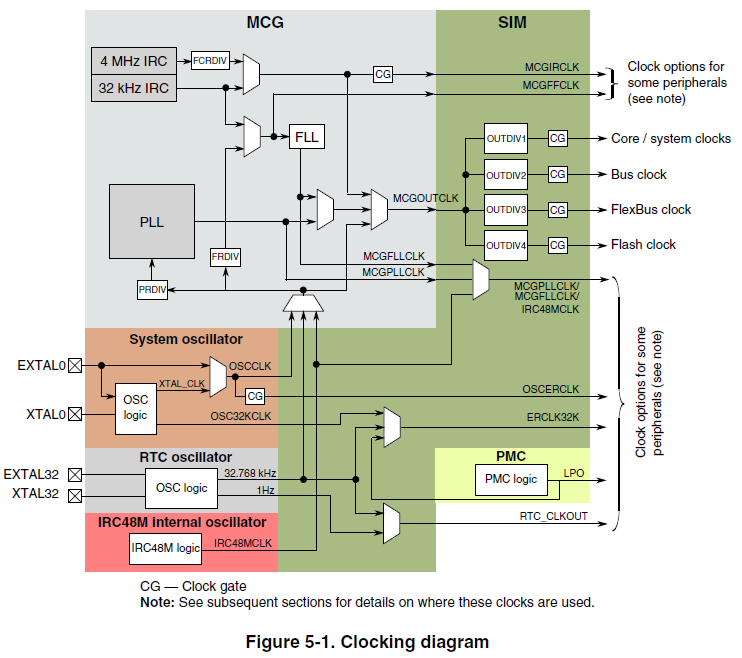

K64F clocking diagram (Source: Freescale K64F Reference Manual)

K64F clocking diagram (Source: Freescale K64F Reference Manual)

The RTC oscillator (EXTAL32, XTAL32) clock on the board is a 32 kHz oscillator:

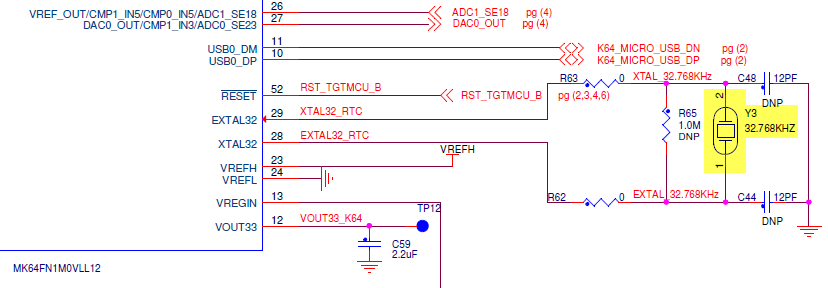

32 kHz Clock

32 kHz Clock (Source: FRDM-K64F Schematics)

The Y3 is nearby the CPU:

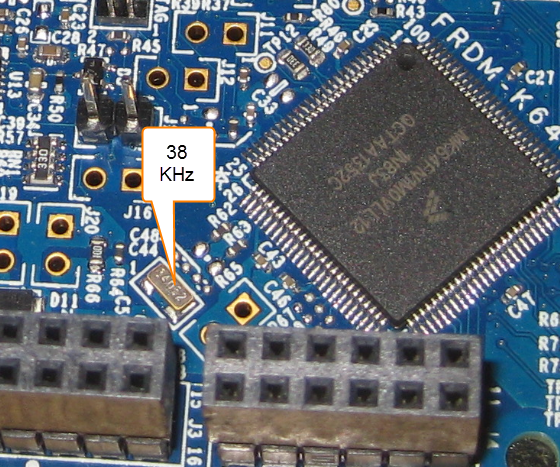

38 kHz Clock on FRDM-K64F

38 kHz Clock on FRDM-K64F

This clock can be used with the FLL, but does not allow a system clock above 100 MHz :-(.

Instead, the System Oscillator block can be used (EXTAL0/XTAL0):

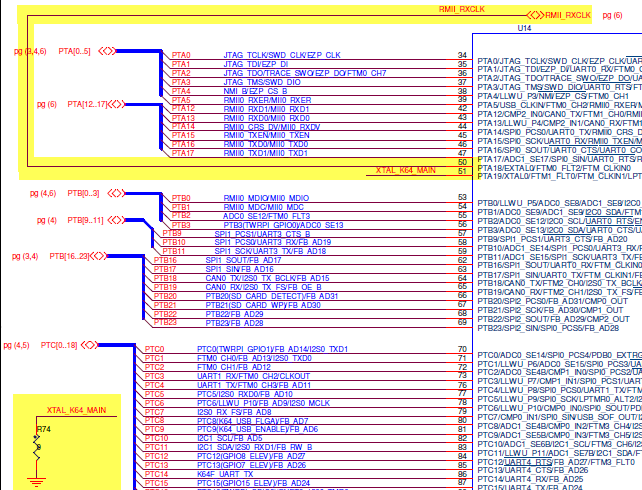

Main Clock (Source: FRDM-K64F Schematics)

Main Clock (Source: FRDM-K64F Schematics)

The XTAL0 is connected to ground, and EXTAL0 is connected to the Micrel Ethernet PHY chip which has a 25 MHz crystal attached:

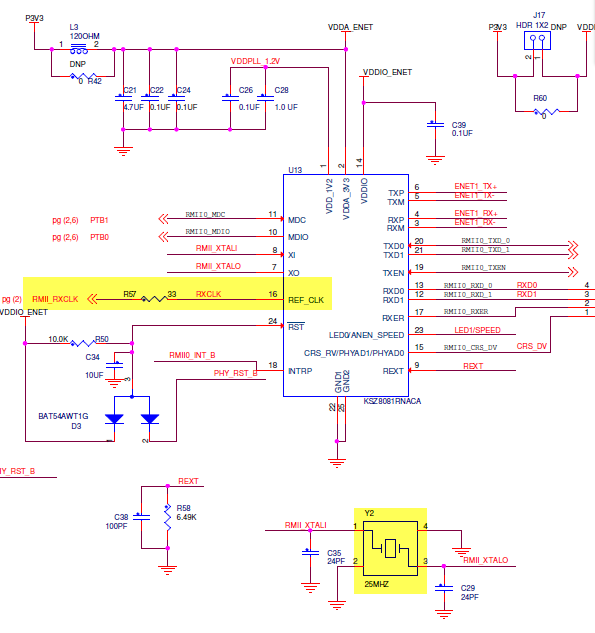

25 MHz and Micrel PHY

25 MHz and Micrel PHY (Source: FRDM-K64F Schematics)

The picture below shows the clock and the PYH:

25 Mhz and PHY

25 Mhz and PHY

The important thing to know is that the output clock (REF_CLK) is twice of the 25 MHz clock: a 50 MHz oscillator clock. With this information, I can configure the settings of the CPU in Processor Expert as below to produce a 120 MHz PLL output:

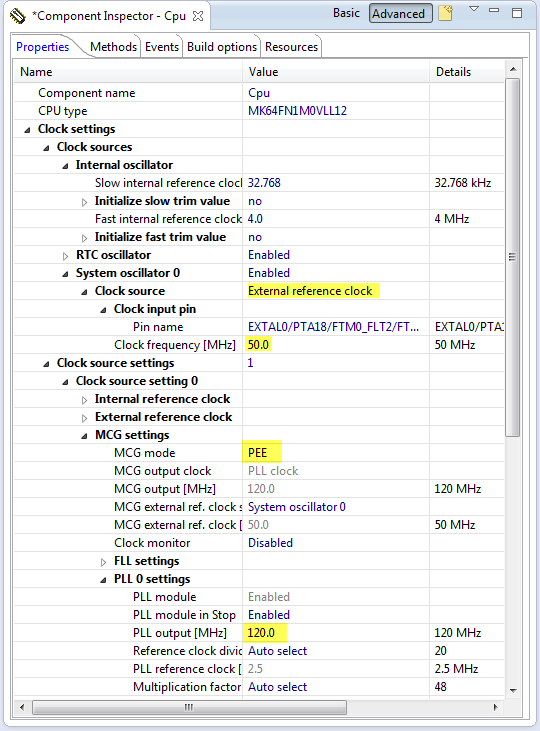

120 MHz PLL output

120 MHz PLL output

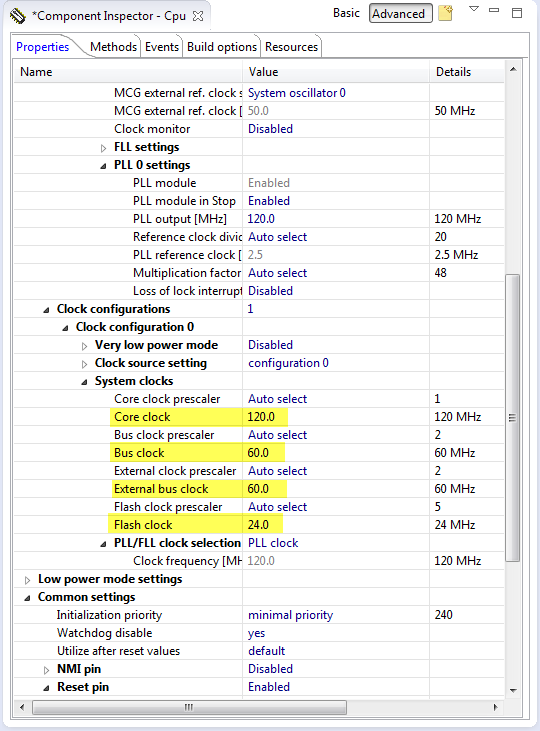

This gives me a 120 MHz core clock:

120 MHz Core Clock

120 MHz Core Clock

But there is yet another option :-). If you carefully inspected the clocking block diagram, you should have noticed that there is a 48 MHz internal reference clock. This is something very cool Freescale has finally introduced: with this it is possible to use the K64F for USB operation *without* the need for an external reference clock. And of course this one can be used to reach 120 MHz too. Simply select that 48 MHz clock as reference clock:

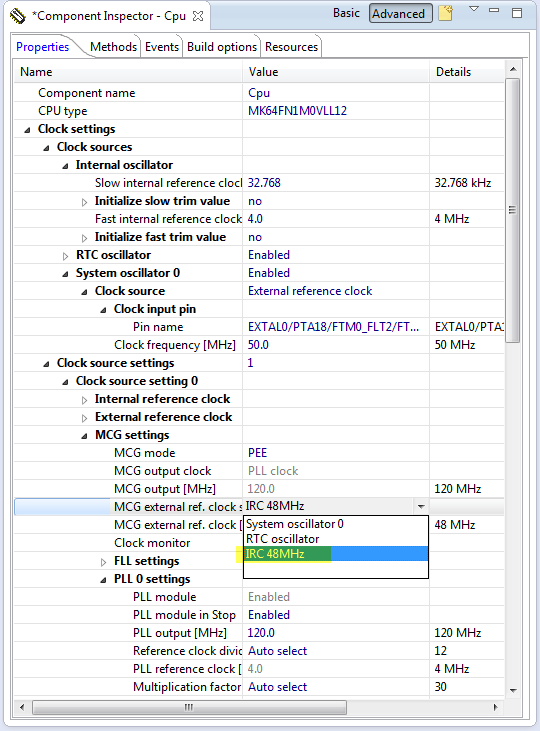

Internal Reference Clock with 48 MHz

Internal Reference Clock with 48 MHz

So I have two ways on the FRDM board to run the core at 120 MHz now 🙂

And yes, you can try to configure the clocks without Processor Expert too. With Processor Expert it is just a few clicks, while without…. well, try to read and understand the data sheet ;-).

Happy Speeding 🙂
