S-Record Generation with gcc for ARM/Kinetis

Posted on September 13, 2012 by Erich Styger

With my Freedom KL25Z board I’m using the GNU/gcc build tools and Eclipse/CodeWarrior. When I wanted to create an S19 file of my application using the GNU tools, this was not that easy to find out. So here are the steps to do this:

I open the project setting using the menu Project > Properties and go to C/C++ Build > Settings > Additional Tools and enable’Create Flash Image‘:

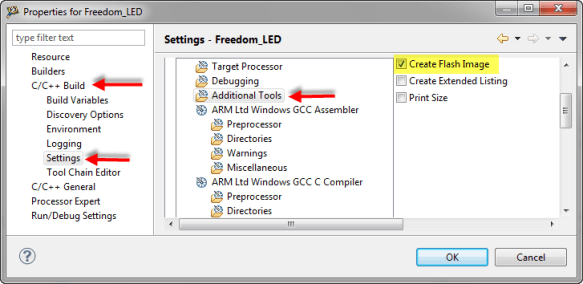

Additional Tools gcc Settings

Now I need to press the Apply button:

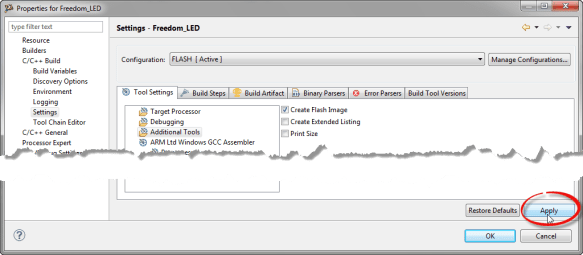

Apply Button

Pressing the Apply button will show up an additional ‘Create Flash Image’ group. Many other formats are available in the drop down as shown in the screenshot.

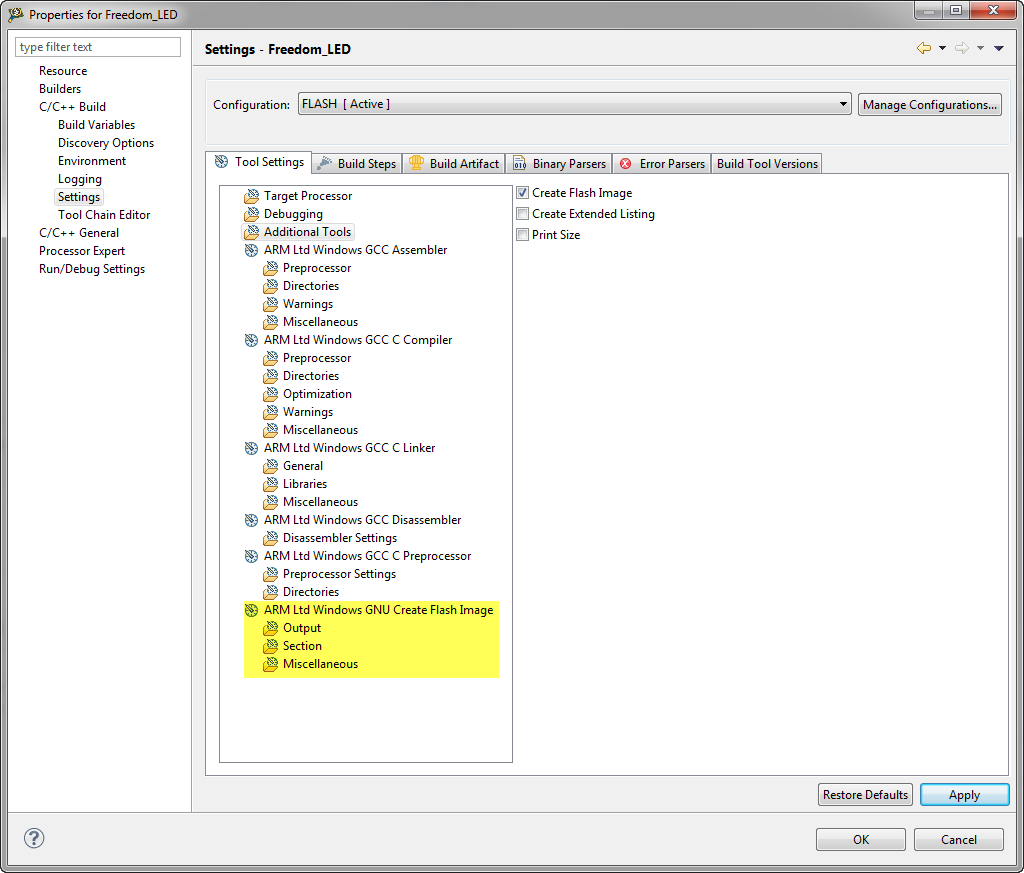

Create Flash Image Option

Now I can specify S-Record/S19 as output format:

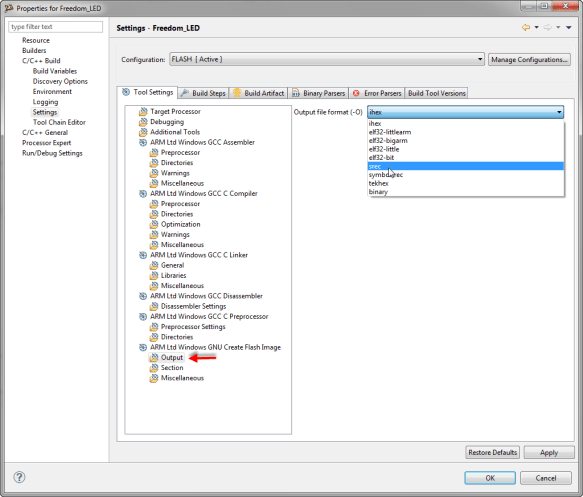

Settings to create S-Record

Pressing OK, and building my project again will show up the S19 file together with the application file:

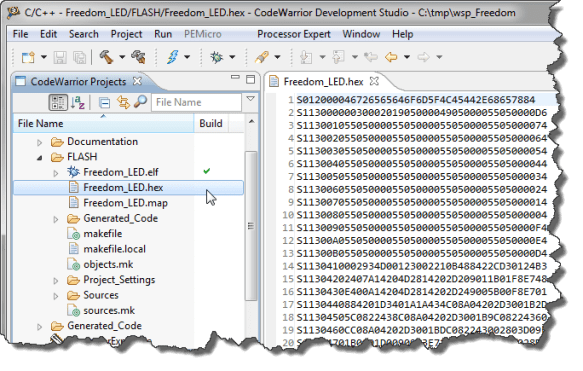

S19 File Generated

Post Build Step

A generic way to generate the S19 file is to use a post build step:

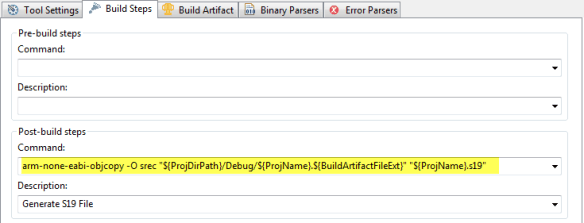

Post Build Step to produce S19 file

In the above screenshot, I’m using the objcopy (which is present in my PATH environment variable). It is using the command line options described here. See DIY Free Toolchain for Kinetis: Part 2 – Eclipse IDE for more details.

Happy Tooling 🙂
