Using Camera Modules with NXP i.MX RT10xx EVK

In “First Steps with the NXP i.MX RT1064-EVK Board” I mentioned that the board kit came with a camera module, but it was unclear to me which module was included in the kit. I know it now: it is the ON Semiconductor MT9M114 :-).

Image from the MT9M114

Image from the MT9M114

The MT9M114 is a camera module from ON Semiconductor with an image resolution of 1296×976 Pixels.

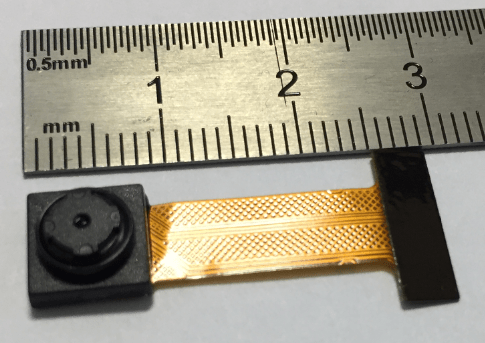

MT9M114 Camera Module

MT9M114 Camera Module

MT9M114 Camera Module Back Side

MT9M114 Camera Module Back Side

I searched the usual sellers, but that MT9M114 camera module is rather expensive (~$60 from Mouser).

That camera module reminded me that I had ordered weeks ago a OV7725 from Aliexpress. The OV7725 has an image resolution of 640×480 pixels and is available for less than $10 from Aliexpress or other sources.

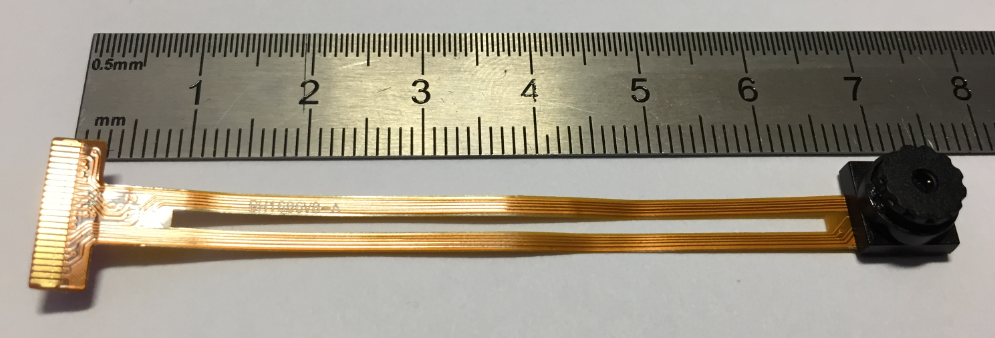

This camera has a longer cable:

OV7725 Camera Front Side

OV7725 Camera Front Side

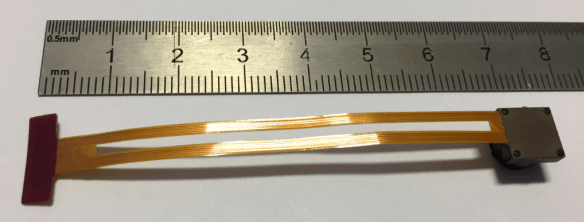

OV7725 Camera Back Side

OV7725 Camera Back Side

The i.MX RT1052 and RT1064 boards have a 24pin connector where the camera cable fits in:

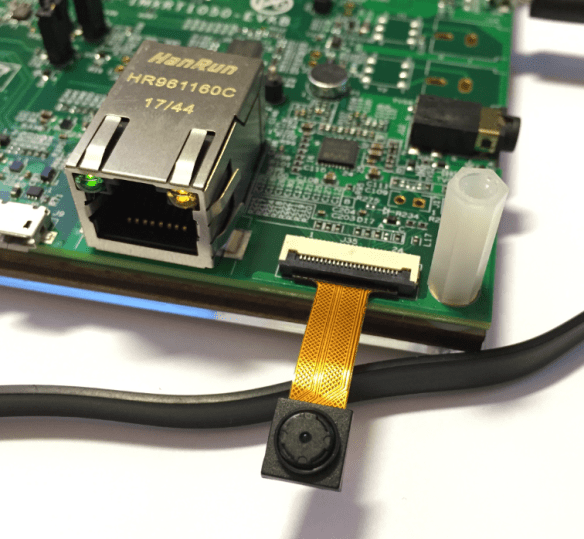

Camera attached to i.MX RT Board

Camera attached to i.MX RT Board

💡 Be careful with the cable latch: it easily can be ripped of the connector.

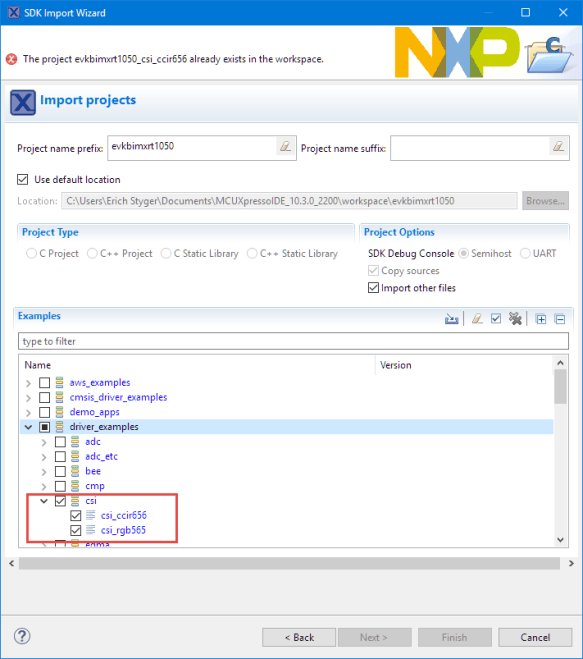

The NXP MCUXpresso SDK includes two CSI (CMOS Sensor Interface) demos:

CSI Demos

CSI Demos

They need the LCD attached to the i.MX RT board. I had a LCD attached to my i.MX RT1052 board, but because it is very difficult to connect the LCD to the board, I decided not to move the LCD to the RT1064, but using the RT1052 instead.

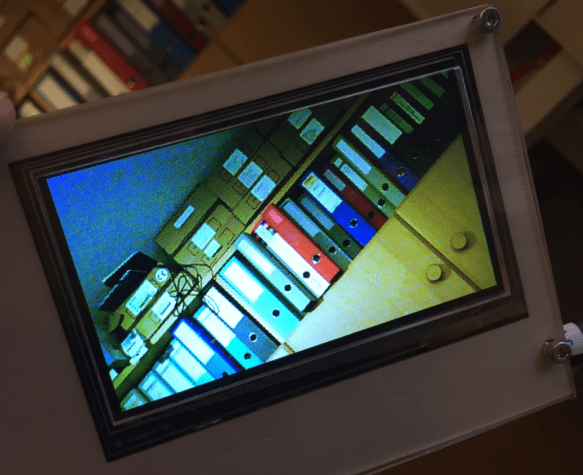

Using the SDK examples, I was able to get the sensor from the RT1064 working on the RT1052 board:

Image from the MT9M114

Image from the MT9M114

The camera is working, but the image is not very ‘crisp’ and kind of smoothed. But that might be a setting thing. The note in the NXP application note mentions that finding the correct settings can be very hard.

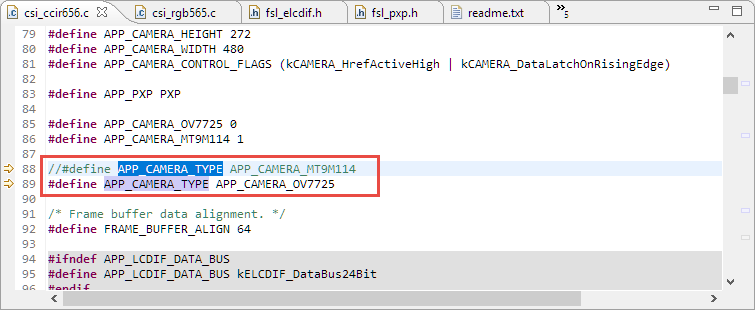

For getting the OV7725 camera to work, I had to change the driver. The camera type is configured in the demo using the APP_CAMERA_TYPE macro:

APP_CAMERA_TYPE

APP_CAMERA_TYPE

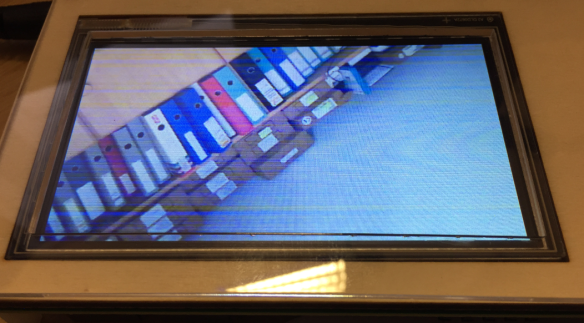

That worked with a more ‘crisp’ video, but the image had some ‘artifact lines’:

OV7725 Image

OV7725 Image

I’m not sure if this is because of the module (long cable?) or because the demo application does not configure things in an ideal way. Because I’m not sure if the long camera cable is affecting the image quality, I just ordered today another OV7725 module from AliExpress with a shorter cable:

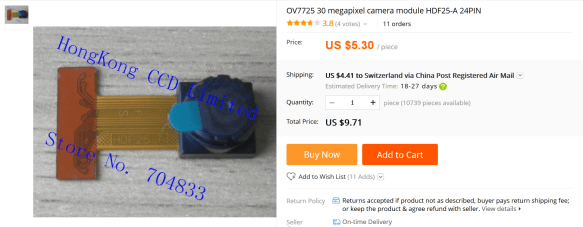

OV7725 from HongKong CCD Limited

OV7725 from HongKong CCD Limited

Well, I have to try out that one if this makes it better (or not). And I have to see if I can tweak the settings for the OV7725 camera, as this one has a lower resolution, but is very cheap.

Happy Imaging 🙂
