Processor Expert, gcc C++ and Kinetis-L with MQXLite


The Kinetis-L is a 32bit microprocessor family, based on ARM Cortex M0+. It comes with ARM gcc in CodeWarrior. Although the Kinetis-L does not have much RAM, it is very possible to use gcc with C++, especially as a programmer I keep the limited RAM amount in mind. So I thought I try C++ and Processor Expert for my Kinetis-L KL25Z Freedom board.

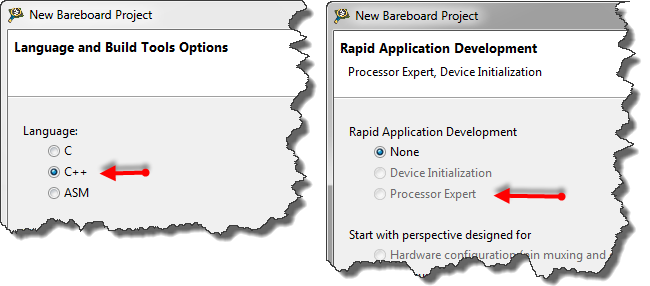

If I select C++ as language in the New Bareboard Project Wizard of CodeWarrior, then I cannot select Processor Expert or Device Initialization:

C++ in the New Project Wizard

C++ in the New Project Wizard

That makes somewhat sense, as Processor Expert creates normal C code and C files, but no C++. Still, what if I need C++? This is doable, but with anything advanced, I need to know exactly what I want and what I do. Here is the ‘How to use C++ with Processor Expert’.

Step 1: Processor Expert Project in C

The idea is to start with a normal Processor Expert project, which of course does not support C++. Then adding the required settings to have a ‘mixed’ project which has the Processor Expert C files plus my other C++ files.

💡 Hint: If you are unsure about the settings, simply create first a project for C++, but *without* Processor Expert. That gives something to compare with.

I’m using here CodeWarrior for MCU10.3 with gcc and the Freedom KL25Z Board. But as gcc is provided for the Kinetis-K family, this applies for the Kinetis/ARM family.

So step one is to have a normal Processor Expert project (in C), plus optionally a normal C++ project as reference.

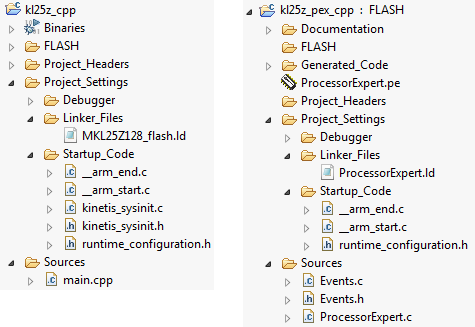

So what I have here are two projects: the kl25z C++ (non-Processor Expert)  and the Processor Expert kl25z_pex_cpp project:

C++ and Processor Expert Project Side-by-Side

Step 2: C++ Nature

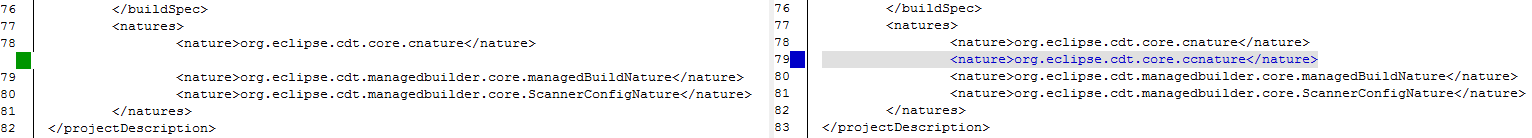

Eclipse stores project tool information in the .project XML file which resides in the project root directory. For gcc the toolchain is defined with <nature>...</nature>entries. The difference between a gcc C and a gcc C++ project is best shown if I compare two .project files:

C and C++ .project file

C and C++ .project file

For step two it is best to hack that .project file outside of eclipse: I close the project to prevent Eclipse to change the file while I’m doing modifications externally. Best if the .project file is edited by a normal text editor, e.g. Notepad. An easy way is to copy the line with cnature, then past it and change it to ccnature:

org.eclipse.cdt.core.ccnature added to the .project file

org.eclipse.cdt.core.ccnature added to the .project file

Note: there are two ‘tabs’ at the beginning of the line!

After the .project file modification, I can open my project again in the Eclipse workspace. The C++ nature has now gcc for C++. I have GCC C++ panels available in the project properties:

C (left) and C++ (right) Build Panels

C (left) and C++ (right) Build Panels

The bad news is that C++ panels only have the default entries set up :-(. Which means that I need to make sure the options are set up correctly for my project.

❓ Note: I experimented to change the XML information in the .cproject file which contains the build tool options. But I failed to find an easy way. There is as well a (hidden) conversion wizard in Eclipse which in theory is able to convert a gcc C project into a C++ one, but this did not work me. So that’s why I’m using the ‘manual’ way. And this works for me. If someone has a better way: post a comment!

Step 4: GCC C++ Compiler Options

So I need to go through the GCC C++ panels and set the options. I use here the option settings from my ‘reference’ C++ project I have created in step 1.

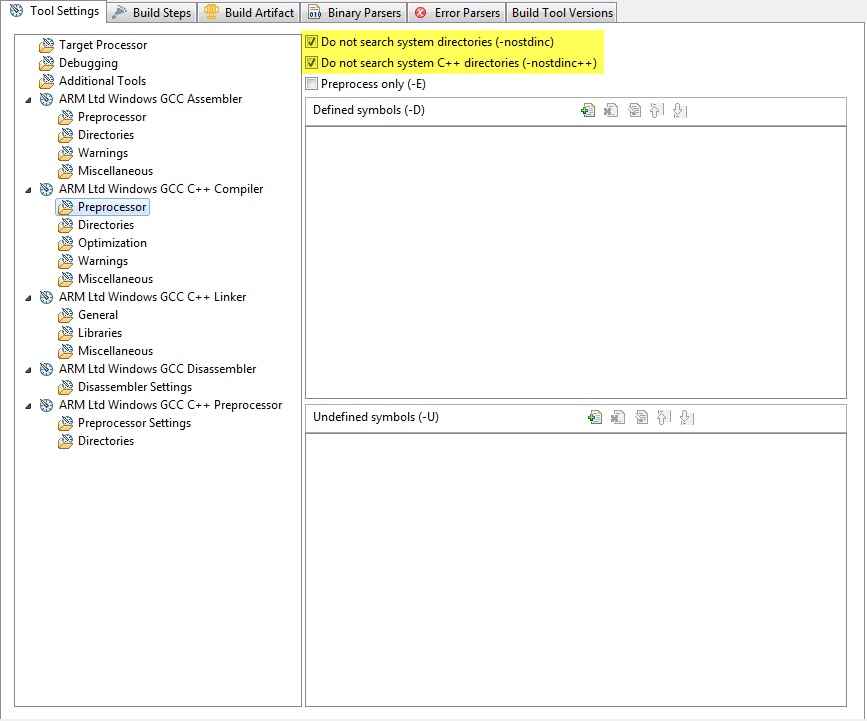

Preprocessor Options

Preprocessor Options

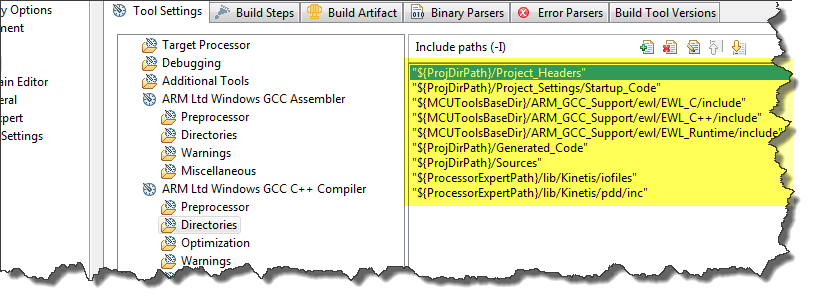

The next panel defines the include paths for the compiler.

Compiler Directories

Compiler Directories

:idea:Tip: Instead of typing in all the paths manually, it there is a hidden feature that you can copy-paste multiple paths in a single step :-). Simply select multiple lines in another panel, copy (CTRL-C) and paste it (CTRL-V). Or copy the lines from the text below.

❗ Tip: Depending on your browser, copy-paste from the text below might not be straight forward 😦 What works for me (using FireFox) is to hover over the text, then select the ‘View Source’ button and copy it from there.

View Source

View Source

"${ProjDirPath}/Project_Headers"
"${ProjDirPath}/Project_Settings/Startup_Code"
"${MCUToolsBaseDir}/ARM_GCC_Support/ewl/EWL_C/include"
"${MCUToolsBaseDir}/ARM_GCC_Support/ewl/EWL_C++/include"
"${MCUToolsBaseDir}/ARM_GCC_Support/ewl/EWL_Runtime/include"
"${ProjDirPath}/Generated_Code"
"${ProjDirPath}/Sources"
"${ProcessorExpertPath}/lib/Kinetis/iofiles"
"${ProcessorExpertPath}/lib/Kinetis/pdd/inc"

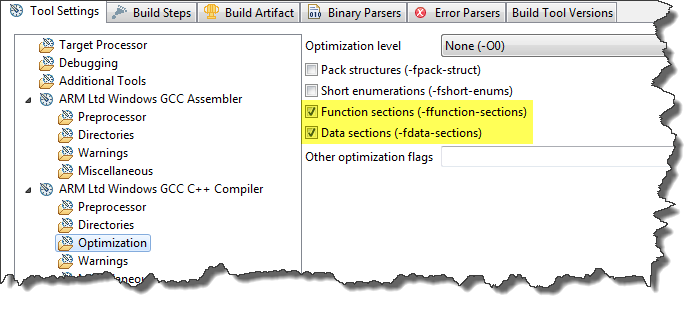

The next panel is about compiler optimizations: here I enable two options allowing the compiler/linker to remove unreferenced code and data:

Compiler Optimizations

Compiler Optimizations

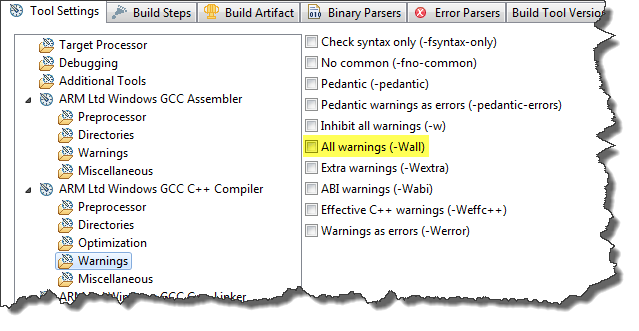

The next panel is about the Compiler warnings. Here I’m free what I want and need, but usually I do have the ‘-Wall warning option disabled, as otherwise I get warnings for the Processor Expert code (this is a different topic):

Compiler Warnings

Compiler Warnings

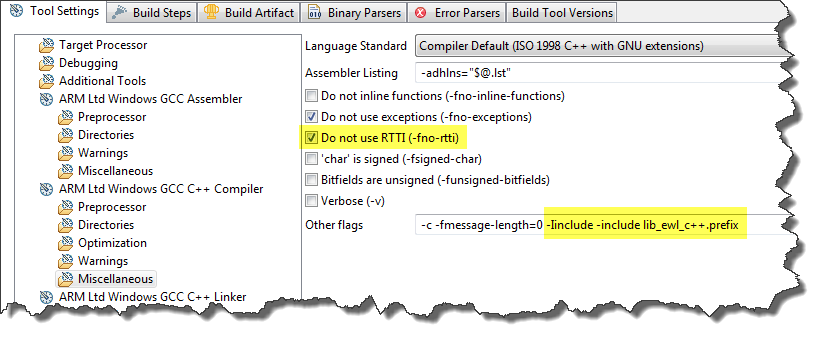

The last compiler panel is Miscellaneous. Disabling RTTI is optional but good for code/data density. Important is to have this in the ‘Other flags’:

-c -fmessage-length=0 -Iinclude -include lib_ewl_c++.prefix
Compiler Miscellaneous

Compiler Miscellaneous

Step 5: GCC C++ Linker Options

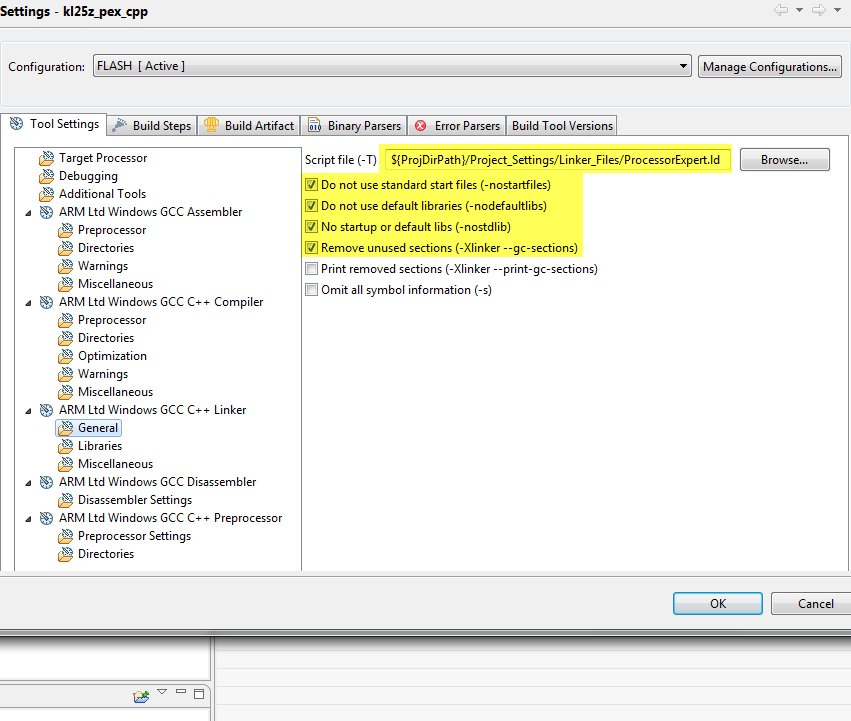

In the linker General settings we need to specify the linker script file:

${ProjDirPath}/Project_Settings/Linker_Files/ProcessorExpert.ld
Linker General

Linker General

In the next panel we need to tell the linker to link with the following library:

"${MCUToolsBaseDir}/ARM_GCC_Support/ewl/lib/armv6-m"
Linker Libraries

Linker Libraries

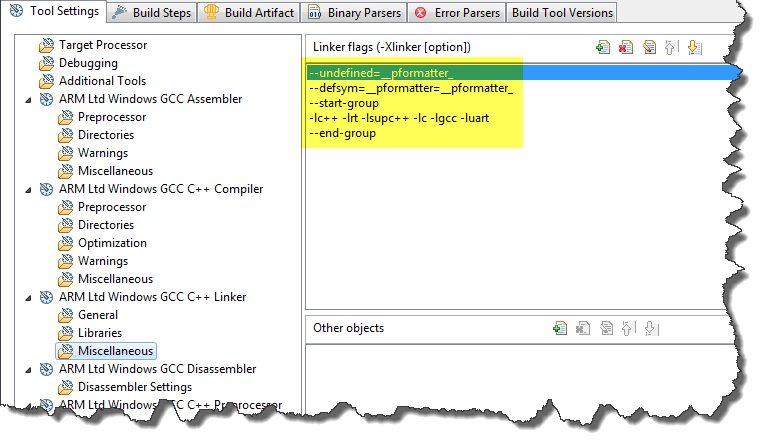

In the Linker Miscellaneous page we have to add a list of linker flags. Again we can copy-paste the lines:

--undefined=__pformatter_
--defsym=__pformatter=__pformatter_
--start-group
-lc++ -lrt -lsupc++ -lc -lgcc -luart
--end-group
Linker Miscellaneous

Linker Miscellaneous

Step 6: GCC C++ Preprocessor Options

What is missing are the setting for the preprocessor.

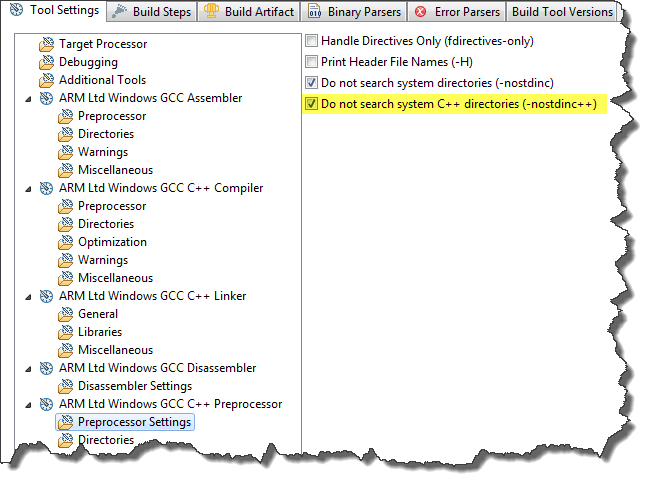

Preprocessor Settings

Preprocessor Settings

The Preprocessor Directories worked just fine for me with the default settings:

Preprocessor Directories

Preprocessor Directories

Step 7: Compiling, Linking and “C” Linkage

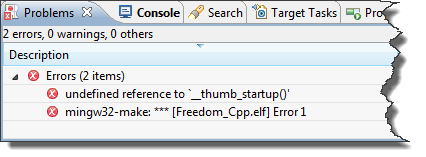

If I build now my application, I will run into this:

undefined reference to __thumb_startup()

undefined reference to __thumb_startup()

The reason is \Project_Settings\Startup_Code\__arm_start.c defines __thumb_startup() with C calling convention. This is because that file has a _EWL_BEGIN_EXTERN_C..._EWL_END_EXTERN_C block around the declaration and definition of __thumb_startup():

...
_EWL_BEGIN_EXTERN_C
...
void __thumb_startup(void);
...
void __thumb_startup(void)
{
...
}
_EWL_END_EXTERN_C

And in Generated_Code\Vectors.c it is used as this:

/* ISR prototype */
extern uint32_t __SP_INIT;
extern void __thumb_startup( void );

One solution would be to change it using extern "C":

/* ISR prototype */
extern uint32_t __SP_INIT;
extern "C" void __thumb_startup( void );

However, that would mean that when the Vectors.c file is re-generated, I would have to do again that change. Or I need to tell Processor Expert *not* to create the Vectors.c file.

As painful, I’m using another approach: I’m compiling __thumb_startup() with C++ naming convention :-). For this I change __arm_start.c. At the end of the file I comment out the _EWL_END_EXTERN_C macro:

Removed macro call at the end of __arm_start.c

Removed macro call at the end of __arm_start.c

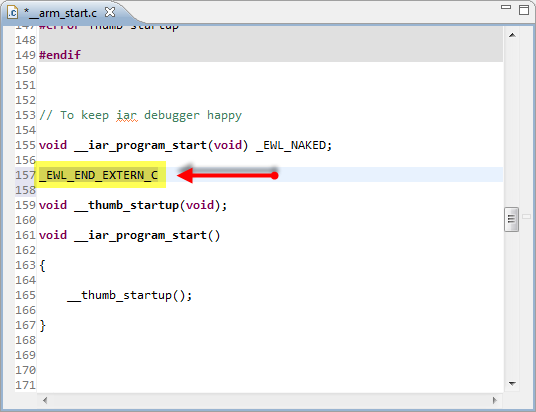

Instead, I have that macro placed above the declaration (and definition) of __thumb_startup():

Added macro

Added Macro

Now I’m able to compile and link 🙂

Step 8: Linker Warning

There is still a warning:

Linker Warning about Entry symbol

Linker Warning about Entry symbol

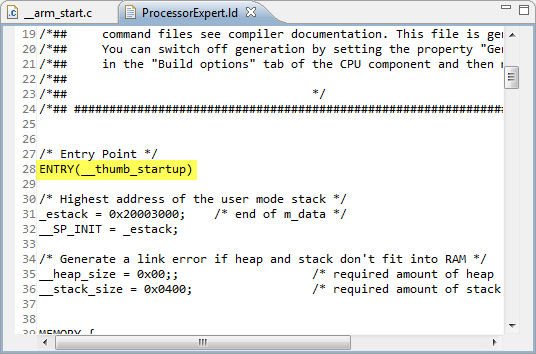

This is caused by the fact that we compile that function with C++ convention, but in the Processor Expert generated linker file it the symbol name is used with normal C calling convention:

ENTRY in linker file

ENTRY in linker file

To match the C++ symbol name, it should be changed to

ENTRY(__thumb_startupv)

Notice the ‘v’ at the end which indicates that the function has void parameter in C++. But as this linker file is generated, I would have to switch off generation of it in the Processor Expert CPU component, or making that change all the time. Usually I’m a fanatic fighter against warnings, but today I’m lacy :twisted:.

Step 9: Adding C++ Code

The last step is to add the C++ code and enjoy it working. The project created above is available here. That way you can start with this project your own experiments with C++, Processor Expert and GNU gcc.

Adding MQXLite Processor Expert Components

The above approach works for me so far. I only have found a smaller annoyance: Some Processor Expert components (e.g. MQXLite) add extra compiler search paths to the compiler settings. As the compiler panels are now for C++, it looks they are not added properly. As a solution for MQXLite I had to add the other paths to the project:

"${ProjDirPath}/MQXLITE/include"
"${ProjDirPath}/MQXLITE/kernel"
"${ProjDirPath}/MQXLITE/psp/cortex_m"
"${ProjDirPath}/MQXLITE/psp/cortex_m/core/M0"
"${ProjDirPath}/MQXLITE/psp/cortex_m/compiler/gccarm"
Paths for MQXLite

Paths for MQXLite

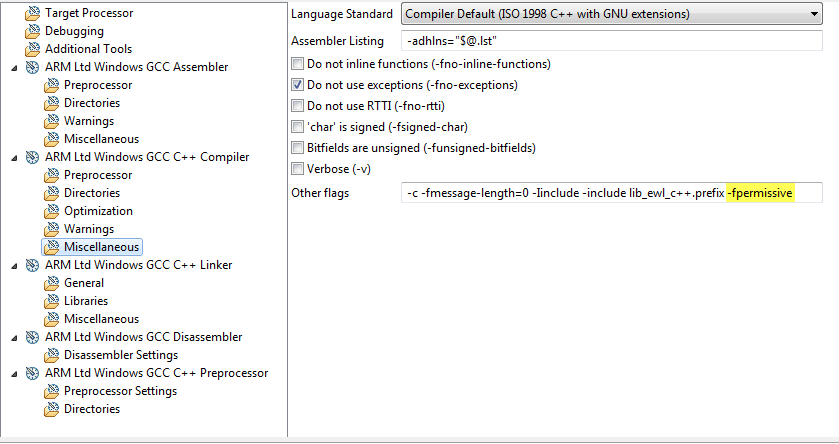

The other thing is that compiling MQXLite will cause many gcc errors. The command line option -fpermissive fixes this until MQXLite fixes these problems:

fpermissive option

-fpermissive option

The next problem is again the C linkage: MQXlite does not declare __boot() with C linkage. For this I need to mark it with extern "C" in the generated MQX1.h:

/* MQX Lite entrypoint */
extern "C" void __boot(void);

With this, only one problem remains: the MQXLite boot.S is calling for __thumb_startup:

ASM_EXTERN(__thumb_startupv)
bl ASM_PREFIX(__thumb_startupv)

Well, this does not work that way, as C++ has mangled the name, see this link. Instead, I need to write it as

ASM_EXTERN(_Z15__thumb_startupv)
bl ASM_PREFIX(_Z15__thumb_startupv)

and now it works :-).

The downside of this with MQXLite is: I need to repeat this when Processor Expert overwrites that code. To prevent Processor Expert doing this, see this post.

Summary

I’m using C++ with Processor Expert in another project using ColdFire V1. I have found that with the Freescale compiler it is much easier to add C++, mainly because the build tool options pages in CDT/Eclipse are not different between C and C++. But apart of that: it is very well doable with gcc and Kinetis.

I have not tried much of my own components with C++, but I’m confident they will work, or I can quickly make an update if there is interest. For MQXlite I probably have to wait for better C++ support, but with the above tips things are working out good. Not perfect, but good enough.

Happy PlusPlus 🙂
