Flashing with a Button (and a Magic Wand)

In eclipse and CodeWarrior for MCU10 the usual thing I do is:

  1. I have a project in my eclipse workspace
  2. I compile and build it
  3. I download and flash it to the target for debugging

If I need to program another board with the same binary, then I download it to that board too. Fine. But what if I want to skip point 1 and 2? What if I do not have or want a project? All what I have (and need) is a binary file, and I want is to flash that file to my boar. By pressing a button.

No project, just the naked workspace

Eclipse is very project oriented. But with the release of MCU10.2 it is possible: I can program my boards without a project . All what I need is the binary file I want to flash. Really? Well, close. Some setup is still required.

In the following steps I’m using a new and blank workspace. The same thing can be used with projects in the workspace too. Then things are even easier as I can re-use settings. But here I’m going to do the heavy metal stuff naked, without a project, but with a Magic Wand. Actually, it is a Magic Blue Flash Bolt :-).

To start, I use the ‘Flash File To Target‘ menu:

Flash File To Target Menu

Flash File To Target Menu

This gets me the following dialog:

Flash File To Target Dialog

Flash File To Target Dialog

Oh, and here is it: it ask to create a ‘System’….. OMG!

System, Connection, Target or what the ….?

System? Yeah, that’s a very overloaded term (like many others). I would explain an MCU10 ‘System’ as a combination of ‘Connection’ and ‘Target':

  • The ‘Target‘ specifies the CPU used (e.g. MCF51JM128), with its initialization script (if any) and the memory configuration needed (if any).
  • The ‘Connection‘ references a the target, plus it holds the settings how I connect to the target, with the Interface and settings for it, e.g. P&E USB Universal Multilink.

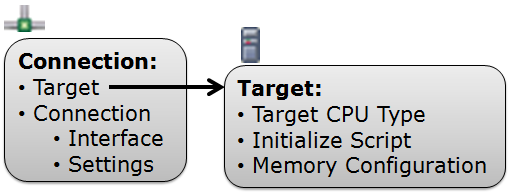

System with Connection and Target

System with Connection and Target

Both the Target and the Connection are listed in the Remote Systems view:

Remote Systems View

Remote Systems View

The Flash File to Target needs a Connection. So we need to create a Connection and a Target.

Creating a Connection

Pressing the ‘New…’ button in the Flash File to Target dialog gives me:

Hardware or Simulator Connection Dialog

Hardware or Simulator Connection Dialog

Ok this is the Connection. Here I can configure the connection settings, and create a new Target.

Creating the Target

To create the ‘Target’, I’m pressing ‘New…’ in the New Connection dialog:

New TARGET Dialog

New TARGET Dialog

This is the Target (don’t get confused by the dialog title!!!). Ok, you are confused. But this is really the Target. Here I specify the CPU (MCF51JM128 in my case). Having this defined, it allows me to change further settings:

New Target with Initialization Part

New Target with Initialization Part

I do not need any Initialization or Memory configuration, so I keep these with the defaults.

Back to the Connection dialog, I choose to use the P&E connection:

Selecting P&E Connection

Selecting P&E Connection

This expands the dialog for the run control specific settings:

New Connection with Run Control Specific Settings

New Connection with Run Control Specific Settings

Now I have my connection and target created from the ground up.

Next I’m browsing for my binary file to be programmed to the board:

Ready to flash the file

Ready to flash the file

The file is an ELF/Dwarf file or an S19 one.

Pressing the ‘Erase and Program’ button does what it says: it does a mass erase of my device and programs it with the file. If I need to erase/protect only part of my device, then Programming part of Flash provides the needed information.

Time to wave the wand (or flash bolt): Progress is reported in a dialog window, and as well in the console view.

Executing flash programming

Executing flash programming

At the end, the dialog closes automatically (why? what if I would like to flash the file again?). The completion of the operation is reported in the Console view:

Flash Programmer Console

Flash Programmer Console

Dissection of what is behind

Ok, things are working. Time to check out what is behind. As there is no project, the settings have to be *somewhere*. I notice that I have an LC for Simple Flash in the list of Launch/Debug configuration:

LC for Simple Flash

LC for Simple Flash

CodeWarrior is using a pseudo ‘Connect’ configuration to store the information.

Note: While this looks like a normal ‘CodeWarrior Connect’ launch configuration, it will not work as such (if I want to use it directly), as it has no project folder associated.

This launch configuration is stored inside the workspace as a normal file:

.metadata\.plugins\org.eclipse.debug.core\.launches\LC for Simple Flash.launch

So while this is not really a normal launch configuration, it is still useful to know about it.


Using the Flash File to Target menu and button makes it really easy to flash a file to the board without the need for a project. Still, for a naked workspace, some settings are required which take a little time to set up. With knowing the things behind, no magic wand is needed, as long as it creates systems, connections, targets or whatever their names might be ;-)

Happy Button Flashing :-)
