The 3D Printed Rugged Enclosure for NXP MCU-Link Debug Probe has been very useful. I wanted to design something similar for the ‘MCU-Link Pro‘ version of that debug probe. There there is already a laser-cut enclosure for the probe itself. I used the same stack-able rugged box for the debug probe plus all the cables.
The MCU-Link Pro is debug probe from NXP. It can run a SEGGER J-Link or NXP LinkServer CMSIS-DAP firmware for debugging. Besides the debugging functionality, the probe includes power and energy measurement capabilities.
The enclosure uses the same concept as for the ‘base’ version of the probe:
- stackable and rugged design
- parts can be printed in different colors
- using FreeCAD (parametric)

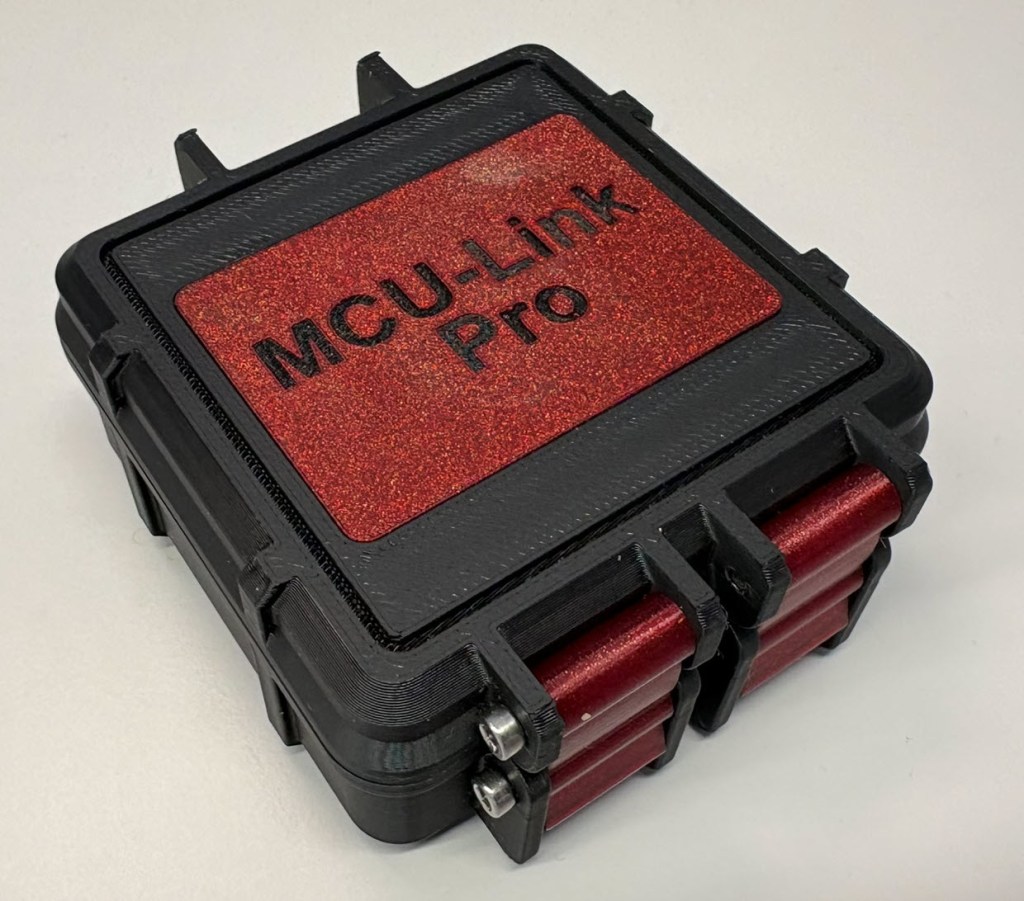

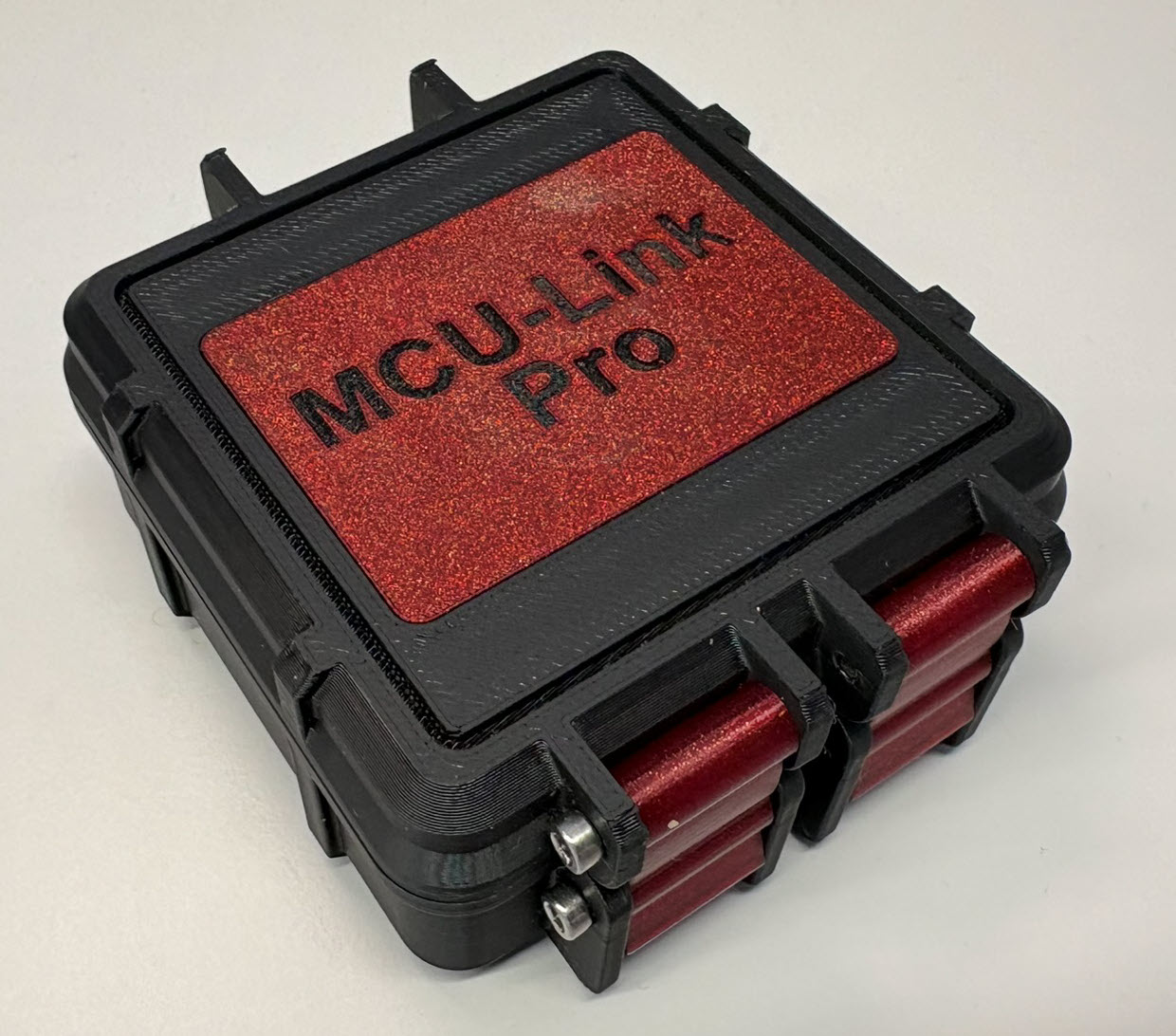

- Cover name plate

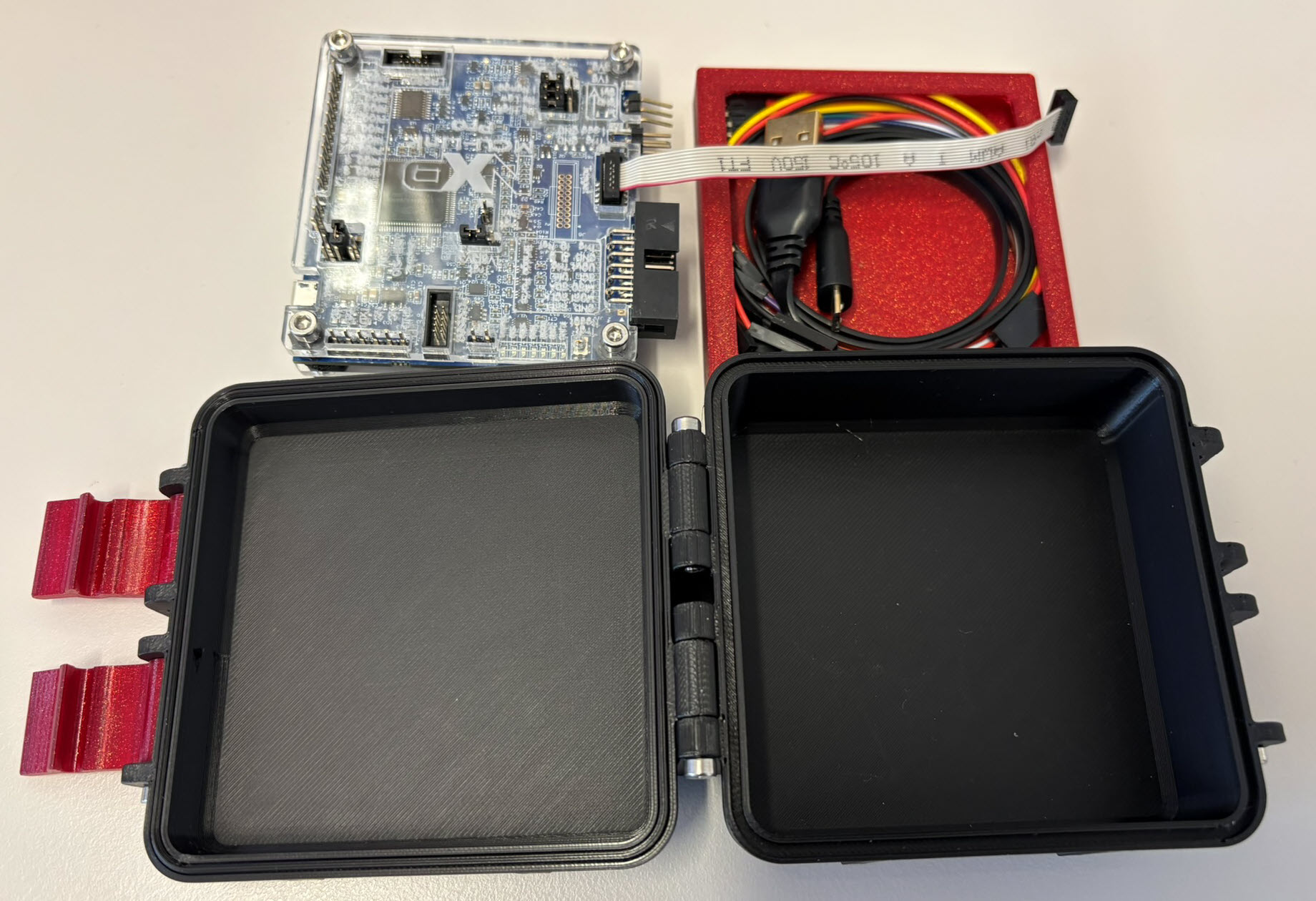

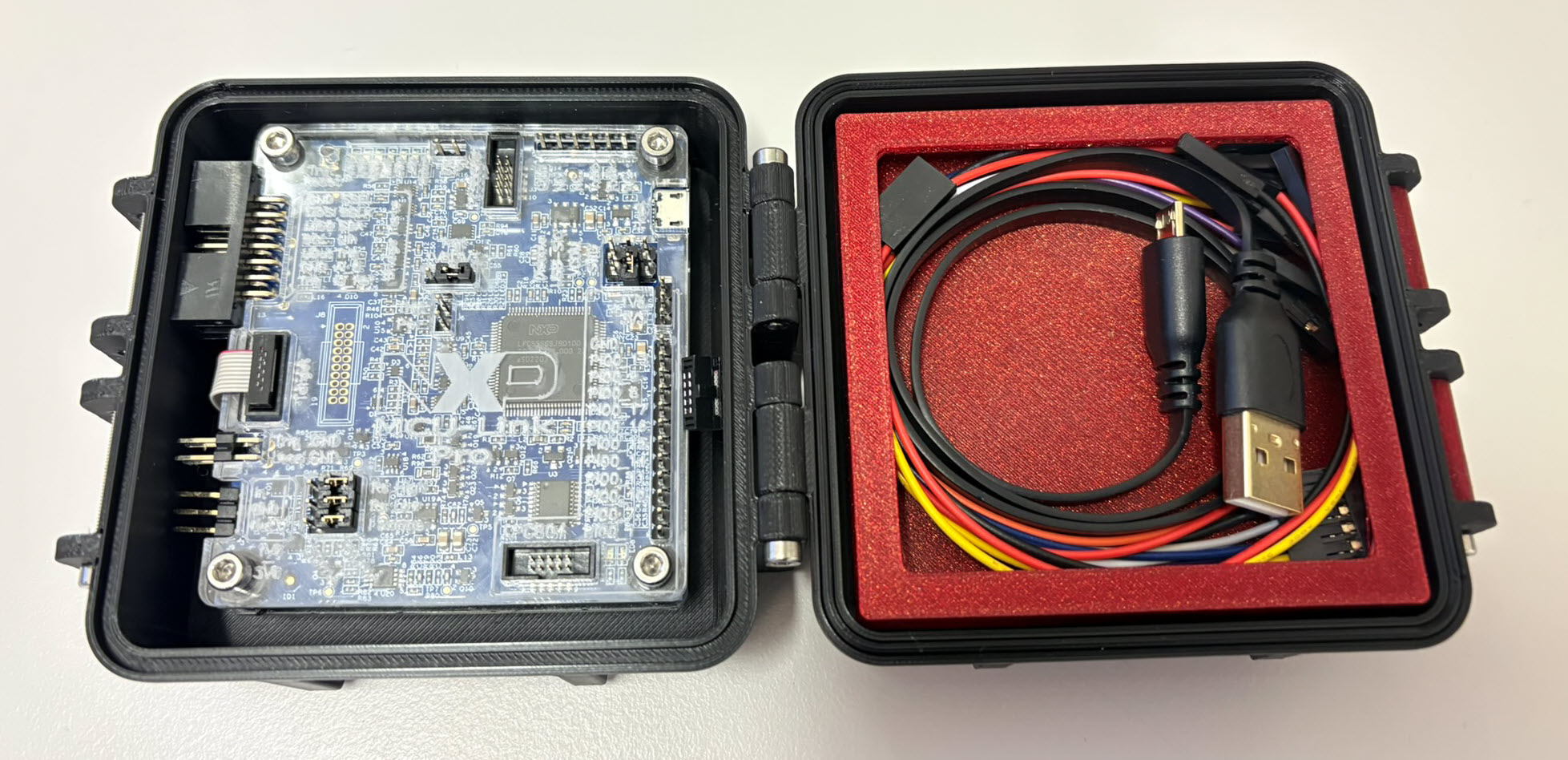

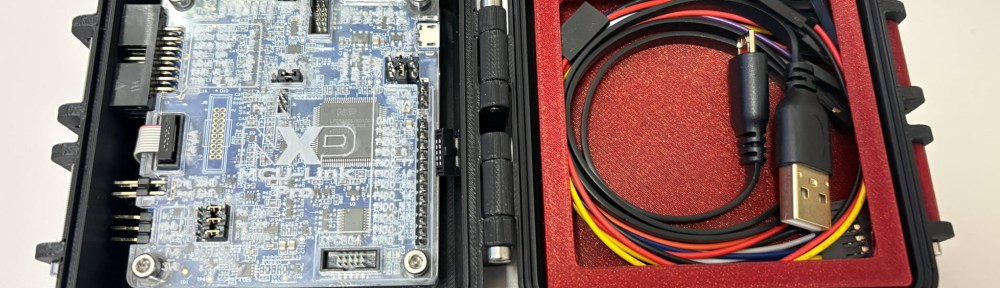

For the cables, there is a dedicated and removable compartment:
That way I have everything in a robust box, with all the needed cables. Files are available on GitHub and Printables.
Happy printing 🙂
