Using a Laser Cutter and Engraver with Cellulose Acetate Sheets

I’m mostly using my 50W laser cutter machine with plywood, simply because that material is available and very inexpensive. I have used it cutting or engraving PMMA (Polymethyl methacrylate or ‘Plexiglas’), simply because that material is more expensive.

From a reader of this blog I received something to experiment with: Cellulose Acetate sheets. Time to experiment with something new ๐Ÿ™‚

Washed off

Washed off

Prior using anything with a laser cutter: check if that material can create any fire hazard or would be dangerous in any way. Checking the specs of Cellulose Acetate indicated that it should be safe to use it. It is not as widely available as PMMA. It is not toxic (at least from my knowledge ๐Ÿ˜‰ and available in different colors or patterns, e.g on Ebay.

From the fellow reader I received three different sheets to make a few experiments, with different thickness:

  1. 4 mm brown color sheet
  2. 6 mm clear color sheet
  3. 8 mm black color sheet

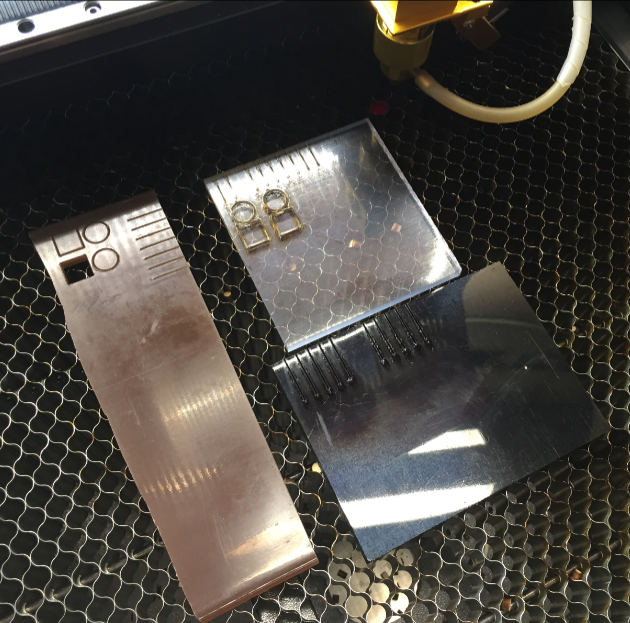

Below the three different kind of sheets in the laser cutter after doing some test cuts:

Cellulose Acetate Sheets in Laser Cutter

Cellulose Acetate Sheets in Laser Cutter

The first thing I observed: Cutting the material with the laser produces more smoke than usual (compared with plywood or PMMA).And it smells kind of strange (I would say it smells like vinegar, probably because of the acetate part).

โ— Warning! That acetic acid vapour probably could damage the machine, as potentially this will rusting metal parts inside the machine. I did not see that (yet), but definitely that could be a result.

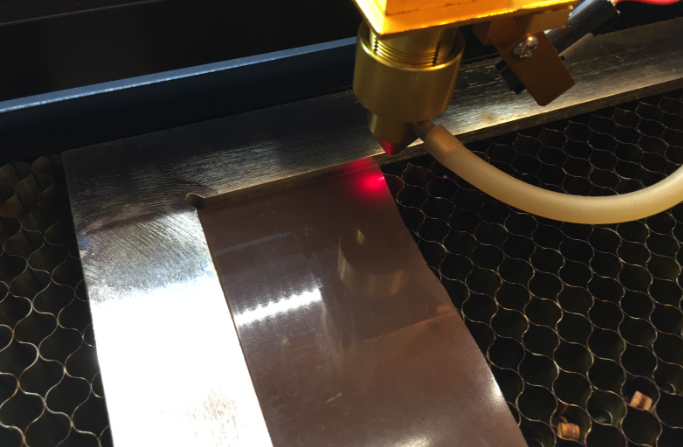

Prepared for test cuts

Prepared for test cuts

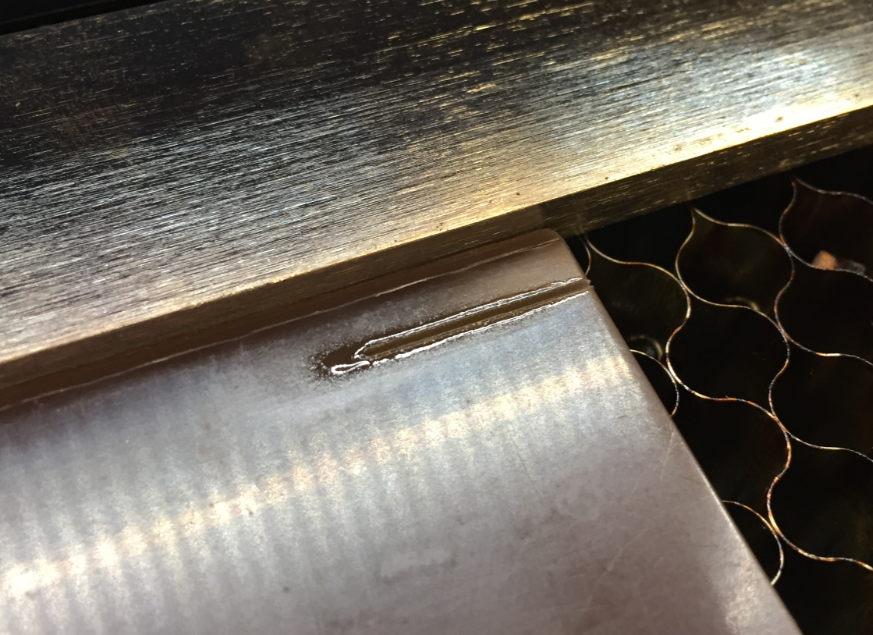

The other thing I noticed that oily residue on the surface (which is not the case for PMMA):

residue

residue

That material can be removed or washed off from the surface, but still stays inside the cutting edges, see transparent sheet pictures below.

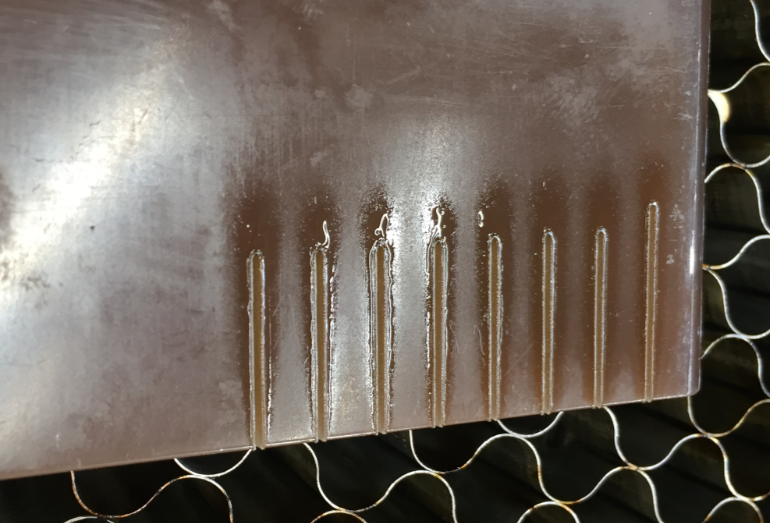

I used a laser speed of 10 mm/sec which is what I use mostly for cutting plywood or PMMA. Below are test cuts on the 4 mm brown sheet, from right to left with 15%, 20%, 25%, 30%, 35%, 40%, 45% and 50% laser power:

Cutting Lines

Cutting Lines

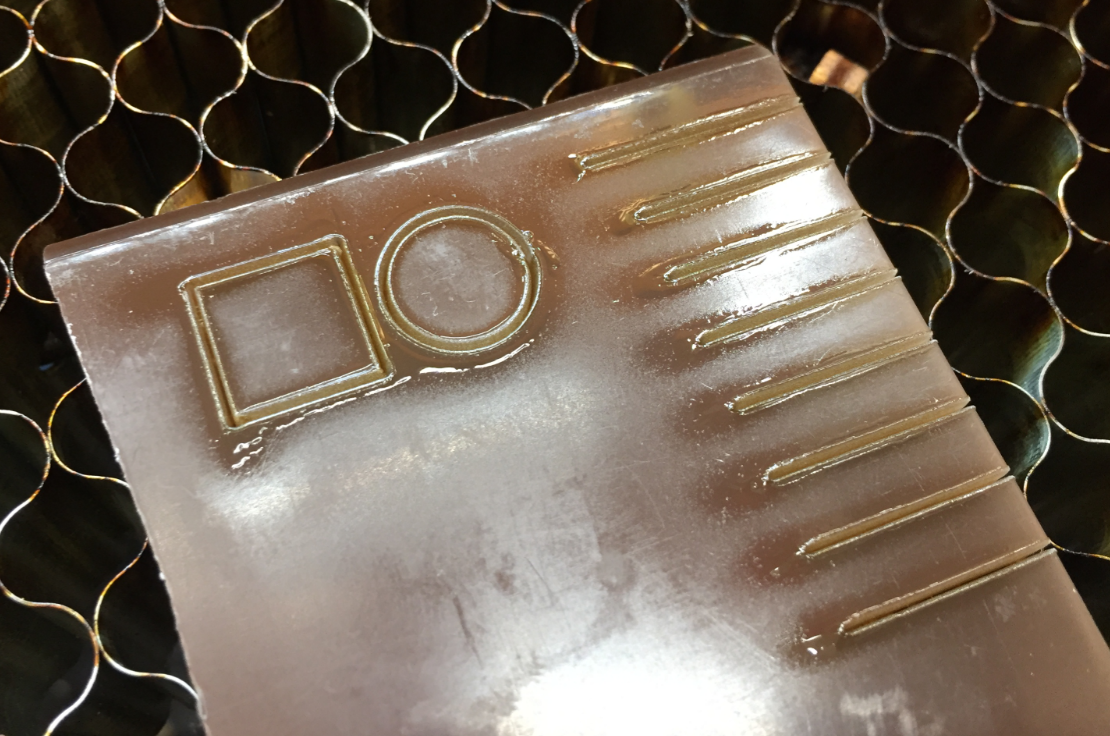

I needed at least 35-40% laser power to cut enough through the 4 mm sheet. this is comparable with PMMA, with the feeling that cutting Cellulose Acetate seems to be a bit harder. But the material did not melt together of cause any problems apart of more smoke and that residue:

Cutting Example

Cutting Example

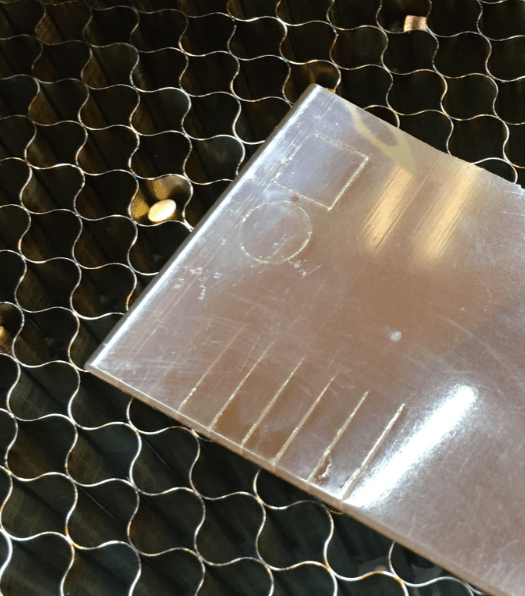

backside of 4 mm sheet

backside of 4 mm sheet

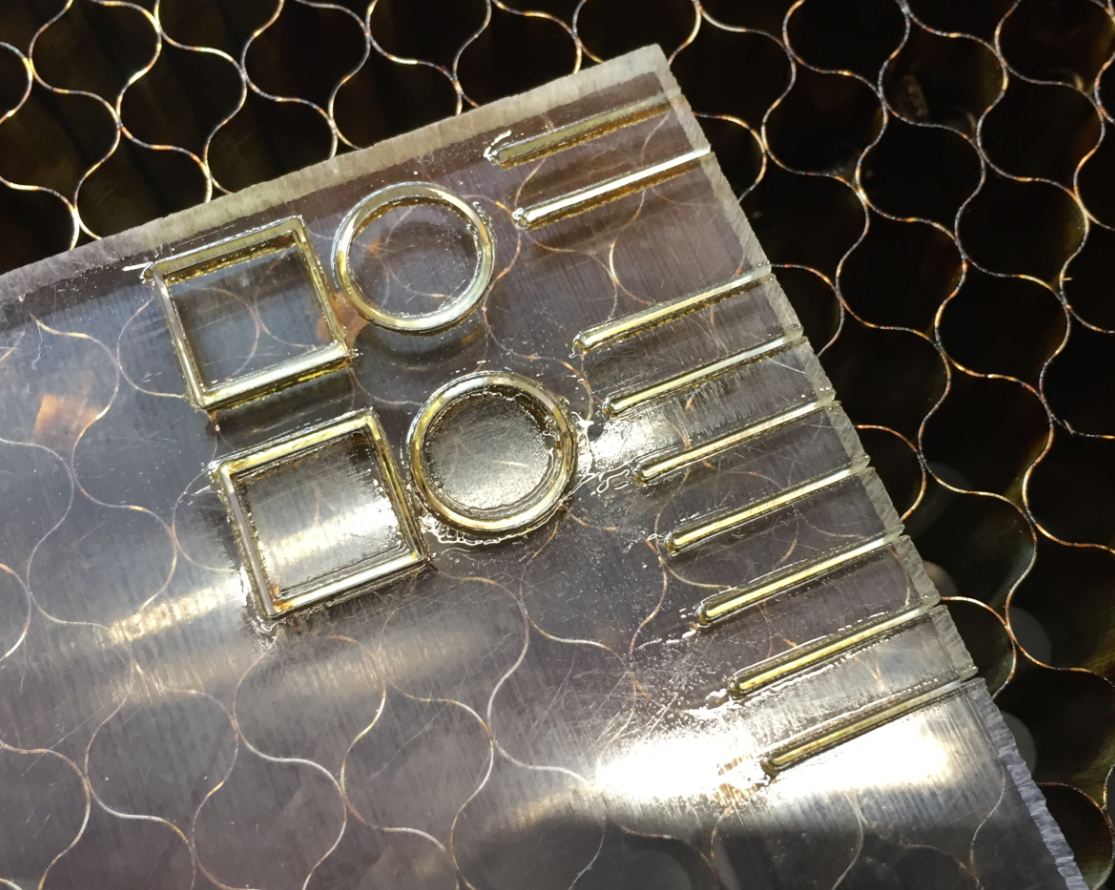

Next I used the clear sheet. Below are test cuts on that 6mm sheet, from right to left with 20%, 25%, 30%, 35%, 40%, 45%, 50%, 55% and 60% laser power. This time, it did not cut through with 60% what it usually does with PMMA. Here again it is a bit harder to cut it. compared to PMMA. And again the process created some residue on the surface:

Residue on clear sheet

Residue on clear sheet

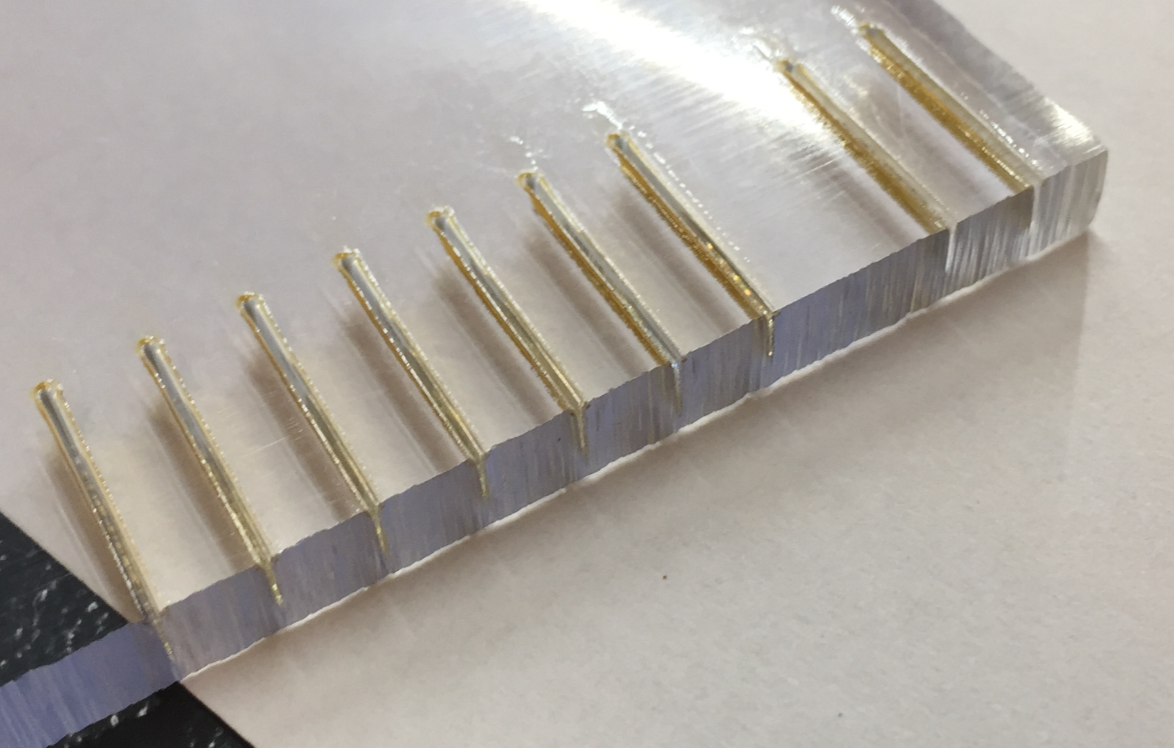

Washing it off removed it from the surface, but not from inside the cuts:

Cutting Clear Sheet

Cutting Clear Sheet

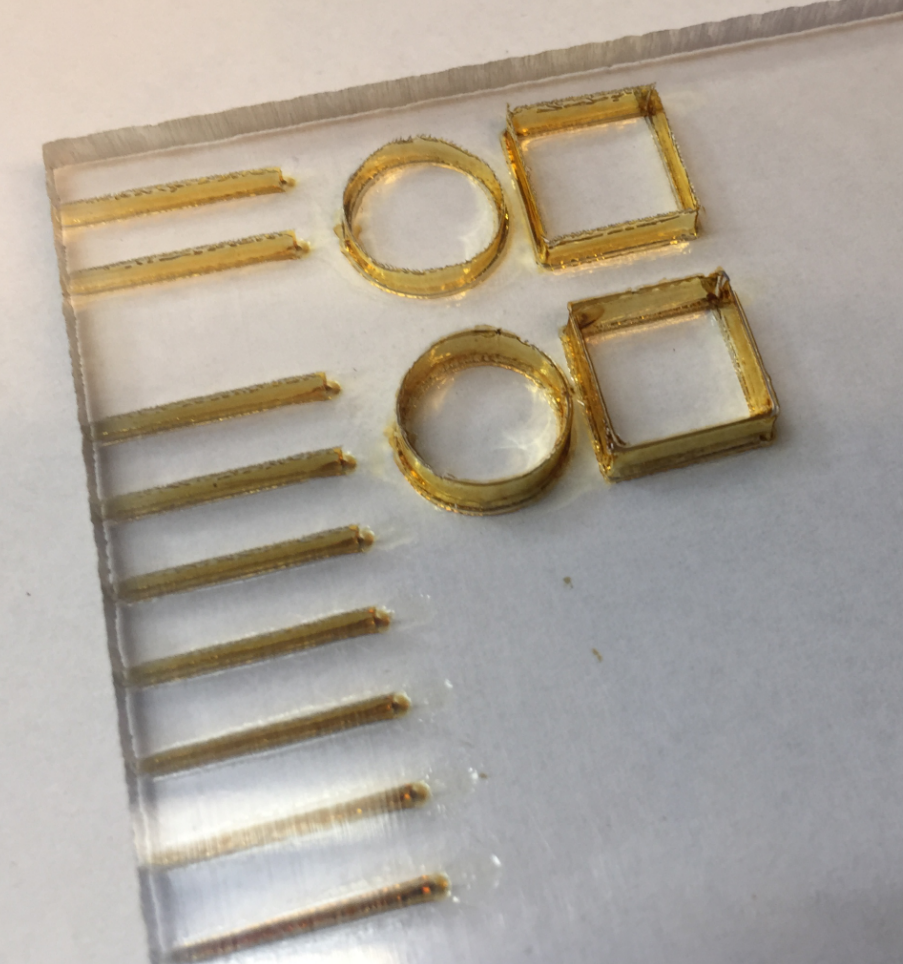

residue inside the cuts

residue inside the cuts

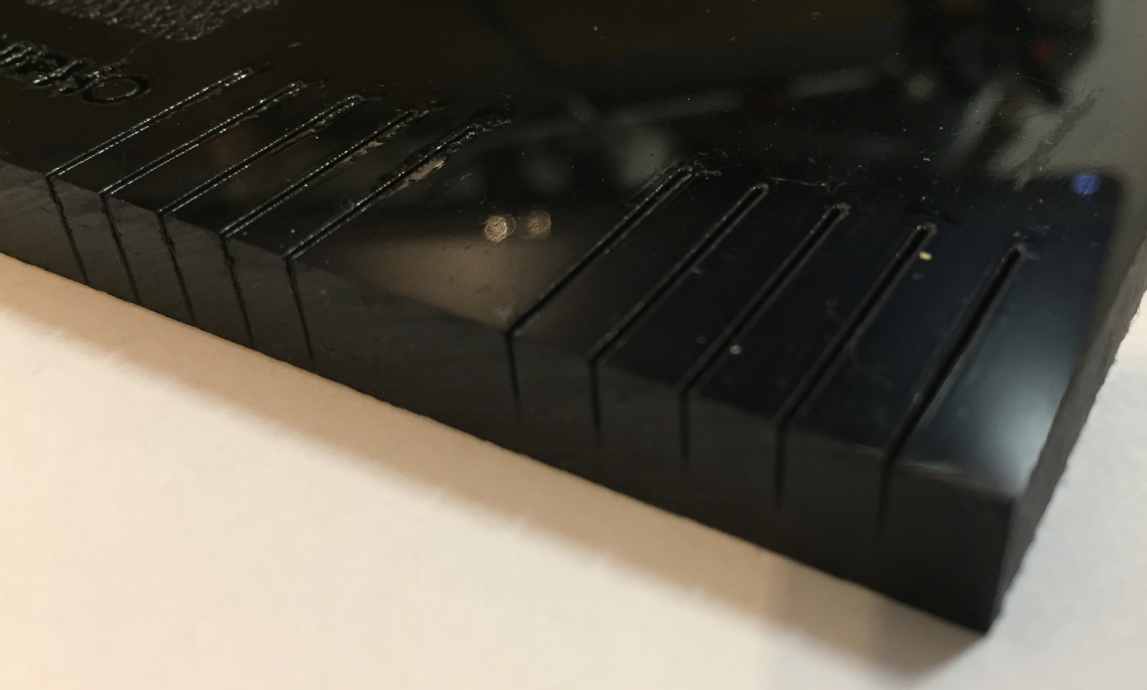

So I did not expect to cut through the 8mm sheet. With lasering the lines twice (5 lines on the left) I was close to get through it, only with a third pass I was able to get through the material.

Curtting 8 mm sheet

cutting 8 mm sheet

The next test was raster an image. I have used the following image (about 20×20 mm):

pattern

pattern

On plywood and PMMA I usually use a laser speed of 150 mm/sec at 2-3% laser power, so I used the same setting.ย To my surprise, it clearly engraved it without any residue. Below a sample on the 4 mm brown sheet:

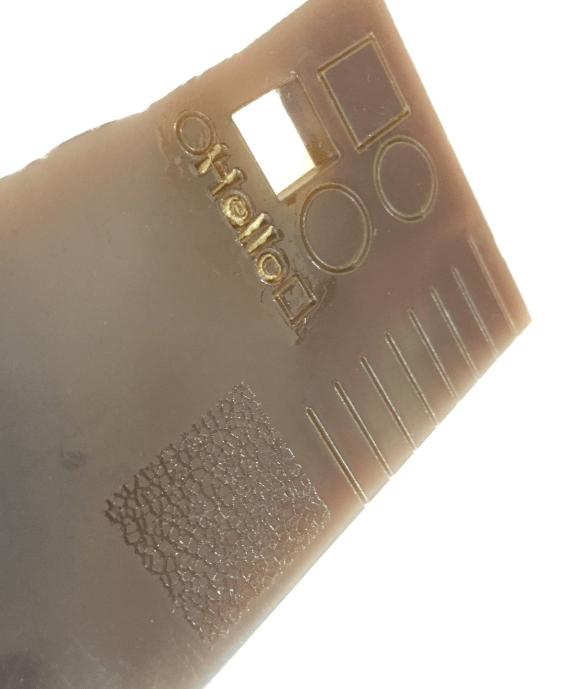

Pattern on 4 mm Cellulose Acetate Sheet

Pattern on 4 mm Cellulose Acetate Sheet

Same thing on the on 8mm:

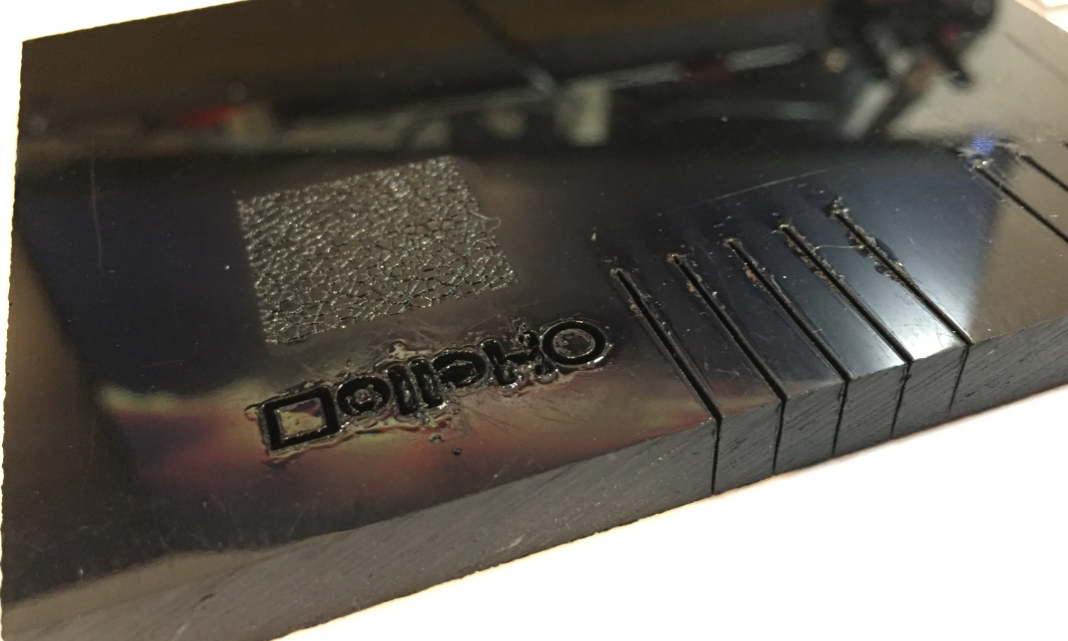

Pattern on 8 mm Cellulose Acetate Sheet

Pattern on 8 mm Cellulose Acetate Sheet

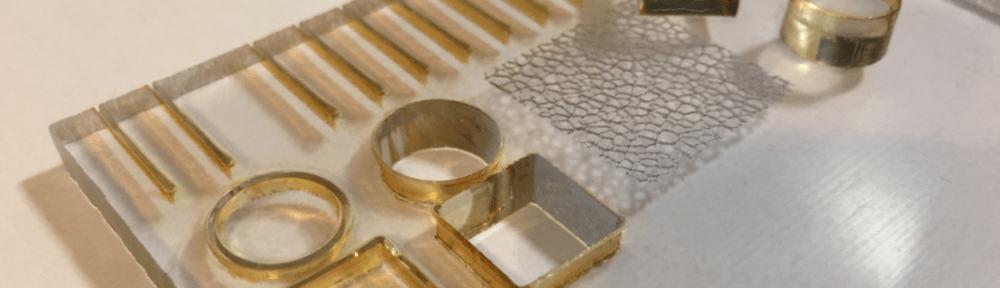

And here the same on the clear 6 mm sheet which shows the difference:

Washed off

Washed off

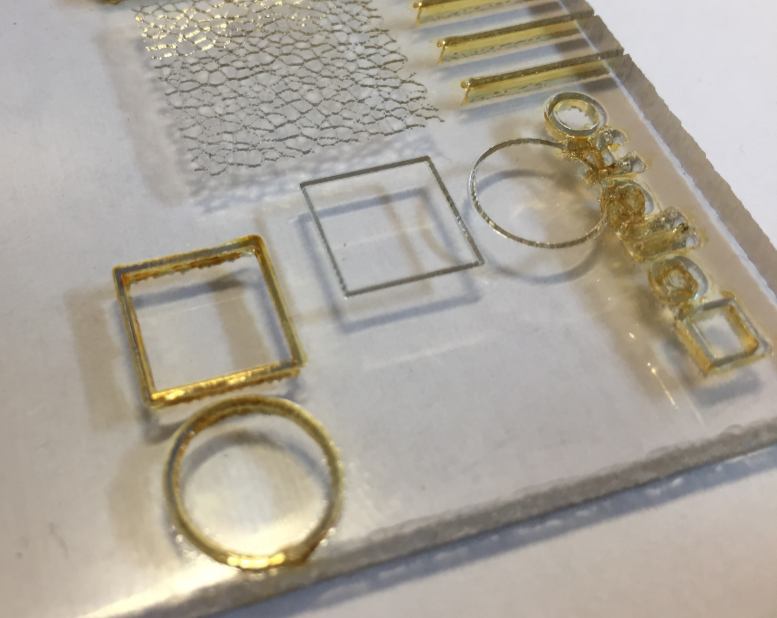

So what I tried is reducing the laser power for the cuts to 3% and using a higher speed (20 mm/sec). And indeed, as you can see with the circle and quadrat in the middle, this works very well. But when I repeated the sameย  several time (lower left corner) to cut deeper, it started to add that residue again.

Cutting with lower power

Cutting with lower power

Summary

Engraving and cutting cellulose acetate sheets with a laser cutter is doable, but not ideal. Compared to PMMA it creates more smoke, smells strange and creates a residue which is hard to remove at least from the cutting area itself. This is especially not nice for clear cellulose acetate sheets, less of an issue with colored ones. So while cellulose acetate sheets can work, PMMA or Plexiglas is a better material for me.

If you have as well experience working with cellulose acetate: I want to know about it, so please post a comment.

Happy Acetating ๐Ÿ™‚
