I have been asked to share what I’m creating with the laser cutter. So here is one more design: a wooden chest box:
Wooden Chest Box
It is made of 4mm plywood, and based on a design on Thingiverse by Lakritis.The original design was for a wedding ring box, but it makes a perfect birthday gift too. I added floral designs from Craftmanspace (http://www.craftsmanspace.com/free-patterns/floral-design-elements.html) (thanks to Scorch for that idea, he used them in his design).
I had to tune the laser cutter settings, as one of the first trials was not so successful:

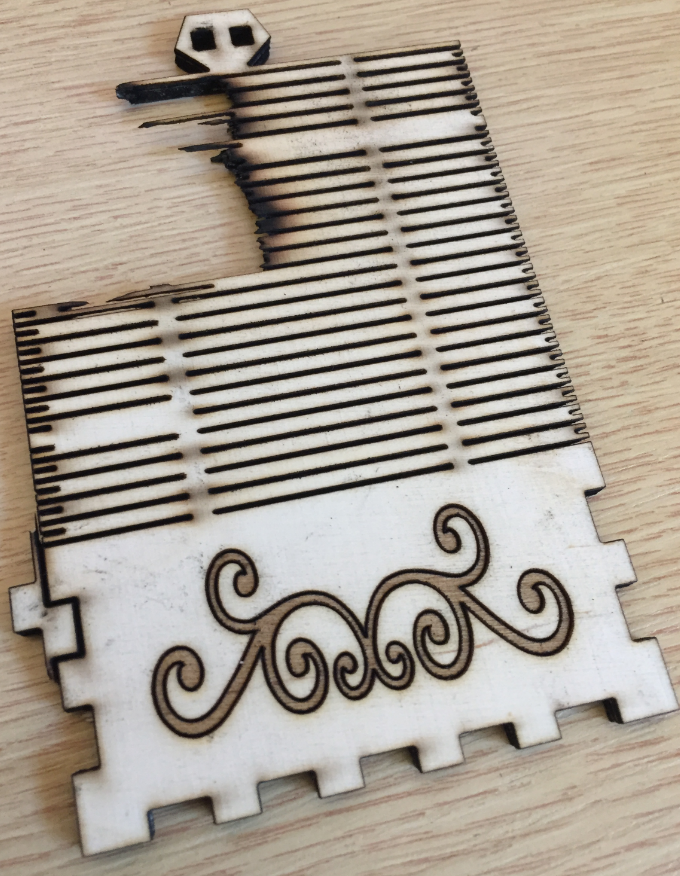

Not so successful
What worked at the end was with the following laser cutter settings in K40 Whisperer using 4 mm plywood:
- Raster Engrave: 2% laser power at 150 mm/sec
- Vector Engrave: 2% laser power at 10 mm/sec
- Vector Cut: 40% laser power at 10 mm/sec
Wooden Chest Box

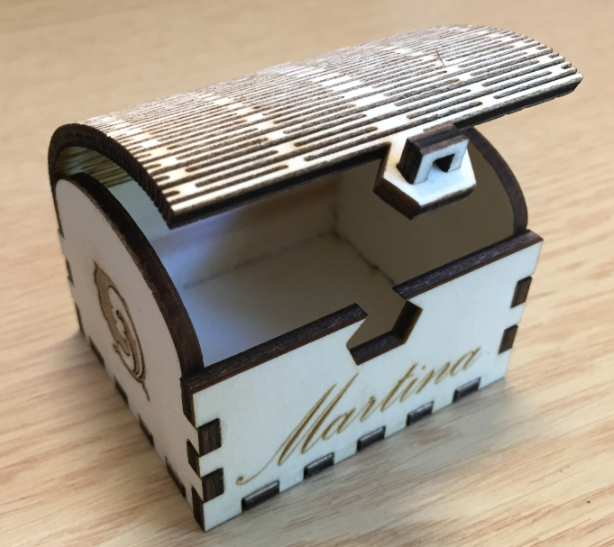

Wooden Chest Box Open

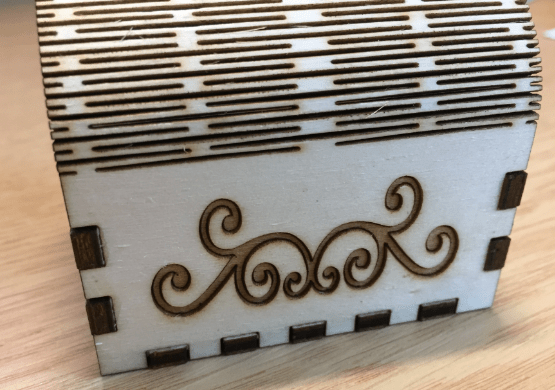

Back Ornament

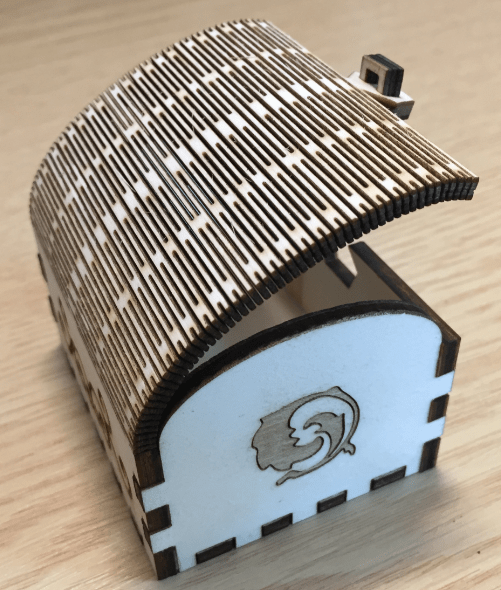

Chest Box Side
Happy Cutting 🙂
