Altium File for Freescale FRDM-K25Z Board

If you are designing your own board for the Freescale FRDM boards, then having the matching PCB design files is a good thing to have. I have posted this week an Altium contribution on GitHub for the FRDM headers (see “FRDM-KL25Z Arduino Headers with Altium“). And here there is yet another contribution I received from [Darren]: the FRDM-KL25Z board in Altium :-):

FRDM-KL25Z in Altium

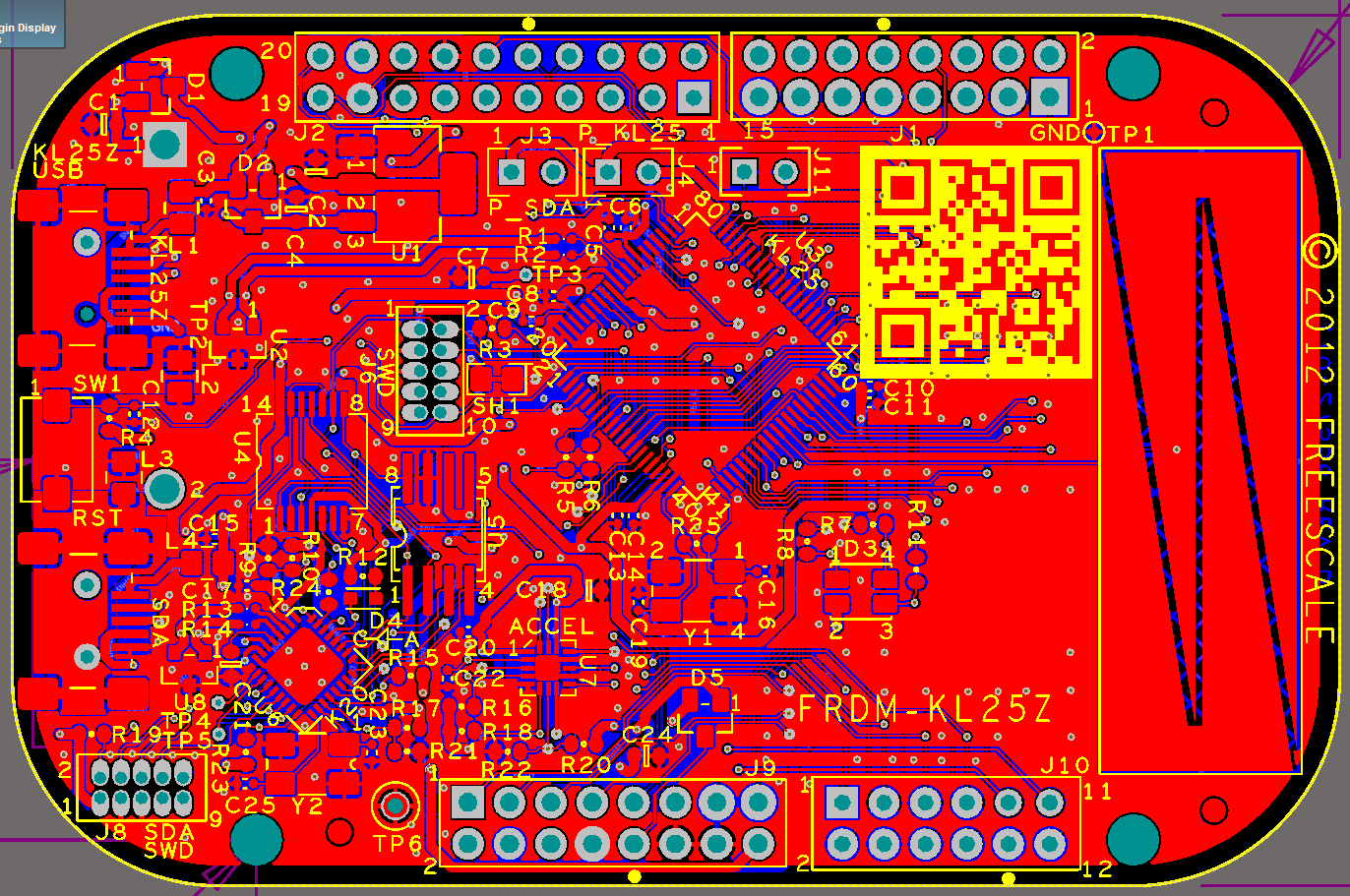

FRDM-KL25Z in Altium

The Altium board file has been created from the Gerber files available online. The file is for the Rev.D revision of the board (the latest revision I know about is Rev.E). As always with importing CAD files, there might be broken nets/shorts, etc: So be warned: it is provided ‘as is’, with no warranty. Be free to improve/fix things and contribute back :-).

But it should give you a good start to design your own boards for the Freescale FRDM boards. The Altium files are available on GitHub here: https://github.com/ErichStyger/mcuoneclipse/tree/master/Altium

Thanks [Darren]!

Happy Altiuming 🙂
