Sumo Robot Sensor Shield

The PCB’s for the Sumo robot (see “New Sumo Robot Assembled, and looking good!“) arrived. It is the ‘production’ version of that shield I have shown in “Sensor and Communication Shield for Sumo Robot” which adds following to the robot:

  1. Ultrasonic module
  2. Bluetooth module
  3. nRF24L01+ module
  4. I2C I/O Expander for 8 extra I/Os
  5. One general purpose I/O header
  6. One general purpose I2C header
  7. Up to 6 infrared distance sensors
Sensor Shield

Sensor Shield

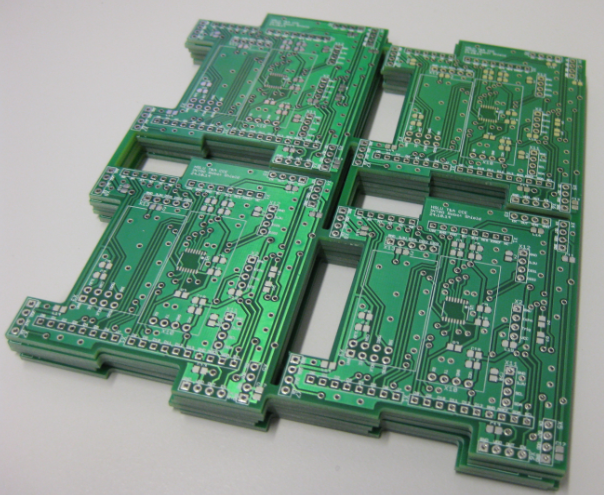

The boards came in pieces of four boards together (was less expensive :-)):

Unpopulated Shield Boards

Unpopulated Shield Boards

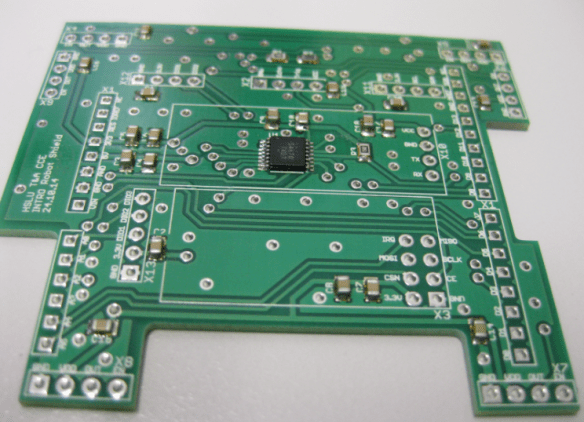

With SMD components populated with the NXP PCA9554:

SMD Components Populated

SMD Components Populated

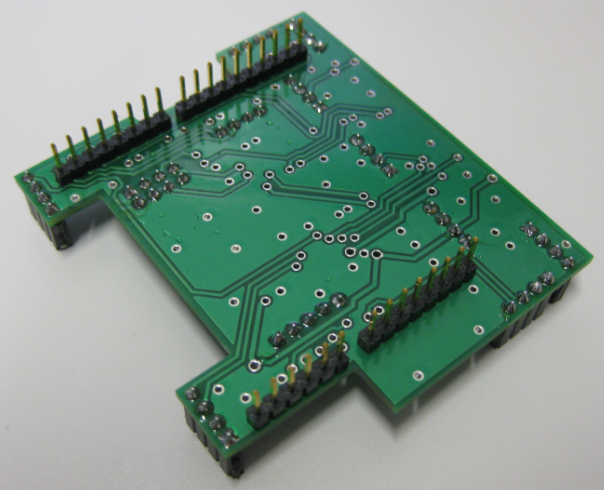

Sensor Shield bottom side:

Sensor Shield Back Side

Sensor Shield Back Side

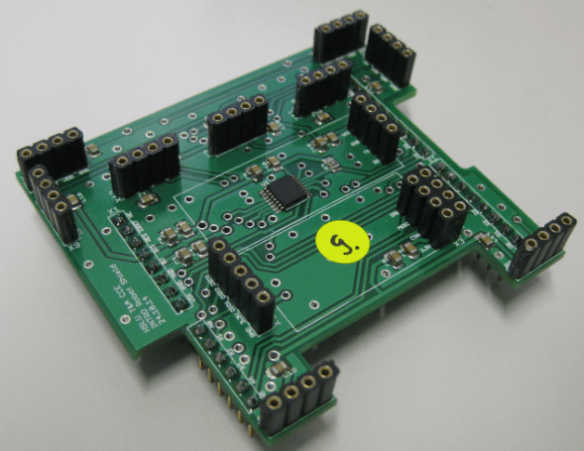

Sensor Shield top side:

Sensor Shield Top Side

Sensor Shield Top Side

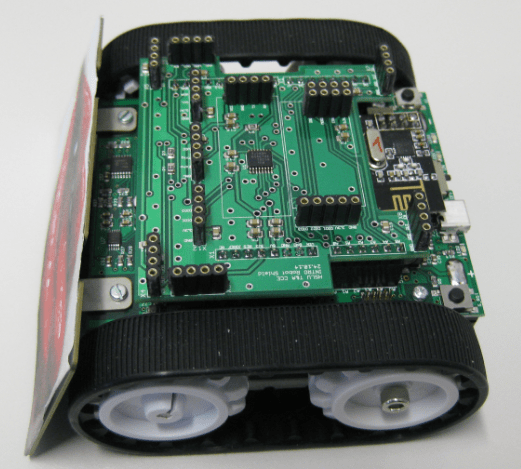

With headers populated and mounted on Sumo robot:

Sensor Shield with Headers on Robot

Sensor Shield with Headers on Robot

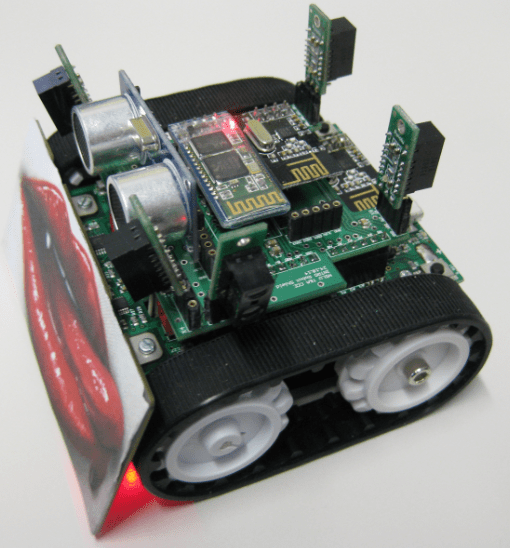

With Ultrasonic module, Bluetooth, nRF24L01+ transceiver and infrared distance sensors:

Sensor Shield with Bluetooth, nRF24L01+, Ultrasonic and Infrared Distance Sensors

Sensor Shield with Bluetooth, nRF24L01+, Ultrasonic and Infrared Distance Sensors

Happy Shielding 🙂
