Sharing Debug Configuration with Eclipse

Maybe you had this problem too: you shared a project with somebody, only to realize that your carefully crafted debug configuration was not shared?

Eclipse has the concept to store settings in the ‘framework’. The ‘framework’ is the Eclipse internal data, basically what is inside the .metadata folder of the workspace.

metadata folder in workspace

metadata folder in workspace

If I create a debug configuration for a project, then by default Eclipse stores it in the ‘framework’ (workspace data). This means that the debug configuration is *not* stored in the project settings: If I zip that project or share it with a version control system, then the debug configuration is *not* shared. In order to share the debug configuration, it needs to be stored in a physical file.

Sharing Debug Configuration File

For this, I need to enable ‘Shared file’ in the ‘Common’ tab of the debug configuration:

Shared Debug Configuration

Shared Debug Configuration

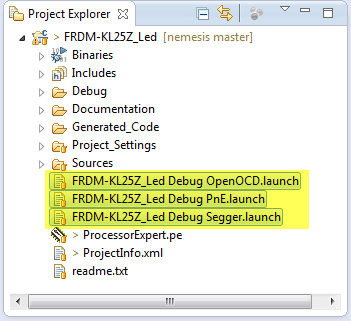

If I have multiple debug connections for my project, then the settings for each are stored in a separate .launch file:

Launch Configuration Files in Project

Launch Configuration Files in Project

If now I share the project, and that project gets opened with the .launch files, then the debug configurations will show up. đŸ™‚


To share debug (or launch) configurations with my project, then I need to enable ‘Shared file’ in the configuration: that way the configuration gets stored in a file inside the project.

Happy Sharing đŸ™‚

13 thoughts on “Sharing Debug Configuration with Eclipse

  1. A note of caution for those using this interesting feature (already documented in the plug-ins documentation: be sure you do not enter absolute paths in the debugging configuration, otherwise the shared files will not be portable.

    In order to make portability easier, I just applied a small change to the debug plug-ins, to set the working directory of the gdb server and gdb client processes to the project folder. This will allow to use relative paths to configuration files stored in the project folder. This feature will be available in the next release.


    • Hi Liviu,
      I did not specify an absolute path. Or are you saying an absolute path was used inside? What is currently the working directory of the gdb server/client process? The path where the executable is?
