Refilling the non-refillable Miele AutoDos Dishwasher Automatic Detergent Dispensing Disks

Posted on by

Did you know that modern (dish) washing machines have the ability to automatically dispense detergents? The positive side is: this can reduce the amount of detergents used. The machine will monitor the washing process, and ‘cleaner’ dishes should require less detergents.

Our new energy Miele Dishwasher came with that exact feature: the Miele AutoDos System, an automatic detergent dispensing system. The detergent is inside a rotating disk, dispensing detergents as needed, making it (hopefully) more environment-friendly:

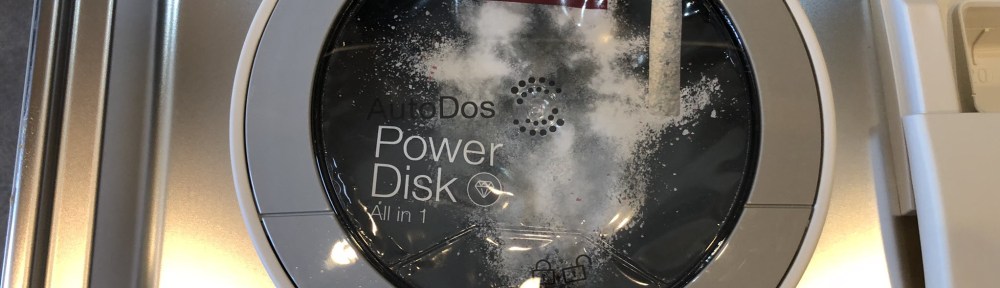

Miele AutoDos Power Disk in Miele Dishwasher

The downside is: Miele did not make it refillable: after around 20 washing cycles, you have to replace the disk with a new one. This is not environment friendly. So I wanted to change this….

Why a new dish washer?

Energy prices are on the rise in Europe and everywhere else this year. Already last year we planned a kitchen upgrade which we finished in May this year. One goal was to replace the aged kitchen appliances and furniture, with the benefit of reducing energy consumption. Measurements so far shows that we were able to reduce our electrical energy consumption in the 30% range which is a big plus these days. And because the new Miele G 27695-60 SCVi XXL AutoD K2O dish washer features a ‘SolarSpar’ program. This needs only around 60 Wh for a single washing cycle: it uses directly the hot water from the solar heating system.

However, there was one thing I was very skeptical about: AutoDos: a cartridge system/disk which is used to dispense the washing detergent. The machine comes with one cartridge plus with a voucher for 6 extra disks:

Miele dishwasher (source: http://www.miele.ch)

Is that really a good thing? Is this just a new business for Miele, similar to the ‘Ink Gold’ of the Ink printer business?

Miele AutoDos Power Disk

The good news is: the machine still can use the ‘usual’ dish washer detergent. So one can still use normal dishwasher tabs or dishwasher powder detergents:

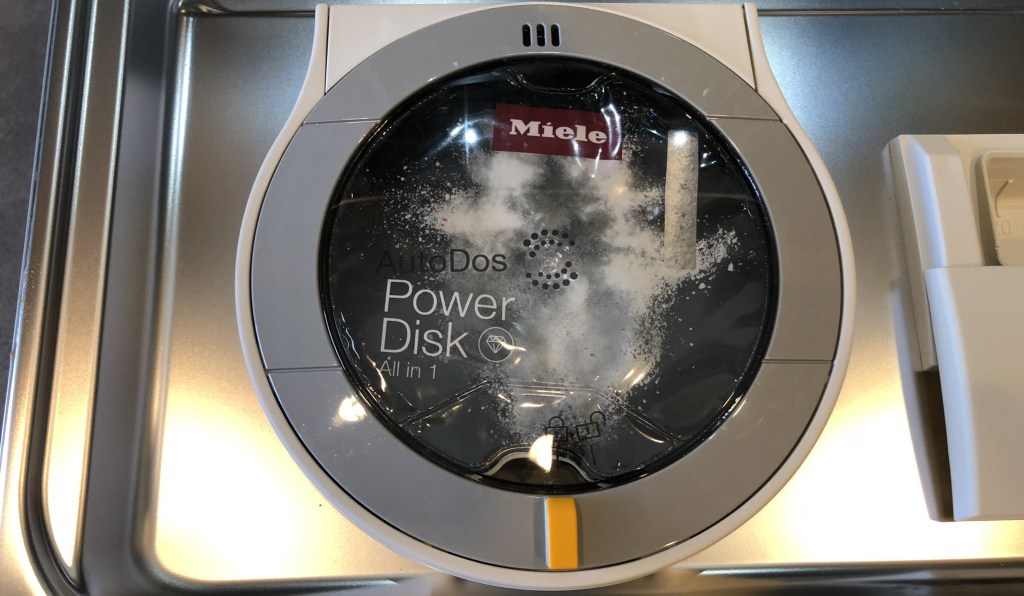

Miele Dishwasher with installed AutoDos

AutoDos

So from a customer point of view: I have the choice, what I want to use. That’s good. One AutoDos disk lasts for around 20 washing cycles, depending on the amount of detergents the machine decides to use.

The machine uses a clever way of dispensing the detergent itself. Below a video of Miele which shows the dispensing with the rotating disk:

For each washing cycle, I can decide to use the AutoDos (if disk is present an detected) or not. For a month, we used both AutoDos and normal detergent tabls, and the results were equally and very good. Only for the ‘SolarSpar’ program we had to extend the drying time, and it is by far the most energy efficient way to clean the dishes.

Price of AutoDos Disks

The AutoDos disks are sold by Miele directly, and a 6-pack of disks is rather expensive with US$ 70:

Miele AutoDos Powerdisk Set Prices (Source: http://www.miele.ch)

Each disk contains around 400 g detergent power:

Weight of a Miele PowerDisk

In comparison: 1 kg of usual dishwasher powder costs around CHF 7.00:

‘Handymatic’

What about refilling the Power Disk?

Miele says the cartridge is made of recycled plastic, but “it cannot be refilled because the powder consistency is too critical” (heise.de). I understand this for sure has an impact, but maybe they just want to create a new and profitable business? To me, the usual disk washing powder looks very similar to the one used in the disks:

Normal dishwasher detergent powder (Handymatic)

I really like the concept of automatic detergent dispensing. But not be able to refill it does not make any sense? So just let’s try it.

Refilling

The idea is to cut a hole and to refill the disk with standard dish-washing powder.

💡 Be aware that this might void the warranty of your Miele dish washer.

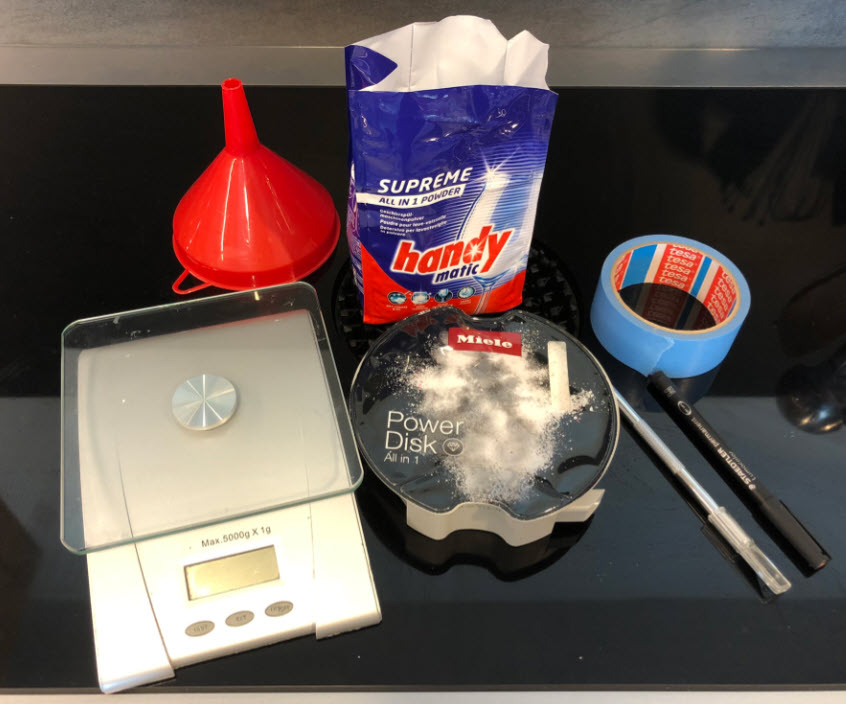

What I have used:

  • Empty Miele Power Disk to refill
  • A sharp knife to make a hole into the disk
  • Masking tape to close the hole
  • Dish washer detergent powder for refilling
  • Funnel for easier refilling
  • Pen for marking the hole
  • Scale, to measure 400 g of detergent

The amount of detergent used in the machine is defined by the chamber inside the disk. I use the weighting scale to fill it up to the 400 g, but that does not really matter. An empty disk is about 40 g:

Weight of empty PowerDisk

Because the disk still might have some detergent in it, I recommend to seal the opening with a masking tape: This prevents the falling out of the detergent during refilling.

PowerDisk Dispensing Opening
Closed Opening

💡 my first idea was to refill the disk using that opening hole: but this requires turning the disk, which makes it complicated and a long process.

Use a pen to mark the hole for the funnel:

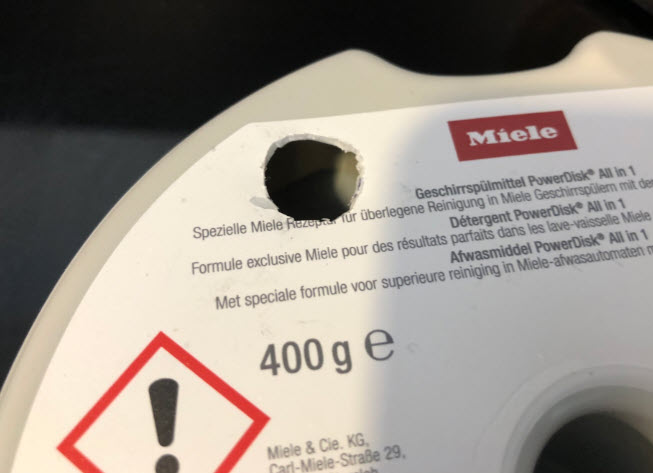

Use a drill or knife to create a hole for the funnel:

The hole should be just large enough for the funnel:

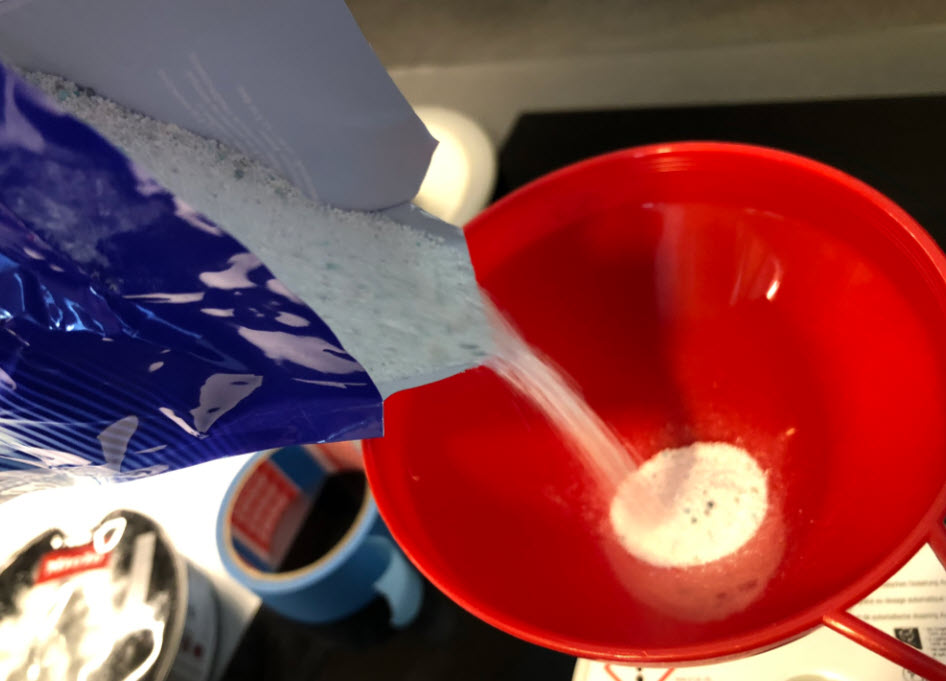

Use the funnel to fill in about 400 g of detergent:

Using a funnel to fill the disk

Vibrate/shake the disk gently to fill the 400 g, then remove the funnel. It should be filled up like this:

Close the hole with masking tape:

Closed the hole with masking tape

Remove the masking tape from the dispensing hole:

Finally, insert the refilled disk into the dish washer:

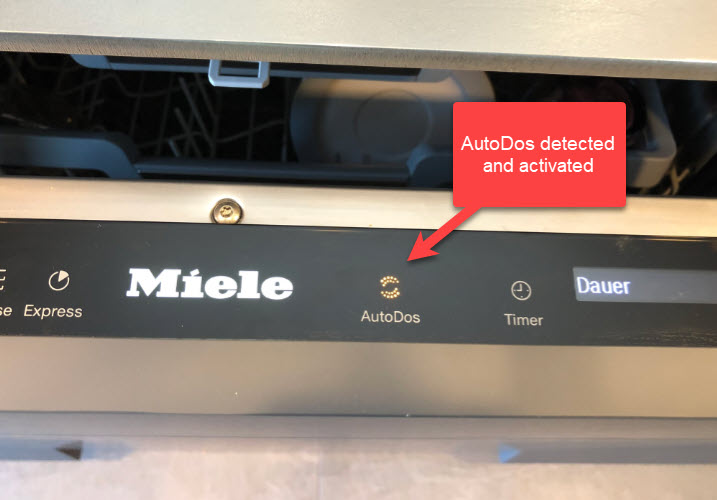

The machine automatically turns and detects the refilled disk, and AutoDos is detected and activated:

That’s it: the dish washer is able now to dispense for another ~20 cycles with a refilled disk. 🙂

Summary

I really like the concept of automatic detergent dispensing system. The rotating disk is a clever thing. But why not making the disk refillable? That would reduce waste and makes it less expensive. With the current way, it looks like just a way to sell overpriced dish-washing detergents. But at least Miele kept the ‘old’ way, so you don’t have to use it.

Or: I showed how to refill the Miele AutoDos Power Disks: that way I can safe money and still benefit from the automatic detergent dispensing. So far I did not notice any difference with a refilled disk. I have to see over the next weeks and months, but I expect it to work perfectly. Otherwise I’ll post an update for sure…

Update 1-Jul-22: today, the first refilled PowerDisk was empty. Refilled it again, and ready for the second cycle.
Update 9-Oct-22: already filled the first disk 3 times without any issues. The only thing is that about two months the powder channel down the door to the bottom area (where the powder goes into the machine) needs to be flushed with glass of water. I think this is something I would have to do with the original PowerDisks too.

Happy refilling 🙂

Links

68 thoughts on “Refilling the non-refillable Miele AutoDos Dishwasher Automatic Detergent Dispensing Disks”

  2. Hi Erich, Automatic detergent dispensing based on how dirty the dishes are is not new, I was taught how to do this as a kid, Sometimes the drying unit would return the dirty dishes if the washing unit failed to completely clean them :}

    I guess the chip will be in the next model.

    Nice hack, BTW.

    Liked by 1 person

    Reply ↓

  3. Amazing, there is no chip inside to force you to throw it away.
    I’m looking at my Pantum laser printer to figure out how to reset the page counter chip on the toner cartidges. I have a remanufactured cartridge with an STM8 chip instead of the manufacturers epoxy blob, so I have a pretty good chance of figuring it out, I think!

    Liked by 1 person

    Reply ↓

    • yes, luckily they did not add such a chip or electronics to count the cycles. As far as I can tell: the disk is supposed to dispense an exact amount of detergent for every turn, and it knows the number of turns of course. It knows as well if the door is open or closed (reed contact), but otherwise I did not see anything. That’s why I filled it up to the same amount (maybe a bit more would be better) so it does not run out too early.
      As for your Pantum laser printer: yes, this is a pain, same thing with ink-jet modules which have a chip inside it. 3D printing material started with this too, and I don’t like it.

      Like

      Reply ↓

    • I bought a cartridge reset when I got the ink for refills. Some online website, the type that Canon&friends keep closing down and they pop back up under another name.

      Like

      Reply ↓

  4. Erich, we tried this (with refill hole cut into the side of the disk and covered with duct tape when through). It worked for the first dishwasher run, but wouldn’t recognize the auto-dos disk for the 2nd try. Did our dishwasher figure out we weren’t buying new disks? Any suggestions to get it to accept the refilled disk?

    Liked by 1 person

    Reply ↓

    • Hi Sara,
      just a few days ago I have refilled my first disk the 3rd time. No issues at all to recognize it, and worked perfectly. There was only at the end of the 2nd refill a message about ‘cleaning’ it (don’t remember the exact message): Below the disk down to the door (inside, where the powder goes down) there was a bit of powder inside the tunnel: used a glass of water to wash it out and it was fine. I was always wondering how the system knows if the disk is empty or not: I thought there must be some kind of sensor down that tunnel: if no powder comes down, it must be empty.
      Now you say you cut a hole on the side? This let me believe that there might be some sensor on the side (capacitive, maybe?) to sense the amount of detergent in the disk. So if you have cut the hole on the side, this might be what you are running into. So I recommend to make the hole on the bottom. I saw some others who did make the hole on the top, but there you have the issue that the plastic is thin and you have to be careful not to damage it too much.
      Can you try a new disk with the hole on the bottom side?

      Like

      Reply ↓

  5. I can put an AutoDos disk in the recycle garbage buy it will end up in a landfill. Recyclers in China don’t want weird things make of multiple different plastics!

    Clear plastics like water bottles and juice cartons are likely to be recycled.

    When talking about plastic recycling, there is a big difference between “can be recycled” and “will be recycled”.

    Liked by 1 person

    Reply ↓

    • This really depends on the recycle infrastructure in your country. As for Switzerland, there are special collection points which take the plastic. They do shred them into pieces, then separate them and recycle the as much as possible. The parts which are not recyclable then get burned in special facilities and create heat for industrial processes or general heating of buildings. See https://www.bafu.admin.ch/bafu/en/home/topics/waste/guide-to-waste-a-z/plastics.html for details. But this is not at the same level for each country in the world. So in essence it is the best to avoid using plastics at all, and if it is used, to re-use it as many times as possible. And at the end use a proper recycling process.

      Like

      Reply ↓

  6. Hey Miele PowerDisk Friends!

    Thanks for sharing your experience!
    This Guide inspired me do some extra work.
    Maybe Miele want to do some extra Profit like Epson with there printer ink 🙂

    For 3D Printers i created two Plugs.One for the 15mm Hole, where you fillin the Powder and a other Plug, so that the Powder stay enclosed.

    Here are the links:
    http://www.thingiverse.com/thing:5556225
    http://www.thingiverse.com/thing:5556276

    happy printing

    Liked by 1 person

    Reply ↓

  7. I have a Miele clothes washer with auto dos. I very quickly learned that this was an expensive way to add detergent. Luckily, Miele sell the container so you dan run a cleaning cycle on the auto dos system, they have a sealable lid so it is easy to fill with detergent and fabric softener. The Miele washer actually allows you to change the auto dos operation to allow for this. I am thinking of new dishwasher soon and like the idea of auto dos, but as seen it is expensive and wasteful of plastic. A refillable auto dos makes sense and Miele should recognize this and stop trying to employ expensive and wasteful systems to make extra income. By supporting refillable auto dos they would sell more machines and make the extra income that way.

    Liked by 1 person

    Reply ↓

    • Hi Bill,
      I 100% agree with you: a refillable container makes much more sense.
      As for my dishwasher, I’m alternating two containers I refill, so I always have one ready when one gets empty. I have refilled them now more than 10 times, and no real issue at all. I had once a message asking me to do a ‘cleaning’ maintenance of the area where the powder falls down into the machine. I think this is normal for using the prefilled ones, and the maintenance procedure is described by Miele too: simply remove a cover, then brush the inside to get any stuck detergents out of the channel, that’s it.

      Like

      Reply ↓

    • Hi Luke,
      the reason is that the front foil is very fragile and tends to ‘break’ after cutting. I have seen another post on that subject where they recommend to melt/burn the hole border. Using a hole on the back is much more solid and robust, plus it easily can hold a funnel.
      I hope that makes sense?

      Like

      Reply ↓

      • If you look at the pictures uploaded with the design on Thingiverse, you’ll see one photo of a PowerDisk with a section of the plastic film cut out to expose the white retainer contained inside.

        Like

        Reply ↓

        • The retainer moves internally, controlling whether powder can escape from the internal cavity and through to the dispensing hole.

          Once removed, the funnel can be inserted and the internal opening to the cavity is exposed allowing powder to flow from the funnel into the cavity of the disc.

          After the disc is refilled, you simply reinsert the retainer fully which again obstructs the internal opening to the cavity preventing powder from escaping until inserted into the dishwasher.

          When the refilled disc is inserted into the dishwasher, there are two tabs that align to move the retainer enough to expose the internal opening allowing powder to flow through the dispensing hole as part of the dishwashers operation.

          Liked by 1 person

  10. Hi Erich,

    how does your hack work in the long run? We just got a new Miele dishwasher and I love the autodos system but the costs of the discs is just absurd…

    Liked by 1 person

    Reply ↓

    • It worked 100%. It is in use for nearly a year by now. I’m using two disks (alternating them), so I can swap in the filled one and have some time to refill the empty one.
      In that time, I only had to flush the channel once with water inside the machine (from the disk down to the bottom area) where the powder goes down into the machine.
      But that seems to be normal and happens for the original disks too, because some moisture can be present in that funnel/channel.
      Overall, the AutoDos is a great thing to me. But only with the possibility to refill it as shown in this article makes it perfect: I can use inexpensive dishwasher powder (saves money) and I help the environment (less detergent, less plastic).

      Like

      Reply ↓

    • Such a plug won’t work on the back side, because it needs to be flat. There would be some space on the side, but the side is curved and won’t provide a flat surface for the plug, although it could work. To me, the tape solution is still the best and least expensive one. There is another approach opening the front (see comments section).

      Like

      Reply ↓

  12. Very interesting. Nice job.
    But when I asked a friend to print this for me, he got this warning message (about the .stl files) : “Cannot guarantee the print of parts with walls or parts <1.0 mm. Although some processes can successfully produce parts with walls or thicknesses below this threshold, the problem lies in post-processing, during which the part can be exposed to high pressure air, water or other processes. It was found that walls and thicknesses below the threshold of 0.1 mm have a high probability of failure". Is it possible to update the .stl files ?
    Best regards.
    Phil

    Like

    Reply ↓

    • It is working very well for me. I’m alternating between two disks so far, and each of them had been filled around 10x times, and working fine. The machine came with one free disk and a voucher for 6 more free disks, so I have still 5 disks untouched, and saved a lot of money that way. One thing I noticed is that after two disks or so I need to clean the ‘down-falling’ channel with a long brush. But I have been told that this is needed with the non-refilled disks too, so not a real issue. After refilling, I always carefully close the openings with a tape to avoid moisiture getting into it. Happy refilling!

      Like

      Reply ↓

  14. Thanks for the extensive article! I’ve refilled all of my 7 disks at once, sealed them with painters tape and kept them in the closet. During the last few weeks the dishwasher displays prompts the AutoDos maintenance prompt (is the tunnel clean etc.) after almost every washing cycle. This gets somewhat annoying as the next cycle takes 2h longer. Anyone else with that problem? I’m suspecting that the detergent is slightly clogging up inside the disks?

    Like

    Reply ↓

    • I get that maintenance message about every second month, and from other posts this is normal. As for the refills: I’m using multiple layers of painters tape to make sure no humidity in storage or inside the machine gets into the disk. Make sure there cannot get any moisture into the auto-dos compartment: I have to clean from time to time the closing lid for this. Make sure the detergent funnel is clean (I use a dry brush to clean it). There is a good video here https://www.youtube.com/watch?v=Bchlflp6rps which shows the internals.

      Like

      Reply ↓

      • Ok thanks, that was helpfull! Propably my detergent is starting to clog up due to using only 1 layer of tape (and sitting in the closet for close to 1 year), I’ll refill the disks only if necessary from now on. Thanks!

        Like

        Reply ↓

      • Hi Ash,
        see the reply he posted: for sure you need to make sure that there is no moisture getting into the disc, so use better tape or use multiple layers.
        The other thing is that about ever month or two the machine will ask you to clean the tunnel: I’m using a dry brush to brush out any remaining detergents from the canal.

        Like

        Reply ↓

        • I decided to disassemble the autodos mechanism (this is actually moderately easy after removing a few screws on the front plate). I thoroughly cleaned the whole mechanism, there was some dried residue inside a flexible silicon tunnel which connects the tunnel with the lower (hidden) part of the mechanism. See the video posted above for insight on how autodos works. After I cleaned everything and reassembled it (took me around 20 minutes all in all) there are no more prompts…

          I must confess that I misunderstood the cleanings instructions at first as I rinsed the whole autodos tunnel with water WHILE still inside the machine, which is clearly an error on my part. Thankfully, it didn’t seem to cause any damage other than that dried residue.

          Not sure if all of this is necessary, I would try another powder first and/or a fresh power disk.

          Like

        • Cleaning that tunnel indeed then was the solution. I have not yet removed the front plate, so good to know it is possible. It could be that there was some moisture coming into the tunnel, and you might have to clean it that way with the original disks too.
          Thanks for sharing your solution!

          Like

        • Hi Erich,

          I’ll refill a new one and try again. Thanks for your information.

          Like

        • Make sure you clean the disk compartment and the falling down tunnel in the machine. I use a long dry brush from time to time. It could be that moisture from the machine gets up the tunnel and detergents can get stuck in it. I made once the mistake to flush it with water which is not a good idea: always keep the tunnel clean and dry.
          Good luck!

          Like

        • Well, yesterday the “cleaning prompt” showed up again after about 2 weeks of trouble free operation. I will try a new disk as soon as the current one is empty. Not sure, if dissassembling the whole autodos mechanism was helpful in getting rid of the prompt (but I wanted to dissassemble it anyway to check for water damage). I think what helped was that I put the powerdisk on our radiator and let it dry for a few hours.

          Long story short: it’s probably just clogged up/damp detergent which causes the cleaning prompt.

          Like

  15. But the power disc is an all in one so contains salt, detergent and rinse aid.

    The powder you refilled is just detergent?

    or did you manage to get an all in one mix?

    Like

    Reply ↓

  16. Thanks a lot for this great idea and advice! Meanwhile I found this solution for a Powerdisk lid which I guess I will give a try:

    Anyway, at the moment I am facing issues with the detergent I am using: It’s Somat by Henkel, bought in Germany. The consistency is very powdery, almost like flour. Not like granules, completely different from the original Miele detergent. For 4 cycles after the refill everything was fine. But now after each cycle the display either claims the Powerdisk is empty or needs to be checked, but no cleaning request.

    The unit is definitely clean and the Powerdisk is full. So I am sure this is because of the consistency of the detergent.

    So for all the readers in Germany: Could you please give me an advice for a detergent brand that really works for the Powerdisk refill?

    Thanks a lot.

    Best,

    George

    Like

    Reply ↓

    • Hi George,
      I think your issue is really with the consistency of your dishwashing detergent. It needs to be similar to the one in the original disk (some kind of sand structure), otherwise it will clog the optical sensor down in the funnel. There is another comment on this how you would need to open the door and clean the sensor.

      Like

      Reply ↓

      • Hi Erich,

        thanks a lot. Meanwhile I found a perfect solution:

        Like

        Reply ↓

        • Hi George,
          good idea to replace the lid foil with a 3D printed one. It definitely makes refilling easier that way. I do not have transparent material, so I would loose the window for checking how much powder is still in the disk.

          Like

        • Hi Erich,
          yeah, now refilling is a matter of seconds. The company where I ordered the print did not offer any transparent options either so I chose a non-transparent one. But I can rely on the Miele app and the dishwasher display to inform in time when the Powerdisk is empty.

          Like

    • We use Finish Classic pulver to refill PowerDisks with and haven’t had any issues other than overfilling which can result in no powder being dispensed so suggest filling by weight to approximately 450 grammes.

      Like

      Reply ↓

  17. Thanks a lot for this wonderful hack. I have been refilling my Power Disks for well over a year with absolutely no problems. In the USA, Finish powder has been discontinued so I have been using Cascade Complete Powder. I use my dishwasher at least once if not twice a day (make all meals from scratch and have lots of prep dishes). Cleaning results are excellent just as they were when using the original Miele powder detergent in the disc before refilling with my detergent. Recently I have refilled the disks with Walmart brand Great Value Powder and results also excellent. This hack is such a great money saver. THANKS!!!

    Like

    Reply ↓

    • Thanks for your insights, and glad to hear that hack has been useful for you. I have used my two (alternating) disks for 2 and a half year now, and each has been refilled more than 10 times. I’m very happy with it too, and it works perfectly. After two or three disks there is a message to clean the canal down into the machine (I guess this is normal). I brush through it with a dry brush, and that’s it.

      Like

      Reply ↓

      • When you brush through the channel, does the brush come all the way through the channel so you can see it where the powder comes out? I ask because I put a straw cleaner in mine and it doesn’t go all the way through and I’m getting the AutoDos Maintenance message every couple days. So I want to know if I’m cleaning the channel properly. I’ve been refilling with Cascade and Seventh Generation for about 18 months, except for using 3 of the manufacturer’s disks.

        Like

        Reply ↓

        • Yes, I’m able to get my brush all the way through the channel. The channel bends somewhat at the end, so it takes me a few tries to get through it.

          Like
