Using the 8 MHz Crystal on the FRDM-KL25Z Freedom Board

The ARM Cortex-M0+ on the KL25Z Freedom Board (FRDM-KL25Z) runs up to 48 MHz. For this, the 8 MHz crystal on the board is used. A 48 MHz is required for USB communication, to have the needed oversampling on USB data lines. I have shown in my USB CDC post how such a clock is configured, using the white pre-production board. To my surprise, when I tried the same code on the black production boards, it did not work on the production black boards. Even worse: it worked on some, but not on every board :-(.

What I observed with the debugger was this: the microprocessor hangs during clock initialization (line 3 below):

/* MCG_C6: LOLIE0=0,PLLS=0,CME0=0,VDIV0=0 */
MCG_C6 = 0x00U;
while((MCG_S & MCG_S_IREFST_MASK) != 0x00U) { /* Check that the source of the FLL reference clock is the external reference clock. */
}

So definitely something is different between the boards in respect to the clock setup? Having a close look to the boards indeed shows a difference:

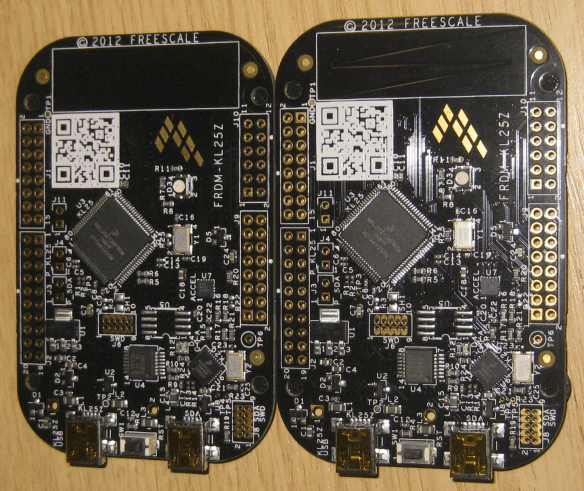

Can you spot the difference?

Can you spot the difference?

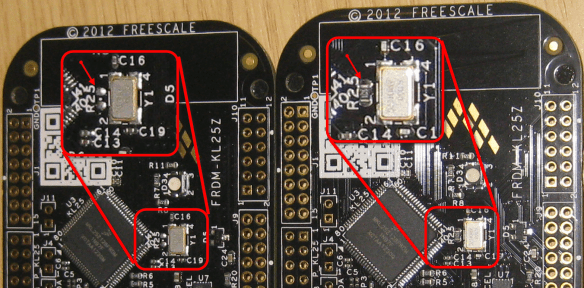

Having a closer look makes it more obvious:

R25 difference

R25 difference

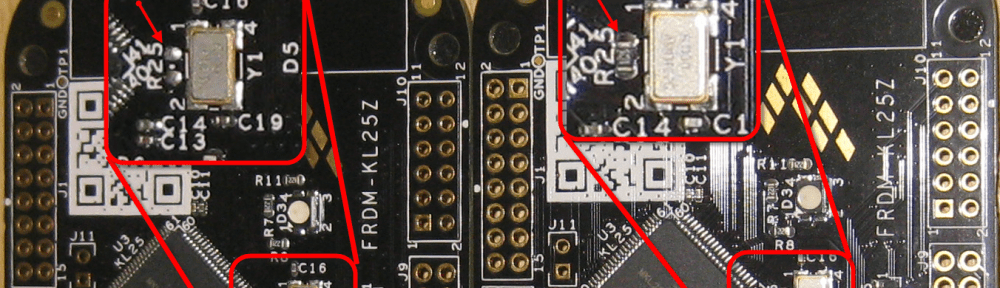

The difference is that R25 is populated on the left board, but not on right one. I find that R25 1 MOhm resistor populated on the ‘white’ pre-production Freedom Boards (see my first Freedom board post).

Checking the latest schematics of the board on the element14 site, it shows that R25 as marked as DNP (Do Not Populate):

DNP R25

DNP R25

But black boards get shipped with or without that R25 populated (see as well the comment in this post by luismgc).

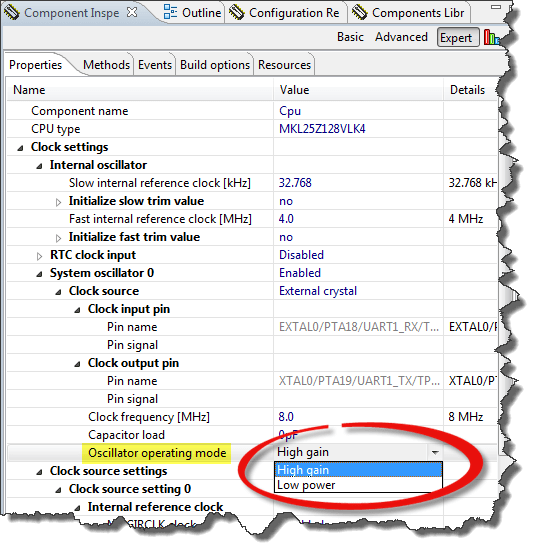

In order to get the 48 MHz clock working with a board without R25, I need to set the clock configuration to ‘low power’ mode. That setting is controlled by the CPU Processor Expert properties:

Oszillator operating mode

Oszillator operating mode

This setting is reflected in the HGO0 bit of the MCG_C2 of the Kinetis processor. In ‘high gain’ mode, this bit is set to 1:

/* MCG_C2: LOCRE0=0,??=0,RANGE0=2,HGO0=1,EREFS0=1,LP=0,IRCS=1 */
MCG_C2 = MCG_C2_RANGE0(0x02) |
MCG_C2_HGO0_MASK |
MCG_C2_EREFS0_MASK |
MCG_C2_IRCS_MASK;

In ‘low power’ mode, this HGO0 bit is set to zero:

/* MCG_C2: LOCRE0=0,??=0,RANGE0=2,HGO0=0,EREFS0=1,LP=0,IRCS=1 */
MCG_C2 = (MCG_C2_RANGE0(0x02) | MCG_C2_EREFS0_MASK | MCG_C2_IRCS_MASK);

So depending on that bit, and depending on your crystal circuit, the clock initialization will work or not.

Note: Not having that R25 on the board makes sense from a low power perspective: there should be less leaking current without this 1 MOhm resistor.

Conclusions

  1. Carefully check the clock circuit on your board. That R25 1 MOhm Resistor might or might not be populated on the board.
  2. The resistor is *not* populated, a clock configuration in ‘high gain’ mode will fail.
  3. ‘Low power’ oscillator mode (‘high gain’ *not* set) works on both clock circuit variants.
  4. If downloading/using existing code, check the board configuration it was created for (with or without resistor), and if has the HGO flag set or not.
  5. Even with ‘same’ boards, it is worth to have a look at the actual board components. Maybe something is missing like this R25.

Happy Resisting 🙂
